- Preliminary work
- Removing side-panel lining at rear
- Installing side-panel lining at rear
- Subsequent work

Preliminary work

Preliminary work

1. Remove the B-pillar trim. → 706719 Removing and installing B-pillar trim - "Removing"

section

2. Remove back seat cushion. → 745719 Removing and installing back seat cushion - chapter on

"Removing" [997410 997411 997430 997431]→ 745719 Removing and installing back seat cushion -
chapter on "Removing" [997110 997111 997120 997121]

Removing side-panel lining at rear

Removing side-panel lining at rear

Installation Location:

3085

Installation location for rear side trim panel

1. Release rear backrest and fold it forward.

Removing collar of opening for belt

2. Pull collar of opening for belt -1- up and off.

Undoing side trim panel

3. Unscrew fastening screw -1- from the side trim panel -2- .

Diagnostic system: reading out fault memory and activating systems

Removing side-panel lining at rear

3086

Removing side trim panel

4. Unscrew locking pins -1- , remove stop -2- .

5. Pull side trim panel locking tabs -3- out of the clamp in the rear side panel. Lift side trim panel

locking tabs on lower side member and guide them out.

Disconnecting loudspeaker

ATTENTION

Voltage peaks can damage the audio system.

→ Before unplugging/removing audio components, remove ignition key and switch off

audio system.

6. Disconnect electric plug connection -1- on loudspeaker -2- and remove side trim panel -3- .

Installing side-panel lining at rear

Installing rear side trim panel

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing side-panel lining at rear

3087

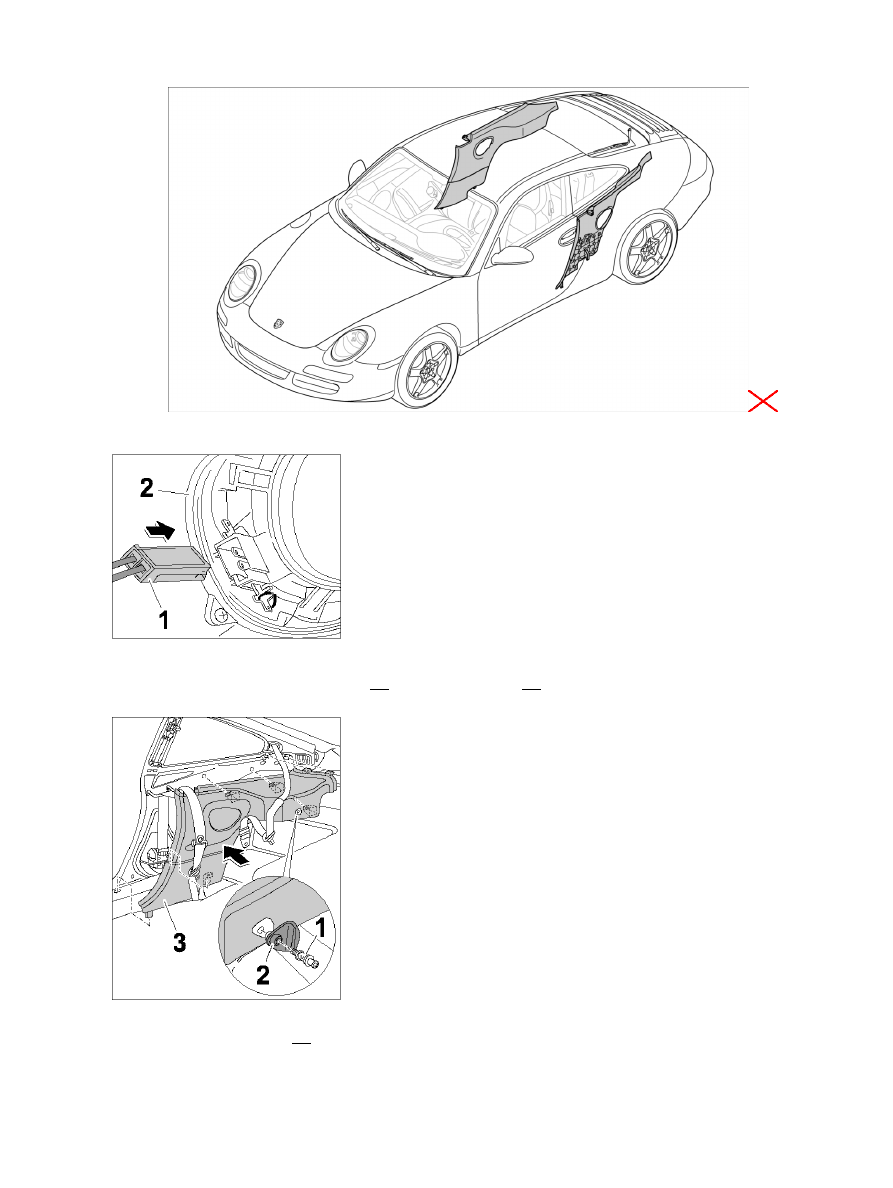

Installation location for rear side trim panel

Plugging in loudspeaker

1. Plug in the electric plug connection -1- on the loudspeaker -2- .

Installing side trim panel

2. Position side trim panel -3- on the inside of the rear side section and the inside of the lower side

member and press the locking tabs into the clamps.

3.

Diagnostic system: reading out fault memory and activating systems

Installing rear side trim panel

3088
