Porshe 911 (997). Manual - part 703

- Preliminary work
- Removing trim under the dashboard on the driver's side
- Installing trim under instrument panel on driver's side
- Removing and installing the cover under the instrument panel on the passenger's side
- Reworking

Preliminary work

Preliminary work

Remove main light switch. → 940519 Removing and installing main light switch - removing
Removing cover for instrument panel into place on left → 701619 Removing and installing dashboard cover -
removing
Remove top steering-column trim. → 481319 21 Removing and installing trim panel - "Removing" chapter
Remove left centre console cover. → 681419 Removing and installing centre console cover - chapter on
"Removing"

Removing trim under the dashboard on the driver's side

Removing trim under the dashboard on the driver's side

Installation Location:

2969

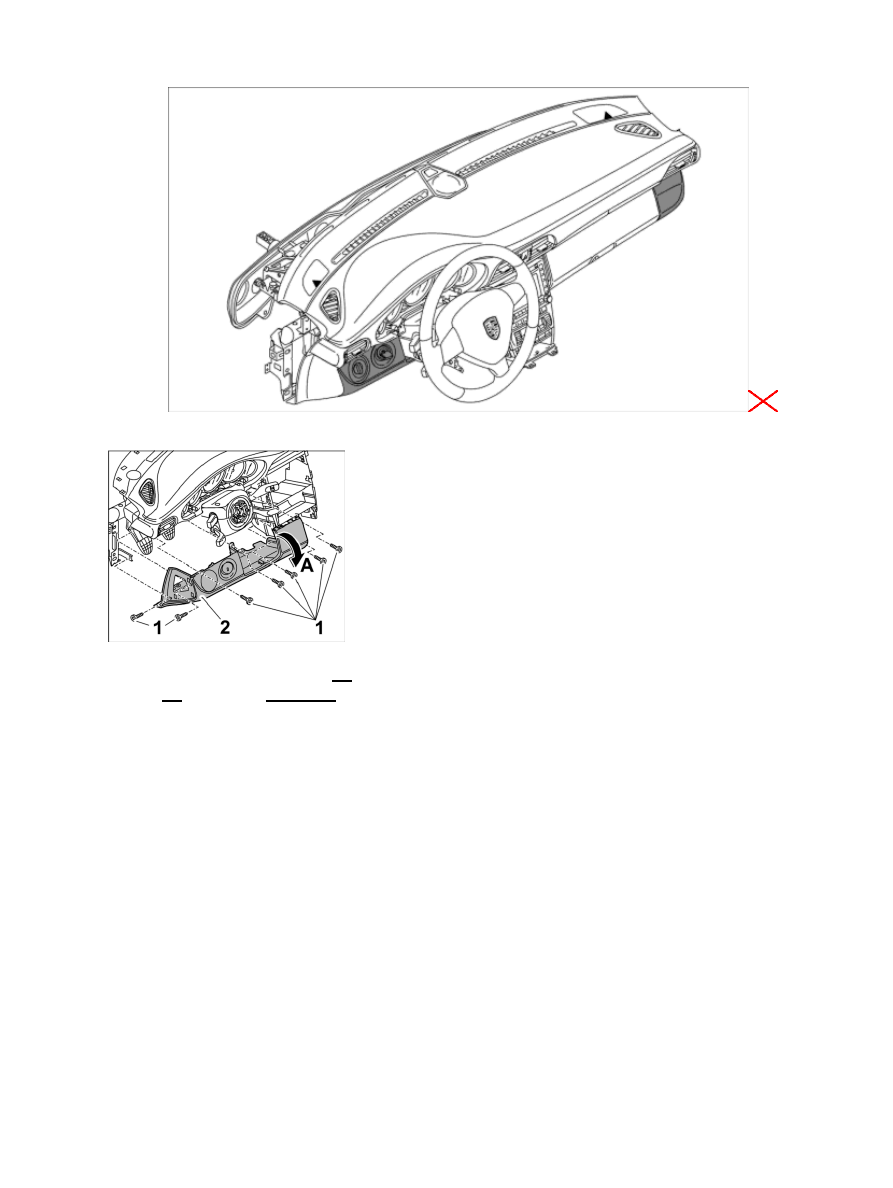

Overview, cover under instrument panel

Removing lining

1. Unscrew the fastening screws -1- and swivel the cover under the instrument panel on the driver's

side -2- downwards -arrow A- .

Disconnecting the electrical plug connections

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Removing trim under the dashboard on the driver's side

2970

Overview, cover under instrument panel

Disconnecting the electrical plug connections

1. Release plug connections -1, 2, 3- and remove -arrows A- .

Installing trim under instrument panel on driver's side

Locking electrical plug connections

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Disconnecting the electrical plug connections

2971

Overview, cover under instrument panel

Locking electrical plug connections

1. Push on plug connections -1, 2, 3- -arrows A- , until the locking tabs engage

audibly.

Installing trim under dashboard on the driver's side

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Locking electrical plug connections

2972
