Porshe 911 (997). Manual - part 543

ATTENTION

Damage to hydraulic lines.

→ Do not bend, trap or crush hydraulic lines when removing and installing.

→ Pay special attention when routing hydraulic lines in the clips.

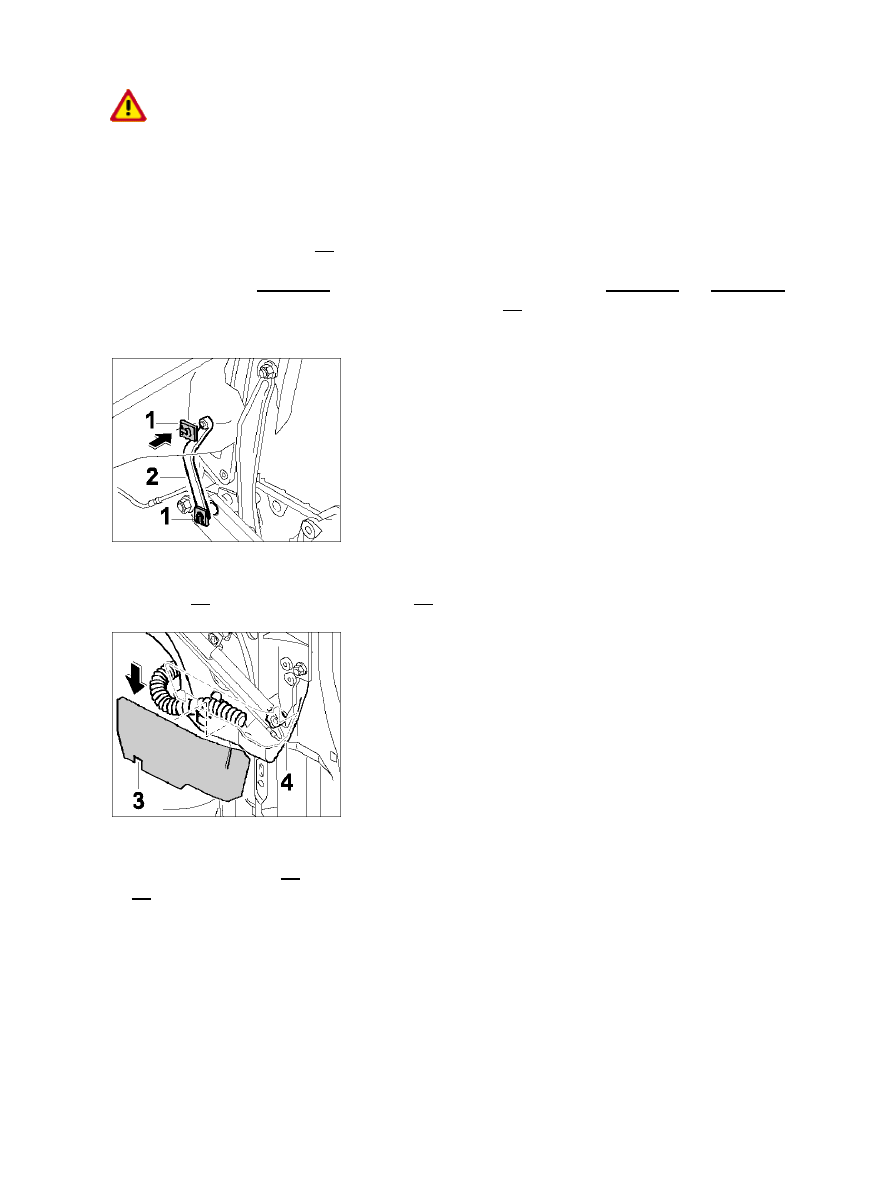

1. Position hydraulic cylinder -6- with the lever on the convertible-top support. Insert potentiometer fork into

the pin of the hydraulic housing (on the left side only).
Lay hydraulic line -Figure A- in the clip under the water drain hose. In -Figure B- and -Figure C- press
the hydraulic lines into the clips. Tighten fastening nuts -5- . → Tightening torque: 17 (13 ftlb.) Nm +/-2
(1.5 ftlb.) Nm

Installing lever

2. Fit lever -2- and secure with retaining clip -1- .

Installing protection plate

3. Insert protection plate -3- in chamber of water drip pan

-4-

 .

Installing hydraulic pump

Installation Location:

Diagnostic system: reading out fault memory and activating systems

Installing hydraulic cylinder

2329

Installation location for hydraulic pump

ATTENTION

Damage to hydraulic lines.

→ Do not bend, trap or crush hydraulic lines when removing and installing.

→ Pay special attention when routing hydraulic lines in the clips.

Note

Always replace sealing rings.

Connecting hydraulic line

1. Screw down silent mount -5- .

2.

Diagnostic system: reading out fault memory and activating systems

Installing hydraulic pump

2330

Push on sealing rings -3, 4- and hydraulic lines -A- with the red ring. Screw in banjo bolt -2A- on the
lower or right side of the hydraulic pump -1- . Tightening torque → Tightening torque: 9 ftlb. +1.5 ftlb.

3. Push on sealing rings -3, 4- and hydraulic lines -B- with the blue ring. Screw in banjo bolt -2B- on

the upper or left side of the hydraulic pump -1- . Tightening torque → Tightening torque: 9 ftlb.
+1.5 ftlb.

Fastening hydraulic pump

4. Position hydraulic pump -3- on holder for hydraulic pump -4- -arrow A- and screw down the fastening

nuts -2- .

5. Push in rubber holder -1- in support for hydraulic pump -arrow B- .

Locking electric plug connection for hydraulic pump

Installation Location:

Installation location for hydraulic pump

Diagnostic system: reading out fault memory and activating systems

Locking electric plug connection for hydraulic pump

2331

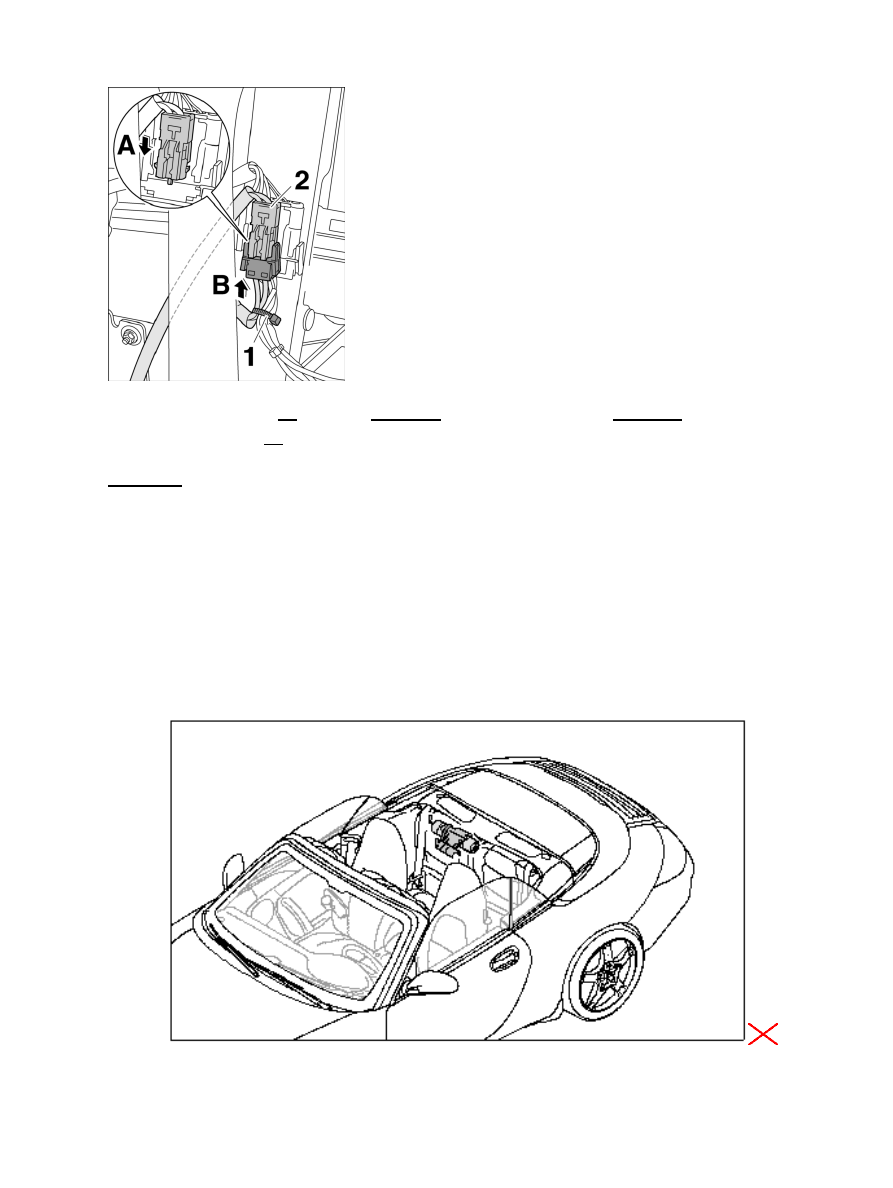

Locking plug connection for hydraulic pump

1. Push plug connection -2- in bracket -arrow A- and join plug connection -arrow B- .

2. Insert new tie-wrap -1- around wire harness for hydraulic pump and fasten.

Opening and closing hydraulic valve of the hydraulic pump

Access for opening and closing the hydraulic valve

Installation Location:

Installation location for hydraulic pump

Diagnostic system: reading out fault memory and activating systems

 Opening and closing hydraulic valve of the hydraulic pump

2332
