1. Remove drive shaft on transmission side. To do this, unscrew the six Allen screws joining the drive

shaft and halfshaft flange.

2. Remove spacer ring.

Upper control arms

3. Undo both upper control arms at the outside and remove

screws.

Fastening screw for halfshaft flange

4. Unscrew fastening screw for halfshaft flange. To do this, screw two drive shaft screws into the halfshaft

flange for countering purposes and loosen fastening screw.

5. Press wheel carrier downwards and pull out halfshaft flange.

Installing short halfshaft flange

Installing short halfshaft flange

1. Push halfshaft flange into transmission.

Diagnostic system: reading out fault memory and activating systems

Removing short halfshaft flange

1085

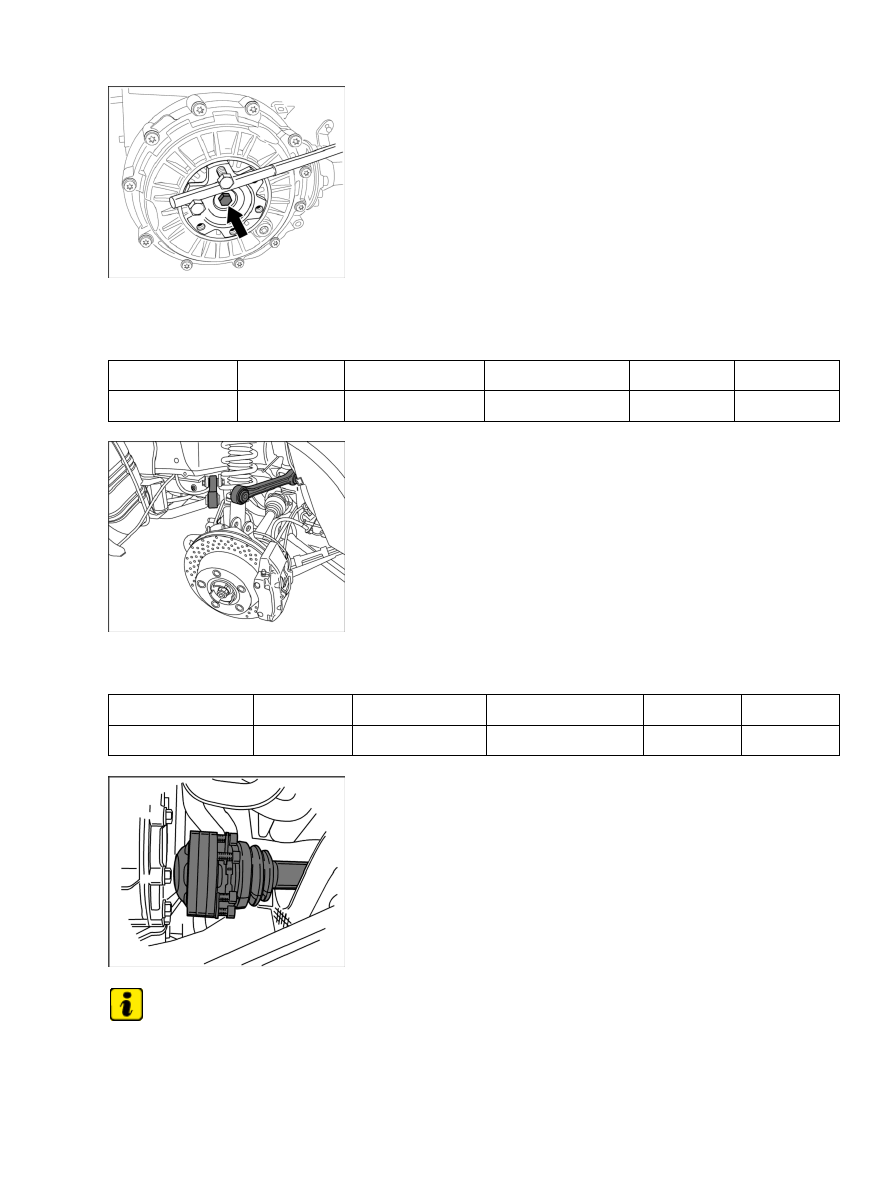

Fastening screw for halfshaft flange

2. Screw in fastening screw for halfshaft flange. To do this, screw two drive shaft screws into the halfshaft

flange for countering purposes and tighten fastening screw.

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Halfshaft flange

Tightening torque

46 (34) Nm (ftlb.)

Upper control arms

3. Screw in and tighten fastening screws for upper control arms.

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Upper control arms

Tightening torque

110 (81.5) Nm (ftlb.)

Drive shaft

Note

Protect drive shafts against mechanical damage (e.g. with a rubber hose which has been cut open).

4.

Diagnostic system: reading out fault memory and activating systems

Installing short halfshaft flange

1086

Fit drive shaft on transmission side. To do this, screw in the six Allen screws joining drive shaft
and transmission flange and tighten screws.

Location

Explanation

Type

Basic value

Tolerance

1

Tolerance

2

Drive
shafts

Fastening screws between drive shaft
and halfshaft flange

Tightening
torque

81 (60) Nm

(ftlb.)

Subsequent work

Subsequent work

1. Fit right rear wheel. → 440519 Removing and installing wheel - installing

2. Check transmission oil level in the final drive and top up if necessary. → 399035 Checking and topping up

oil for final drive

3. Fit the underbody panel. → 519419 Removing and installing rear cover - chapter on

"installing"

4. Lower the vehicle.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
