Porshe 911 (997). Manual - part 188

Transmission support

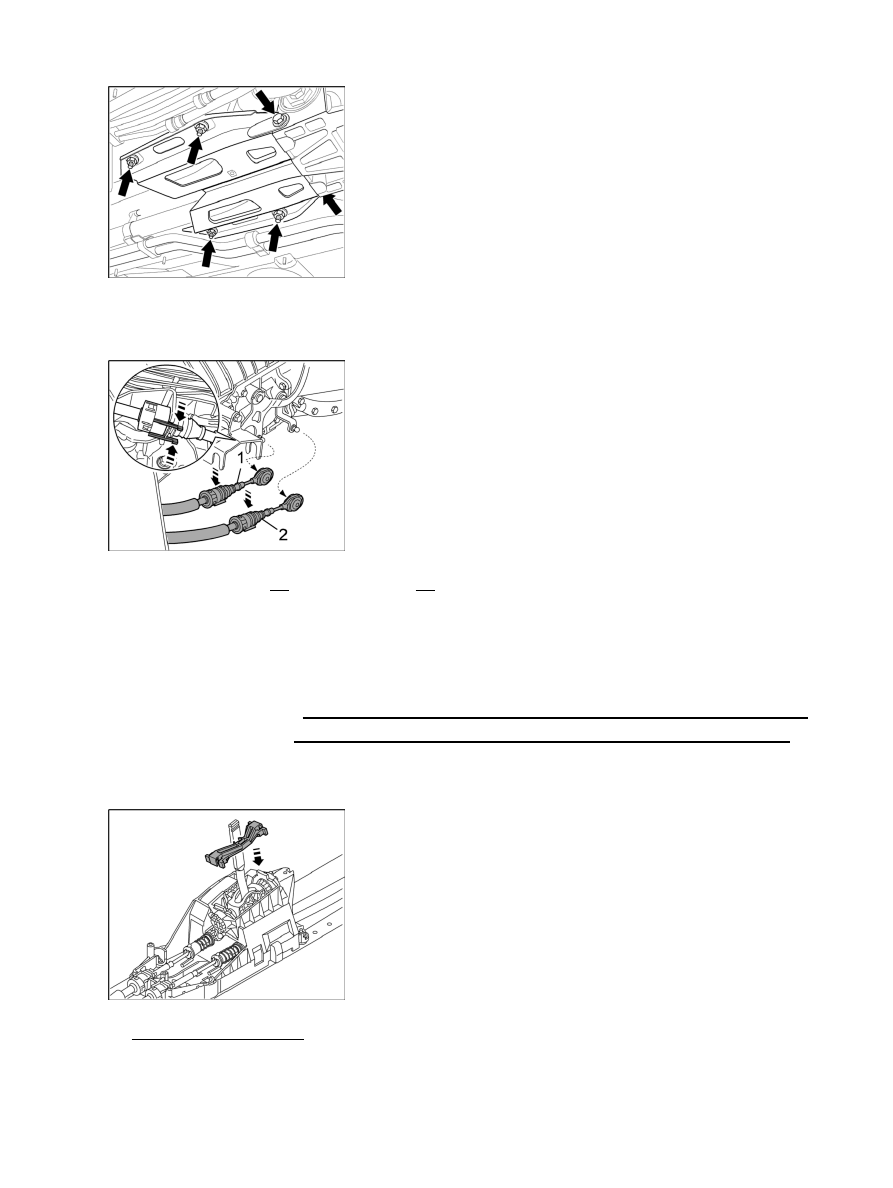

1. Remove transmission support.

Removing shift and selector cables

2. Lever off shift cable -1- and selector cable -2- at the transmission external shift mechanism with a

screwdriver and detach the shift and selector cables from the support bracket.

Detaching shift and selector cables inside vehicle

1. Remove shift lever knob. → 340419 Removing and installing shift lever knob - section on "Removing"

2. Remove centre console. → 681719 Removing and installing centre console - section on "Removing"

3. Loosen parking-brake lever. → 466119 21 Removing and installing parking-brake lever - section

on "Removing"

Fitting locking bridge

4. Locking bridge P 9619/1 must be fitted on the gearshift

bracket.

Diagnostic system: reading out fault memory and activating systems

Detaching shift and selector cables at transmission

909

Opening bayonet lock

5. Open bayonet locks at preselector and shift connections.

Detaching shift cables

6. Detach adjustment pins at preselector and shift connections.

Unclipping supports

7. Unclip supports on the gearshift bracket.

8. Push rubber sleeve out through the opening in the body.

Installing shift and selector cables

Fastening shift and select. cables to the transmission

Diagnostic system: reading out fault memory and activating systems

Detaching shift and selector cables inside vehicle

910

Note

The shift and selector cables must be routed above the transmission support.

1. Press the shift and selector cables through the body opening from

below.

Rubber sleeve in body opening

2. Apply a coating of lubricant (e.g. Contifix tyre mounting paste) on the rubber sleeve and B+ wire in the

area of the body opening, insert the B+ wire in the rubber sleeve and press rubber sleeve into the body
opening.

Connecting shift cable

3. Engage shift -1- (grey end piece) and selector cable -2- (blue end piece) into support bracket for

transmission and press end pieces onto ball heads.

Transmission support

4. Fit transmission support.

Location

Explanation

Type

Basic value

Tolerance 1

Tolerance 2

Diagnostic system: reading out fault memory and activating systems

Fastening shift and select. cables to the transmission

911

Transmission support

Tightening torque

48 ftlb.

Securing shift and selector cables inside vehicle

Note

During installation of the shift and selector cables, the transmission must be engaged in neutral.

Fitting locking bridge

1. Locking bridge P 9619/1 must be fitted on the gearshift

bracket.

Clipping in supports

2. Clip in supports on the gearshift bracket. The support with the blue hinged tube must be fitted on the left

and the support with the black hinged tube must be fitted on the right.

Diagnostic system: reading out fault memory and activating systems

Securing shift and selector cables inside vehicle

912
