Porshe 911 (997). Manual - part 180

Installing the torque-converter sealing ring

1. Thinly coat sealing lip of new sealing ring with

Vaseline.

Fitting sealing ring

2. Drive in sealing ring with pressure piece 96700 as far as the mounting face.

Subsequent work

Installing the torque converter

Note

Before installing the torque converter, check the hub for scoring. If damaged, the converter must be replaced.

1. Move torque converter up to stop on the transmission input shaft.

ATTENTION

The ATF pump can be damaged if the torque converter is incorrectly positioned during refitting.

→ Note the installation position of the torque converter.

→ Check installation position of torque converter.

2. Press torque converter by hand into the converter bell housing and turn until the cutout of the converter

hub clicks into place in the driver of the impeller. The converter must slip inwards until it makes a noise.

Diagnostic system: reading out fault memory and activating systems

Installing the torque-converter sealing ring

877

Fixing the torque converter

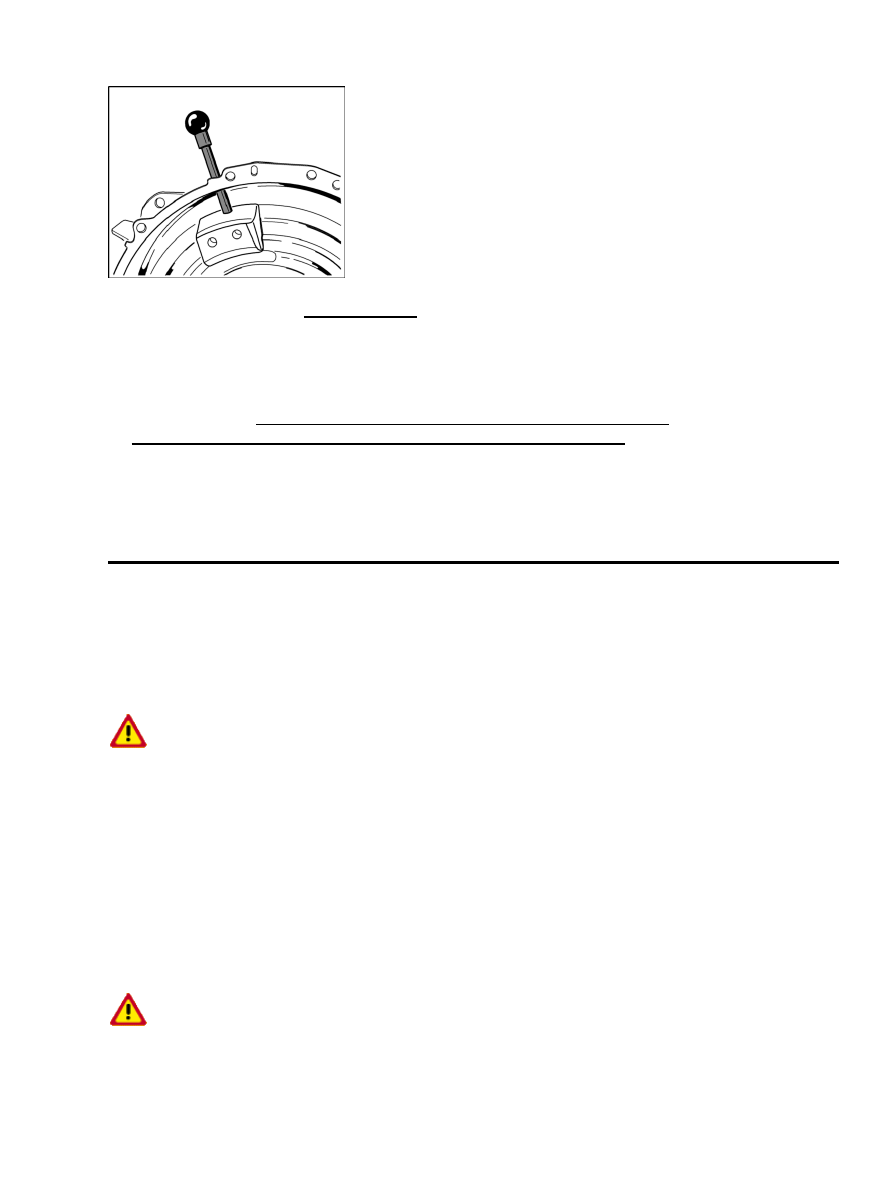

3. Fix torque converter with fixing pin 95951 (long) into installation position.

Reworking

1. Refit transmission → 373527 Removing and refitting the automatic transmission -

refitting [997110 997111 997120 997121 997310 997311 997320 997321]→ 373527
AG Removing and refitting the automatic transmission - refitting [997410 997411 997430
997431 997610 997611 997620 997621]

2. After installing the engine-transmission-unit, the ATF level is to be checked, and topped up as necessary.

→  35 Checking and topping up ATF - checking and topping up

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621
