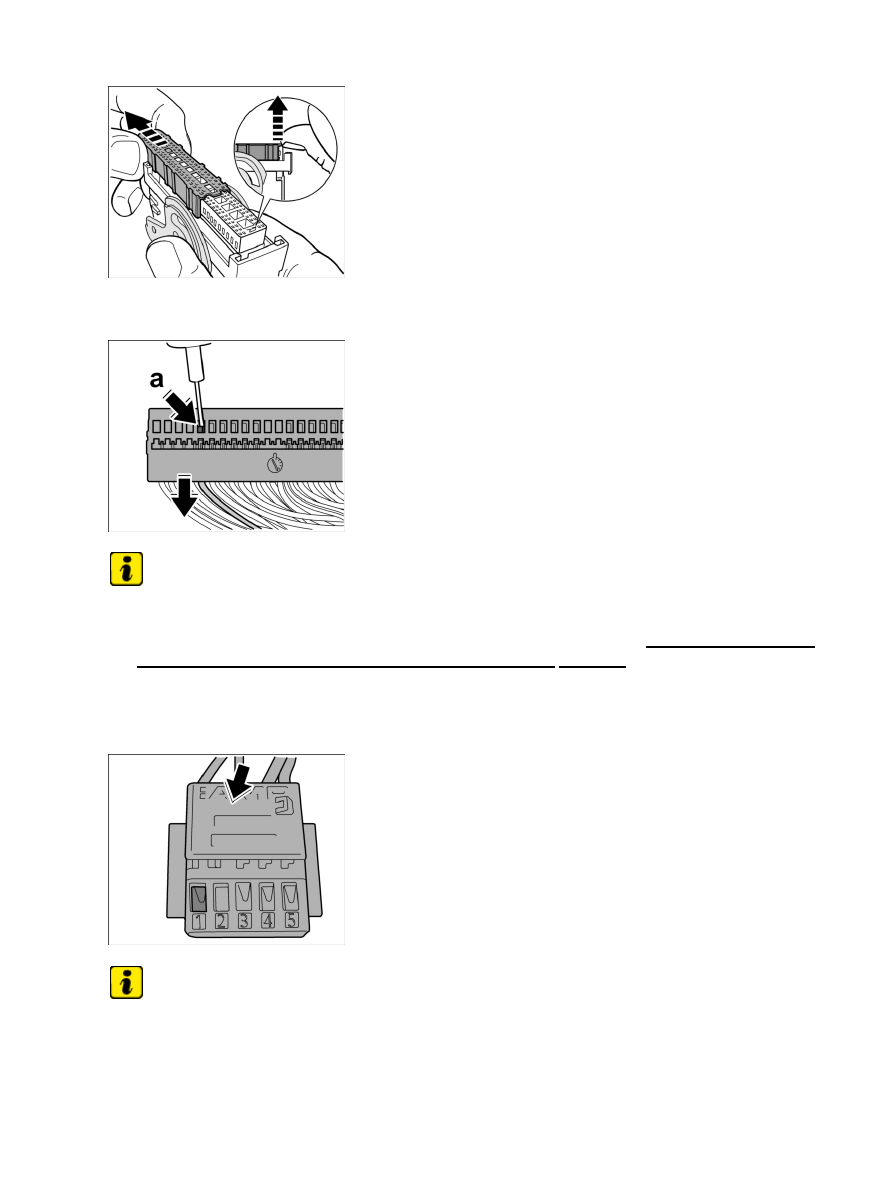

Removing connector guide from connector

13. Lift connector guide and remove from connector.

Pressing out the contacts

Note

Allocation of lines - see wiring diagram.

14. Release contact of the damaged line using the press-out tool 1575-1P of the press-out and unlocking

tools for flat and round plug connections of all sizes NR.155 -arrow a-

 and pull out of the contact

strip.

15. Cut off the contacts of the damaged lines, isolate them and secure them to the main wire harness

with tie-wraps.

Pressing in contacts on the contact strip

Note

Allocation of lines - see wiring diagram.

16. Push new lines into the contact strip until the contacts are felt to engage.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for airbag from the triggering unit to the A-pillar connection point

4489

Pushing connector guide onto the contact strip

17. Push connector guide onto the contact strip until it is felt to engage.

Inserting connector into the connector housing

18. Insert connector into the connector housing -arrow A- .

19. Insert locking mechanism into the connector housing and press in -arrow B- until it is felt to engage.

Pressing cap onto the connector housing

20. Press cap onto the connector housing until it is felt to engage.

21. Secure wire harness with a new tie-wrap -arrow- to the connector housing.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for airbag from the triggering unit to the A-pillar connection point

4490

Securing wire harness to the main wire harness

22. Route the new wire harness along the main wire harness, guide it through existing cable ducts and tie it to

the main wire harness using tie-wraps.

Pressing in the contacts

Note

Allocation of lines - see wiring diagram.

23. Plug new line into the contact strip until the contact is felt to

engage.

Pushing connector guide onto the connector

24. Push connector guide onto the connector until it is felt to engage.

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for airbag from the triggering unit to the A-pillar connection point

4491

Pushing connector housing onto the connector

25. Push connector housing onto the connector

25.1. Before fitting the connector housing, check for signs of damage, and replace if necessary. → 976600

 Airbag warning light activated: seal in plug connection of triggering unit defective

25.2. Push connector housing onto the connector until it is felt to engage.

Fitting tie-wrap at connector housing

26. Fasten wire harness with a new tie-wrap -arrow- to the connector housing.

Inserting seal of connector housing

27. Insert seal into the connector.

27.1. Before inserting the seal, check for signs of damage, and replace if necessary. → 976600  Airbag

warning light activated: seal in plug connection of triggering unit defective

27.2. Insert seal into the connector and press down as far as it will go. Check seal is seated properly.

28. Push on connector of triggering unit for airbag -10- until it is felt to engage, and lock it. → 695319

Removing and installing triggering unit for airbag - chapter on "Installing"

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for airbag from the triggering unit to the A-pillar connection point
