Porshe 911 (997). Manual - part 1073

Release and pull off connector -2- on motor for seat adjustment. → 728719 Removing and installing motor
for seat adjustment - section on "Removing"

3. Release and pull off connector -3- on motor for rear vertical adjustment. → 729219 Removing and

installing motor for rear vertical adjustment - section on "Removing"

4. Release and pull off connector -4- on motor for front vertical adjustment. → 728819 Removing and

installing motor for front vertical adjustment - section on "Removing"

5. Remove wire harness -A- .

6. Release and pull off connector -5- on control unit for memory seat adjustment. → 729319 Removing

and installing control unit for memory seat adjustment - section on "Removing"

7. Release and pull off connector on seat adjustment switch -6- . → 721619 Removing and installing control

module trim panel - section on "Removing"

8. Remove tie-wraps -7- and pull out wire harness -B- .

Installing wire harness for electrically adjustable seat

Installing wire harness for electrically adjustable seat

Note

Observe connector assignment!
Connect blue connector to the motor for fore-and-aft adjustment.
Connect white connector to the motor for front vertical adjustment.
Connect yellow connector to the motor for rear vertical adjustment.

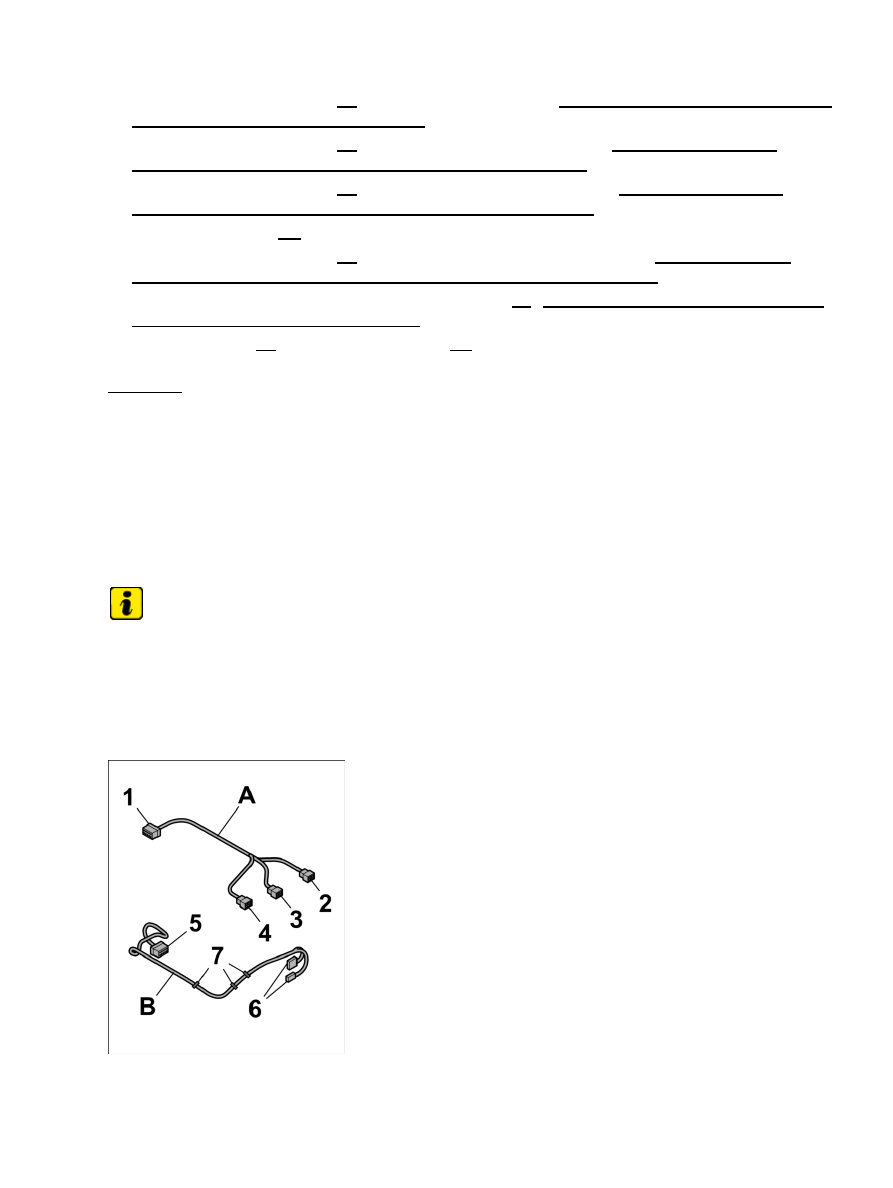

Connector overview for wire harness for electrically adjustable seat

Diagnostic system: reading out fault memory and activating systems

 Installing wire harness for electrically adjustable seat

4449

Connector overview for wire harness for electrically adjustable seat

A

- Wire harness for control unit for memory seat adjustment - seat adjustment motors

B

- Wire harness for seat adjustment switch - control unit for memory seat adjustment

1

- Connector (grey) for control unit for memory seat adjustment (with memory only)

2

- Connector for seat adjustment motor

3

- Connector for motor for rear vertical adjustment

4

- Connector for motor for front vertical adjustment

5

- Connector (black) for control unit for memory seat adjustment (with memory only)

6

- Plug connections for seat adjustment switch

7

- Tie-wraps

1. Route wire harness -B- and secure with new tie-wraps -7- .

2. Push on connector -6- on seat adjustment switch until it engages firmly. → 721619 Removing and

installing control module trim panel - section on "Installing"

3. Attach connector -5- to control unit for memory seat adjustment until it engages firmly. → 729319

Removing and installing control unit for memory seat adjustment - section on "Installing"

4. Route the wire harness -A- .

5. Attach connector -4- (white) to motor for front vertical adjustment until it engages firmly. → 728819

Removing and installing motor for front vertical adjustment - section on "Installing"

6. Attach connector -3- (yellow) to motor for rear vertical adjustment until it engages firmly. → 729219

Removing and installing motor for rear vertical adjustment - section on "Installing"

7. Attach connector -2- (blue) to motor for seat adjustment until it engages firmly. → 728719

Removing and installing motor for seat adjustment - section on "Installing"

8. Attach connector -1- to control unit for memory seat adjustment until it engages firmly. → 729319

Removing and installing control unit for memory seat adjustment - section on "Installing"

Subsequent work

Subsequent work

Install front seat. → 720119 Removing and installing front seat - section on "Installing"  [997110 997120
997310 997320 997410 997430 997610 997620]→ 720119 Removing and installing front seat - section on
"Installing"  [997111 997121 997311 997321 997411 997431 997611 997621]

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

Diagnostic system: reading out fault memory and activating systems

Installing wire harness for electrically adjustable seat

4450
