Porshe 911 (997). Manual - part 1050

Removing rubber sleeve

3. Remove rubber sleeve and pull out together with the wire harness for door from the A-pillar.

Removing wiring harness for door

Installation Location:

Overview of wiring harness for door

1. Remove door sub-frame. → 573019 Removing and installing door sub-frame - chapter on "removing"

Bass speaker

2. Release connector on woofer -arrows a- and pull off.

Diagnostic system: reading out fault memory and activating systems

Removing wiring harness for door

4357

Removing wiring harness for door

3. Unclip wire harness for door to the five retaining clips -arrows A- . Remove both rubber sleeves -arrow

B-

 and take off wire harness for door.

Removing wiring harness for door trim panel

Installation Location:

Overview of wiring harness for door trim panel

1

- Mirror adjustment switch connector

2

- Overview of switch connector for power windows

3

- Midrange loudspeaker connector

4

- Switch connector for memory seat adjustment

5

- Wire harness plug connection for door trim panel to door wire harness

6

- Door control module connector

7

- Door warning light connector

1. Release connector to switch for power windows -2- and remove. → 645819 Removing and installing

switch for power windows - chapter on "Removing"

Diagnostic system: reading out fault memory and activating systems

Removing wiring harness for door trim panel

4358

2. Release connector on midrange loudspeaker -3- and pull off. → 914119 Removing and installing

loudspeakers for front doors - chapter on "Removing"

3. Release connector on switch for memory seat adjustment -4- and remove. → 729419 Removing and

installing switch for memory seat adjustment - chapter on "Removing"

4. Pull off plug on door warning light -7- . → 961619 Removing and installing door warning light - chapter

on "Removing"

Removing wiring harness for door trim panel

5. Unclip connector of wire harness plug connection for door trim panel to door wire harness to the door trim

panel -arrow A- .

6. Remove wire harness in -direction of arrow- from the clips of door trim

panel.

Installing wiring harness for door

Installing wiring harness for door

Note

The wire harness for door spare parts scope means the scope for fully-equipped vehicles. Depending on the
vehicle equipment, connectors not required are tied to the wire harness for door using tie-wraps.
When doing this, ensure the lines are routed correctly so that no line becomes trapped or damaged.

Installation Location:

Diagnostic system: reading out fault memory and activating systems

 Installing wiring harness for door

4359

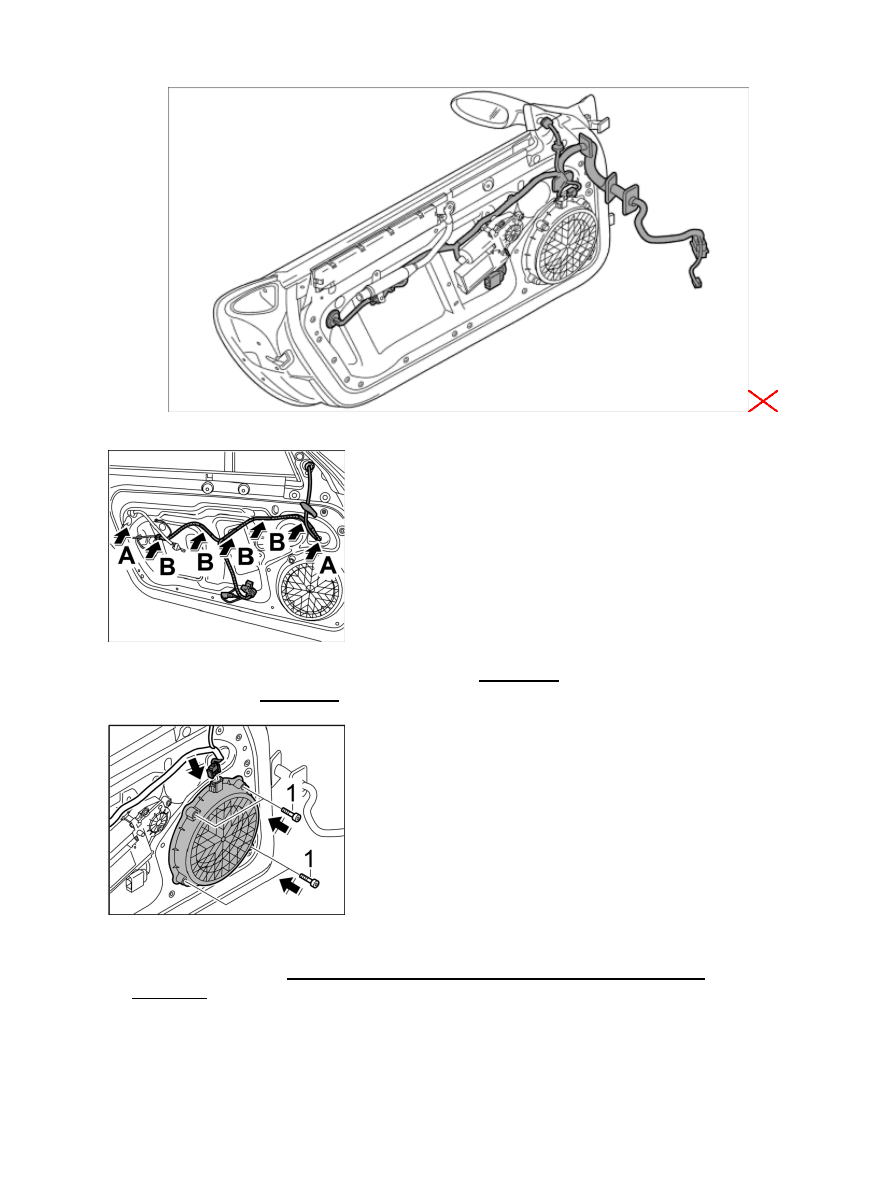

Overview of wiring harness for door

Installing wiring harness for door

1. Route wire harness for door. Fit both rubber sleeves -Arrows A- and clip in the wire harness for door with

five retaining clips -Arrows B- .

Bass speaker

2. Connect connector on woofer until connector is felt to engage.

3. Install door sub-frame. → 573019 Removing and installing door sub-frame - chapter on

"installing"

Diagnostic system: reading out fault memory and activating systems

Installing wiring harness for door

4360
