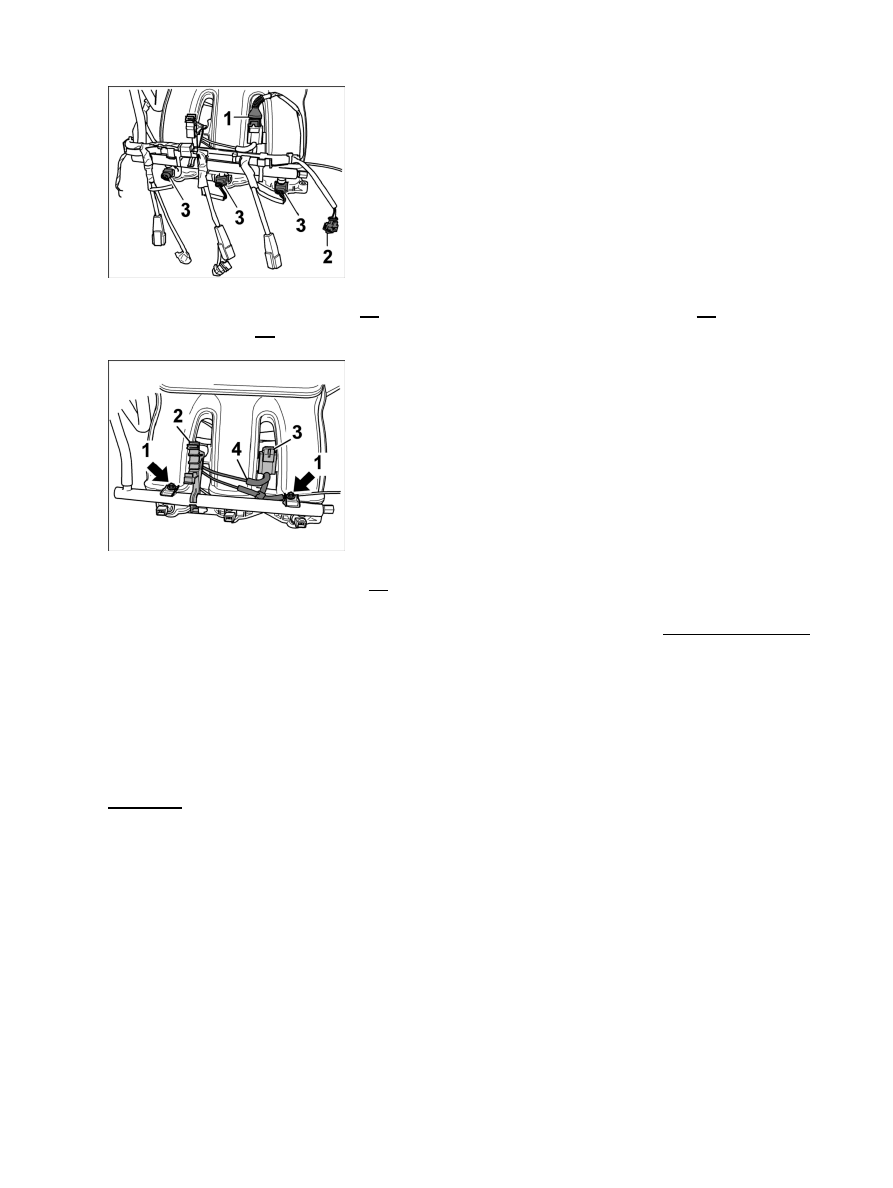

Cable plug for fuel injectors, hall sender, cycle valve 7. Unplug cable plug for cycle valve -1- on intake distributor 1-3, hall sender connector -2- and fuel injector connector -3- . Remove cable duct from fuel collection pipe and lay it down. Fuel distributor pipe 8. Unscrew both M6 fastening screws -1- on fuel collection pipe and position collection pipe diagonally as close as possible on the intake distributor, securing it with tie-wraps if necessary. 9. Lower engine by approx. 40 mm; to do this, support the engine using a jack and retainer plate P 9592. Undo and unscrew collar nuts on engine mounting. Lower engine carefully with the jack; if necessary, 10. Unscrew M6 collar nut for coolant container fastening to body. Pull coolant container out of holder and engine guide until it can be released in a downward direction. 11. Guide container to the rear and at an angle out of the engine compartment. 12. Absorb emerging coolant with a cloth. Installing reservoir for coolant Installing reservoir for coolant 1. Insert container into engine compartment, secure it in holder and guide, position and tighten M6 collar nut. → Tightening torque: 10 (7.5 ftlb.) Nm 2. Raise engine in installation position with jack, position and tighten collar nuts on pins. Remove retainer plate. → Tightening torque: 85 (63 ftlb.) Nm 3. Insert sensor for coolant-level indicator in container and engage cable plug. Diagnostic system: reading out fault memory and activating systems Installing reservoir for coolant 569 |
