Removing air guide for side radiator

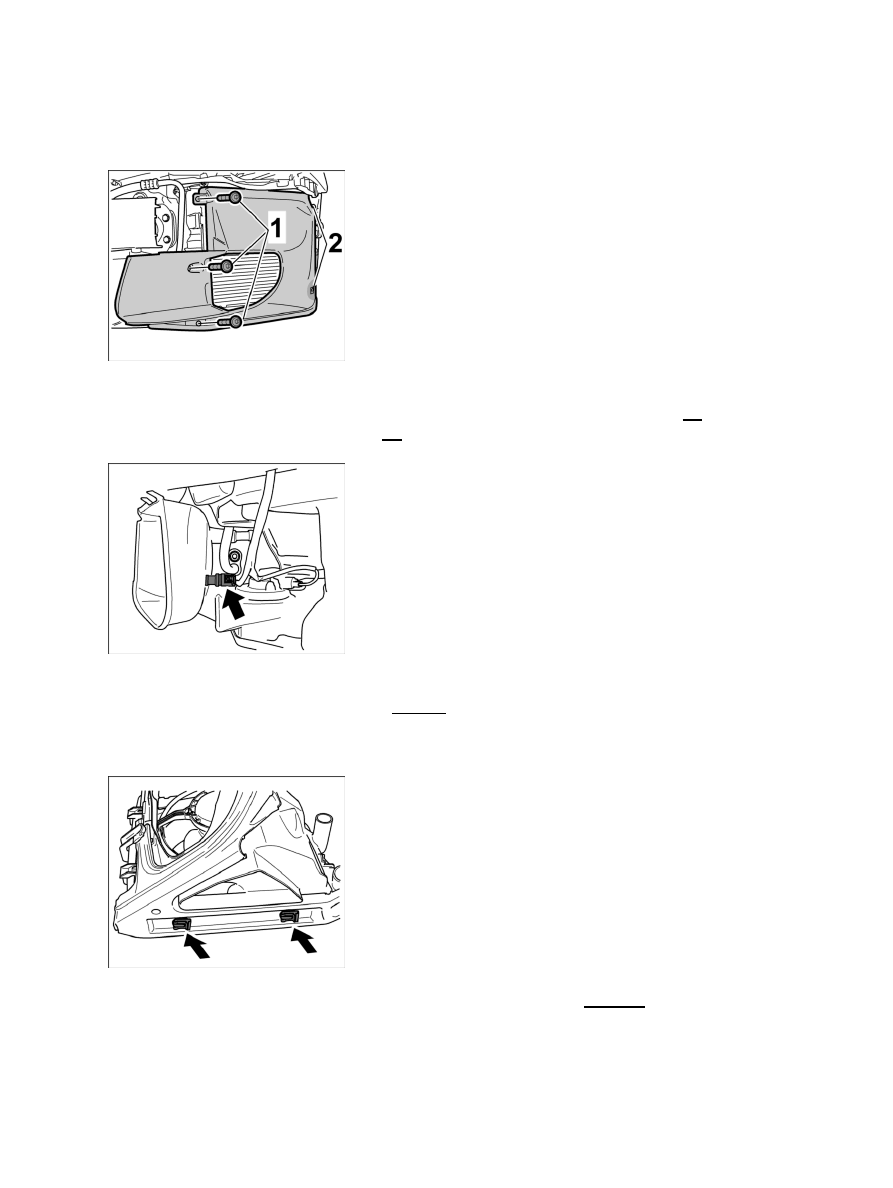

Air guide for side radiator

1. Remove the air guide at the left side. To do this, remove the three fastening screws -1- and pull the air

guide sideways out of the plastic tabs -2- .

Temperature sensor

2. Remove the air guide on the right side in the same way as on the left. The temperature sensor must also be

pulled out of the air guide from behind -arrow- .

The relevant radiator must be removed in order to remove the rear air guide. → 197019 21 Removing and
installing radiator - section on "Removing"

Bracket for side radiator

3. Remove the sheetmetal clips and washers under the radiator bracket -arrows- . To do this, release the

sheetmetal clips using a suitable screwdriver and push them sideways out of the plastic pegs of the
radiator. Pull the radiator from the bracket up out of the guide.

Diagnostic system: reading out fault memory and activating systems

Removing air guide for side radiator

549

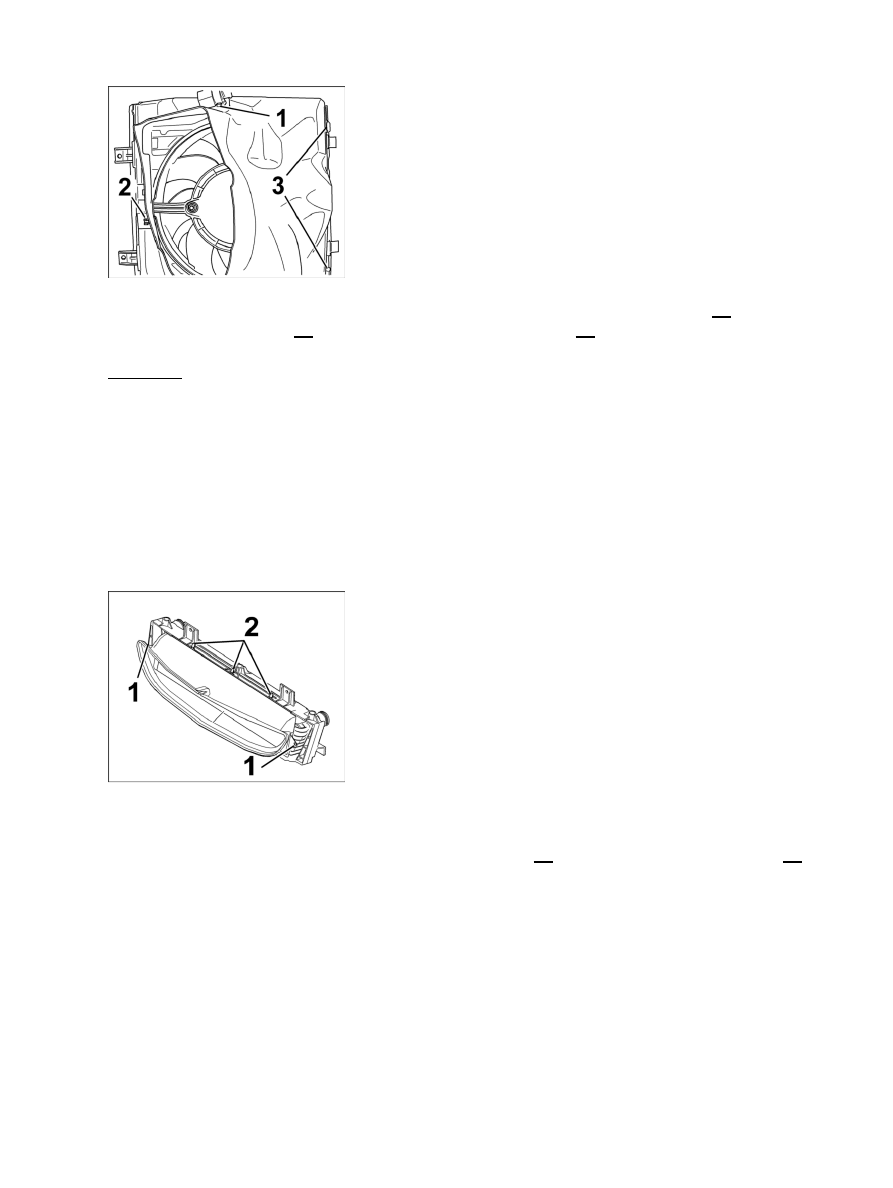

Air guide behind side radiator

4. Disengage the rear air guide from the cooling fan. To do this, disconnect the cable plug -1- and press

the plastic lock together -2- . Then, lift the air guide out of the tabs -3- .

Installing air guide

Installing air guide for middle radiator

Air guide

1. Fit air guide for middle radiator. Move air guide on radiator to installation position. To do this, press on

the right and left rubber tabs for the air guide on the radiator -1- . Push in the top three rubber tabs -2- .
Press the edge of the air guide around the radiator. Check that it is fitted correctly.

Installing air guide for side radiator

Diagnostic system: reading out fault memory and activating systems

 Installing air guide

550

Air duct behind side radiator

1. Fit rear air guide on cooling fan. To do this, push air guide into the tabs -3- and press air guide into the

lock -2- . Fit cable connector -1- .

2. Install side radiator → 197019 23 Removing and installing radiator - chapter on

"installing".

Air guide for side radiator

3. Fit air guide. To do this, push radiator sideways into the plastic tabs -2- and screw in 3 fastening

screws -1- .

Temperature sensor

4. Fit the air guide on the right side in the same way as on the left side. In addition, push the temperature

sensor into the air guide from behind -arrow- .

Diagnostic system: reading out fault memory and activating systems

Installing air guide for side radiator

551

Subsequent work

Subsequent work for installing air guide

→ 631519 Removing and installing front apron - chapter on "installing"
