Porshe 911 (997). Manual - part 13

Installing engine - subsequent work

1. Top up coolant and bleed cooling system →  A8  Draining and topping up coolant - topping up .

Support for rear spoiler

2. Position rear spoiler support with M6 hexagon-head bolt on the body -2- , do not tighten until after fitting

the rear spoiler. → Tightening torque: 7.5 ftlb.

3. Install lateral retaining brackets (heat shields) of rear spoiler→  23 Removing and installing bumper -

installing.

4. Install rear spoiler →  23  Removing and installing rear spoiler -installing .

5. Fit rear wheels, to tighten the wheel bolts use special tool socket wrench insert 300 . → 440519

Removing and installing wheel - installing. → Tightening torque: 96 ftlb.

6. Connect the battery →  A6  Work instructions after disconnecting the battery -

reconnecting .

7. Warm up engine to operating temperature and recheck the coolant level. Inspect all cooling system

connections that were opened during removal for leaks.

8. Check power steering fluid level (Pentosin) and top up if necessary →  01 Checking power steering

fluid level - checking.

9. Check engine oil level and top up if necessary →  01 Checking engine oil level -

checking.

10. Remove protective covers.

997110, 997111, 997120, 997121, 997310, 997311, 997320, 997321, 997410, 997411, 997430, 997431,
997610, 997611, 997620, 997621

WARNUNG

Gefahr des Verlusts der Text-Bild-Zuordnung beim Ausdruck.

Aus technischen Gründen kann derzeit nicht ausgeschlossen werden, dass trotz
einwandfreier Darstellung auf dem Bildschirm beim Ausdruck der
Zusammenhang von Text und zugehörigem Bild verloren geht.

•

Wird der Fehler nicht bemerkt, besteht die Gefahr, daß Arbeiten nicht korrekt
durchgeführt werden und es dadurch zu Personen- und Sachschäden kommt.

•

Diagnostic system: reading out fault memory and activating systems

Installing engine - subsequent work

209

→ Vergleichen Sie deshalb nach dem Druckvorgang unbedingt die Ausdrucke mit der
Bildschirmdarstellung. Korrigieren Sie die Ausdrucke im Fehlerfall so, daß der Inhalt der
Bildschirmdarstellung zutreffend wiedergegeben wird.

WARNING

Danger of losing text-figure correspondence when printing out.

For technical reasons, it can currently not be ruled out that the correspondence
between text and associated figure can be lost when it is printed out, even though
the display on the screen is correct.

•

If the fault is not noticed, there is the danger that work will not be performed
correctly which can cause injury and damage.

•

→ Therefore, always compare printouts with the screen display after printing them out. Correct
the printouts if they are faulty so that the content of the screen display matches that on the
printouts.

AVERTISSEMENT

Risque de perte de la correspondance texte-illustration lors de l'impression papier.

Pour des raisons techniques, il ne peut pas être exclu à l'heure actuelle que, même
en cas d'affichage correct à l'écran, la correspondance entre le texte et l'illustration
puisse être erronée sur l'impression papier.

•

Si l'erreur passe inaperçue, on court le risque d'exécuter certaines opérations de
manière incorrecte pouvant conduire à des dommages corporels et matériels.

•

→ Comparez impérativement pour cette raison les impressions papier avec l'affichage à l'écran.
Corrigez-les en cas d'erreur de manière à reproduire correctement l'affichage à l'écran.

ATTENZIONE

Pericolo di perdita dell'abbinamento testo-immagine nella stampa.

Per motivi tecnici non è escluso che, nonostante la rappresentazione sullo schermo
risulti perfetta, durante la stampa venga persa la corrispondenza fra testo e
relativa immagine.

•

Se tale difetto non viene rilevato vi è il pericolo che i lavori non siano eseguiti
correttamente; ciò può avere come conseguenza lesioni e danneggiamenti.

•

→ Per questo motivo, dopo la stampa è assolutamente necessario confrontare le stampe con la
rappresentazione sullo schermo. In caso di errore si prega di correggere le stampe, così da
garantire la riproduzione esatta della rappresentazione sullo schermo.

ADVERTENCIA

Al imprimir se corre el riesgo de perder la correcta asignación de las figuras al texto.

Diagnostic system: reading out fault memory and activating systems

Installing engine - subsequent work

210

Por motivos técnicos, por el momento no se puede descartar que, aun siendo
correcta la imagen que aparezca en la pantalla, al imprimir se pierda la
correlación entre el texto y la figura correspondiente.

•

Si este error pasara desapercibido, existe el riesgo de que los trabajos no se
ejecuten de forma correcta y, por tanto, se produzcan daños personales y
materiales.

•

→ Por ello le rogamos que tras el proceso de impresión compare siempre las copias impresas con
la imagen de la pantalla. En caso de error, corrija las copias impresas de forma que se
correspondan con el contenido de la imagen de la pantalla.

Diagnostic system: reading out fault memory and activating systems

Installing engine - subsequent work

211

10 01 37 Disassembling and assembling engine - as
of MY 2005

- Preliminary work for disassembling engine
- Component overview - engine
- Disassembling engine - up to crankcase
- Assembling engine - from crankcase
- Assembling engine, subsequent work

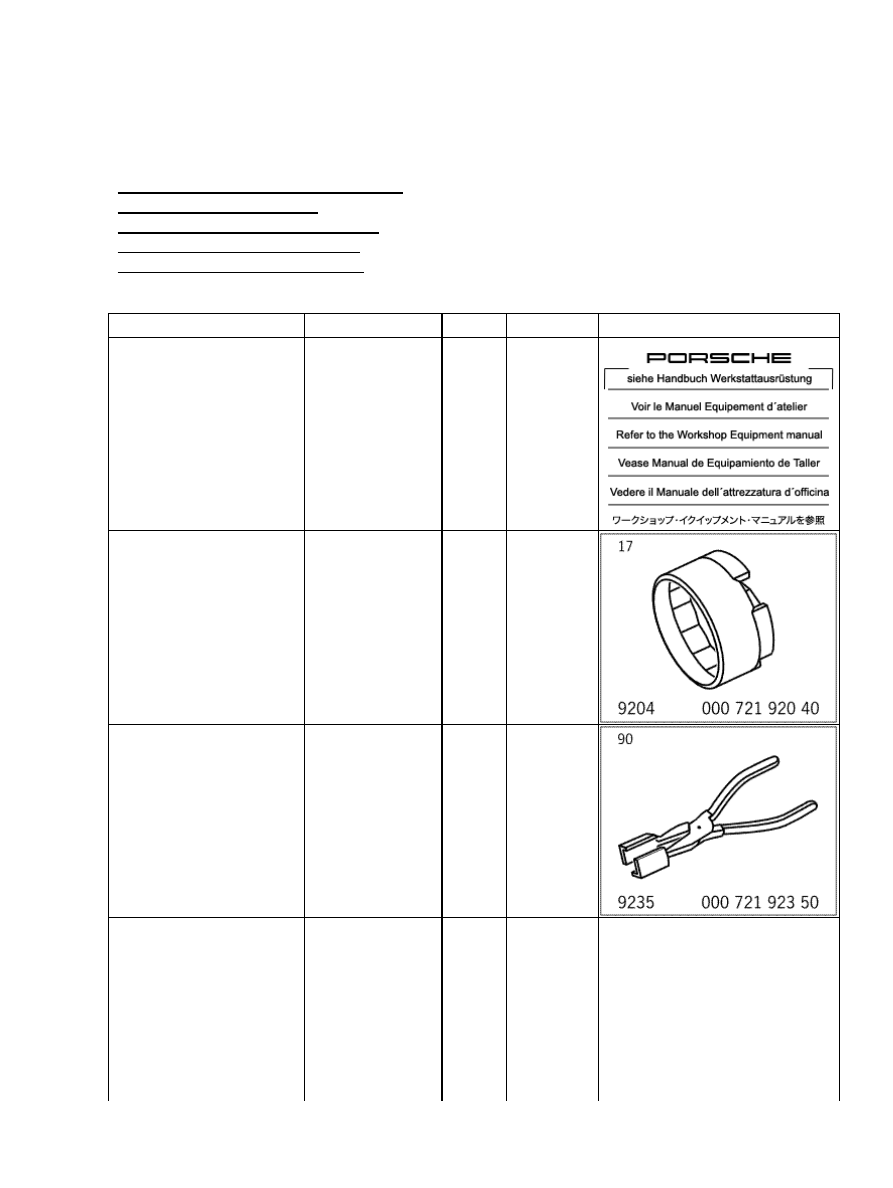

Tools
