TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 62

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 226 PERSONNEL HEATER WIRING
HARNESS

1

PAOZZ

11862

14076269

LEAD,ELECTRICAL

1

UOC:194,208

2

PAOZZ

96906

MS21333-112

CLAMP,LOOP

2

UOC:194,208

3

PAOZZ

24617

9423768

SCREW,CAP,HEXAGON H

2

UOC:194,208

4

PAOZZ

24617

9417714

WASHER,FLAT

2

UOC:194,208

5

PAOZZ

11862

14076811

WIRING HARNESS,BRAN

1

UOC:194,208

6

PAOZZ

11862

3816659

STRAP,LINE SUPPORTI

11

UOC:194,208

7

PAOZZ

11862

14076240

WIRING HARNESS,BRAN

1

UOC:194,208

8

PAOZZ

96906

MS21333-123

CLAMP,LOOP

3

UOC:194,208

9

PAOZZ

96906

MS21333-114

CLAMP,LOOP

1

UOC:194,208

10

PAOZZ

96906

MS35338-44

WASHER,LOCK

1

UOC:194,208

11

PAOZZ

96906

MS35691-406

NUT,PLAIN,HEXAGON

1

UOC:194,208

12

PAOZZ

11862

11504447

SCREW.TAPPING

2

UOC:194,208

13

PAOZZ

11862

3886908

GROMMET,NONMETALLIC

1

UOC:194,208

END OF FIGURE

226-1

SECTION II

TM 9-2320-289-20P

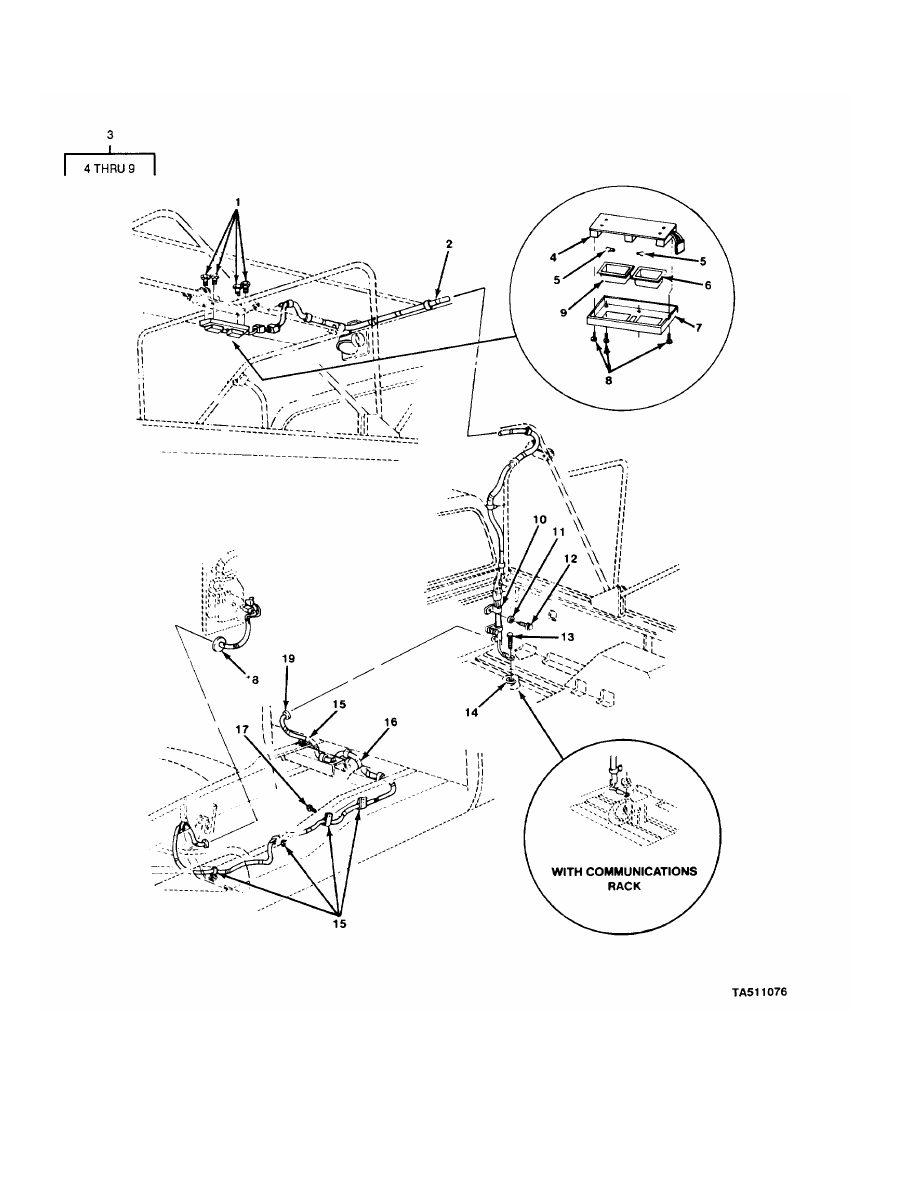

FIGURE 227. DOMELIGHT LAMP AND WIRING HARNESS (M1008 AND M1008A1).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 227 DOMELIGHT LAMP AND WIRING
HARNESS (M1008)

1

PAOZZ

96906

MS35206-245

SCREW,MACHINE

4

UOC:194,208

2

PAOZZ

11862

14076238

LEAD,ELECTRICAL

1

UOC:194,208

3

PAOOO

22973

922-900-00

LIGHT,DOME

1

UOC:194,208

4

PAOZZ

22973

922-910-00

.MOUNTING BASE,LIGHT

1

UOC:194,208

5

PAOZZ

08806

1003

.LAMP,INCANDESCENT

2

UOC:194,208

6

PAOZZ

22973

922-901-02

.LENS,LIGHT WHITE

1

UOC:194,208

7

PAOZZ

22973

922-904-02

.HOUSING,LIGHT

1

UOC:194,208

8

PAOZZ

96906

MS35206-226

.SCREW,MACHINE

6

UOC:194,208

9

PAOZZ

22973

922-901-01

.LENS,LIGHT BLUE

1

UOC:194,208

10

PAOZZ

96906

MS21333-112

CLAMP,LOOP

2

UOC:194,208

11

PAOZZ

24617

9417714

WASHER,FLAT

2

UOC:194,208

12

PAOZZ

96906

MS51850-64

SCREW,CAP,HEXAGON H

1

UOC:194,208

13

PAOZZ

96906

MS90728-6

SCREW,CAP,HEXAGON H

1

UOC:194,208

14

PAOZZ

24617

271172

NUT,SELF-LOCKING,AS

1

UOC:194,208

15

PAOZZ

96906

MS21333-123

CLAMP,LOOP

5

UOC:194,208

16

PAOZZ

11862

14076239

WIRING HARNESS,BRAN

1

UOC:194,208

17

PAOZZ

11862

11504447

SCREW,TAPPING

5

UOC:194,208

18

PAOZZ

11862

3918889

GROMMET,NONMETALLIC

1

UOC:194,208

19

PAOZZ

11862

15591130

GROMMET,NONMETALLIC

1

UOC:194,208

END OF FIGURE

227-1

SECTION II

TM 9-2320-289-20P

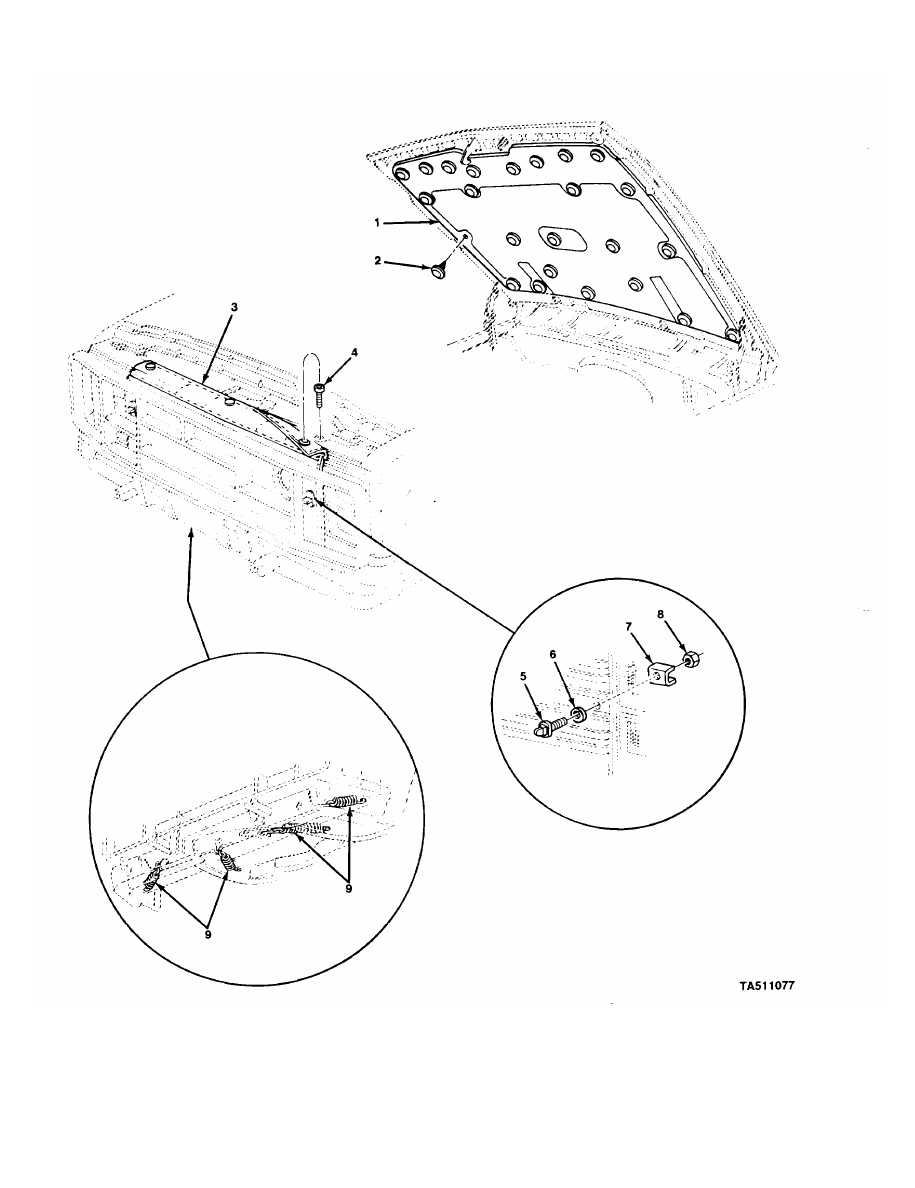

FIGURE 228. HOOD AND RADIATOR INSULATORS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 228 HOOD AND RADIATOR
INSULATORS

1

MOOZZ

11862

15593599

INSULATOR HOOD  MAKE FROM

1

INSULATION,P/N 12306178

2

PAOZZ

11862

3977775

FASTENER,SPRING TEN

24

UOC:194,208,209,230,231,252,254,256

3

PAOZZ

11862

14063365

INSULATOR,WINTERIZA

1

4

PAOZZ

11862

107413

STUD,SELF-LOCKING

3

5

PAOZZ

19207

12255564-2

STUD,TURNBUTTON FAS

2

6

PAOZZ

96906

MS27183-10

WASHER,FLAT

2

7

PFOZZ

11862

14063366

REINFORCEMENT,RADIA

2

8

PAOZZ

21450

131245

NUT,SELF-LOCKING,HE

2

9

PAOZZ

19207

7717066

SPRING,HELICAL,EXTE

4

END OF FIGURE

228-1

SECTION II

TM 9-2320-289-20P

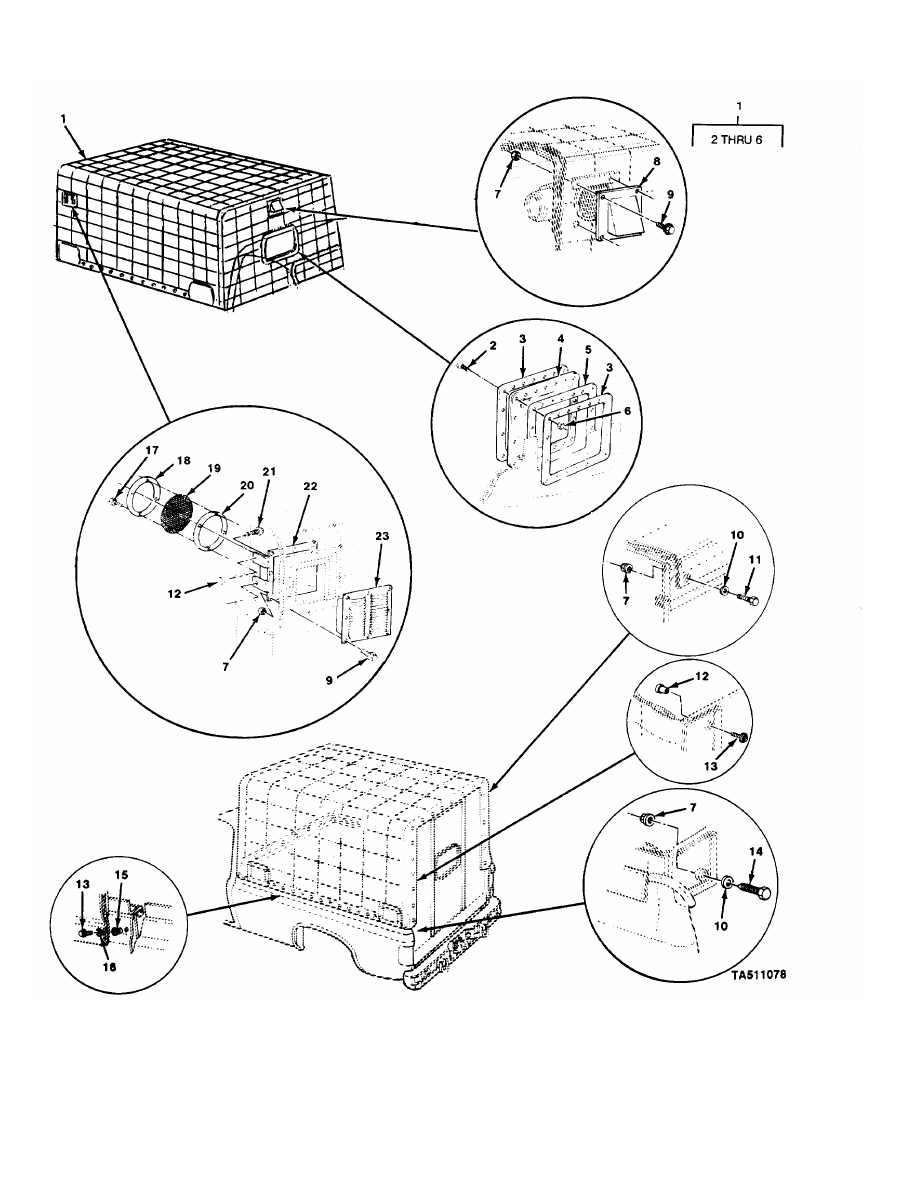

FIGURE 229. ROOF COVER, INTAKE DEFLECTOR, WINDOW, VENT, AND

RELATED PARTS (M1008 AND M1008A1).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 229 ROOF COVER, INTAKE
DEFLECTOR, WINDOW, VENT, AND RELATED
PARTS (M1008 AND M1008A1)

1

PAOFF

11862

14076228

COVER,FITTED,VEHICU

1

UOC:194,208

2

PAOZZ

96906

MS51957-33

.SCREW,MACHINE

18

UOC:194,208

3

PAOZZ

11862

14076216

.RETAINER,WINDOW

2

UOC:194,208

4

PAOZZ

19207

7353960

.WINDOW,VEHICULAR

1

UOC:194,208

5

PAOZZ

11862

14076215

.GASKET

1

UOC:194,208

6

PAOZZ

11862

9414031

.NUT,SELF-LOCKING,RO

18

UOC:194,208

7

PAOZZ

24617

9416918

NUT,PLAIN,EXTENDED

20

UOC:194,208

8

PAOZZ

11862

14075845

VENTILATOR,AIR CIRC

1

UOC:194,208

9

PAOZZ

11862

9440033

BOLT,MACHINE

12

UOC:194,208

10

PAOZZ

81795

30489

WASHER,FLAT

8

UOC:194,208

11

PAOZZ

96906

MS90728-14

SCREW,CAP,HEXAGON H

6

UOC:194,208

12

PAOZZ

21450

587227

NUT,PLAIN,PLATE

12

UOC:194,208

13

PAOZZ

96906

MS51957-84

SCREW,MACHINE

44

UOC:194,208

14

PAOZZ

96906

MS90728-13

SCREW,CAP,HEXAGON H

2

UOC:194,208

15

PAOZZ

11862

14005953

SHIELD,EXPANSION

32

UOC:194,208

16

PAOZZ

24617

9419265

WASHER,FLAT

44

UOC:194,208

17

PAOZZ

11862

20365263

SCREW,TAPPING

4

UOC:194,208

18

PAOZZ

11862

14072367

DOOR,ACCESS

1

UOC:194,208

19

PAOZZ

11862

14072366

STRAINER ELEMENT,SE

1

UOC:194,208

20

PAOZZ

11862

14075857

GASKET

1

UOC:194,208

21

PAOZZ

11862

9440334

BOLT,ASSEMBLED WASH

2

UOC:194,208

22

PAOZZ

11862

14072365

COVER,ACCESS

1

UOC:194,208

23

PAOZZ

11862

14072364

VENTILATOR,AIR CIRC

1

UOC:194,208

END OF FIGURE

229-1

SECTION II

TM 9-2320-289-20P

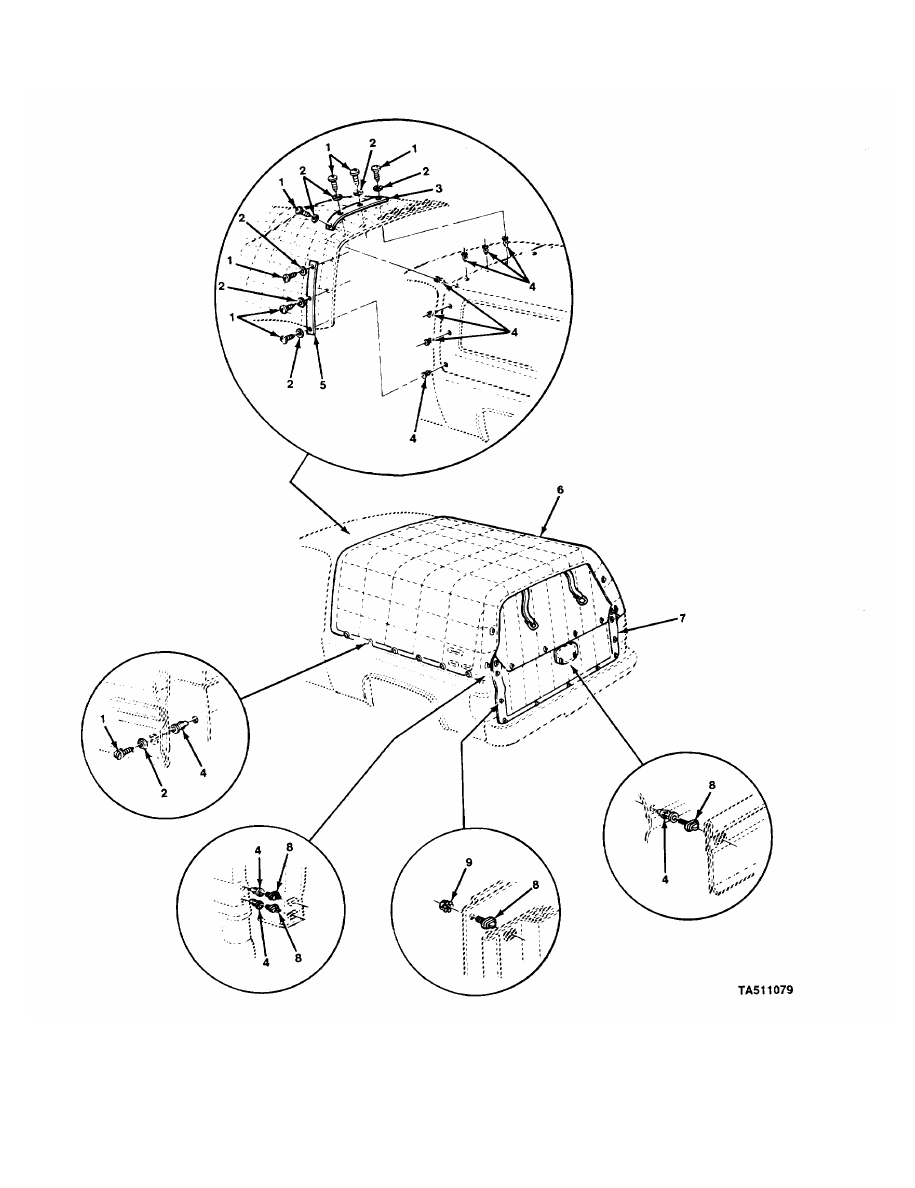

FIGURE 230. ROOF AND ENDGATE COVERS AND MOUNTING PARTS (M1009).
