TM-9-2320-289-20 (4x4 M1000 Series). Manual - part 59

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

UOC:194,208

24

PAOZ

96906

MS90728-59

SCREW,CAP,HEXAGON H

2

UOC:194,208

25

PAOZZ

11862

3886908

GROMMET,NONMETALLIC

1

UOC:194,208

26

PAOZZ

96906

MS35489-103

GROMMET,NONMETALLIC

1

UOC:194,208

27

PAOZZ

11862

14076390

HOSE ASSEMBLY, NONME

1

UOC:194,208

28

PAOZZ

11862

11500046

WASHER,LOCK

2

UOC:194,208

29

PAOZZ

96906

MS51967-8

NUT,PLAIN,HEXAGON

2

UOC:194,208

30

PAOZZ

11862

14063324

HOSE ASSEMBLY,NONME

1

UOC:194,208

END OF FIGURE

214-2

SECTION II

TM 9-2320-289-20P

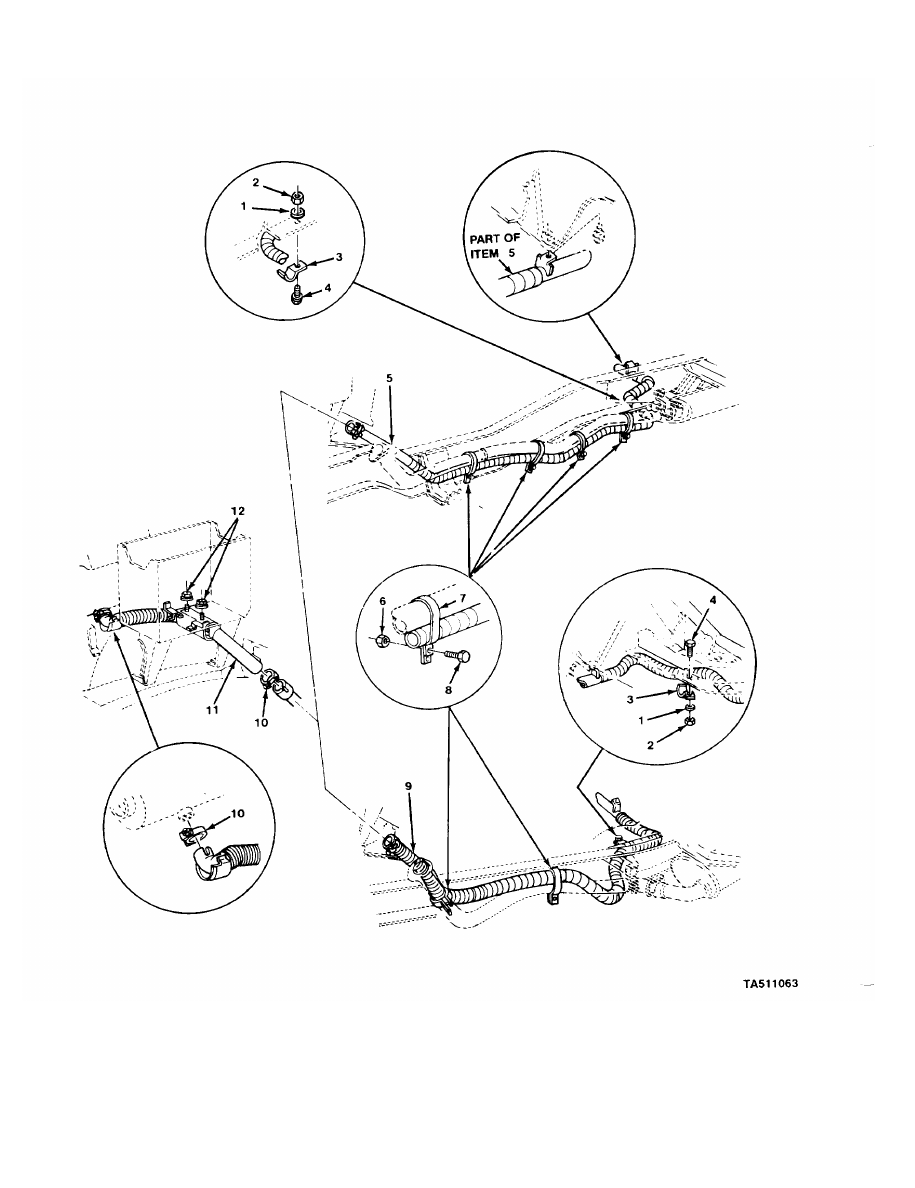

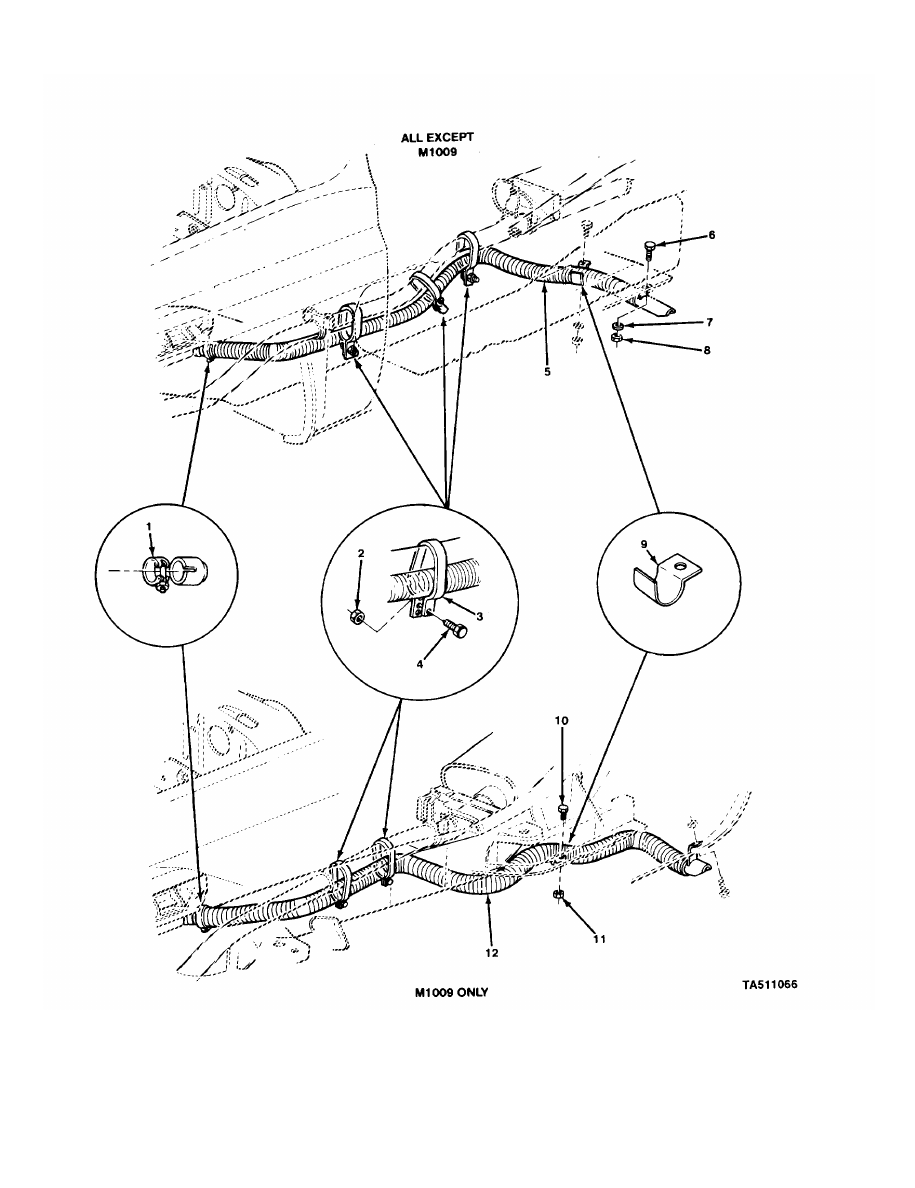

FIGURE 215. WARM AIR HEATER EXHAUST (ALL EXCEPT M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 215 WARM AIR HEATER EXHAUST
(ALL EXCEPT M1010)

1

PAOZZ

96906

MS27183-12

WASHER,FLAT

1

UOC:194,208,209,230,231,252,254,256

2

PAOZZ

96906

MS51943-33

NUT,SELF-LOCKING,HE

1

UOC:194,208,209,230,231,252,254,256

3

PAOZZ

11862

120877

STRAP,RETAINING

1

UOC:194,208,209,230,231,252,254,256

4

PAOZZ

24617

9417350

BOLT,ASSEMBLED WASH

1

UOC:194,208,209,230,231,252,254,256

5

PAOZZ

11862

14075801

PIPE,EXHAUST

1

UOC:194,208,230,231,252,254,256

6

PAOZZ

21450

131245

NUT,SELF-LOCKING,HE

4

UOC:194,208,230,231,252,254,256

6

PAOZZ

21450

131245

NUT,SELF-LOCKING,HE

2

UOC:209

7

PAOZZ

96906

MS35842-15

CLAMP,HOSE

4

UOC:194,208,230,231,252,254,256

7

PAOZZ

96906

MS35842-15

CLAMP,HOSE

2

UOC:209

8

PAOZZ

96906

MS90728-8

SCREW,CAP,HEXAGON H

4

UOC:194,208,230,231,252,254,256

8

PAOZZ

96906

MS90728-8

SCREW,CAP,HEXAGON H

2

UOC:209

9

PAOZZ

11862

15599211

PIPE ASSEMBLY,EXHAU

1

UOC:209

10

PAOZZ

63208

650-24

CLAMP,HOSE

2

11

XDOZZ

11862

15599287

PIPE

1

12

PAOZZ

24617

9416918

NUT,PLAIN,EXTENDED

2

END OF FIGURE

215-1

SECTION II

TM 9-2320-289-20P

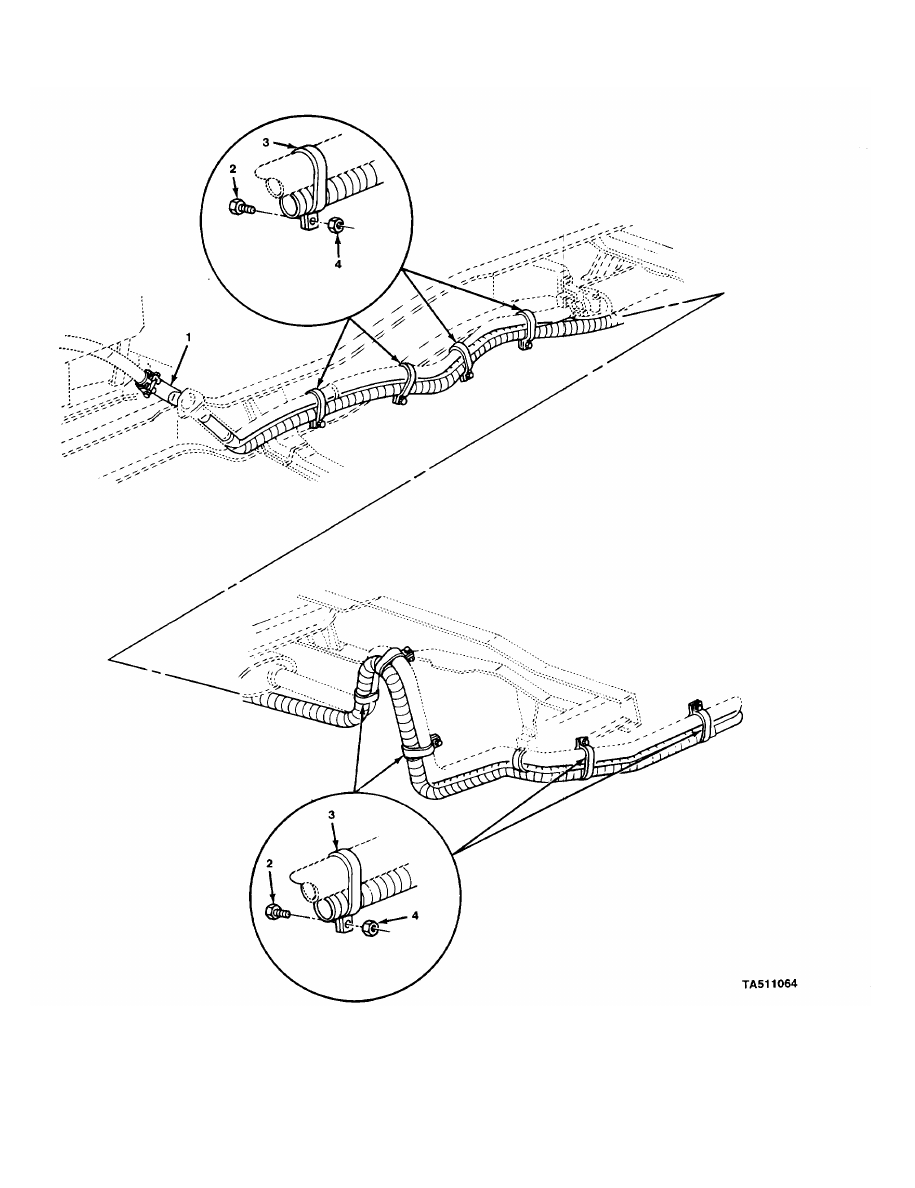

FIGURE 216. WARM AIR HEATER EXHAUST (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 216 WARM AIR HEATER EXHAUST
(M1010)

1

PAOZZ

11862

15599290

PIPE ASSEMBLY,EXHAU

1

UOC:210

2

PAOZZ

96906

MS90728-8

SCREW,CAP,HEXAGON H

11

UOC:210

3

PAOZZ

96906

MS35842-15

CLAMP,HOSE

11

UOC:210

4

PAOZZ

21450

131245

NUT,SELF-LOCKING,HE

11

UOC:210

END OF FIGURE

216-1

SECTION II

TM 9-2320-289-20P

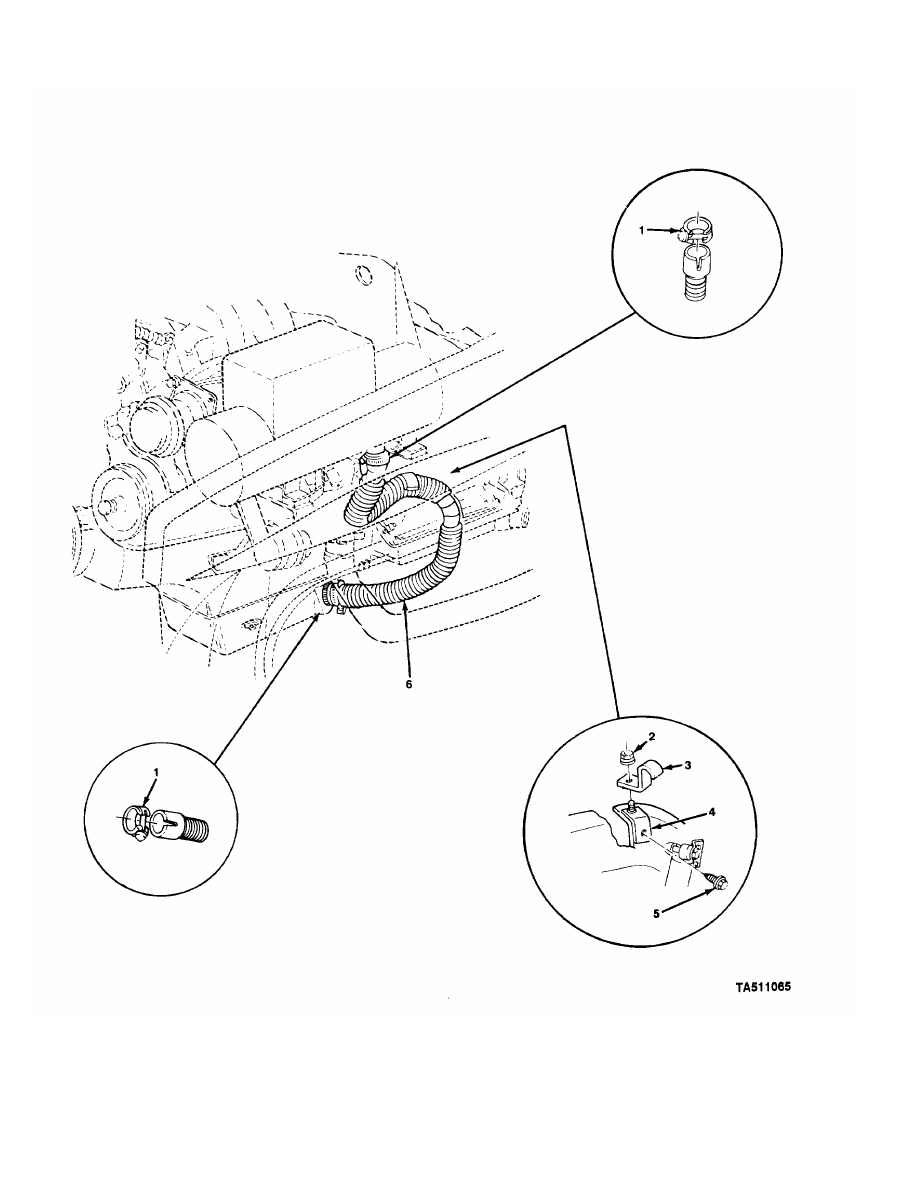

FIGURE 217. COOLANT HEATER EXHAUST.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 3303 WINTERIZATION KITS

FIG. 217 COOLANT HEATER EXHAUST

1

PAOZZ

63208

650-24

CLAMP,HOSE

2

2

PAOZZ

24617

9416918

NUT,PLAIN,EXTENDED

1

3

PAOZZ

11862

120877

STRAP,RETAINING

1

UOC:194,208,230,231,252,254,256

4

PAOZZ

11862

15599245

BRACKET,ANGLE

1

5

PAOZZ

24617

9416187

SCREW,TAPPING

1

6

PAOZZ

11862

15599243

PIPE,EXHAUST

1

END OF FIGURE

217-1

SECTION II

TM 9-2320-289-20P

FIGURE 218. COOLANT HEATER REAR EXHAUST.
