GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 188 ATTENDANT'S SEAT ASSEMBLY
AND COMPONENT PARTS (M1010)

1

PAOOO

25022

36-0039

SEAT,VEHICULAR

1

UOC:210

2

PAOZZ

25022

36-0045

.ARM,ADJUSTING,VEHIC

1

UOC:210

3

PFOZZ

25022

36-0044

.STEM,STEAT VEHICULAR

1

UOC:210

4

PAOZZ

96906

MS24665-134

.PIN,COTTER

1

UOC:210

5

PAOZZ

25022

36-0056

.PIN

1

UOC:210

6

PAOZZ

25022

36-0055

.BELT,VEHICULAR SAFE

1

UOC:210

7

PAOZZ

96906

MS90727-85

.SCREW,CAP,HEXAGON H

2

UOC:210

8

PAOZZ

25022

36-0054

.SEAT,VEHICLAR

1

UOC:210

9

PAOZZ

25022

36-0070

.BRACKET,SEAT BELT

1

UOC:210

10

PAOZZ

96906

MS27183-15

.WASHER,FLAT

2

UOC:210

11

PAOZZ

96906

MS35691-29

.NUT,PLAIN,HEXAGON

2

UOC:210

12

PAOZZ

96906

MS35338-47

.WASHER,LOCK

6

UOC:210

13

PAOZZ

96906

MS90728-3

.SCREW,CAP,HEXAGON H

6

UOC:210

14

PAOZZ

25022

36-0071

.PIN,SHOULDER,HEADLE

1

UOC:210

15

PAOZZ

25022

36-0047

.BRACKET,SEAT SUPPOR

1

UOC:210

16

PAOZZ

25022

36-0046

.ARM,ADJUSTING,VEHIC

1

UOC:210

17

PAOZZ

25022

36-0048

.SPRING,HELICAL,COMP

1

UOC:210

18

PAOZZ

25022

36-0049

.SPRING,HELICAL,COMP

2

UOC:210

19

PAOZZ

25022

09-0056

.ROLLER,SEAT

4

UOC:210

20

PAOZZ

25022

36-0050

.SPRING,HELAICAL,COMP

2

UOC:210

21

PAOZZ

25022

36-0075

.PIN

1

UOC:210

22

PAOZZ

96906

MS16562-147

.PIN,SPRING

1

UOC:210

23

PAOZZ

96906

MS35338-46

.WASHER,LOCK

8

UOC:210

24

PAOZZ

96906

MS51968-8

.NUT,PLAIN,HEXAGON

8

188-1

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

UOC:210

25

PAOZZ

25022

36-0074

.BRACKET,ANGLE RIGHT

1

UOC:210

26

PAOZZ

96906

MS27183-13

.WASHER,FLAT

4

UOC:210

27

PFOZZ

25022

36-0043

.BASE,SEAT VEHICULAR

1

UOC:210

28

PAOZZ

25022

36-0073

.PIN,SUPPORT

2

UOC:210

29

PAOZZ

96906

MS16562-50

.PIN,SPRING

1

UOC:210

30

PAOZZ

25022

36-0051

.PIN

1

UOC:210

31

PAOZZ

25022

36-0072

.BRACKET,ANGLE LEFT

1

UOC:210

END OF FIGURE

188-2

SECTION II

TM 9-2320-289-20P

FIGURE 189. UPPER LITTER ASSEMBLY AND COMPONENT PARTS (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

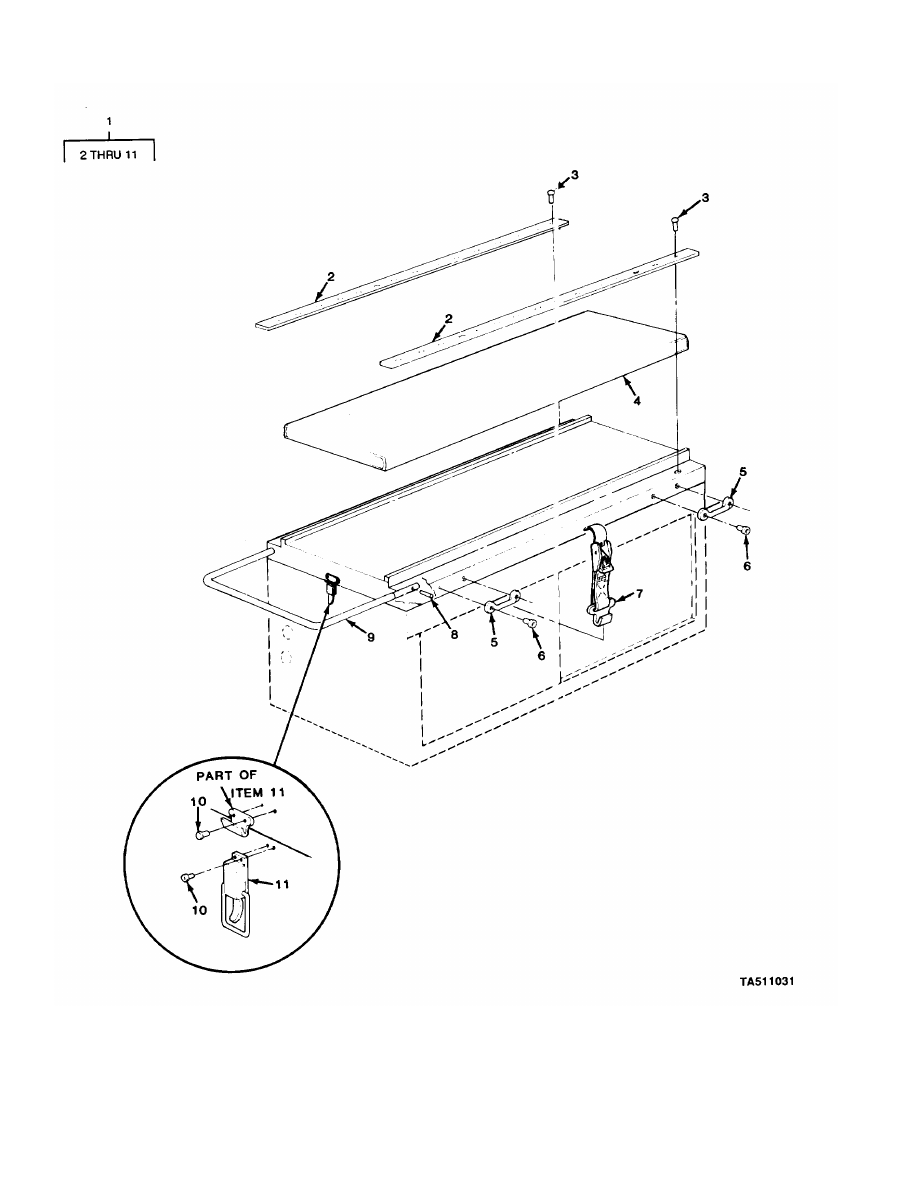

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 189 UPPER LITTER ASSEMBLY AND
COMPONENT PARTS (M1010)

1

PAOFF

25022

22-0865

LITTER,VEHICULAR

2

UOC:210

2

PAOZZ

25022

51-2297

.PLASTIC STRIP

2

UOC:210

3

PAOZZ

96906

MS20601-B6W6

.RIVET,BLIND

30

UOC:210

4

PAOZZ

25022

22-0860

.CUSHION,SEAT,VEHICU

1

UOC:210

5

PAOZZ

25022

51-0979

.STRAP,RETAINING

2

UOC:210

6

PAOZZ

96906

MS21141-U0607

.RIVET,BLIND

4

UOC:210

7

PAOZZ

25022

37-0051

.STRAP,WEBBING

4

UOC:210

8

PAOZZ

96906

MS16562-35

.PIN,SPRING

2

UOC:210

9

PAOZZ

25022

36-0066

.HANDLE,LITTER,TELES

1

UOC:210

10

PAOZZ

96906

MS21141-U0604

.RIVET,BLIND

4

UOC:210

11

PAOZZ

25022

51-0985

.CLASP,LITTER HOLD D

1

UOC:210

END OF FIGURE

189-1

SECTION II

TM 9-2320-289-20P

FIGURE 190. FRONT HALF-PARTITION ASSEMBLY (M1010)

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

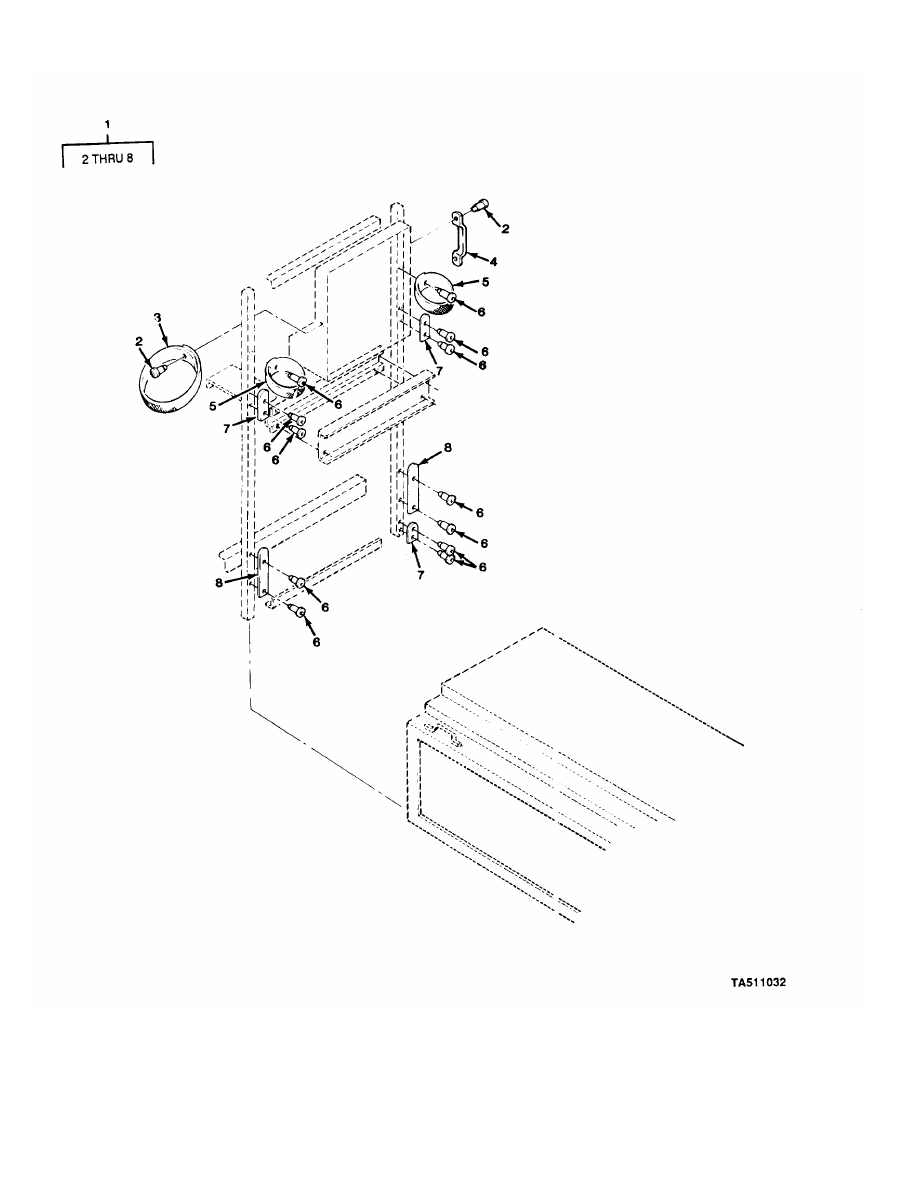

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 190 FRONT HALF-PARTITION
ASSEMBLY (M1010)

2

PAOZZ

96906

MS21141-U0604

.RIVET,BLIND

3

UOC:210

3

PAOZZ

25022

22-0876

.STRAP,WEBBING

1

UOC:210

4

PAOZZ

25022

51-0979

.STRAP,RETAINING

1

UOC:210

5

PAOZZ

25022

22-0878

.STRAP,WEBBING

2

UOC:210

6

PAOZZ

96906

MS24662-153

.RIVET,BLIND

12

UOC:210

7

PAOZZ

25022

17-0177

.BUMPER

3

UOC:210

8

PAOZZ

25022

17-0178

.BUMPR

2

UOC:210

END OF FIGURE

190-1

SECTION II

TM 9-2320-289-20P

FIGURE 191. INTERIOR FOCUS LIGHT (M1010).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

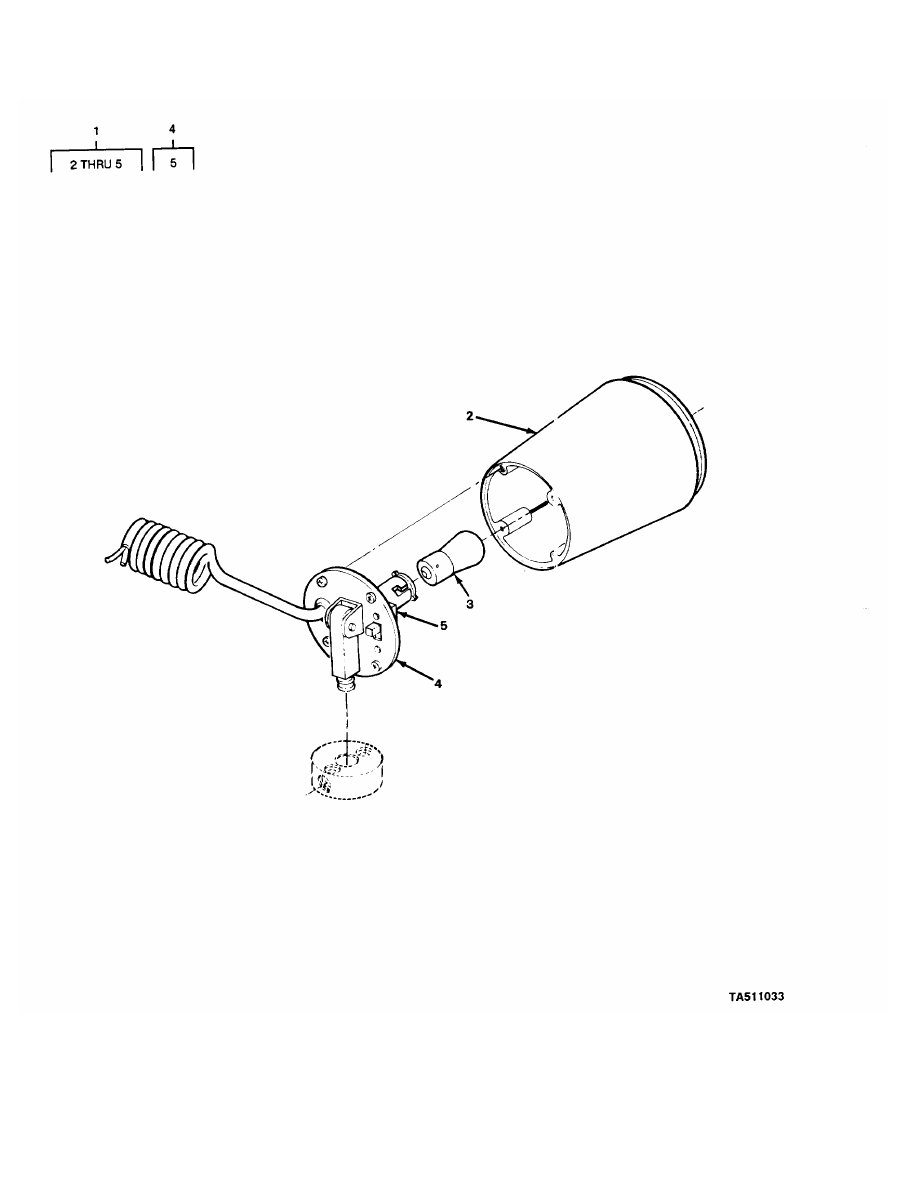

GROUP 1812 SPECIAL PURPOSE BODIES

FIG. 191 INTERIOR FOCUS LIGHT
(M1010)

1

PAOOO

25022

19-0816

FIXTURE,LIGHTING

4

UOC:210

2

PAOZZ

25022

19-0940

.LENS,LIGHT

1

UOC:210

3

PAOZZ

08806

1003

.LAMP,INCANDESCENT

1

UOC:210

4

PAOOO

25022

19-0941

.LIGHT,EXTENSION

1

UOC:210

5

XDOZZ

25022

19-0941-1

..SWITCH,TOGGLE

1

UOC:210

END OF FIGURE

191-1
