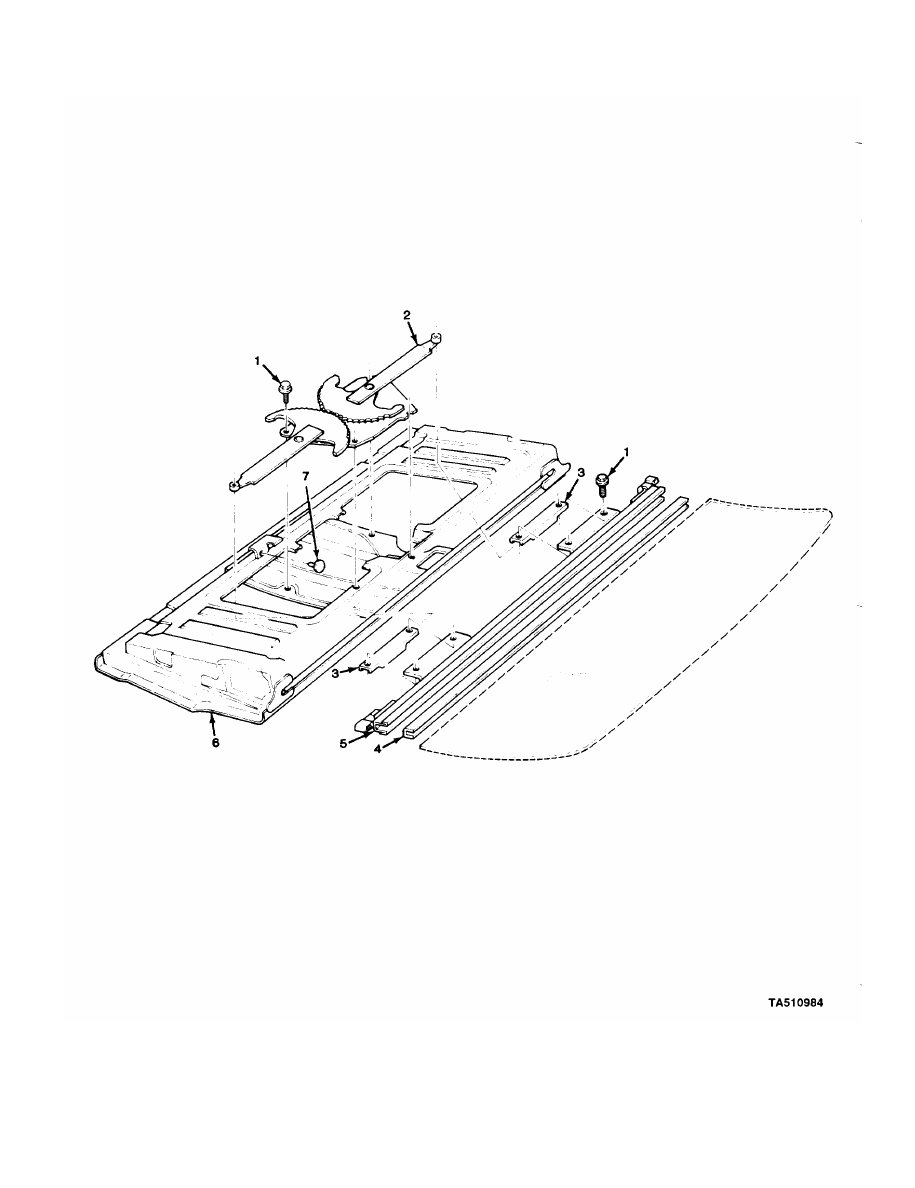

FIGURE 143. ENDGATE AND COMPONENTS (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 143 ENDGATE AND COMPONENTS
(M1009)

1

PAOZZ

11862

1244067

BOLT,ASSEMBLED WASH

8

UOC:209

2

PAOOO

11862

15641780

REGULATOR,WINDOW,VE

1

UOC:209

2

PAOZZ

11862

4158246

ROLLER,LINEAR-ROTAR

1

UOC:209

3

PAOZZ

11862

20171141

CHANNEL,LIFT,VEHICL

2

UOC:209

4

MOOZZ

11862

14027542

FILLER E/GATE SASH  (60.00"LG) MAKE

1

FROM RUBBER, P/N 370390
UOC:209

5

PAOZZ

11862

340053

CHANNEL,LIFT,VEHICL

1

UOC:209

6

PAOZZ

11862

15614462

TAILGATE,VEHICLE BO

1

UOC:209

7

PAOZZ

11862

8785295

BUMPER,NONMETALLIC

1

UOC:209

END OF FIGURE

143-1

SECTION II

TM 9-2320-289-20P

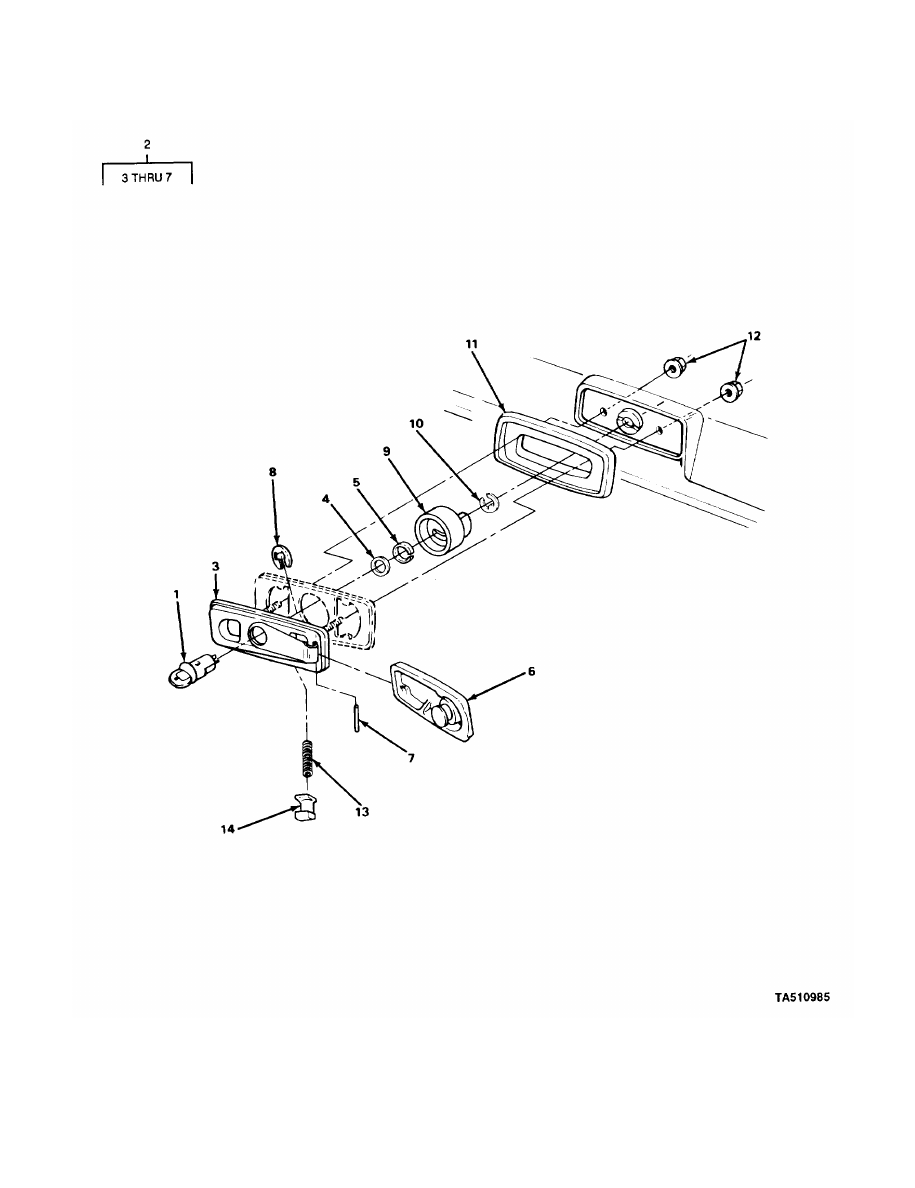

FIGURE 144. ENDGATE WINDOW HANDLE ASSEMBLY (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 144 ENDGATE WINDOW HANDLE
ASSEMBLY (M1009)

1

PAOZZ

11862

15599678

CYLINDER,LOCK,VEHIC

1

UOC:209

2

PAOZZ

11862

14072497

HANDLE ASSEMBLY,WIN

1

UOC:209

3

PAOZZ

11862

14072499

.LATCH,DOOR,VEHICULA

1

UOC:209

4

PAOZZ

11862

5713274

.WASHER,SPRING TENSI

1

UOC:209

5

PAOZZ

11862

5713276

.RING,RETAINING

1

UOC:209

6

PAOZZ

11862

9703344

.HANDLE,DOOR

1

UOC:209

7

PAOZZ

11862

5717887

.PIN,STRAIGHT,HEADLE

1

UOC:209

8

PAOZZ

96906

MS16633-1021

RING,RETAINING

1

UOC:209

9

PAOZZ

11862

9702916

CLUTCH,WINDOW REGUL

1

UOC:209

10

PAOZZ

96906

MS16624-1024

RING,RETAINING

1

UOC:209

11

PAOZZ

11862

327015

GASKET

1

UOC:209

12

PAOZZ

24617

271172

NUT,SELF-LOCKING,AS

2

UOC:209

13

PAOZZ

11862

4303911

SPRING,HELICAL,COMP

1

UOC:209

14

PAOZZ

11862

5713268

PAWL

1

UOC:209

END OF FIGURE

144-1

SECTION II

T M   9 - 2 3 2 0 - 2 8 9 - 2 0 P

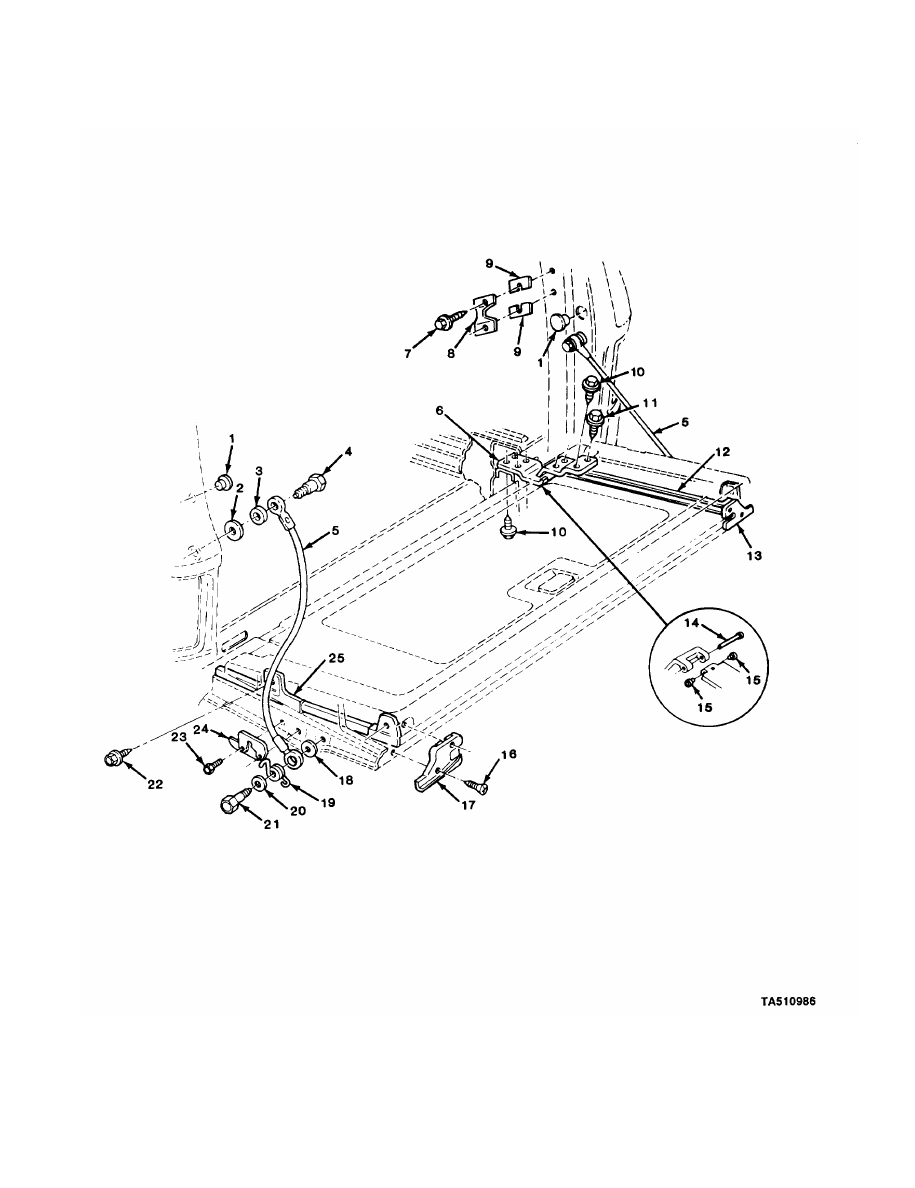

FIGURE 145. ENDGATE HINGES AND RELATED PARTS (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1801 BODY, CAB, HOOD, AND HULL
ASSEMBLIES

FIG. 145 ENDGATE HINGES AND RELATED
PARTS (M1009)

1

PAOZZ

11862

14050440

PLUG,PROTECTIVE,DUS

2

UOC:209

2

PAOZZ

11862

1260895

WASHER,FLAT

2

UOC:209

3

PAOZZ

11862

14021292

SPACER,SLEEVE

2

UOC:209

4

PAOZZ

11862

7740374

BOLT,SHOULDER

2

UOC:209

5

PAOZZ

11862

6274850

WIRE ROPE ASSEMBLY,

2

UOC:209

6

PAOZZ

11862

337788

HINGE,BUTT

2

UOC:209

7

PAOZZ

11862

2014469

BOLT,ASSEMBLED WASH

4

UOC:209

8

PAOZZ

11862

6274847

STRIKE,CATCH  LEFT

1

UOC:209

8

PAOZZ

11862

6274848

STRIKER,END GATE  RIGHT

1

UOC:209

9

PAOZZ

11862

6274849

SPACER,PLATE

1

UOC:209

10

XDOZZ

11862

9438039

BOLT,ASSEMBLED WASH

14

UOC:209

11

PAOZZ

11862

9437242

BOLT,MACHINE

2

UOC:209

12

PAOZZ

11862

6274836

GUIDE,WINDOW,VEHICU  RIGHT

1

UOC:209

13

PAOZZ

11862

15522708

CAP ASSEMBLY,TAILGA  RIGHT

1

UOC:209

14

PAOZZ

11862

6271989

PIN,STRAIGHT,HEADED

2

UOC:209

15

PAOZZ

11862

335524

BUSHING,SLEEVE

4

UOC:209

16

PAOZZ

96906

MS51862-35

SCREW,TAPPING

4

UOC:209

17

PAOZZ

11862

15522707

CAP ASSEMBLY,TAILGA  LEFT

1

UOC:209

18

PAOZZ

96906

MS27183-16

WASHER,FLAT

2

UOC:209

19

PAOZZ

11862

14021315

SPRING,HELICAL,TORS  LEFT

1

UOC:209

19

PAOZZ

11862

14021316

SPRING,HELICAL,TORS  RIGHT

1

UOC:209

20

PAOZZ

96906

MS27183-19

WASHER,FLAT

2

UOC:209

21

PAOZZ

11862

14021317

BOLT,SHOULDER

2

UOC:209

145-1

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

22

PAOZZ

11862

9439771

BOLT,ASSEMBLED WASH

4

UOC:209

23

PAOZZ

24617

9414712

SCREW,TAPPING

2

UOC:209

24

PAOZZ

11862

334132

GUIDE,END GATE SUPP

2

UOC:209

25

PAOZZ

11862

470949

GUIDE,WINDOW,VEHICU

1

UOC:209

END OF FIGURE

145-2

SECTION II

TM 9-2320-289-20P

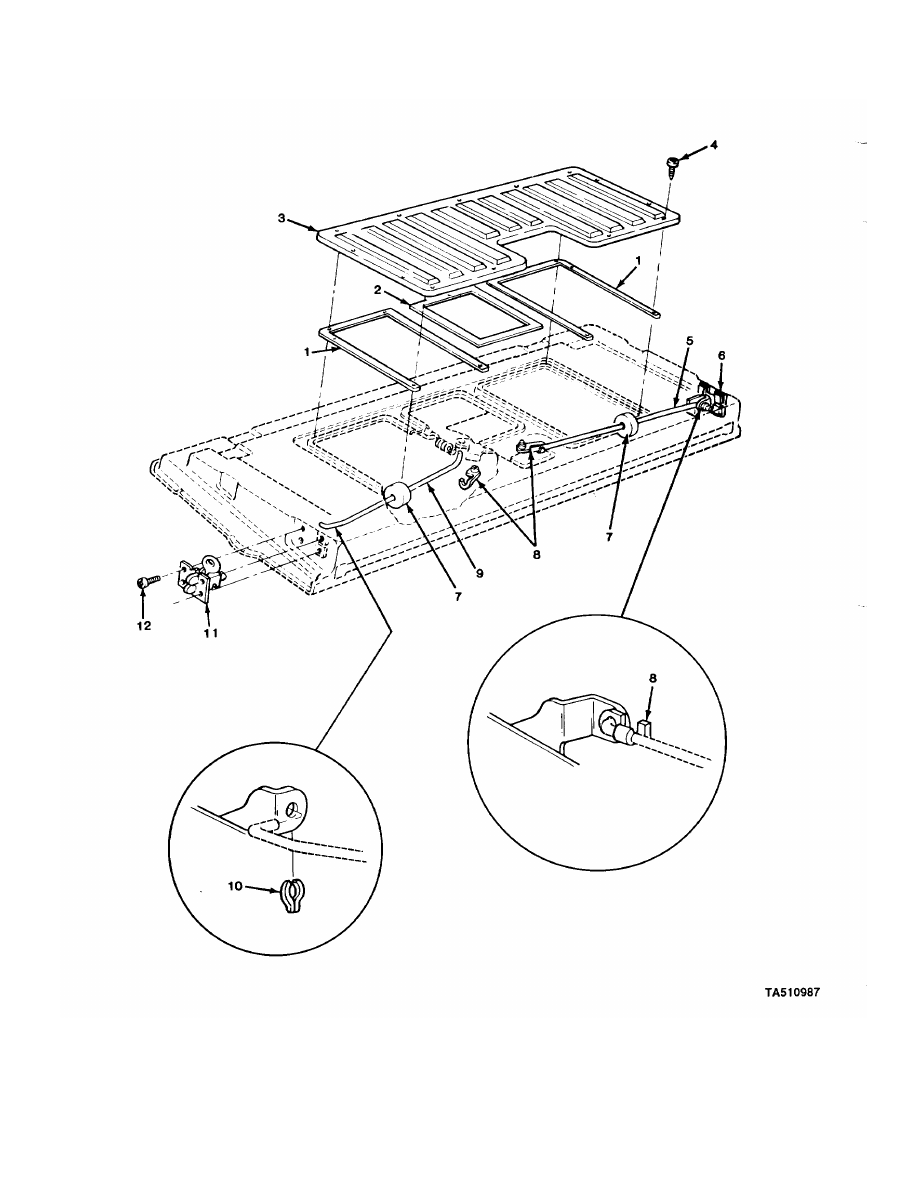

FIGURE 146. ENDGATE LATCHES AND RELATED PARTS (M1009).
