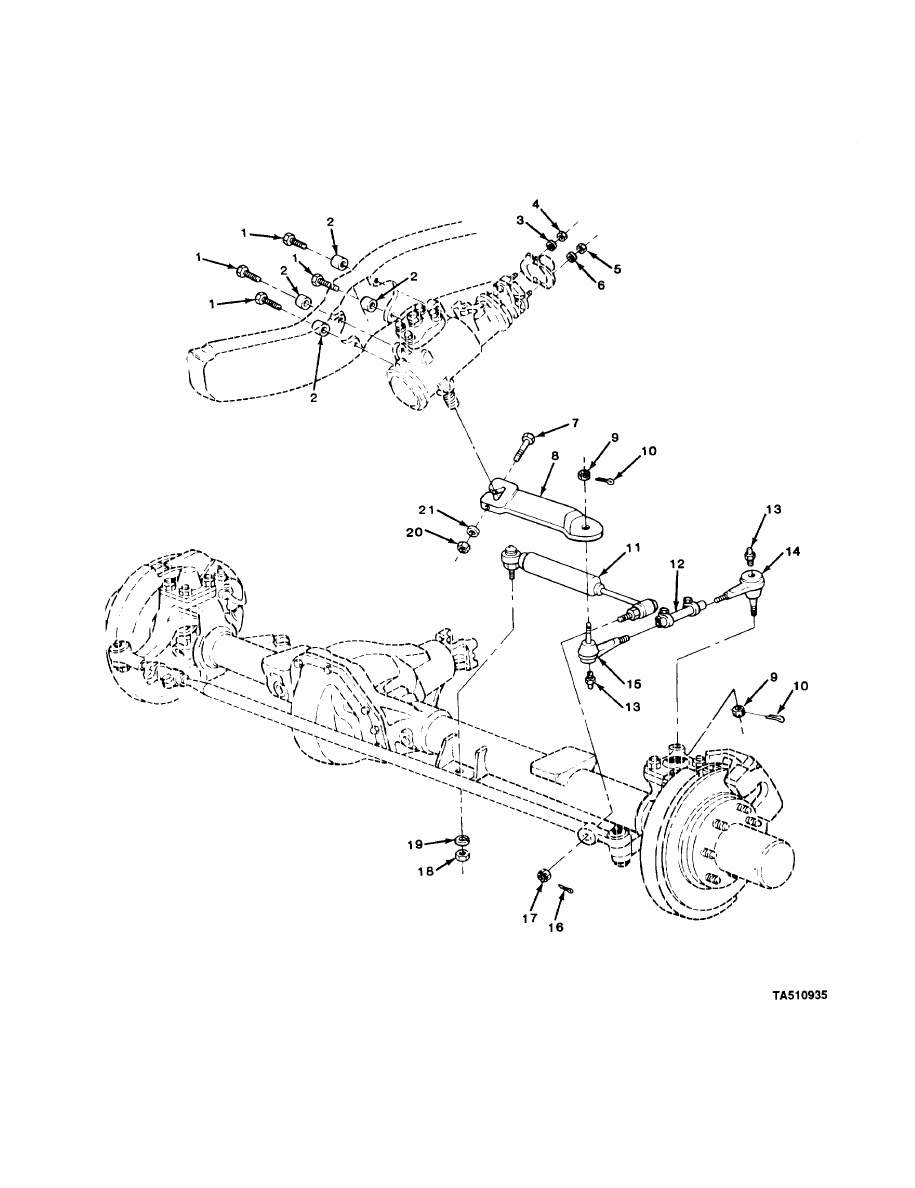

FIGURE 100. PITMAN ARM, ABSORBER, AND RELATED PARTS.

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1401 MECHANICAL STEERING GEAR
ASSEMBLY

FIG. 100 PITMAN ARM, ABSORBER, AND
RELATED PARTS

1

PAOZZ

11862

343178

SCREW,CAP,HEXAGON H

4

2

PAOZZ

11862

343179

SPACER,SLEEVE

4

3

PAOZZ

96906

MS35338-45

WASHER,LOCK

1

4

PAOZZ

96906

MS51968-6

NUT,PLAIN,HEXAGON

1

5

PAOZZ

96906

MS51968-9

NUT,PLAIN,HEXAGON

1

6

PAOZZ

96906

MS35338-46

WASHER,LOCK

1

7

PAOZZ

96906

MS90727-145

SCREW,CAP,HEXAGON H

1

8

PAOZZ

11862

14064660

ARM,STEERING GEAR

1

9

PAOZZ

96906

MS35692-53

NUT,PLAIN,SLOTTED,H

2

10

PAOZZ

96906

MS24665-357

PIN,COTTER

2

11

PAOZZ

11862

4993563

CYLINDER ASSEMBLY,A

1

12

PAOZZ

11862

14007644

SLEEVE ASSEMBLY,CON

1

13

PAOZZ

11862

9417901

FITTING,LUBRICATION

2

14

PAOZZ

11862

362297

TIE ROD END,STEERIN  SHORT

1

15

PAOZZ

11862

362298

TIE ROD END,STEERIN  LONG

1

16

PAOZZ

89749

IF316

PIN,COTTER

1

17

PAOZZ

96906

MS35692-37

NUT,PLAIN,SLOTTED,H

1

18

PAOZZ

96906

MS35690-824

NUT,PLAIN,HEXAGON

1

19

PAOZZ

96906

MS35338-48

WASHER,LOCK

1

20

PAOZZ

11862

9422303

NUT SELF-LOCKINNG,HE

1

21

PAOZZ

96906

MS27183-20

WASHER,FLAT

1

END OF FIGURE

100-1

SECTION II

TM 9-2320-289-20P

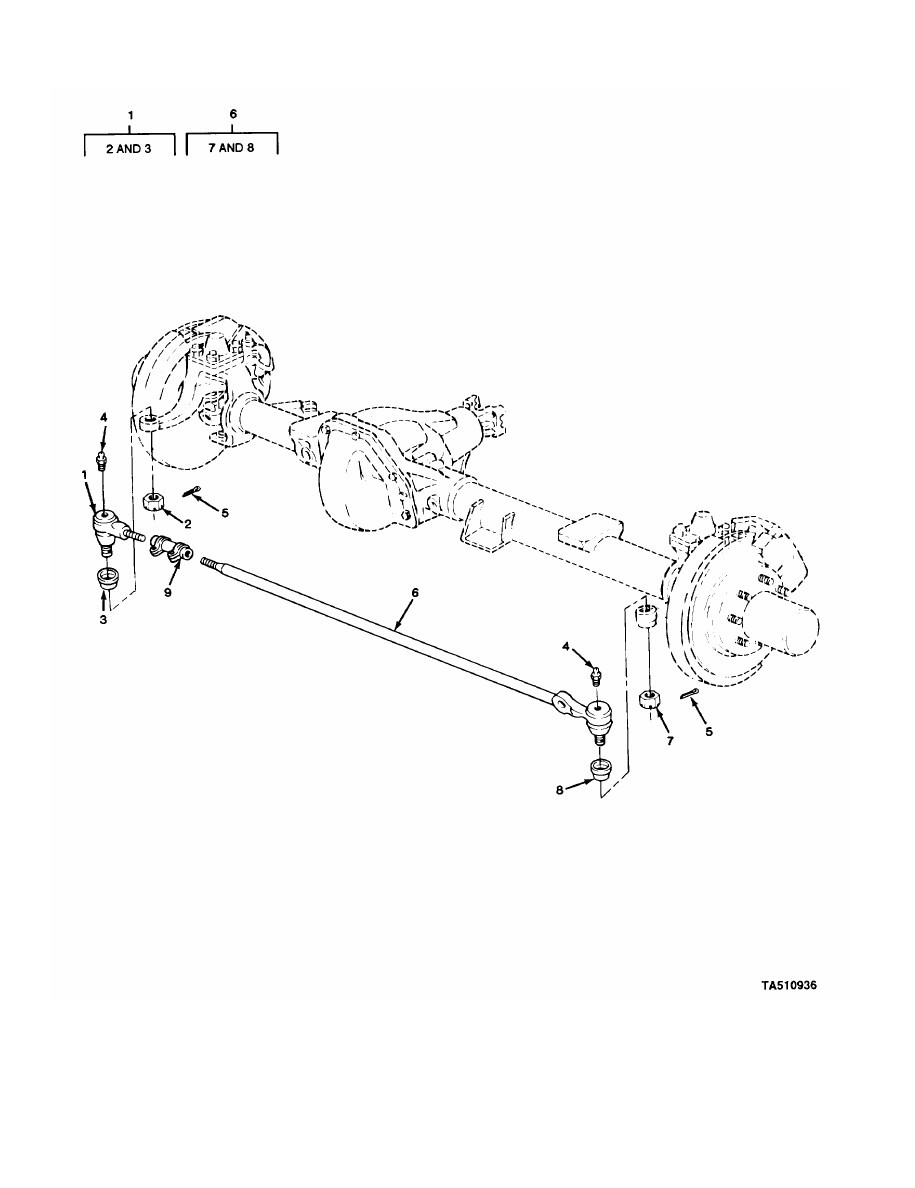

FIGURE 101. TIE-ROD ASSEMBLY (ALL EXCEPT M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1401 MECHANICAL STEERING GEAR
ASSEMBLY

FIG. 101 TIE-ROD ASSEMBLY (ALL
EXCEPT M1009)

1

PAOOO

72210

D23980-J

TIE ROD END,STEERIN  RIGHT

1

UOC:194,208,210,230,231,252,254,256

2

PAOZZ

24617

125384

.NUT,PLAIN,SLOTTED,H

1

UOC:194,208,210,230,231,252,254,256

3

PAOZZ

11862

6259074

.PACKING,PREFORMED

1

UOC:194,208,210,230,231,252,254,256

4

PAOZZ

11862

9417901

FITTING,LUBRICATION

2

UOC:194,208,210,230,231,252,254,256

5

PAOZZ

96906

MS24665-425

PIN,COTTER

2

UOC:194,208,210,230,231,252,254,256

6

PAOOO

72210

24004-J

TIE ROD END,STEERIN LEFT

1

UOC:194,208,210,230,231,252,254,256

7

PAOZZ

24617

125384

.NUT,PLAIN,SLOTTED,H

1

UOC:194,208,210,230,231,252,254,256

8

PAOZZ

97271

S19587-T

.PACKING,PREFORMED

1

UOC:194,208,210,230,231,252,254,256

9

PAOZZ

72210

S23981-H

ADJUSTING SLEEVE,TI

1

UOC:194,208,210,230,231,252,254,256

END OF FIGURE

101-1

SECTION II

TM 9-2320-289-20P

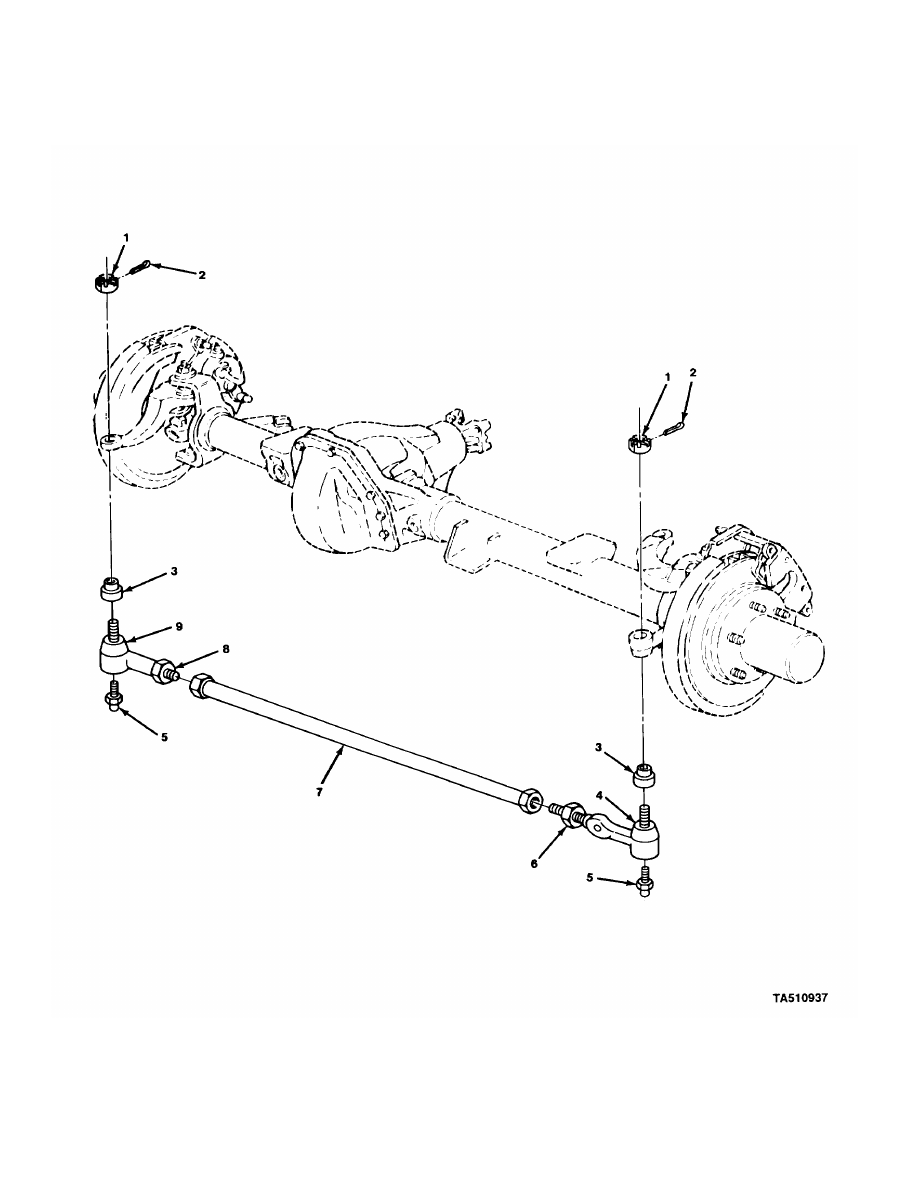

FIGURE 102. TIE-ROD ASSEMBLY (M1009).

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1401 MECHANICAL STEERING GEAR
ASSEMBLY

FIG. 102 TIE-ROD ASSEMBLY (M1009)

1

PAOZZ

11862

467117

NUT,PLAIN,SLOTTED,H

2

UOC:209

2

PAOZZ

11862

11514337

PIN,COTTER

2

UOC:209

3

PAOZZ

11862

6259074

PACKING,PREFORMED

2

UOC:209

4

PAOZZ

11862

14026803

TIE ROD END,STEERIN LEFT

1

UOC:209

5

PAOZZ

11862

9417901

FITTING,LUBRICATION

2

UOC:209

6

PAOZZ

11862

14026805

NUT,PLAIN,HEXAGON

1

UOC:209

7

PAOZZ

11862

14026804

TIE ROD,STEERING

1

UOC:209

8

PAOZZ

30076

160635

NUT,PLAIN,HEXAGON

1

UOC:209

9

PAOZZ

11862

14026802

TIE ROD END,STEERIN RIGHT

1

UOC:209

END OF FIGURE

102-1

SECTION II

TM 9-2320-289-20P

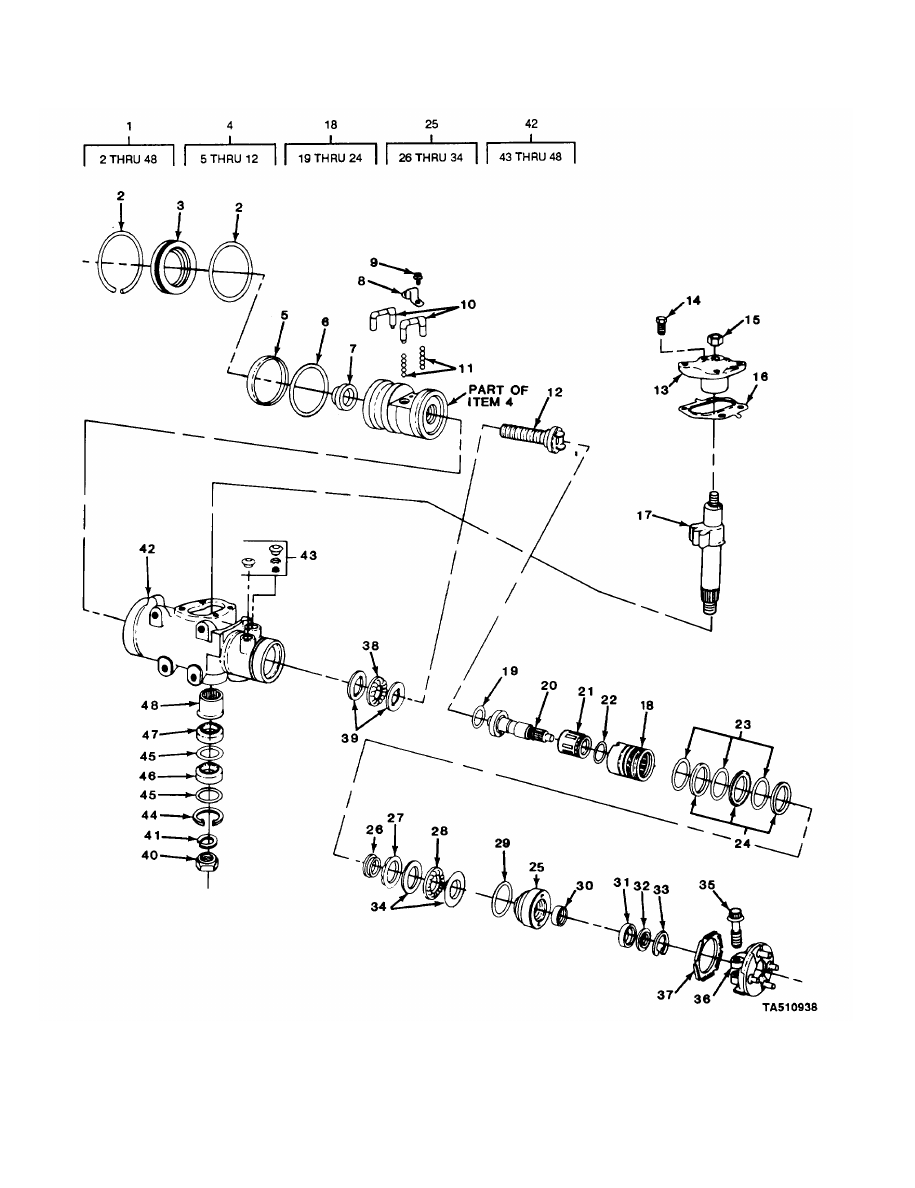

FIGURE 103. POWER STEERING GEAR AND

SECTION II

TM9-2320-289-20P

(1)

(2)

(3)

(4)

(5)

(6)

ITEM

SMR

PART

NO

CODE

CAGEC

NUMBER

DESCRIPTION AND USABLE ON CODES (UOC)

QTY

GROUP 1407 POWER STEERING GEAR
ASSEMBLY

FIG. 103 POWER STEERING GEAR AND
COMPONENT PARTS

1

PAOHH

11862

7846959

STEERING GEAR

1

END OF FIGURE

103-1
