Morris Third Tank 7000 Series Air Cart. Parts Manual
Parts Manual
Third Tank
7000 Series Air Cart
Part Number N29259-04
IMPORTANT:
ALL ITEMS ARE IDENTIFIED WITH A
PART NUMBER. Some of the smaller
parts such as bolts, nuts, washers, etc. are
not all shown, however, the quantity used
are listed in the text for that section which
they fit into. That particular quantity is
always the quantity required for one
complete assembly.
Smaller parts, which are welded together
to construct a larger part, are not to be or-
dered as individual pieces, unless they
have a part number to identify them.
Contact your nearest dealer for genuine
repair parts. Dealers carry ample stock and
are backed by the manufacturer and re-
gional associations.
MORRIS PAINT
Spray Cans:
Part Number
Description
W-4647
Red MORRIS Spray Can
W-4648
Blue MORRIS Spray Can
N31087
Sky White MORRIS Spray Can
Litre Cans:
Part Number
Description
Z-10
Red MORRIS Paint/Litre
Z-11
Blue MORRIS Paint/Litre
N28345
Red Urethane Kit - 3.78 Litre
N30406
Primer Urethane Kit - 3.78 Litre
N30476
Expoxy Kit - .946 Litre
Table of Contents
Section 1:
Tanks & Handrails
1-1
Third Tank Assembly
1-2
Section 2:
Drives
2-1
Standard Drive Assembly
2-2
Variable Rate Drive Assembly
2-4
Section 3:
Metering & Distribution
3-1
Metering Body
3-2
Coated Metering Body
3-3
Tow Behind Distribution
3-4
Tow Between Distribution
3-5
Section 4:
Monitor
4-1
Monitor & Blockage Module
4-2
Section 5:
Variable Rate
5-1
Hydraulic System
5-2
Hydraulic Valve Manifold
5-3
Control System
5-4
Index
Index-i
7000 Series Third Tank
June 2005
i
Section 1:
Tanks & Handrails
Section Contents
Third Tank Assembly
1-2
7000 Series Third Tank
June 2005
1-1
Tanks & Handrails
Third Tank Assembly
1-2
June 2005
7000 Series Third Tank

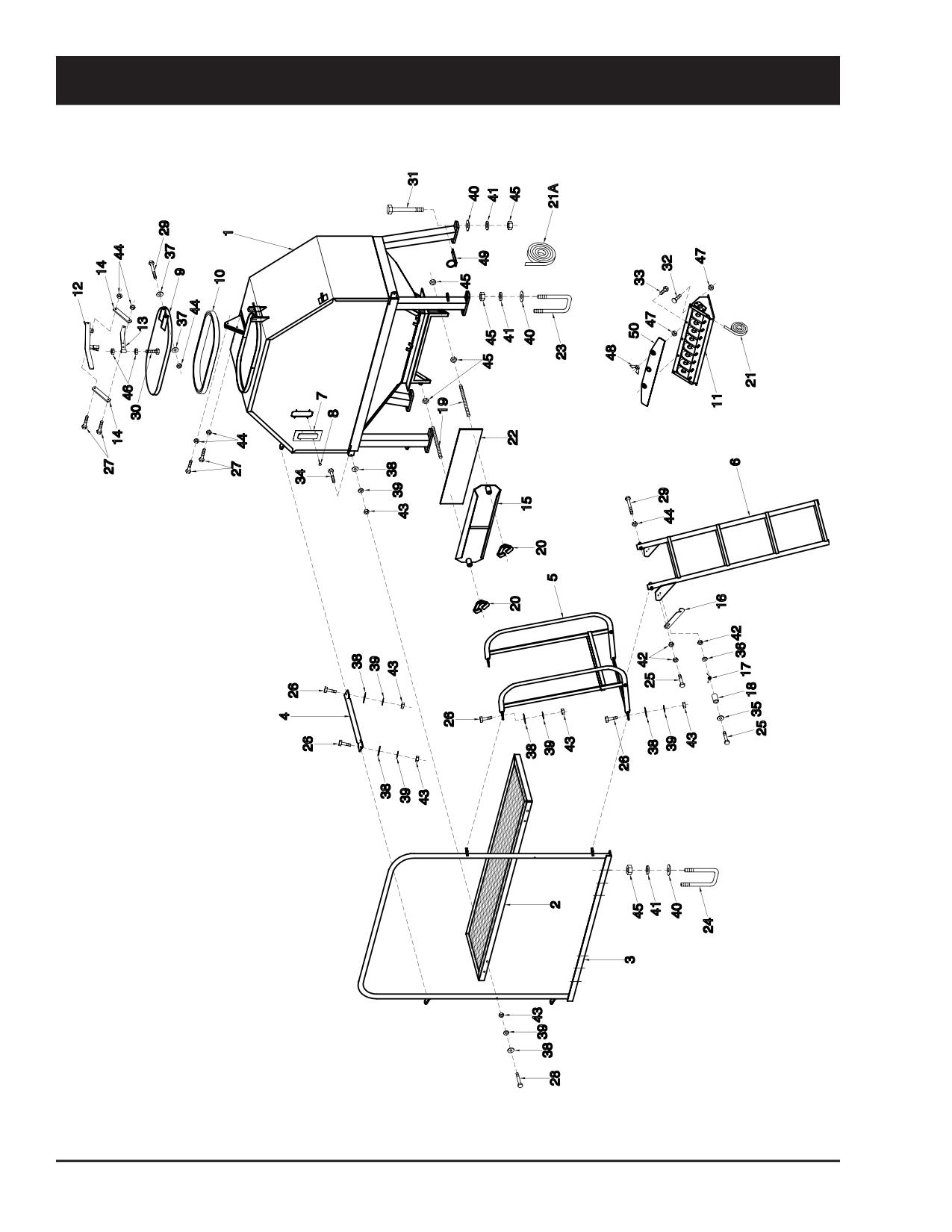

Tanks & Handrails - Third Tank Assembly
Item
Part No.
Description
Qty
1
N29090
Tank - 3rd - 7032
(7130 & 7180)
1
N30789
Tank - 3rd - 7042
(7180 Only)
1
N29100
Tank - 3rd - 7042 (7240 & 7300)
1
2
N28185
Platform - 7030/7040/7032/7042
1
3
N28180
Guardrail -
7032
(7130 & 7180)
1
N30793
Guardrail - 7042
(7180 Only)
1
N28192
Guardrail - 7042
(7240 & 7300)
1
4
N28184
Guardbar
1
5
N28160
Handrail - 7032
1
N28170
Handrail - 7042
1
6
N24792
Ladder - 4 Step
1
7
N19791
Sight Glass
1
8
N21450
Pop Rivet - 1/8 x 1/2 Lg - Closed Head
4
9
N27715
Lid - Tank
1
10
N19496
Lid Seal
1
11
N27100
Metering Body - 8 Outlet
1
12
N27710
Handle - Tank Lid
1
13
N19108
Link
1
14
N19109
Link
2
15
N27080
Door - Cleanout
1
16
N19211
Arm - Ladder Lock
1
17
D-5098
Spring
1
18
N19366
Bushing - 5/8
1
19
N27155
Redi-Rod - 1/2 x 8 1/2 Lg
2
20
N27360
Wing Locknut - 1/2
2
21
N15716
Seal Strip - 1/4 x 1 (Bulk/ft)
10.11ft
21A
N15716
Seal Strip - 1/4 x 1 (Bulk/ft)
2.55 ft
22
N19437
Seal Strip - 3/8 x 7 (Bulk/ft)
1 ft
23
N19646
U-Bolt - 1/2 x 4 3/4 x 7 3/8 - 7032 (7130 & 7180) & 7042 (7180 Only)
3
N28163
U-Bolt - 1/2 x 4 3/4 x 9 3/8 - 7042 (7240 & 7300)
3
24
N28162
U-Bolt - 1/2 x 5 1/8 x 8 5/8 - 7032 (7130 & 7180) & 7042 (7180 Only)
2
N28164
U-Bolt - 1/2 x 5 1/8 x 10 5/8 - 7042 (7240 & 7300)
2
25
W-472
Hex Bolt - 5/16 x 1 1/4 Lg
2
26
W-187
Hex Bolt - 3/8 x 1 1/4 Lg
6
27
W-619
Hex Bolt - 3/8 x 1 3/4 Lg
4
28
W-478
Hex Bolt - 3/8 x 2 Lg
2
29
C-3918
Hex Bolt - 3/8 x 5 Lg
3
30
N19127
Lid Bolt - 1/2
1
31
W-3687
Hex Bolt - 1/2 x 8 Lg - 7032 (7130 & 7180) & 7042 (7180 Only)
2
N28165
Hex Bolt - 1/2 x 10 Lg - 7042 (7240 & 7300)
2
32
D-5259
Carriage Bolt - 5/16 x 3/4 Lg
5
33
N29048
Hex Bolt - 5/16 x 1 Lg - Stainless Steel
2
34
W-477
Hex Bolt - 3/8 x 1 1/2 Lg
2
35
D-5488
Flatwasher - 5/16
1
36
W-522
Lockwasher - 5/16
1
37
D-5489
Flatwasher - 3/8
2
38
D-5579
Flatwasher - 3/8 ID x 1 OD x 16 Ga
10
39
W-523
Lockwasher - 3/8
10
40
S-1925
Flatwasher - 1/2 ID x 1 1/16 OD x 13 Ga
12
41
W-525
Lockwasher - 1/2
12
42
W-513
Hex Nut - 5/16
3
43
W-514
Hex Nut - 3/8
10
44
M-3388
Locknut - 3/8 Unitorque
7
45
W-516
Hex Nut - 1/2
16
46
S-1292
Jam Nut - 1/2
2
47
D-5278
Locknut - 3/8 Unitorque
7
48
N29049
Wingnut - 5/16 Stainless Steel
2
49
N28663
Guide - Wire
1
50
N28831
Cover Plate - Meter Body ( For Fine Seeds )
1
N27591
Decal - “Morris” With Stripe - 81 1/2 Lg (Not Shown)
1
N29099
Rate Chart Decal - “Slow Speed Drive” (Not Shown)
1
N29201
Rate Chart Decal - “Slow Speed Drive” (Not Shown - Metric)
1
N19025
Decal - Important “Filling Tank” (Not Shown)
1
N15094
Decal - Caution (Not Shown)
1
N21604
Decal - Important “Prevent Corrosion” (Not Shown)
1
N34477
Reflector - Amber (Not Shown)
4
7000 Series Third Tank
June 2005
1-3
Notes
1-4
June 2005
7000 Series Third Tank
Section 2:
Drives
Section Contents
Standard Drive Assembly
2-2
Variable Rate Drive Assembly
2-4
7000 Series Third Tank
June 2005
2-1
Drives
Standard Drive Assembly
2-2
June 2005
7000 Series Third Tank

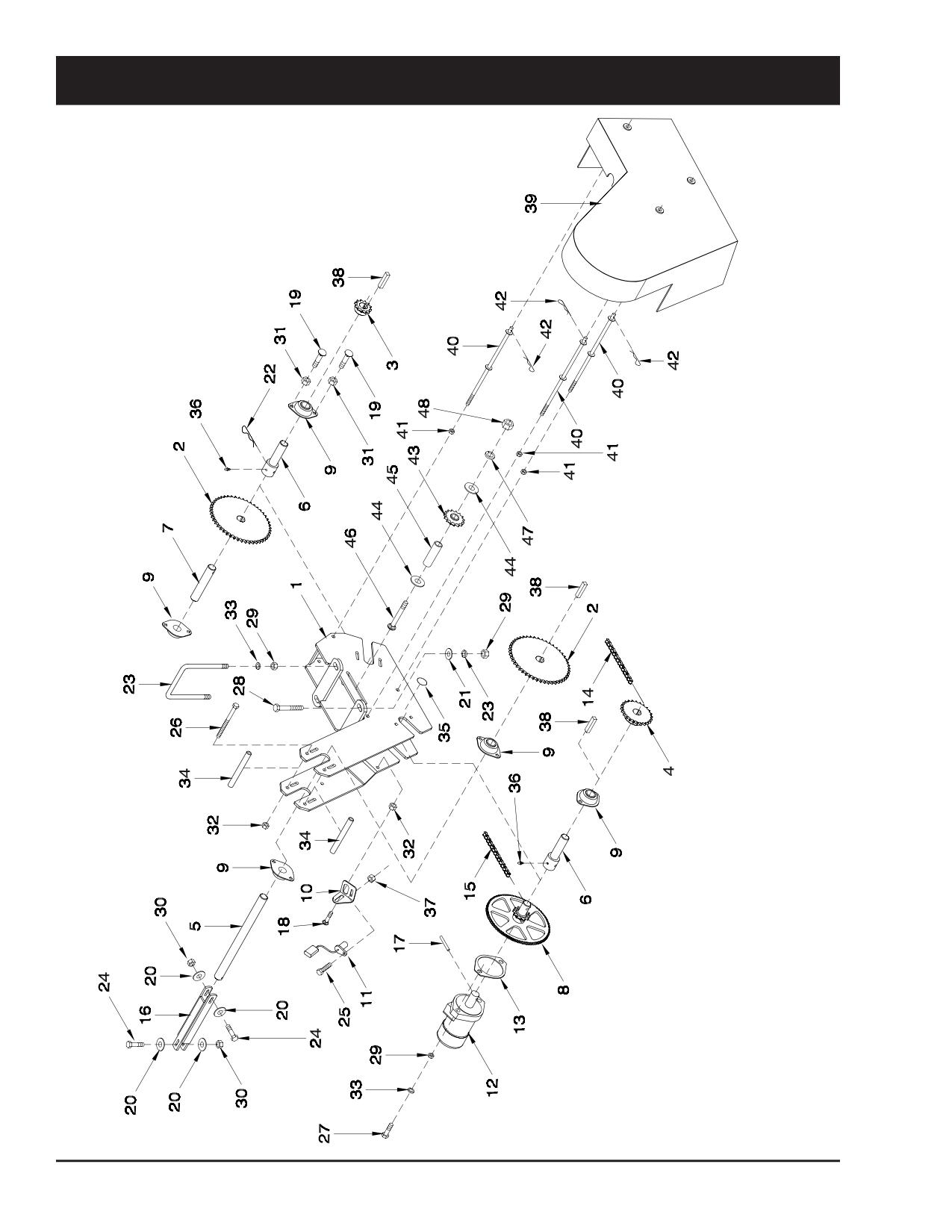

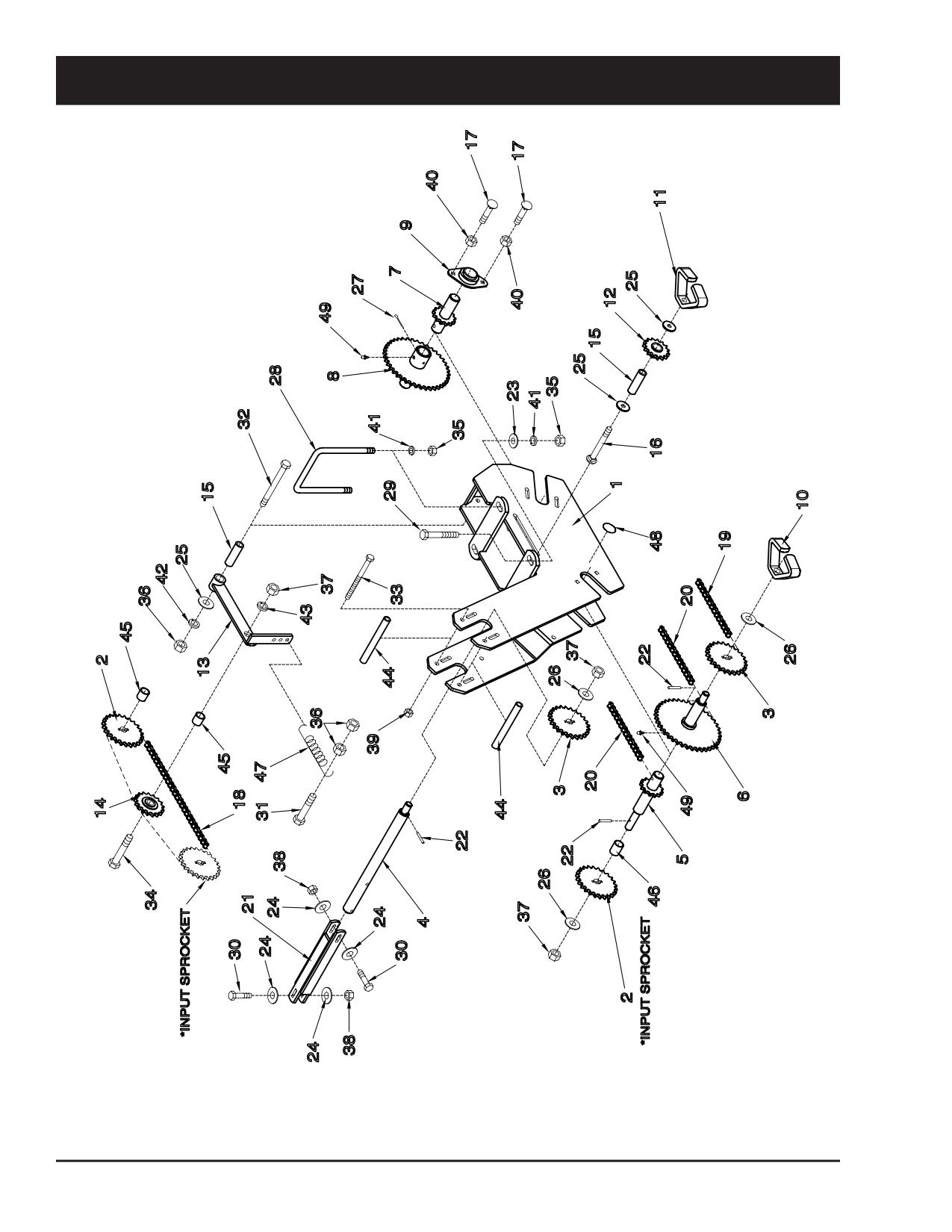

Drives - Standard Drive Assembly
Item
Part No.
Description
Qty
1
N29097
Transmission - Fertilizer Applicator
1
2
N27424
Sprocket - 40A24 (Input Sprocket)
2
3
N27425
Sprocket - 40A25
2
4
N27402
Shaft - Meter End - (P-Drive)
1
5
N27403
Shaft - Slow Speed - 13T - (P-Drive)
1
6
N27404
Shaft - Slow Speed - 40T - (P-Drive)
1
7
N27405
Shaft - Reducer - 13T - (P-Drive)
1
8
N27406
Shaft - Reducer - 40T - (P-Drive) (Bushing - N16853)
1
9
N27411
Flangette Bearing - 1 Bore (Sp)
6
10
N27370
Wing Locknut - 5/8
1
11
N27350
Wing Locknut - 3/8
1
12
D-5234
Nylon Idler - #40B15
1
13
N21672
Idler Arm
1
14
D17808
Sprocket - Idler - 40A17 - 5/8 Bore
1
15
N19460
Bushing - 2 1/2 Lg
2
16
N19283
Carriage Bolt - 3/8 x 3 1/2 Lg
1
17
D-5259
Carriage Bolt - 5/16 x 3/4 Lg
12
18
N19785
Chain - #40 x 127 Link W/Connector & Offset - (7032 & 7042 For 7130 & 7180)
1
N29478
Chain - #40 x 163 Link W/Connector & 3 Offset - (7042 For 7240 & 7300)
1
19
N29142
Chain #40 x 102 Link W/Connector
1
20
N16113
Chain #40 x 69 Link W/Connector & Offset
2
21
N21288
Coupler - Metering - 7 15/16 Lg
1
22
N27395
Drive Pin - 3/16 x 1 Lg
3
23
S-1925
Flatwasher - 1/2 ID x 1 1/16 OD x 13 Ga
2
24
S-1198
Flatwasher - 1/4
4
25
N19706
Flatwasher - 3/8 ID x 1 1/4 OD
3
26
W-793
Flatwasher - 5/8
3
27
P1318510
Hair Pin #19 - 0.243 x 4 3/8
1
28
N28162
U-Bolt - 1/2 x 5 1/8 x 8 5/8 - (7032 & 7042 For 7130 & 7180)
1
N28164
U-Bolt - 1/2 x 5 1/8 x 10 5/8 - (7042 For 7240 & 7300)
1
29
W-3687
Hex Bolt - 1/2 x 8 Lg - (7032 & 7042 For 7130 & 7180)
2
N28165
Hex Bolt - 1/2 x 10 Lg - (7042 For 7240 & 7300)
2
30
N22777
Hex Bolt - 1/4 x 2 1/4
2
31
W-480
Hex Bolt - 3/8 x 2 1/2 Lg
1
32
W-481
Hex Bolt - 3/8 x 3 1/2 Lg
1
33
N29158
Hex Bolt - 3/8 x 6 1/2 Lg
2
34
W-501
Hex Bolt - 5/8 x 2 1/2
1
35
W-516
Hex Nut - 1/2
4
36
W-514
Hex Nut - 3/8
3
37
W-517
Hex Nut - 5/8
3
38
N22778
Locknut - 1/4 - Nylon Insert
2
39
D-5279
Locknut - 3/8 - Serrated
2
40
D-5278
Locknut - 5/16 Serrated
12
41
W-525
Lockwasher - 1/2
2
42
W-523
Lockwasher - 3/8
1
43
W-526
Lockwasher - 5/8
1
44
N29487
Spacer - 5/8 OD x 5 1/2 Lg
2
45
N19577
Spacer - 7/8
2
46
N29200
Spacer - 7/8 OD x 1 1/8 Lg
1
47
W-1663
Spring - 23/32 OD x 7 9/16 Lg
1
48
C25809
Decal - “Grease 50 Hrs”
2
49
S-752
Grease Zerk - 1/4
2
50
N27864
Decal - “Slow Speed” 7000 Series - (Not Shown)
1
7000 Series Third Tank
June 2005
2-3
Drives
Variable Rate Drive Assembly
2-4
June 2005
7000 Series Third Tank
Drives - Variable Rate Drive Assembly
Item
Part No.
Description
Qty
1
N29097
Transmission - Fertilizer Applicator
1
2
D10747
Sprocket - 40B48
2
3
D17946
Sprocket - 40B12
1
4
N29338
Sprocket - 40B24
1
5
N29342
Shaft - Meter End - (P-Drive)
1
6
N29340
Shaft - Slow Speed - (V-Drive) (Bushing - N16853)
2
7
N29341
Shaft - Slow Speed - (V-Drive)
1
8
N29345
Shaft - Slow Speed - 12T - (V-Drive)
1
9
N27411
Flangette Bearing - 1 Bore (Sp)
5
10
N29296
Metershaft Sensor Bracket
1
11
N29307
Hall Effect Sensor
1
12
N29319
Hydraulic Motor - Danfoss (Seal Kit N32517)
1
13
N29371
Hydraulic Motor Shim - 12 Ga
1
14
N19785
Chain - #40 x 127 Link W/2 Conn - 2 Pcs
1
15
N29368
Chain - #40 x 73 Link W/2 Conn - 2 Pcs
1
16
N21288
Coupler - Metering - 7 15/16 Lg
1
17
N29375
Drive Pin - 5/16 x 1 1/2
1
18
D-5260
Carriage Bolt - 3/8 x 1 1/4 Lg
1
19
D-5259
Carriage Bolt - 5/16 x 3/4 Lg
10
20
S-1198
Flatwasher - 1/4
4
21
S-1925
Flatwasher - 1/2 ID x 1 1/16 OD x 13 Ga
2
22
P1318510
Hair Pin - #19 - 0.243 x 4 3/8
1
23
N28162
U-Bolt - 1/2 x 5 1/8 x 8 5/8 - (7032 & 7042 For 7130 & 7180)
1
N28164
U-Bolt - 1/2 x 5 1/8 x 10 5/8 - (7042 For 7240 & 7300)
1
24
N22777
Hex Bolt - 1/4 x 2 1/4
2
25
W-469
Hex Bolt - 1/4 x 3/4
1
26
N29158
Hex Bolt - 3/8 x 6 1/2 Lg
2
27
W-488
Hex Bolt - 1/2 x 2 Lg
2
28
W-3687
Hex Bolt - 1/2 x 8 Lg - (7032 & 7042 For 7130 & 7180)
2
N28165
Hex Bolt - 1/2 x 10 Lg - (7042 For 7240 & 7300)
2
29
W-516
Hex Nut - 1/2
6
30
N22778
Locknut - 1/4 - Nylon Insert
2
31
D-5278
Locknut - 5/16 - Serrated
10
32
D-5279
Locknut - 3/8 - Serrated
3
33
W-525
Lockwasher - 1/2
6
34
N29487
Spacer - 5/8 OD x 5 1/2 Lg
2
35
C25809
Decal - “Grease 50 Hrs”
2
36
S-752
Grease Zerk - 1/4
2
37
D-5277
Locknut - 1/4 - Serrated
1
38
S10730
Key - 1/4 x 1 1/4
4
39
N29311
Chain Guard
1
40
N29317
Chain Guard Pin
3
41
S27987
Locknut - 3/8 - Flanged
3
42
N29318
Hair Pin- #7 - 0.0938 x 2 5/16
3
43
D-5234
Idler Sprocket
1
44
N19706
Flatwasher - 3/8
2
45
N29399
Bushing -3 1/8 Lg
1
46
N29398
Carriage Bolt - 3/8 x 4
1
47
W-523
Lockwasher - 3/8
1
48
W-514
Hex Nut - 3/8
1
49
N27864
Decal - “Slow Speed” 7000 Series - (Not Shown)
1
7000 Series Third Tank
June 2005
2-5
Notes
2-6
June 2005
7000 Series Third Tank
Section 3:
Metering & Distribution
Section Contents
Metering Body
3-2
Coated Metering Body
3-3
Tow Behind Distribution
3-4
Tow Between Distribution
3-5
7000 Series Third Tank
June 2005
3-1
Metering & Distribution
Metering Body
Item
Part No.
Description
Qty

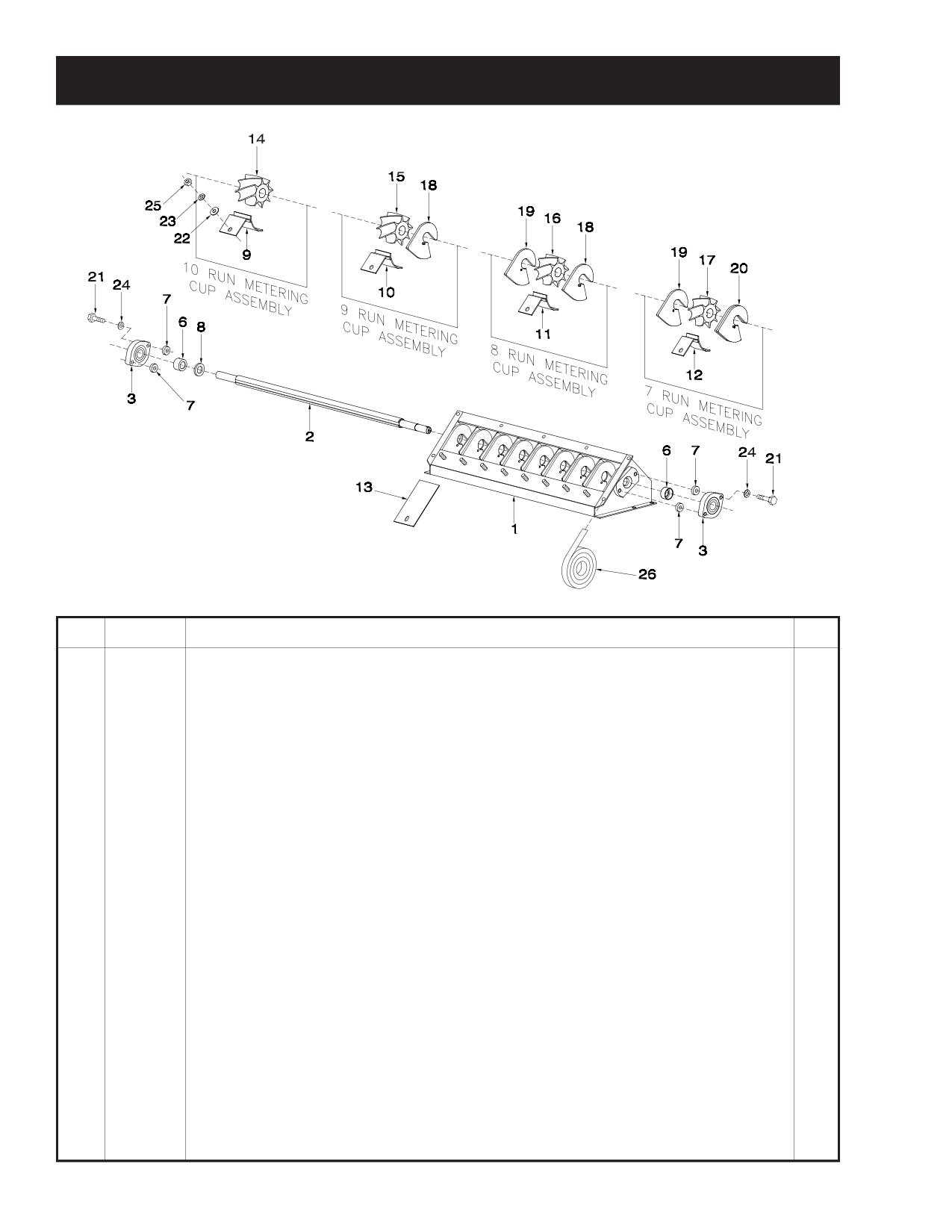

1
N27100
Metering Body
1
2
N19687
Metering Shaft - 8 Outlet
1
3
N19269
Bearing Assembly - NTN - 2 Bolt Flange
2
6
N21659
Seal
2
7
N21602
Spacer
4
8
N21612
Backing Washer
1
9
N27090
Slider - #10 Wheel
As req
10
N27089
Slider - #9 Wheel
As req
11
N27088
Slider - #8 Wheel
As req
12
N27087
Slider - #7 Wheel
As req
13
N27605
Cover - Blank Off
As req
14
N42130
Wheel - #10 Metering (Cream Colored) (2.50 width)
As req
15
N42129
Wheel - #9 Metering (Cream Colored) (2.25 width)
As req
16
N42128
Wheel - #8 Metering (Cream Colored) (2.00 width)
As req
17
N42127
Wheel - #7 Metering (Cream Colored) (1.75 width)
As req
18
N27099
Spacer Plate - #9 Wheel (Single - Left)
As req
19
N27098
Spacer Plate - #8 Wheel (Single - Right)
As req
20
N27097
Spacer Plate - #7 Wheel (Double - Left)
As req
N28492
Roll Pin - used in Spacer Plates (Not Shown)
As req
21
W-477
Hex Bolt - 3/8 x 1 1/2 Lg
4
22
D-5488
Flatwasher - 5/16
8
23
W-522
Lockwasher - 5/16
8
24
W-523
Lockwasher - 3/8
4
25
N15114
Hex Nut - 5/16 Stainless Steel
8
26
N15716
Seal Strip - 1/4 x 1 x 152 Lg (Bulk/Ft)
8 ft
N28831
Cover Plate - Shown on Hopper Assemblies
3-2
June 2005
7000 Series Third Tank
Metering & Distribution
Coated Metering Body
Item
Part No.
Description
Qty

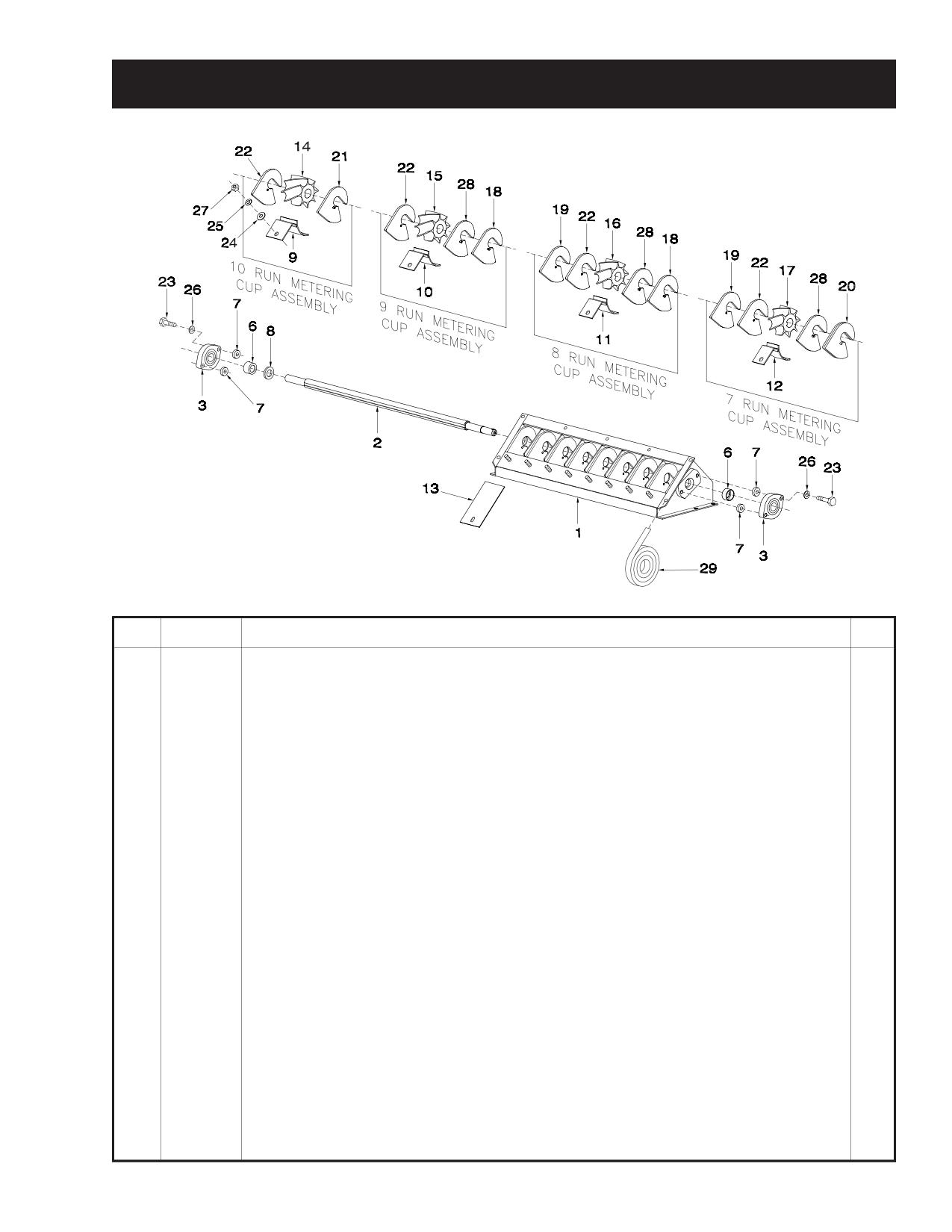

1
N28928
Metering Body
1
2
N19687
Metering Shaft - 8 Outlet
1
3
N19269
Bearing Assembly - NTN - 2 Bolt Flange
2
6
N21659
Seal
2
7
N21602
Spacer
4
8
N21612
Backing Washer
1
9
N27090
Slider - #10 Wheel
As req
10
N27089
Slider - #9 Wheel
As req
11
N27088
Slider - #8 Wheel
As req
12
N27087
Slider - #7 Wheel
As req
13
N27605
Cover - Blank Off
As req
14
N42130
Wheel - #10 Metering (Cream Colored) (2.50 width)
As req
15
N42129
Wheel - #9 Metering (Cream Colored) (2.25 width)
As req
16
N42128
Wheel - #8 Metering (Cream Colored) (2.00 width)
As req
17
N42127
Wheel - #7 Metering (Cream Colored) (1.75 width)
As req
18
N27099
Spacer Plate - #9 Wheel (Single - Left)
As req
19
N27098
Spacer Plate - #8 Wheel (Single - Right)
As req
20
N27097
Spacer Plate - #7 Wheel (Double - Left)
As req
21
N28927
Plastic Spacer - Wheel (Left)
8
22
N28929
Plastic Spacer - Wheel (Right)
1
N28492
Roll Pin - Used in Spacer Plates (Not Shown)
As req
23
W-477
Hex Bolt - 3/8 x 1 1/2 Lg
4
24
D-5488
Flatwasher - 5/16
8
25
W-522
Lockwasher - 5/16
8
26
W-523
Lockwasher - 3/8
4
27
N15114
Hex Nut - 5/16 Stainless Steel
8
28
N28924
Plastic Spacer - Wheel (Without Pin)
7
29
N15716
Seal Strip - 1/4 x 1 x 152 Lg (Bulk/Ft)
8 ft
N29457
Kit Coated Metering Body Assy (Includes 1, 2, 3, 6, 21, 22, 28 & 29)
7000 Series Third Tank
June 2005
3-3
Metering & Distribution
Tow Behind Distribution
No: Used
Item
Part No.
Description
21-30
31-40
41-50
51-60
61-70
71-80
Runs
Runs
Runs
Runs
Runs
Runs

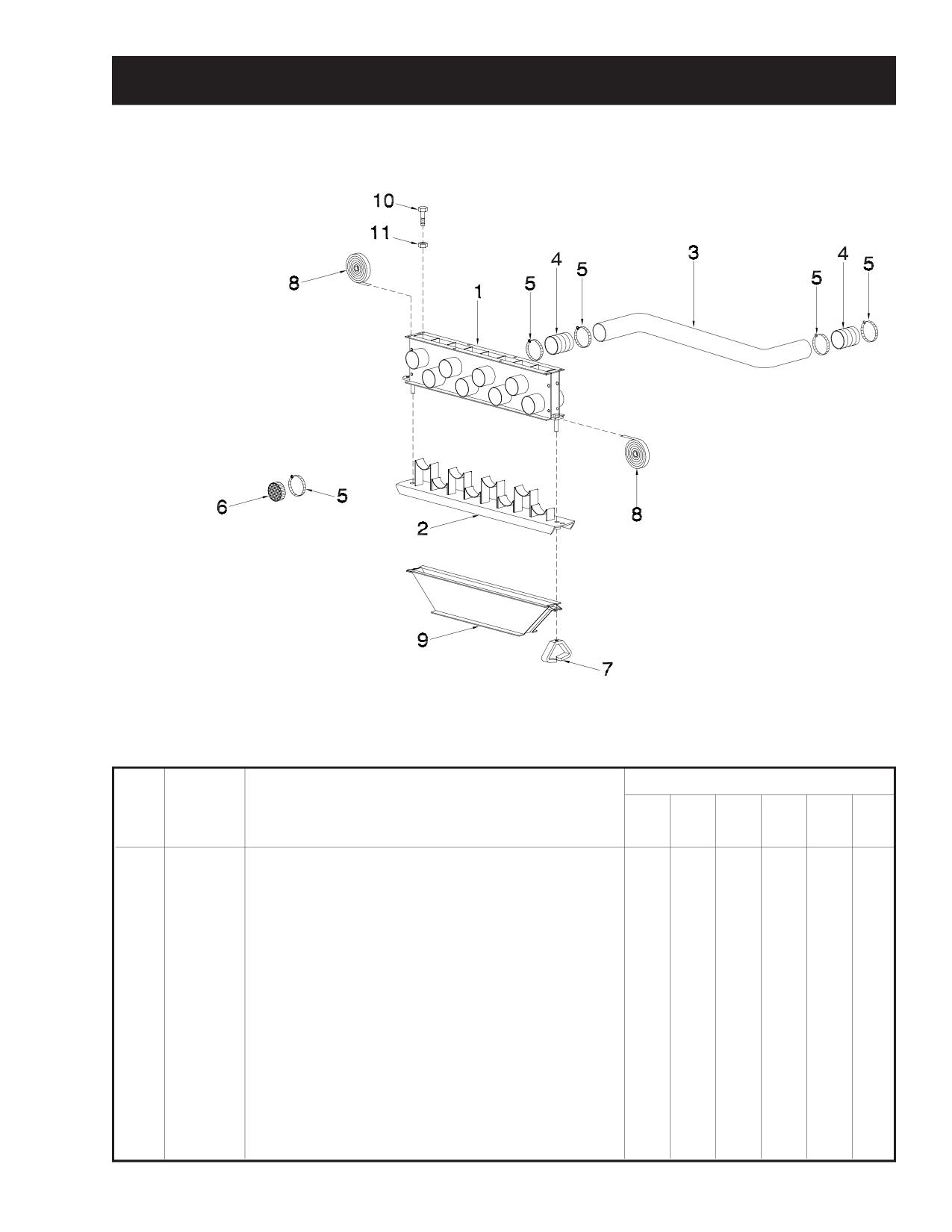

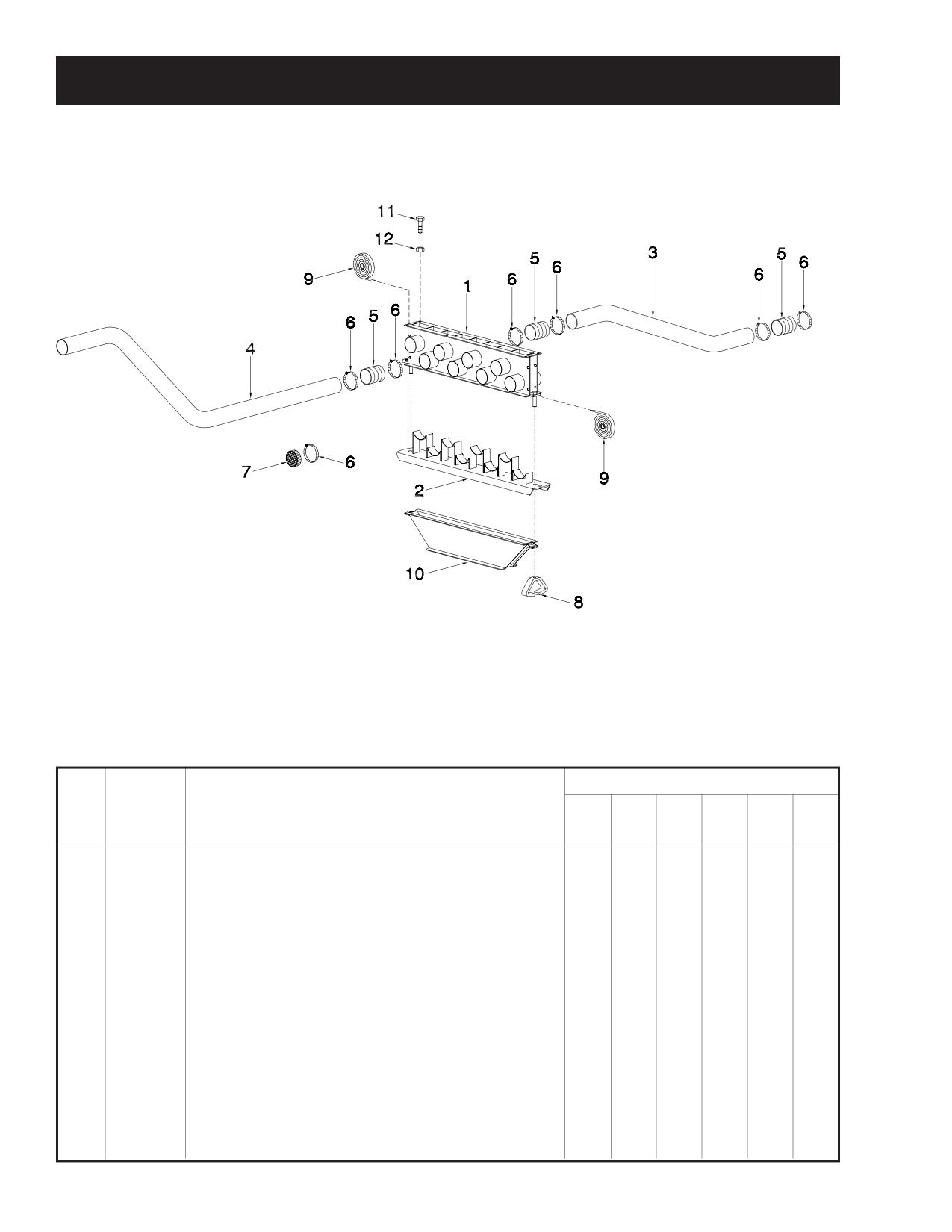

1
N19690
Collector - 8 Outlet
1
1
1
1
1
1
2
N19693
Cover - Cleanout - 8 Outlet
1
1
1
1
1
1
3
N29101
Tube - Primary - 29 (7032 & 7042 For 7130 & 7180)
3
4
5
6
7
8
N29128
Tube - Primary - 37 (7042 For 7240 & 7300)
3
4
5
6
7
8
4
N29102
Tube - Primary - 42 (7032 & 7042 For 7130 & 7180)
3
4
5
6
7
8
N29108
Tube - Primary - 44 (7042 For 7240 & 7300)
3
4
5
6
7
8
5
N19428
Hose - 2.54 ID x 2.79 OD x 5
6
8
10
12
14
16
6
N11905
Hose Clamp - 2 1/2
22
24
26
28
30
32
7
N11907
Plastic Cap - 2 1/2
10
8
6
4
2
-
8
N27360
Wing Nut - 1/2
2
2
2
2
2
2
9
N19449
Seal Strip - 3/8 x 1 (Bulk/ft)
5 ft
5 ft
5 ft
5 ft
5 ft
5 ft
10
N29107
Collector Extension
1
1
1
1
1
1
N40505
Collector Extension (2 Meter Controlled Traffic Only)
1
1
1
1
1
1
11
F-1767
Hex Bolt - 5/16 x 3/4 Lg
8
8
8
8
8
8
12
D-5278
Locknut Serrated - 5/16
8
8
8
8
8
8
3-4
June 2005
7000 Series Third Tank
Metering & Distribution
Tow Between Distribution
No: Used
Item
Part No.
Description
21-30
31-40
41-50
51-60
61-70
71-80
Runs
Runs
Runs
Runs
Runs
Runs
1
N19690
Collector - 8 Outlet
1
1
1
1
1
1
2
N19693
Cover - Cleanout - 8 Outlet
1
1
1
1
1
1
3
N29101
Tube - Primary - 29 (7032)
3
4
5
6
7
8
N29128
Tube - Primary - 37 (7042)
3
4
5
6
7
8
4
N19428
Hose - 2.54 ID x 2.79 OD x 5
6
8
10
12
14
16
5
N11905
Hose Clamp - 2 1/2
22
24
26
28
30
32
6
N11907
Plastic Cap - 2 1/2
10
8
6
4
2
-
7
N27360
Wing Nut - 1/2
2
2
2
2
2
2
8
N19449
Seal Strip - 3/8 x 1 (Bulk/ft)
5 ft
5 ft
5 ft
5 ft
5 ft
5 ft
9
N29107
Collector Extension
1
1
1
1
1
1
N40505
Collector Extension (2 Meter Controlled Traffic Only)
1
1
1
1
1
1
10
F-1767
Hex Bolt - 5/16 x 3/4 Lg
8
8
8
8
8
8
11
D-5278
Locknut Serrated - 5/16
8
8
8
8
8
8
7000 Series Third Tank
June 2005
3-5
Notes
3-6
June 2005
7000 Series Third Tank
Section 4:
Monitor
Section Contents
Monitor & Blockage Module
4-2
7000 Series Third Tank
June 2005
4-1
Monitor
Monitor & Blockage Module
4-2
June 2005
7000 Series Third Tank
Monitor - Monitor & Blockage Module
Item
Part No.
Description
Qty

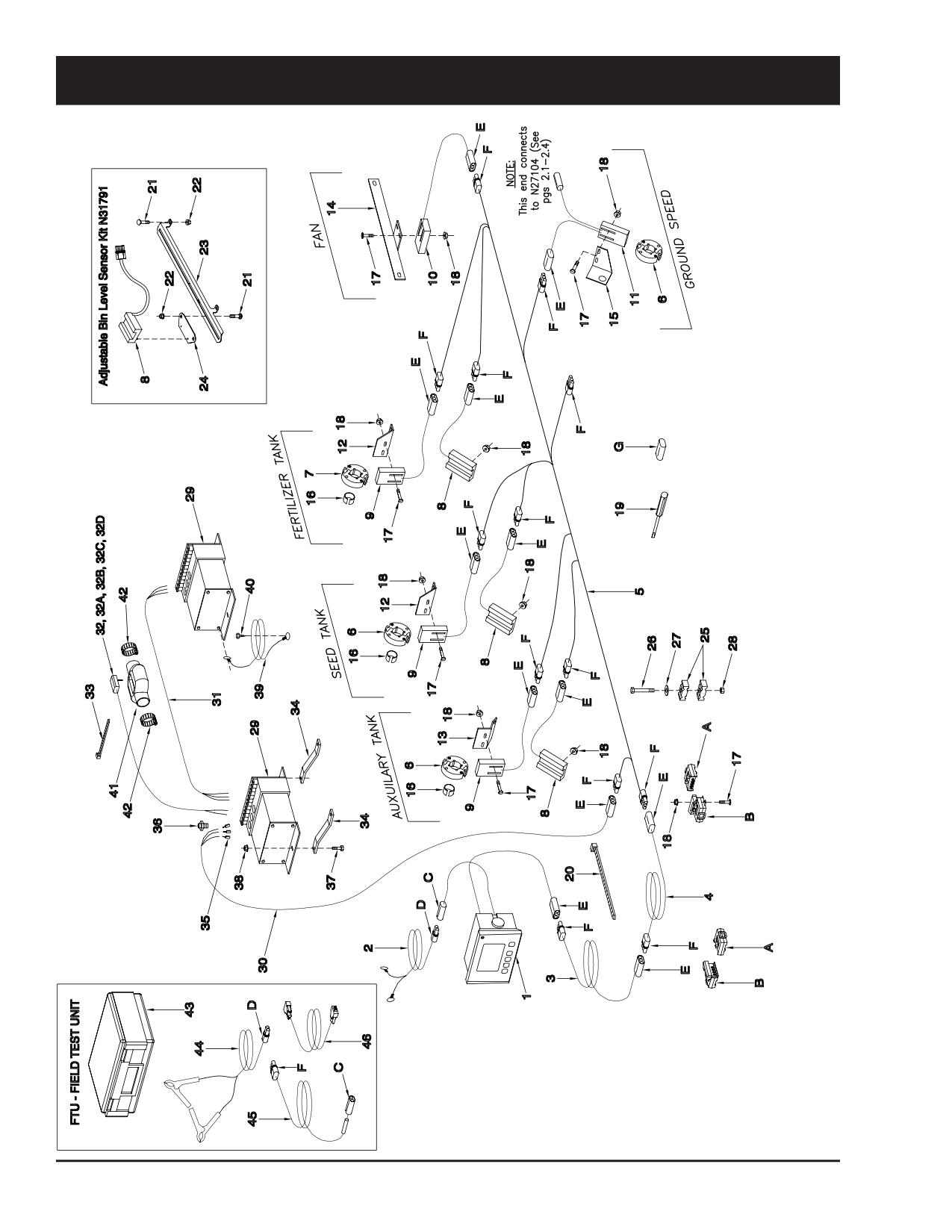

Monitor Assembly
1
N27010
Monitor - NEW
1
N27010R
Monitor - REBUILT
2
N27609
Power Cable - Monitor
1
3
N32470
Wire - Monitor Extension - 21 (Weather Pak)
1
N27608
Wire - Monitor Extension - 21 (Brylite)
1
4
N32471
Wire - Monitor Extension - 37 1/2 (Weather Pak) Tow Behind ONLY
1
N28199
Wire - Monitor Extension - 37 1/2 (Brylite) Tow Behind ONLY
1
5
N32472
Harness - Monitor (Weather Pak) 7130 / 7180 Tow Behind
1
N27006
Harness - Monitor (Brylite) 7130 / 7180 Tow Behind
1
N32474
Harness - Monitor (Weather Pak) 7240 / 7300 Tow Behind
1
N27008
Harness - Monitor (Brylite) 7240 / 7300 Tow Behind
1
N32473
Harness - Monitor (Weather Pak) 7180 Tow Between
1
N27007
Harness - Monitor (Brylite) 7180 Tow Between
1
N32475
Harness - Monitor (Weather Pak) 7240 Tow Between
1
N27009
Harness - Monitor (Brylite) 7240 Tow Between
1
N32476
Harness - Monitor (Weather Pak) 7252 Tow Behind
1
N31550
Harness - Monitor (Brylite) 7252 Tow Behind
1
N32477
Harness - Monitor (Weather Pak) 7252 Tow Between
1
N31551
Harness - Monitor (Brylite) 7252 Tow Between
1
6
N16471
Reed Switch Actuator - 4 Magnet
3
7
N16473
Reed Switch Actuator - 2 Magnet
1
8
N27616
Sensor - Bin Level c/w Gasket
3
9
N27617
Reed Switch
3
10
N27618
Magnetic Sensor - Fan
1
11
N27619
Reed Switch - Ground
1
12
N19450
Sensor Mount - Metershaft - Main
2
13
N21671
Sensor Mount - Metershaft - Granular
1
14
N16565
Sensor Mount - Fan
1
15
N27621
Sensor Mount - Main Switch - Ground
1
16
N19599
Bushing - Spacer
3
17
N16563
Machine Screw - #8 - 32 UNC x 1 1/4 Lg
14
18
N16564
Serrated Locknut - #8 - 32 UNC
20
19
N27625
Assembly Tool - Packard Connector
1
20
D-4838
Nylon Tie Strap - 14 1/2 Lg (Black)
1
21
D-5259
Carriage Head Bolt - 5/16 x 3/4
6
22
D-5278
Serrated Nut - 5/16
6
23
N31792
Adjustment Plate
1
24
N31790
Base Plate
1
25
C-4698
Nylon Clamp
2
26
W-479
Hex Head Bolt - 3/8 x 2 1/4
1
27
W-538
Flat Washer - 3/8
1
28
M-3388
Lock Nut - 3/8
1
Blockage Module Assembly
29
N27624
Module - Blockage
As req
30
N27623
Wire - Blockage Module (Required for 1st Module ONLY)
1
31
N16474
Wire - Connector - Blockage Module (Req’d for subsequent Modules)
As req
32
N28487
Pin Sensor - 5 ft Lg
As req
32A
N28488
Pin Sensor - 10 ft Lg
As req
32B
N28489
Pin Sensor - 15 ft Lg
As req
32C
N28490
Pin Sensor - 20 ft Lg
As req
32D
N28491
Pin Sensor - 30 ft Lg
As req
33
N34263
Nylon Tie Strap - 11 1/2 Lg (Qty per Pin Sensor)
1
34
N21520
Bracket - Mount (Qty per Blockage Module)
2
35
N21654
Female Connector - 18 Ga Fast-On (Qty per Blockage Module)
6
36
N21653
Module Wire Retainer (Qty per Blockage Module)
2
37
W-469
Hex Bolt - 1/4 x 3/4 Lg (Qty per Blockage Module)
2
38
D-5277
Serrated Locknut - 1/4 (Qty per Blockage Module)
2
39
N31049
Wire - Ground - Blockage Module (Qty per Blockage Module)
1
40
N16698
Screw - 1/4 x 3/4 Self Tapping (Qty per Blockage Module)
1
41
N29735
Sensor Bubble w/clamps
As req
42
N11470
Clamp
As req
FTU - Field Test Unit
43
N27119
FTU - Field Test Unit
1
44
N32492
Power Cable - FTU - 10 ft - Test Clip
1
45
N32491
Power Cable - 3 ft - Main
1
46
N32494
Adaptor Cable - FTU - for PC
1
47
N34177
FTU - Operation Manual (Not Shown)
1
Blockage Module Kits and Replacement Parts on Next Page
7000 Series Third Tank
June 2005
4-3
Monitor - Monitor & Blockage Module
Item
Part No.
Description
Qty
Replacement Connectors
A
N21538
Brylite Connector - 4 Pin Male
B
N21539
Brylite Connector - 4 Pin Female
C
N29384
Weather Pak Connector - BLACK - 2 Pin Plug (Shroud)
D
N29385
Weather Pak Connector - BLACK - 2 Pin Socket (Tower)
E
N27613
Weather Pak Connector - BLACK - 3 Pin Plug (Shroud)
F
N27614
Weather Pak Connector - BLACK - 3 Pin Socket (Tower)
G
N27615
Seal Connector - BLACK - 3 Pin Plug
H
N29151
Weather Pak Connector - BLACK - 4 Pin Plug (Shroud)
I
N29152
Weather Pak Connector - BLACK - 4 Pin Socket (Tower)
J
N29153
Seal Connector - BLACK - 4 Pin Plug
K
N28901
Weather Pak Connector - BLUE - 3 Pin Plug (Shroud)
L
N28902
Weather Pak Connector - BLUE - 3 Pin Socket (Tower)
M
N29143
Seal Connector - BLUE - 3 Pin Plug
N
N28903
Weather Pak Connector - RED - 3 Pin Plug (Shroud)
O
N28904
Weather Pak Connector - RED - 3 Pin Socket (Tower)
P
N29144
Seal Connector - RED - 3 Pin Plug
Q
N28905
Weather Pak Connector - WHITE - 3 Pin Plug (Shroud)
R
N28906
Weather Pak Connector - WHITE - 3 Pin Socket (Tower)
S
N29145
Seal Connector - WHITE - 3 Pin Plug
N29147
Seal - Weather Pak - Cavity Plug (Not Shown)
N29148
Seal -Weather Pak - Wire Plug (Not Shown)
N29149
Terminal - Weather Pak - Male End (Not Shown)
N29150
Terminal - Weather Pak - Female End (Not Shown)
Replacement Parts (Not Shown)
N24391
Fuse Holder & Cap (Installed in Clutch Switch Box N27011)
N30575
Circuit Breaker FC-191-05-15-P (Installed in Item #1, Versions 1.1 to 1.3)
N24302
Magnet Only - 1/4 Round x 3/4 Lg (Installed in Items #6 & 7) - pairs only
N28671
Mount Bracket - Monitor - #VM253501
N29833
Knob for Monitor Mount Bracket - #103302
Blockage Module Kits
N27606
Blockage Module Kit (Includes Items #25, 30, 31, 32, 33, 34, 35 & 36)
N30659
5 ft Pin Sensor Kit (Includes Items #28 & 29)
N30660
10 ft Pin Sensor Kit (Includes Items #28A & 29)
N30661
15 ft Pin Sensor Kit (Includes Items #28B & 29)
N30662
20 ft Pin Sensor Kit (Includes Items #28C & 29)
N30663
30 ft Pin Sensor Kit (Includes Items #28D & 29)
N35530
Kit 5 ft Pin Sensor w/ Bubble (Includes Items #28, 29 & 37)
N35531
Kit 10 ft Pin Sensor w/ Bubble (Includes Items #28A, 29 & 37)
N35532
Kit 15 ft Pin Sensor w/ Bubble (Includes Items #28B, 29 & 37)
N35533
Kit 20 ft Pin Sensor w/ Bubble (Includes Items #28C, 29 & 37)
N35534
Kit 30 ft Pin Sensor w/ Bubble (Includes Items #28D, 29 & 37)
ORDER KITS THROUGH WHOLEGOODS ONLY
4-4
June 2005
7000 Series Third Tank
Section 5:
Variable Rate
Section Contents
Hydraulic System
5-2
Hydraulic Valve Manifold
5-3
Control System
5-4
7000 Series Third Tank
June 2005
5-1
Variable Rate System

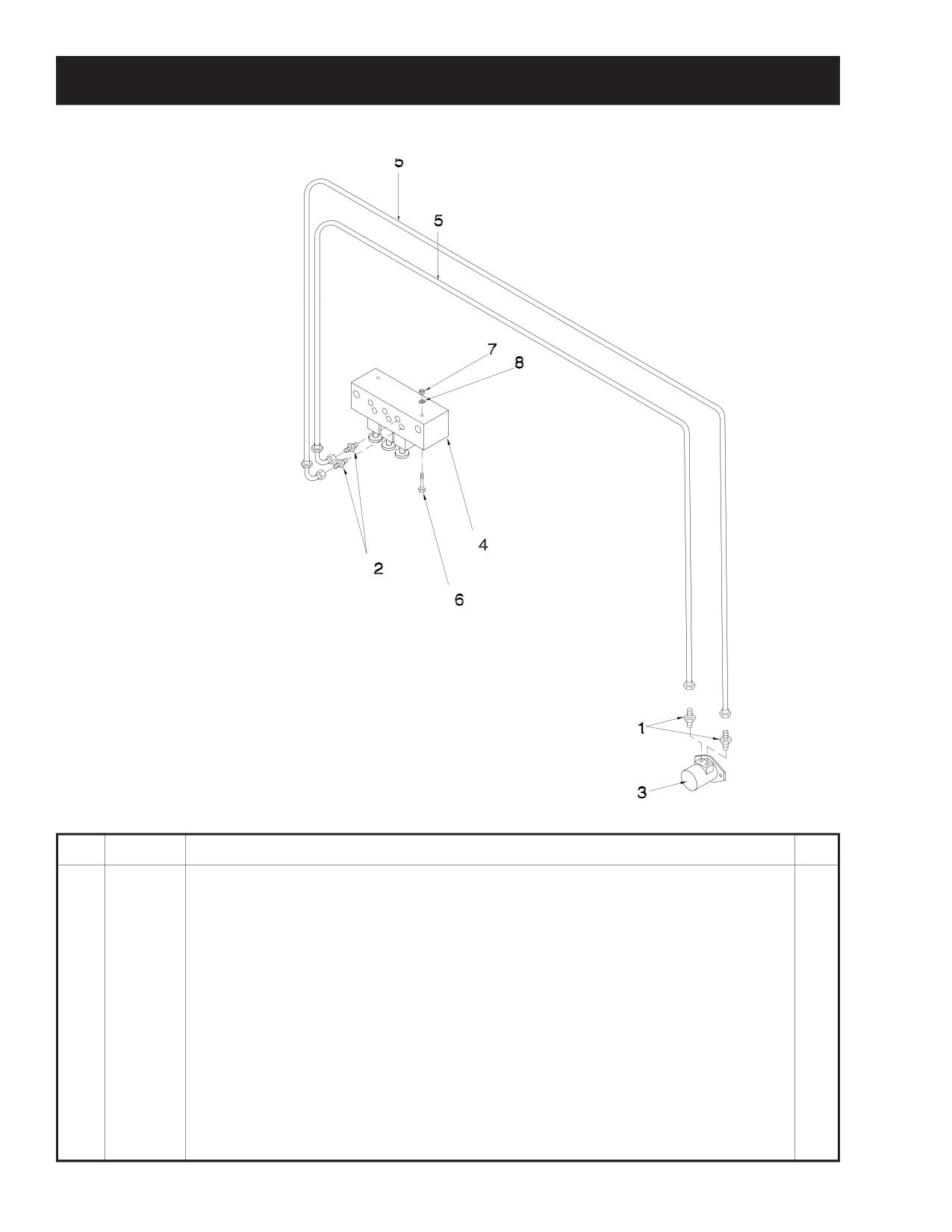

Hydraulic System
Item
Part No.
Description
Qty
1
N29359
Connector - 3/4-16 MJIC x 7/8-14 MORB
6
2
N29358
Connector - 3/4-16 MJIC x 9/16-18 MORB
6
3
N29319
Hydraulic Motor - Danfoss (Seal Kit N32517)
3
4
N29320
Valve Manifold Assembly
1
5
N29363
Hyd Hose - 3/8 x 60 Lg w/3/4-16 FJIC (7180)
2
N29364
Hyd Hose - 3/8 x 72 Lg w/3/4-16 FJIC (7240 / 7300)
2
6
W-1847
Hex Bolt - 1/4 x 5 Lg
2
7
W-512
Hex Nut - 1/4
2
8
W-521
Lockwasher - 1/2
2
5-2
June 2005
7000 Series Third Tank
Variable Rate System

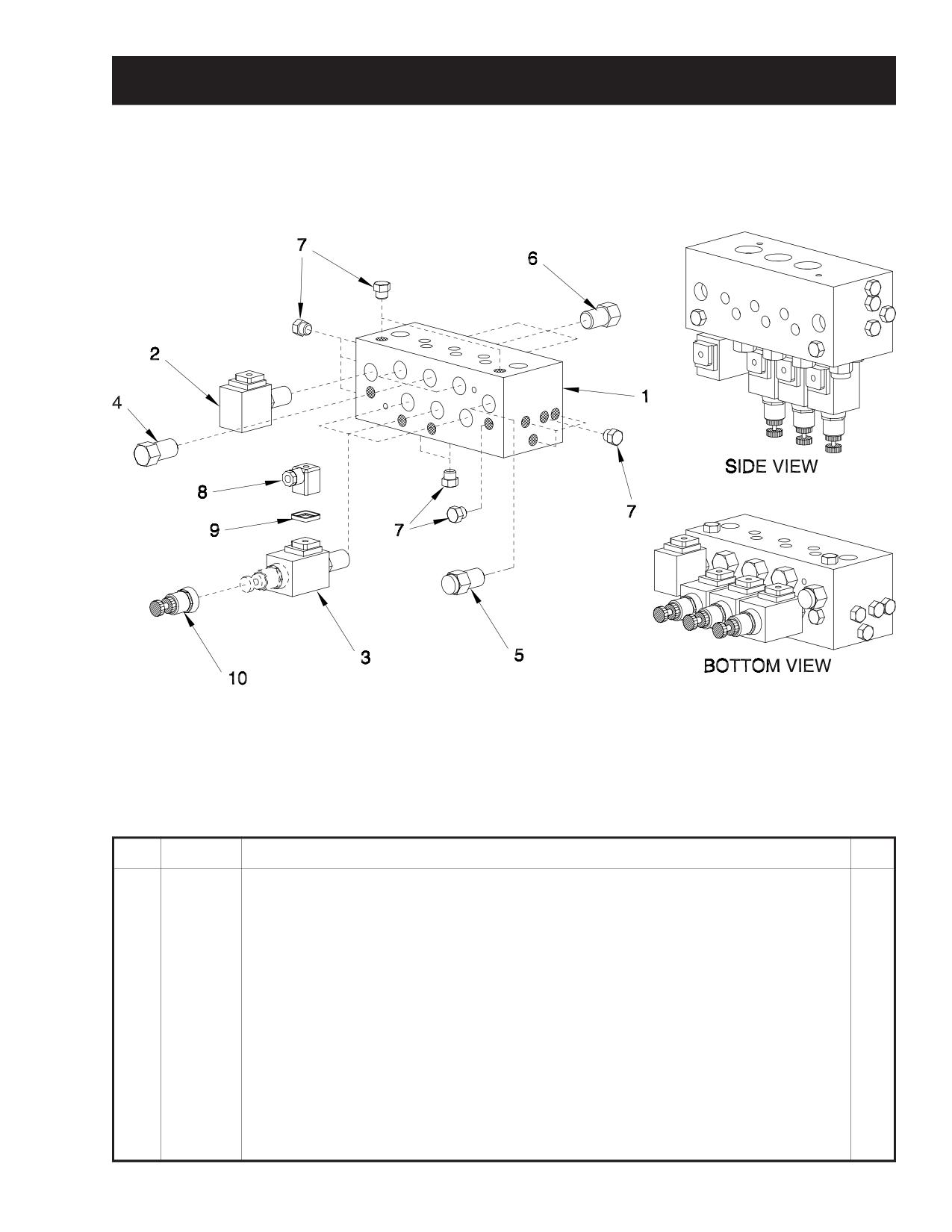

Hydraulic Valve Manifold
Item
Part No.
Description
Qty
1
N29321
Valve Manifold Block
1
2
N29322
Valve - Dump - Solenoid
1
3
N29323
Valve - Solenoid - Flow Element
3
4
N29324
Valve - Flow Restrictor - Slave
3
5
N29325
Valve - Flow Regulator - Supply
1
6
N29328
Valve - Flow Regulator - Drain
3
7
N29365
Male Plug - 9/16-18 ORB
15
8
N29329
DIN Connector - Plug w/Gasket
4
9
N29331
Gasket - DIN Connector
4
10
N29330
Adjustment Knob Assembly
3
N38962
Nut for N29330
N38963
Screw for N29330
N29320
Valve Manifold Assembly (Includes above items except 8, 9 & 10)
7000 Series Third Tank
June 2005
5-3
Variable Rate System

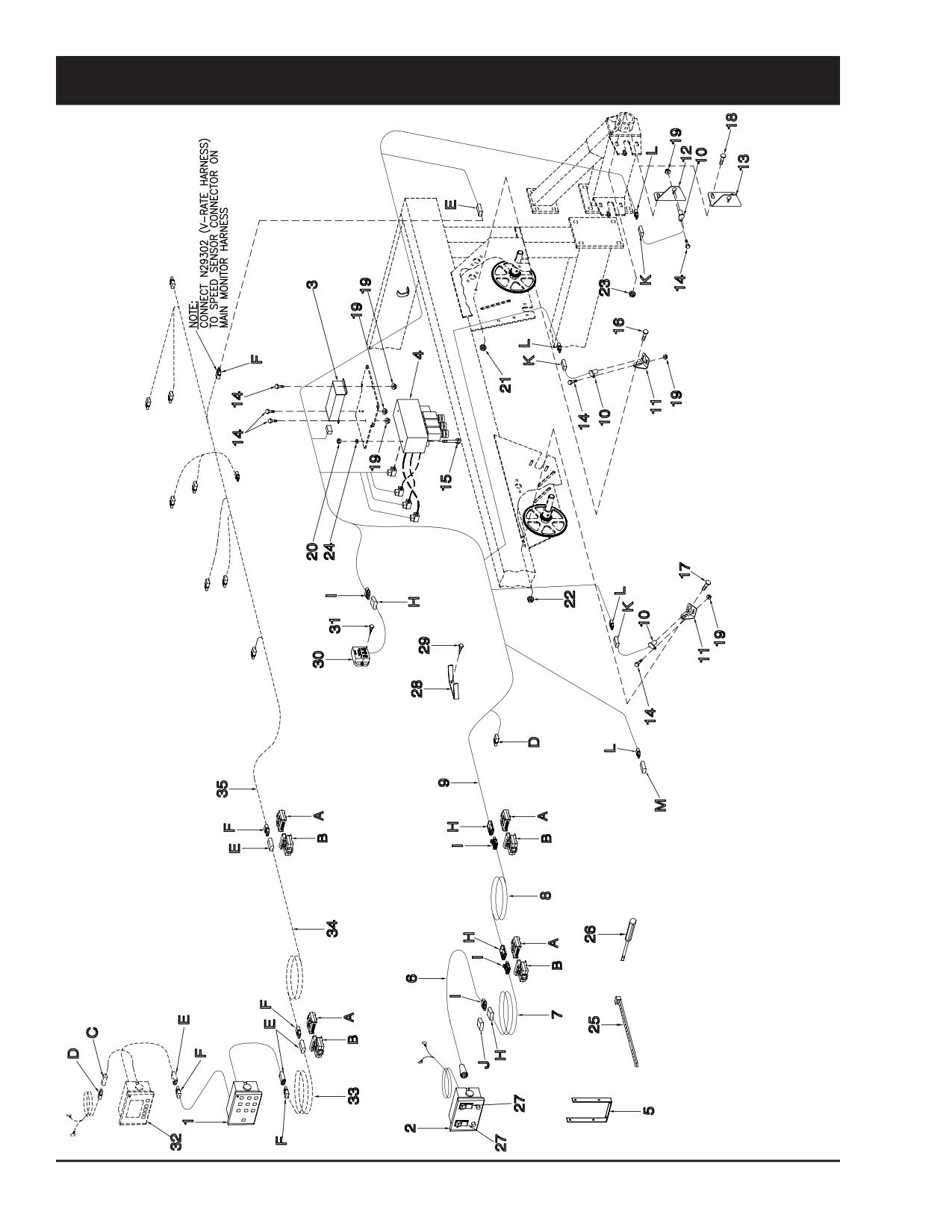

Control System
5-4
June 2005
7000 Series Third Tank
Variable Rate System - Control System
Item
Part No.
Description
Qty
1
N29300
Console - Master Switch (V/Rate)
1
2
N29305
Controller Switch - V/Rate
1
3
N29301
Controller Housing (V/Rate)
1
4
N29320
Valve Manifold Assembly
1
5
N29370
Bracket - Mount - Variable Console
1
6
N29306
Wire - V/Rate Extension - Lead - 8 1/2 ft
1
7
N32464
Wire - V/Rate Extension - Main - 21 ft - Weather Pak
1
N29304
Wire - V/Rate Extension - Main - 21 ft - Brylite
1
8
N32465
Wire - V/Rate Extension - 37 1/2 ft Tow Behind ONLY - Weather Pak
1
N29303
Wire - V/Rate Extension - 37 1/2 ft Tow Behind ONLY - Brylite
1
9
N32478
Harness - V-Rate Controller - Weather Pak
1
N29332
Harness - V-Rate Controller - Brylite
1
10
N29307
Hall Effect Sensor
2
11
N29296
Bracket - Sensor - Metershaft
2
12
N29309
Bracket - Sensor - Main 7130 / 7180
1
13
N29310
Bracket - Sensor - Main 7240 / 7252 / 7300
1
14
W-469
Hex Bolt - 1/4 x 3/4
6
15
W-1847
Hex Bolt - 1/4 x 5 Lg
2
16
D-5259
Carriage Bolt - 5/16 x 3/4 Lg
1
17
D-5260
Carriage Bolt - 3/8 x 1 1/4 Lg
1
18
D-5265
Carriage Bolt - 1/2 x 1 Lg
2
19
D-5277
Locknut - 1/4 - Serrated
6
20
W-512
Hex Nut - 1/4
2
21
D-5278
Locknut - 5/16 - Serrated
1
22
D-5279
Locknut - 3/8 - Serrated
1
23
D14565
Locknut - 1/2 - Serrated
2
24
W-521
Lockwasher - 1/4
2
25
D-4838
Nylon Tie Strap - Black - 14 1/2 Lg
3
26
N27625
Assembly Tool - Packard Connector
1
27
N29382
Rocker Switch - 2 Way - #83301
2
28
N29400
Bracket - Auxiliary Mount - Monitor
1
29
N16698
Screw - Self Tapping - 1/4
2
30
N29333
Control - Start/Stop
1
31
N29696
Screw - Self Tapping - #10 x 3/4
2
The following Items come with the basic Air Seeder
32
N27010
Monitor
33
N32470
Wire - Monitor Extension - 21 ft - Weather Pak
N27608
Wire - Monitor Extension - 21 ft - Brylite
34
N32471
Wire - Monitor Extension - 37 1/2 ft Tow Behind ONLY - Weather Pak
N28199
Wire - Monitor Extension - 37 1/2 ft Tow Behind ONLY - Brylite
35
N32472
Harness - Monitor (Weather Pak) 7130 / 7180 Tow Behind
N27006
Harness - Monitor (Brylite) 7130 / 7180 Tow Behind
N32474
Harness - Monitor (Weather Pak) 7240 / 7300 Tow Behind
N27008
Harness - Monitor (Brylite) 7240 / 7300 Tow Behind
N32473
Harness - Monitor (Weather Pak) 7180 Tow Between
N27007
Harness - Monitor (Brylite) 7180 Tow Between
N32475
Harness - Monitor (Weather Pak) 7240 Tow Between
N27009
Harness - Monitor (Brylite) 7240 Tow Between
N32476
Harness - Monitor (Weather Pak) 7252 Tow Behind
N31550
Harness - Monitor (Brylite) 7252 Tow Behind
N32477
Harness - Monitor (Weather Pak) 7252 Tow Between
N31551
Harness - Monitor (Brylite) 7252 Tow Between
See Pg. 8-3 for complete list of Replacement Connectors
A
N21538
Brylite Connector - 4 Pin Male
B
N21539
Brylite Connector - 4 Pin Female
C
N29384
Packard Connector - BLACK - 2 Pin Plug
D
N29385
Packard Connector - BLACK - 2 Pin Socket
E
N27613
Packard Connector - BLACK - 3 Pin Plug
F
N27614
Packard Connector - BLACK - 3 Pin Socket
H
N29151
Packard Connector - BLACK - 4 Pin Plug
I
N29152
Packard Connector - BLACK - 4 Pin Socket
J
N29153
Seal Connector - Black - BLACK - 4 Pin
K
N28901
Packard Connector - BLUE - 3 Pin Plug
L
N28902
Packard Connector - BLUE - 3 Pin Socket
M
N29143
Seal Connector - BLUE - 3 Pin
7000 Series Third Tank
June 2005
5-5
Notes
5-6
June 2005
7000 Series Third Tank
Index
C
N19428 3-5
N27404 2-3
N29049 1-3
N19437 1-3
N27405 2-3
N29090 1-3
C-3918 1-3
N19449 3-5
N27406 2-3
N29097 2-3, 2-5
C-4698 4-3
N19450 4-3
N27411 2-3, 2-5
N29099 1-3
C25809 2-3, 2-5
N19460 2-3
N27424 2-3
N29100 1-3
D
N19496 1-3
N27425 2-3
N29101 3-5
N19577 2-3
N27591 1-3
N29102 3-5
D-4838 4-3, 5-5
N19599 4-3
N27605 3-2, 3-3
N29107 3-5
D-5098 1-3
N19646 1-3
N27606 4-4
N29108 3-5
D-5234 2-3, 2-5
N19687 3-2, 3-3
N27608 4-3, 5-5
N29128 3-5
D-5259 1-3, 2-3, 2-5, 4-3, 5-
N19690 3-5
N27609 4-3
N29142 2-3
5
N19693 3-5
N27613 4-4, 5-5
N29143 4-4, 5-5
D-5260 2-5, 5-5
N19706 2-3, 2-5
N27614 4-4, 5-5
N29144 4-4
D-5265 5-5
N19785 2-3, 2-5
N27615 4-4
N29145 4-4
D-5277 2-5, 4-3, 5-5
N19791 1-3
N27616 4-3
N29147 4-4
D-5278 1-3, 2-3, 2-5, 3-5, 4-
N21288 2-3, 2-5
N27617 4-3
N29148 4-4
3, 5-5
N21450 1-3
N27618 4-3
N29149 4-4
D-5279 2-3, 2-5, 5-5
N21520 4-3
N27619 4-3
N29150 4-4
D-5488 1-3, 3-2, 3-3
N21538 4-4, 5-5
N27621 4-3
N29151 4-4, 5-5
D-5489 1-3
N21539 4-4, 5-5
N27623 4-3
N29152 4-4, 5-5
D-5579 1-3
N21602 3-2, 3-3
N27624 4-3
N29153 4-4, 5-5
D10747 2-5
N21604 1-3
N27625 4-3, 5-5
N29158 2-3, 2-5
D14565 5-5
N21612 3-2, 3-3
N27710 1-3
N29200 2-3
D17808 2-3
N21653 4-3
N27715 1-3
N29201 1-3
D17946 2-5
N21654 4-3
N27864 2-3, 2-5
N29296 2-5, 5-5
N21659 3-2, 3-3
N28160 1-3
N29300 5-5
F
N21671 4-3
N28162 1-3, 2-3, 2-5
N29301 5-5
F-1767 3-5
N21672 2-3
N28163 1-3
N29303 5-5
N22777 2-3, 2-5
N28164 1-3, 2-3, 2-5
N29304 5-5
M
N22778 2-3, 2-5
N28165 1-3, 2-3, 2-5
N29305 5-5
M-3388 1-3, 4-3
N24302 4-4
N28170 1-3
N29306 5-5
N24391 4-4
N28180 1-3
N29307 2-5, 5-5
N
N24792 1-3
N28184 1-3
N29309 5-5
N11470 4-3
N27006 4-3, 5-5
N28185 1-3
N29310 5-5
N11905 3-5
N27007 4-3, 5-5
N28192 1-3
N29311 2-5
N11907 3-5
N27008 4-3, 5-5
N28199 4-3, 5-5
N29317 2-5
N15094 1-3
N27009 4-3, 5-5
N28487 4-3
N29318 2-5
N15114 3-2, 3-3
N27010 4-3, 5-5
N28488 4-3
N29319 2-5, 5-3
N15716 1-3, 3-2, 3-3
N27010R 4-3
N28489 4-3
N29320 5-3, 5-5
N16113 2-3
N27080 1-3
N28490 4-3
N29321 5-3
N16471 4-3
N27087 3-2, 3-3
N28491 4-3
N29322 5-3
N16473 4-3
N27088 3-2, 3-3
N28492 3-2
N29323 5-3
N16474 4-3
N27089 3-2, 3-3
N28663 1-3
N29324 5-3
N16563 4-3
N27090 3-2, 3-3
N28671 4-4
N29325 5-3
N16564 4-3
N27097 3-2, 3-3
N28831 1-3, 3-2
N29328 5-3
N16565 4-3
N27098 3-2, 3-3
N28901 4-4, 5-5
N29329 5-3
N16698 4-3, 5-5
N27099 3-2, 3-3
N28902 4-4, 5-5
N29330 5-3
N16853 2-3, 2-5
N27100 1-3, 3-2
N28903 4-4
N29331 5-3
N19025 1-3
N27119 4-3
N28904 4-4
N29332 5-5
N19108 1-3
N27155 1-3
N28905 4-4
N29333 5-5
N19109 1-3
N27350 2-3
N28906 4-4
N29338 2-5
N19127 1-3
N27360 1-3, 3-5
N28924 3-3
N29340 2-5
N19211 1-3
N27370 2-3
N28927 3-3
N29341 2-5
N19269 3-2, 3-3
N27395 2-3
N28928 3-3
N29342 2-5
N19283 2-3
N27402 2-3
N28929 3-3
N29345 2-5
N19366 1-3
N27403 2-3
N29048 1-3
N29358 5-3
7000 Series Third Tank
June 2005
Index-i
N29359 5-3
N38963 5-3
N29363 5-3
N40505 3-5
N29364 5-3
N42127 3-2, 3-3
N29365 5-3
N42128 3-2, 3-3
N29368 2-5
N42129 3-2, 3-3
N29370 5-5
N42130 3-2, 3-3
N29371 2-5
P
N29375 2-5
N29382 5-5
P1318510 2-3, 2-5
N29384 4-4,
5-5
S
N29385 4-4,
5-5
N29398 2-5
S-1198 2-3, 2-5
N29399 2-5
S-1292 1-3
N29400 5-5
S-1925 1-3, 2-3, 2-5
N29457 3-3
S-752 2-3, 2-5
N29478 2-3
S10730 2-5
N29487 2-3,
2-5
S27987 2-5
N29696 5-5
N29735 4-3
W
N29833 4-4
W-1663 2-3
N30575 4-4
W-1847 5-3, 5-5
N30659 4-4
W-187 1-3
N30660 4-4
W-3687 1-3, 2-3, 2-5
N30661 4-4
W-469 2-5, 4-3, 5-5
N30662 4-4
W-472 1-3
N30663 4-4
W-477 1-3, 3-2, 3-3
N30789 1-3
W-478 1-3
N30793 1-3
W-479 4-3
N31049 4-3
W-480 2-3
N31550 4-3,
5-5
W-481 2-3
N31551 4-3,
5-5
W-488 2-5
N31790 4-3
W-501 2-3
N31792 4-3
W-512 5-3, 5-5
N32464 5-5
W-513 1-3
N32465 5-5
W-514 1-3, 2-3, 2-5
N32470 4-3
W-516 1-3, 2-3, 2-5
N32471 4-3
W-517 2-3
N32472 4-3,
5-5
W-521 5-3, 5-5
N32473 4-3,
5-5
W-522 1-3, 3-2, 3-3
N32474 4-3,
5-5
W-523 1-3, 2-3, 2-5, 3-2, 3-3
N32475 4-3,
5-5
W-525 1-3, 2-3, 2-5
N32476 4-3,
5-5
W-526 2-3
N32477 4-3,
5-5
W-538 4-3
N32478 5-5
W-619 1-3
N32491 4-3
W-793 2-3
N32492 4-3
N32494 4-3
N34177 4-3
N34263 4-3
N34477 1-3
N35530 4-4
N35531 4-4
N35532 4-4
N35533 4-4
N35534 4-4
N38962 5-3
Index-ii
June 2005
7000 Series Third Tank
