XCMG Truck Crane Model:XCT55L6 Basic technical specifications (2016)

2015年08月版

Truck Crane

Model:XCT55L6

Basic technical specifications

Lifting capacity

Max. lifting load

55t

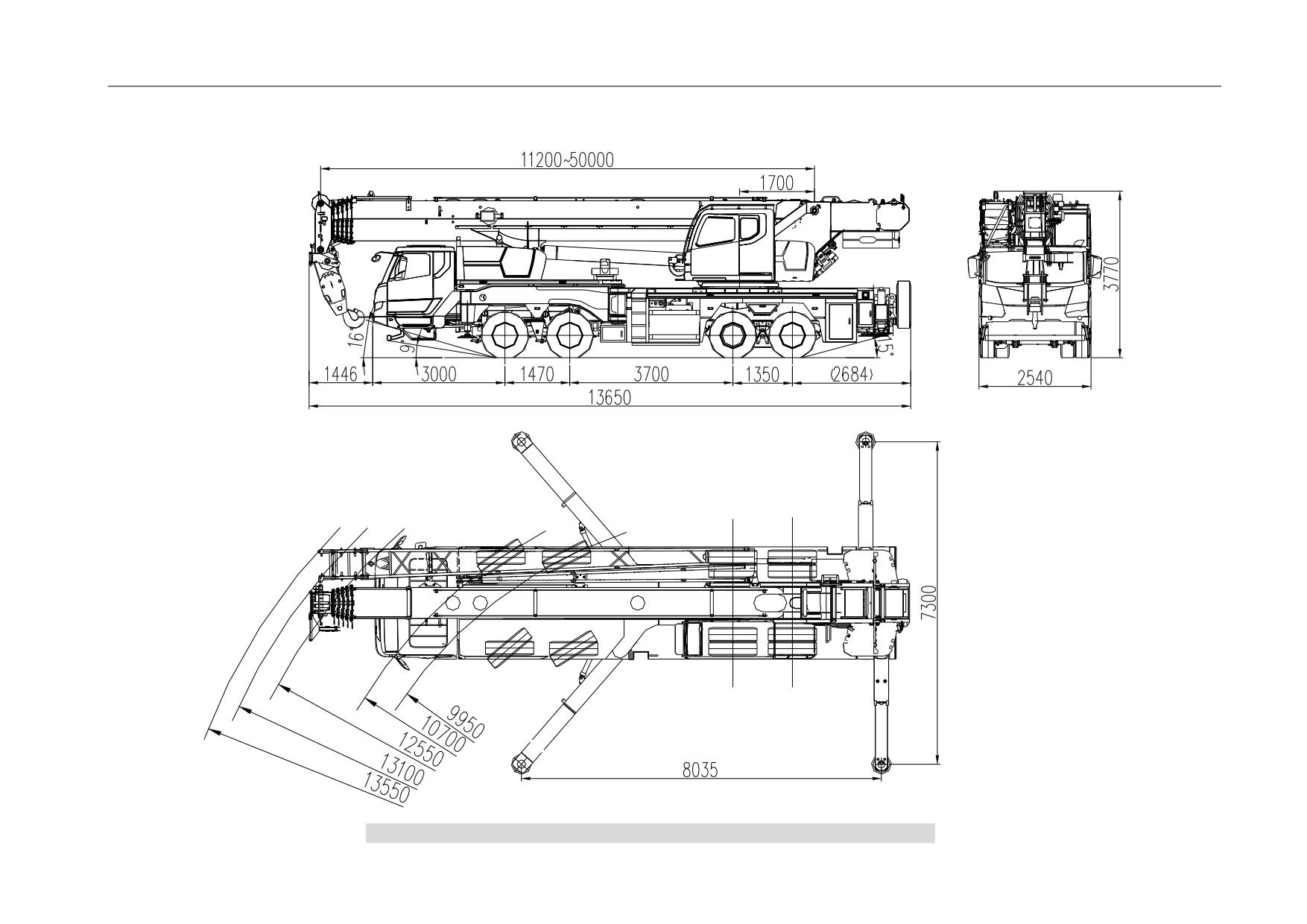

Dimension

Overall length

13650mm

Overall width

2540mm

Overall height

3770mm

In travel configuration

Total weight

44000Kg

Axle load of 1st axle

9000Kg

Axle load of 2nd axle

9000Kg

Axle load of 3rd axle

13000Kg

Axle load of 4th axle

13000Kg

Performance

Max. travel speed

90Km/h

Max. grade ability

45%

Boom

6节，11.2m～50m

Length of boom + jib

66m

Max. lifting height of boom

49.1m

Max. lifting height of boom + jib

63.8m

徐州重型机械有限公司

Xuzhou Heavy Machinery CO.,LTD

We reserve the right to modify the design without notice for improvement

2015年08月版

Features and advantages of XCT55（L type） Truck Crane

XCT55 truck crane is

designed mainly for domestic

market including international

market, which meets the

demands in different areas by

means of variable and selectable

configuration. It is widely used

in many complicated jobsites

such as constructions, urban

renovation, transportation, port, bridge, oil and mining etc.

With four-axle crane chassis, K-shaped outrigger and new single cylinder slotting system,

XCT55 (L type) has six-section boom added with two lattice jibs, concealed double-independent

winches and a combined counterweight. Equipped with new energy-saving hydraulic system, it

adopts intelligent lattice technology supporting multi--jobsite detecting functions, which results

in more convenient operation. With XCMG G-generation brand new design and man-made

interactive system reaching the level of car, XCT 55(L type) takes the lead of the highest

performance in the industry which contributes to more intelligent, energy-saving and humanized.

(1) High Performance

Five-section boom with U-shaped profile optimizing the proportion of height and width is

made of imported high tension steel material which can reduce boom torsion and side-bending.

Inserted sliders may efficiently increase the overlapping length of adjacent boom sections,

eliminating the point contact or line contact between slider and boom while the boom is lifting a

load and avoiding effectively local buckling phenomenon. Compact tail boom effectively

increases the overlapping length and improves the capacity of boom for anti-bending and

torsion-resistant. Single-board boom tip further increases the overlapping length with high

hoisting performance and optimized structural member weight.

New single cylinder slotting telescoping system researched on the latest telescoping theory

contributes to more compact structure with six-section boom of 50m that breaks the limitation of

five-section boom below 50t.

(2) Intelligent operation and convenient safety

Originally designed and intelligent boom technology provides customers comfortable and

We reserve the right to modify the design without notice for improvement

2015年08月版

intelligent operating experience.

Automatic planning of working conditions: If users enter the information about lifting load

and distance, the system will automatically recommend the.properest working conditions, which

may meet lifting demands.

Automatic compensation of hoisting system: the winch can be spooled in and out

automatically when telescoping and elevating, which can reduce driver’s operation difficulty,

save over 40% of operation time and greatly improve the safety and working efficiency.

Automatic elevating compensation: by controlling elevating angle, the crane can

automatically compensate the elevating change due to boom deflection when hoisting the hook.

Thus, the problem of boom run-out can be solved which can improve the reliability and reduce

hoisting difficulty within operation.

(3) Energy-saving, environment-friendly and economical

New energy-saving hydraulic system includes the lifting hydraulic system consisting of

variable displacement pump and constant displacement motor and the slewing hydraulic system

consisting of constant displacement pump and constant displacement motor with low-speed large

torque. Mature slewing buffering technology is applied. The external-controlled power lowering

boom combined with gravity fall results in increased lowering speed from a larger boom angle,

improving working efficiency more than 30%. New-generation intelligent control hydraulic

system with independent radiator contributes to real-time control of radiator switch as well as the

increased rotary speed of radiator in idling speed of engine. Meanwhile, optimized core radiator

improves more than 30% of heat dissipation capacity and reduces 25% of heat dissipation rate.

With low speed and large torque engines and high ratio, overdrive gearbox as the core of a

new power platform, XCT 55 has a strong driving performance, large quantity of load capacity,

good stability, which can achieve a high dynamic performance with low fuel consumption

reduced by 12% and driving performance improved by 15%.

First released energy recycle technology can recover and reuse the power energy from

braking. The speed can reach 30km/h when starting for 5.3s and grade ability improved by 5%.

（4）High reliability

High-precision variable displacement pump and control valve of electro-hydraulic

proportional equipped with constant winch of large displacement have the ability to prevent the

pressure impact within operation and to eliminate shaking in high temperature which improves

the reliability of lifting operations. A large displacement motor combined with an oil-refilling

hydraulic circuit for winch and precise brake control contributes to the response speed in

We reserve the right to modify the design without notice for improvement

2015年08月版

millisecond, consequently preventing load sliding down during secondary lifting operation.

(5) Brand new experience of man-made interactive design and appearance

Designed with XCMG G-generation truck crane, the steady and elegant XCT 55 combines

man-made mechanisms that comprehensively promote the humanization matching air suspension

in driver’s cab with low noise. More comfortable driving performance can be achieved equipped

with new deck made of aluminum and more elegant appearance.

Made of new combined material, the hood is shaped from models with good appearance.

The board and assist grip are made of aluminum alloy reducing the hood height by 30%-40%.

New design of virtual dashboard interface makes clear display of vehicle information.

For slewing locking mechanism, it is manipulated by flexible shaft control with which the

slewing can be locked and started in operator’s cab.

XCMG man-machine interactive system with the level of car: working space is designed

according to ergonomics and

13 items of intelligentize and informatization interactive

technology are integrated, which brings more friendly man-machine conversation. Added super

structural passage satisfies the functional demands which can reach the area of winch and boom.

We reserve the right to modify the design without notice for improvement

2015年08月版

Technical specifications of superstructure

Model

XCT55（L type）

Hydraulic system

Hydraulic pump: the variable plunger pump driven by engine is

used to control hoisting, elevating and telescoping; and the

constant pump is used for slewing operations.

Control valve: main valve proportional integration multi-way

change valve is used for hoisting, telescoping and elevating;

electric proportional buffering valve is adopted for slewing

which makes operation more comfortable.

Oil circuit…………air-cooled hydraulic oil cooler with large

power driven by hydraulic reduces system oil temperature

effectively

Oil tank capacity………about 1000L

Designed for torsion-resistant and made of high tension

Boom

structural steel, the telescoping boom has six-section main

boom of U-shaped arc angle profile that contributes to higher

stability and the up-slider supporting the main boom can be

adjusted. It is also designed by single-cylinder pinning

telescoping way resulting in a variety of combinations of

working conditions.

length………11.2m～50m

Speed of telescope………fully extended 50m to 350s

It is stowed beside the boom, consisted of a connecting bracket,

Jib

a rotating bracket and two lattice bi-fold jibs with jib offset

angle: 0°,15°,30°

Length of jib………9.2m/16m

Boom single top

Boom single top is installed on the top of boom and used for

(standard)

lifting operation of single line wire rope.

Boom auxiliary

The lifting performance of boom single top is the same with

pulley

boom, but max. load capacity cannot exceed 5000kg.

A single-cylinder is used for front support elevation. Elevating

Elevating system

balance valve with load compensational function is used to

prevent elevating from quickly drop and to get smoother

movements of lowering the boom. The outer-controlled gravity

We reserve the right to modify the design without notice for improvement

2015年08月版

fall combined with power lowering boom not only ensures

smoothness but also reduces the energy consumption in the

hydraulic system and increases the lowering speed from a

larger boom angle.

Speed: 50s or less for elevating operation from -1°to +80°.

Electric proportional control is used for speed regulation. The

Main winch

system is driven by a hydraulic motor through a planetary gear

reducer, with a normally closed brake, a balanced valve and a

grooved drum equipped.

The auxiliary winch can be operated separately.

Single line pull: 50 KN

Single line speed (no load): 130 m/min

Diameter × length: φ18mm×208m

Electric proportional control is used for speed regulation. The

Auxiliary winch system

system is driven by a hydraulic motor through a planetary gear

reducer, with a normally closed brake, a balanced valve and a

grooved drum equipped. It has features of high speed with a

light load and low speed with a heavy load.

Single line pull: 50 KN

Single line speed (no load): 130 m/min

Diameter × length: φ18mm×140m

Hook blocks

Lifting

Pulley

Weight

No.

Type

capacity

Parts of line

Qty

Remark

block

(kg)

(t)

Main hook block

55t

550

Medium hook

35t

360

optional

block

Auxiliary hook

4.5t

100

block

Single-row four-point contact ball type with external slewing

Slewing system

ring, planetary gear slewing reducer is driven by hydraulic

We reserve the right to modify the design without notice for improvement

2015年08月版

motor which can slew 360° continuously.

It has functions of power control or free slewing and stepless

speed regulation is available.

Slewing speed………0～2r/min

Electric hydraulic proportional control is used for controlling

Operating mode

the superstructure. Adopting PLC integrated and intelligent

control technology with CAN-BUS assembly control

network, it has many functions besides normal control

functions such as real-time system monitoring , automatic fault

diagnosis, and query of vague conditions.

New fully-enclosed steel cab has better sealing and anti-

Operator's cab

corrosive properties and it's safe and comfortable to use.

It is equipped with a full-view front window. Safety glass and

sun shield are used for windows. The cab features a new

ergonomic seat design with backrest adjustment and armrests

with joysticks fitted. A sliding door and a pull-out step are

available to make it easy and safe as access and egress the cab.

Wipers are fitted for the windshield and roof window.

Standard controls and indicators are ergonomically arranged in

the cab.

Hydraulic balance valve;

Safety devices

Hydraulic relief valve;

Double-way hydraulic lock;

LMI;

Lowering limiter for preventing wire rope from over-releasing;

Height limiter on boom tip for preventing wire rope from over-

spooling

Hirschmann load moment limiting system, a safety protective

LMI

device in operator’s cab for superstructure. When the actual

load moment is approaching overloading value, audible

warning will be set out, and dangerous operation will be

stopped automatically before overloading.

Overload memory function (black box) and fault self-diagnosis

We reserve the right to modify the design without notice for improvement

2015年08月版

function are available.

What can be shown continuously is as follows:

Load moment percentage

Actual lifting capacity

Rated lifting capacity

Working radius

Boom length

Boom angle

Max. lifting height

Working condition code

Parts of line

Limit boom angle

Information code

Total weight is 74 t, constant counterweight is 5.2t.

Combined counterweight

Counterweights of 5.2 t, 6.5 t and 9.5 t are available.

Combination of counterweight slabs

Working

Total weight

Combination sequence

condition

(t)

9.5

①+②+③

6.5

①+②

4.4

①

Dead weight and number of counterweight slabs

Item

Fixed slab ①

Slab ②

Slab ③ (optional)

Dead weight (t)

4.4

2.1

Number of slabs

Chassis: black. Wheel rim: grey.

Color

Driver’s cab, superstructure and boom: engineering yellow.

Technical specification of chassis

Type

Left-hand drive steering wheel, drive/steering type is 8×4×4,

We reserve the right to modify the design without notice for improvement

2015年08月版

axles 3 and 4 for driving and axles 1 and 2 for steering.

In-house designed and manufactured by XCMG, and load-

Frame

bearing structure is optimized. It is made of high strength steel

and has anti-torsion box structure with walking surface

covered.

Engine

Model

MC11.36-40

SC10E340Q4

In-line, 6 cylinder, water cooled, supercharging intercooler, high pressure

Type

common rail, compression ignition engine

CHINA NATIONAL HEAVY

Shanghai Diesel Engine Co., Ltd.

Manufacture

DUTY TRUCK GROUP CO., LTD.

Power/kw/rpm

268/1900

251/1900

Torque/N.m/rpm

1800/1000-1400

1550/1300

Displacement/ml

10.518

10.42

Fuel tank

About 320

capacity

Emission

China National Ⅳ

standard

Remark

Configuration 1

Configuration 2

Chassis hydraulic system

Constant displacement open-type system. The variable

displacement plunger pump is connected to transmission

through PTO for controlling constant displacement through

solenoid valve.

Main parameter of chassis hydraulic system:

Shanchi10JSD160TB mechanical transmission with manual

Transmission

remote flexible axle control and synchronizers, 10 forward

gears, 2 reverse, stable and reliable.

Clutch

Dry, pull-type diaphragm spring clutch

Steering system

1st and 2nd axles are mechanically steered plus hydraulic

We reserve the right to modify the design without notice for improvement

2015年08月版

booster

Axles

Four high strength load-bearing axles with reliable

performance, axles 3 and 4 for driving and axles 1 and 2 for

steering, designed by advanced foreign technology and

made by distinguished manufacturer.

1st axle: single tire, for steering;

2nd axle: single tire, for steering;

3rd axle: double tire, for driving;

4th axle: double tire, for driving;

Drive shaft

Cross serrated flange is adopted for connection of drive shafts,

so transmission torque is enlarged and power transmission is

optimized. Consequently smooth and reliable transmission may

be gained.

Suspensions

Spring suspension is adopted for front suspension and rubber

suspension for rear with light weight and no maintenance.

Braking system

Service brake: pedal operated double-circuit air pressure brake.

The first circuit acts on wheels of axles 1 and 2; the second

circuit acts on wheels of axles 3 and 4.

Parking brake: air-release brake, acting on axles 3 and 4 by the

spring energy storing air chamber on each axle;

Auxiliary brake: engine exhaust brake+ engine compression

retarder brake

Hydraulic system

Quantitative open circuit is used for outrigger hydraulic system

with quantitative gear pump coupled to transmission through

PTO. Horizontal, vertical and swing cylinder switch are

controlled by solenoid valve.

Front outrigger is controlled through swing and rear outrigger

through telescoping.

Front-swing and back-level outrigger structure is supported by

Outrigger

4 points and controlled by hydraulic. There is an outrigger

control station located at each side of the chassis, and there is a

level gauge on each control station. Outrigger floats are

secured under jacks through ball pivots. The outriggers are

We reserve the right to modify the design without notice for improvement

2015年08月版

designed to support the entire crane for better operations under

various working conditions.

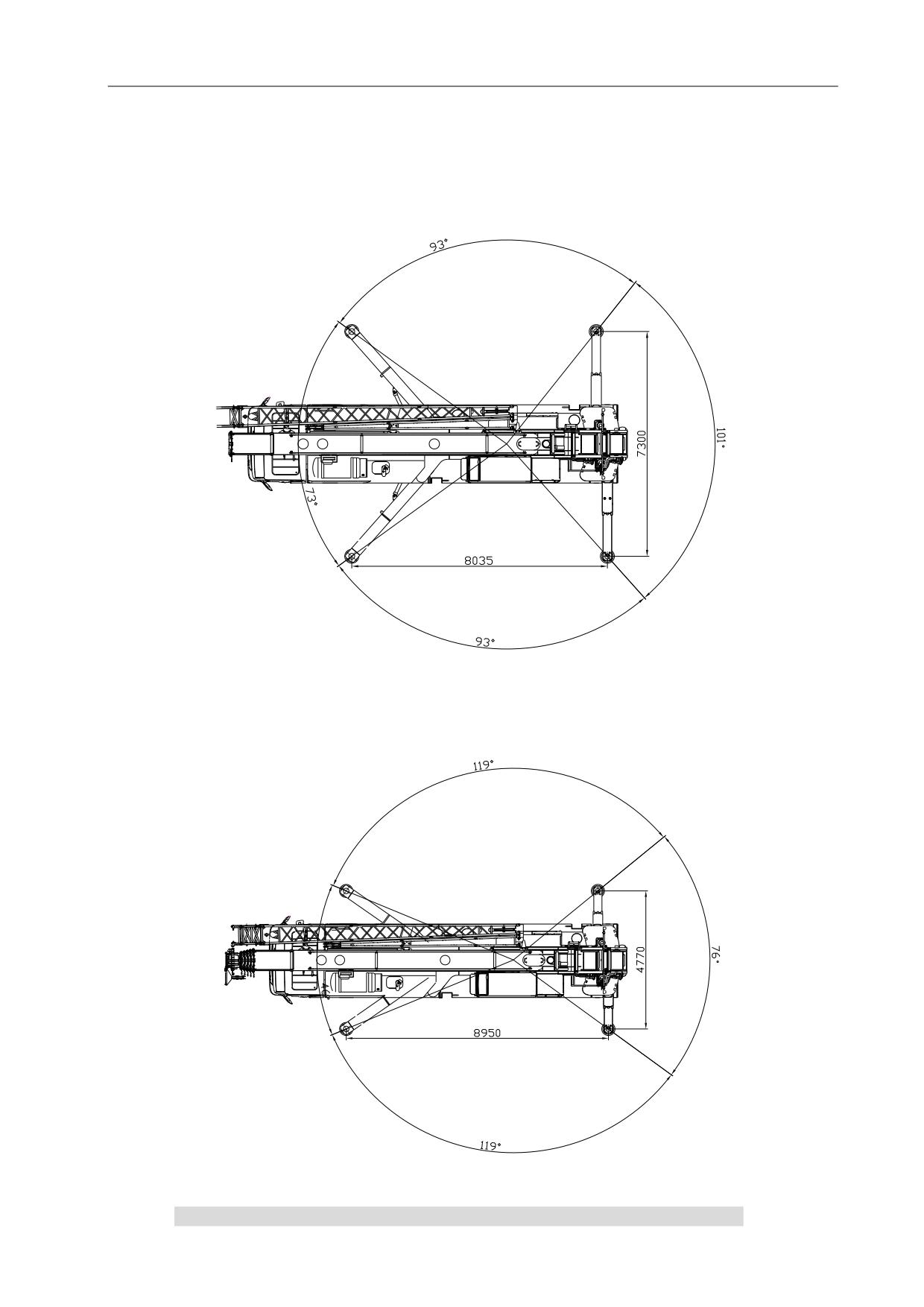

Outrigger span:

Longitudinal × lateral………

…8.035m×7.3m

Float dimension…………

diameter of 450mm

Reaction force of outrigger at max. lifting load………580000N

Electric system

24V DC, negative ground, 2 batteries. There is a perfect

illuminating system complying with Chinese road traffic

standard, including head lamp, fog lamp and reversing lamp,

etc.

Driver's cab

New full-dimension enclosed cab, luxury and comfort. It is

designed to be leakproof, anti-corrosive and shockproof. It is

equipped with a windshield offering outstanding visibility, rear

mirrors, electric control washer, electronic lifters of doors and

windows, heater & air conditioner, radio cassette player, etc.

An air suspension seat for the driver and a simple sleeper for

the co-driver's seat are installed to supply comfort and reduce

fatigue. Well-proportioned outline shows strong modern sense

with outstanding features. Newly designed cab appearance

includes exquisite coating of door handle and step, decoration

of rear of side window and A-pillars, headlamps and air-inlet

grille.

Tires

315/80R22.5 tubeless tires, has features of strong load-bearing

capacity and light weight.

Tools

A set of maintenance tools is supplied.

We reserve the right to modify the design without notice for improvement

2015年08月版

Disassembled components dimension list for overload products (road travel)

Total

Weight

Dimension

No.

Name

weight

Remark

(kg)

(mm)

(t)

Medium

Hook block

360

504×389×1355

Optional

hook

3.36

Counterweight

Slab B

3000

2400×1290×248

Optional

List of parts transported (jobsite transfer)

Total

Weight

Dimension

No.

Name

weight

Remark

(kg)

(mm)

(t)

Medium

Hook block

360

504×389×1355

Optional

hook

3.36

Counterweight

Slab B

3000

2400×1290×248

Optional

We reserve the right to modify the design without notice for improvement

2015年08月版

Main parts list

*************************************

(Take real parts as standard)

No.

CHINA NATIONAL HEAVY

Chassis Engine

DUTY TRUCK GROUP CO., LTD.

/ Shanghai Diesel Engine Co., Ltd.

Transmission

SHAANXI FAST GEAR Co., Ltd.

Jiangmen Xingjiang Steering Gear Co.,

Steering gear

Ltd.

Nantong Huanqiu Steering Gear Co., Ltd.

Axle

Xuzhou Meritor Axle Co., Ltd.

Double cion group tyre Co., Ltd

Guizhou Tyre Co., Ltd.

Tire

Triangle Group Co., Ltd

Bosch Rexroth

Chassis hydraulic

Zhonghang Liyuan Hydraulic Co., Ltd.

pump

PERMCO (Tianjin) Hydraulic

INC., LTD

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Extension cylinder

Zhangjiakou Changyu Construction

Machinery Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Swing cylinder

Zhangjiakou Changyu Construction

Machinery Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Front jack cylinder

Zhangjiakou Changyu Construction

Machinery Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Rear jack cylinder

Zhangjiakou Changyu Construction

Machinery Hydraulic Cylinder Co., Ltd.

Zhejiang Shengbang Science &

Superstructure multi-

way valve

Technology Co., Ltd.

Xuzhou Rothe Erde Slewing Bearing

Co., Ltd.

Slewing ring

Maanshan Fangyuan Slewing

Bearing Co., Ltd.

NINGBO ZHONGYI HYDRAULIC

Slewing motor

MOTOR CO., LTD.

Xuzhou Shengbang Mechinery Co.,

Slewing reducer

Ltd.

Qingdao Haili gear box Co., Ltd.

Bosch Rexroth Co., Ltd.

Main winch motor

Zhonghang Liyuan Hydraulic Co.,

Ltd.

Main winch reducer

Xuzhou Shengbang Mechinery Co.,

We reserve the right to modify the design without notice for improvement

2015年08月版

Ltd.

Qingdao Haili gear box Co., Ltd.

Jiangsu Langshan wire Rope Co.,

Main/ Auxiliary winch

Ltd.

rope

China Juli Sling Co., Ltd.

Bosch Rexroth Co., Ltd.

Auxiliary winch motor

Zhonghang Liyuan Hydraulic Co.,

Ltd.

Xuzhou Shengbang Mechinery Co.,

Auxiliary winch reducer

Ltd.

Qingdao Haili gear box Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Elevating cylinder

Chengdu Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Elevating cylinder

Chengdu Hydraulic Cylinder Co., Ltd.

Xuzhou Hirschmann Electronics Co.,

LMI

Ltd.

boom plate

BAOSTEEL

Jianhu Tejia Hydraulic parts Co.,

Vehicle hydraulic

Ltd.

system connector

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Electric proportional

Xuzhou Hirschmann Electronics Co.,

joysticks

Ltd.

*************************************

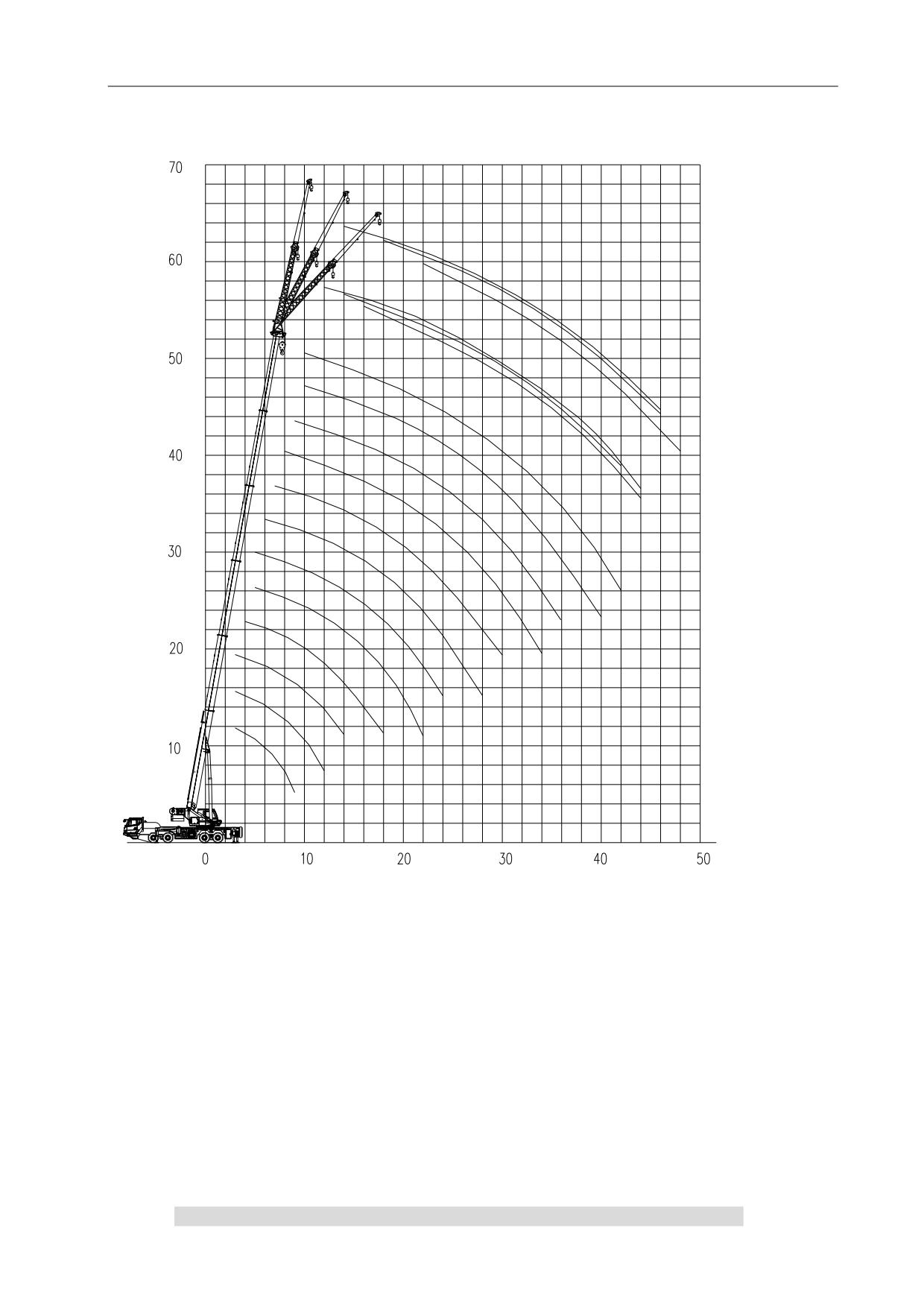

Technical Specifications

We reserve the right to modify the design without notice for improvement

2015年08月版

Main Technical Data Table of XCT55 (L type) in Travel configuration

(Subject to technical improvement)
