XCMG Truck Crane Model: XCT12L4 Basic technical specifications (2016)

February 2016

Truck Crane

Model: XCT12L4

Basic technical specifications

Lifting capacity

Max. lifting load

12t

Dimension

Overall length

10900mm

Overall width

2500mm

Overall height

3550mm

In travel configuration

Total weight

16000kg

Axle load of 1st axle

6000kg

Axle load of 2nd axle

10000kg

Performance

Max. travel speed

90km/h

Max. grade ability

41%

Boom

4 sections, 9.45m～30.5m

Length of boom + jib

37.5m

Max. lifting height of boom

30.9m

Max. lifting height of boom + jib

38.1m

Xuzhou Heavy Machinery CO.,LTD

We reserve the right to modify the design without notice for improvement.

February 2016

Features and advantages of XCT12L4 Truck crane

XCT12L4 Truck crane is designed to

mainly aim at domestic market, and to take

international market requirements into

consideration. It is mounted on a self-made

special chassis, which is suitable for driving

on a wide range of roads.

It has high lifting height, powerful lifting

capacity and high working efficiency. It is

widely used for the lifting operations in general engineering projects, such as construction site,

urban renewal, communication and transportation, ports, bridge, oilfields and mine, and complex

working environments.

It is mounted on a two-axle truck crane chassis. Four-section boom with octagonal profile, a

lattice jib, built-in double independent winches, new energy-saving power system, fixed

counterweight and new energy-saving hydraulic system are available. The crane has newly

designed XCMG G1 appearance of Truck Crane, luxurious full-dimension driver’s cab and

XCMG man-machine interactive system with the level of a car. Its performance takes the lead in

the industry. It is more intelligent, energy-saving and user friendly to operate.

(1) High performance

The four-section boom with octagonal profile is made of high strength steel. The boom can

be extended up to 30.5 m, which is 1.6 m longer than the competitive products in the same class

in the industry. The boom cross-section is optimized to reduce the boom torsion and side

bending during lifting operations; plug-in sliders are used to effectively increase the overlapping

length of adjacent boom sections, resulting in improved lifting capacity; compact boom tail

structure is designed to enhance the telescoping rate of each boom section, leading to enlarged

boom length; H-type outriggers have span of 4.57 m × 5.5 m, significantly improving crane's

stability; the lifting capacity of the crane is 10% higher than the highest level in the industry.

A high precision pressure shut-off valve is added to prevent pressure shock during lifting

operations, to eliminate winch shaking while lowering the hook in case high temperature of

hydraulic oil, greatly improving the reliability of lifting operations. A large displacement motor,

combined with an oil-refilling circuit specialized for the winch and precise brake control,

contributes to the response speed in millisecond and protection against winch speed out of

control and prevents the load from sliding down while starting second lift.

We reserve the right to modify the design without notice for improvement.

February 2016

(2) Intelligent

The latest control technology platform is adopted to perform intelligent crane operations

and travel control, such as automatic planning of working conditions, parameter indication such

as engine rotation speed, language selector and constant speed cruise.

(3) Energy-saving

New energy-saving hydraulic system is designed, such as the open winch hydraulic system

consisting of variable displacement pumps and constant displacement motors, and the slewing

hydraulic system consisting of a constant displacement pump and a low speed large torque motor

with mature slewing buffering technology adopted. The external-controlled boom gravity fall

results in improved lowering speed from a larger boom angle, which leads to 30% increase in the

working efficiency. In addition, the radiator core fins are optimized, resulting in

10%

improvement in cooling performance and 25% reduction in energy consumption for cooling.

The new power system consists of a new energy-saving engine and a transmission with

synchronizer and over drive contributes to strong driving performance, high load-bearing

capacity and better stability, resulting in perfect combination of high power performance and low

fuel consumption, i.e.16% reduction in comprehensive fuel consumption, 12% increase in Max.

travel speed

(4) Appearance and ergonomics

The crane has newly designed XCMG G1 appearance of Truck Crane, which looks more

sturdy and elegant. The entire crane has been ergonomically improved. The full-dimension

luxurious driver's cab improve driver's comfort. New designed aluminium deck presents

aesthetic.

Covering door, made of new composite material, and bottom plate and handrail, made of

aluminium alloy material, reduce the weight of coverings by 30%~40%.

A portable reeving system is installed to reducethe the reeving time from 35 min to 18 min

due to no need to disassemble wedge socket.

XCMG man-machine interactive system with the level of a car, i.e. ergonomically designed

work space, informative interactive techniques and user friendly man-machine interaction are

available.

We reserve the right to modify the design without notice for improvement.

February 2016

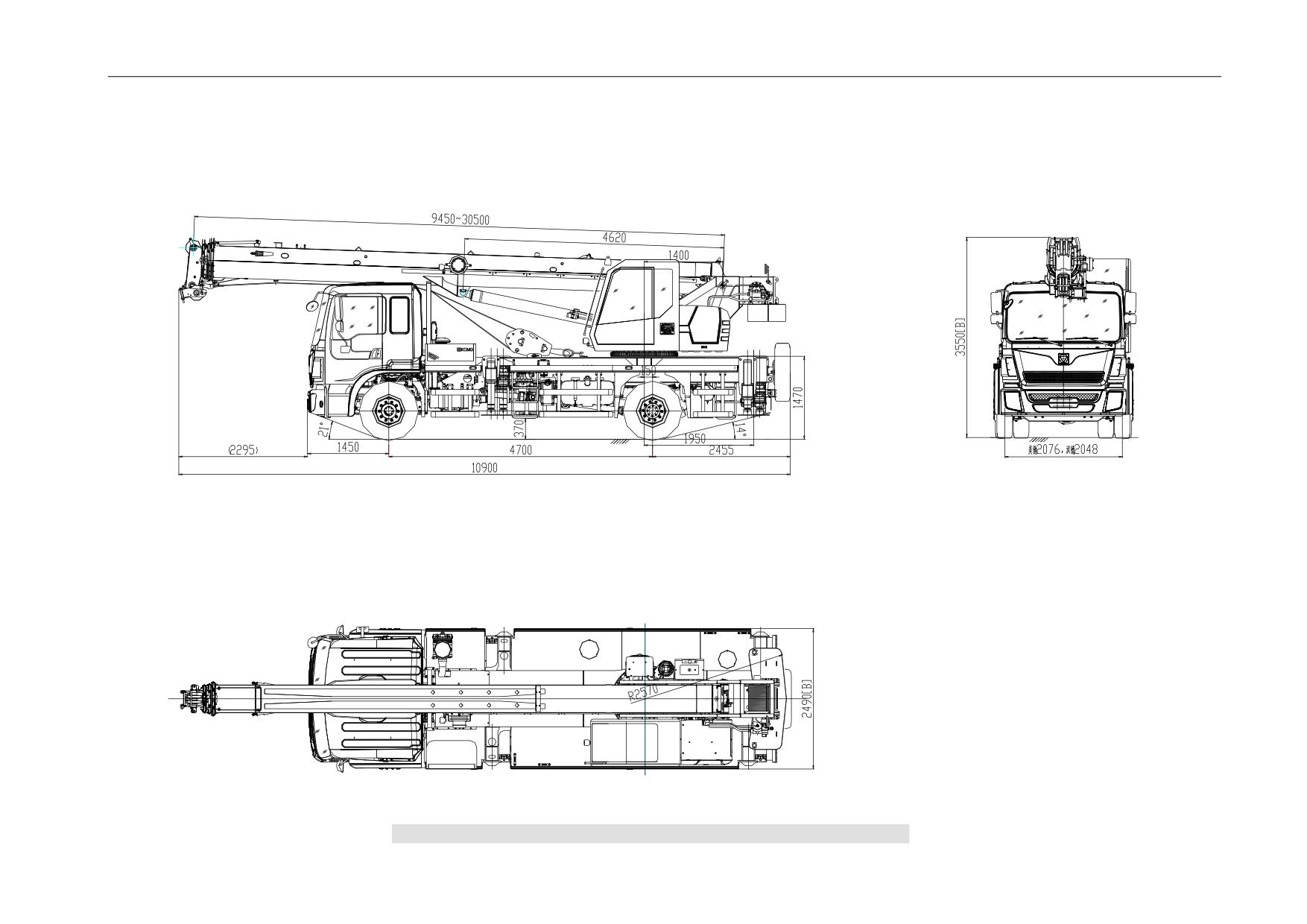

Overall dimensions of crane in travel configuration

We reserve the right to modify the design without notice for improvement.

February 2016

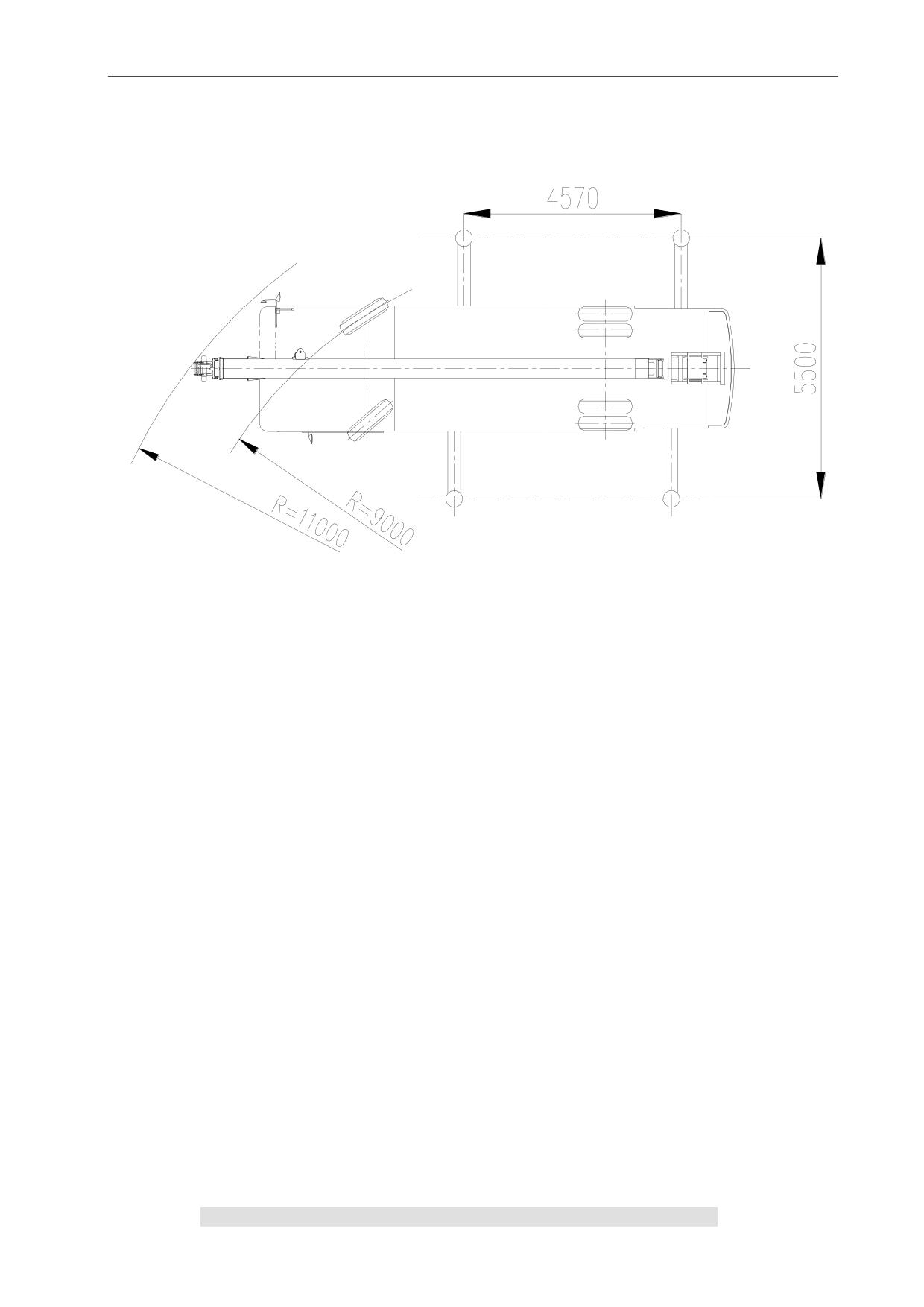

Turning track of crane in travel configuration

We reserve the right to modify the design without notice for improvement.

February 2016

Technical specifications of superstructure

Model

XCT12L4

Hydraulic pump…………the triple fixed-displacement gear

Hydraulic system

pump driven by chassis engine.

Control valve…………mechanically-controlled multi-way

change valve control system, displacement of main control

valve core is in proportion to the output force of control rod.

The change of control rod output force brings different

movement speed of actuator.

Oil filter…………oil return filter

4-section boom with octagonal profile, made of high strength

Boom

steel. The single-cylinder plus ropes system is used as

telescoping system.

Boom length………9.45m～30.5m. Single-plate boom head,

and compact boom tail are available.

Speed………about 80s for boom fully extending to 30.5m

1-section triangle swing-away lattice jib, 0°offset angle.

Jib (optional)

Jib length………7m

Single top (optional)

Single pulley, installed at the boom top used for single line

(boom auxiliary pulley)

operation.

Its lifting performance is the same as that for boom, but the

max. lifting load could not exceed 2100 kg.

A single cylinder is used for front support elevation. A balance

Elevating system

valve is equipped.

Elevating speed………-2° to +80∘ about 45s

Main winch system

Hydraulic control is used for speed regulation. The system is

driven by a hydraulic motor through a planetary gear reducer,

with a normally closed brake and a grooved drum equipped. It

has features of high speed with a light load and low speed with

We reserve the right to modify the design without notice for improvement.

February 2016

a heavy load.

The main winch can be operated separately.

Single line pull………………23kN

Single line speed (no load) ……138m/min

Diameter × length…………φ12mm×140m

Auxiliary winch system

Hydraulic control is used for speed regulation. The system is

driven by a hydraulic motor through a planetary gear reducer,

with a normally closed brake and a grooved drum equipped.

It has features of high speed with a light load and low speed

with a heavy load.

The auxiliary winch can be operated separately.

Single line pull………………23kN

Single line speed (no load) ………138m/min

Diameter × length……………φ12mm×85m

Hook blocks

Number

Parts

Lifting

Weight

No.

Type

Qty

Remarks

capacity (t)

(kg)

pulley

line

Single

Main hook block

12t

145

hook

Auxiliary hook

Single

2.1t

block (optional)

hook

Single-row four-point contact ball type with external slewing

Slewing system

ring, planetary gear slewing reducer is driven by hydraulic

motor which can slew 360°continuously.

It has functions of power control or free slewing and stepless

speed regulation is available.

Slewing speed: 0～3r/min

Mechanical control is used for controlling the superstructure.

Operating mode

Adopting load moment limiter control system, it has many

functions besides normal control functions such as hoisting

planning, virtual instrument display and automatic fault

We reserve the right to modify the design without notice for improvement.

February 2016

diagnosis.

New fully-enclosed steel cab has better sealing and anti-

Operator's cab

corrosive properties and it's safe and comfortable to use.

It is equipped with a full-view front window. Safety glass and

sun shield are used for windows. A sliding door is also

available. The cab features a new ergonomic seat design with

backrest adjustment and armrests with joysticks fitted at the

front of the seat. Wipers are fitted for the windshield and roof

window. Standard controls and indicators are ergonomically

arranged in the cab.

Hydraulic balance valve;

Safety devices

Hydraulic relief valve;

Double-way hydraulic valve;

LMI;

Lowering limiter for preventing wire rope from over-releasing;

Height limiter on boom tip for preventing wire rope from over-

spooling

Hirschmann load moment limiting system, a safety protective

LMI

device in operator’s cab for superstructure. When the actual

load moment is approaching overloading value, audible

warning will be set out, and dangerous operation will be

stopped automatically before overloading.

Overload memory function (black box) and fault self-diagnosis

function are available.

What can be shown continuously is as follows:

Load moment percentage

Actual lifting capacity

Rated lifting capacity

Working radius

Boom length

Boom angle

Max. lifting height

Working condition code

Parts of line

Information code

We reserve the right to modify the design without notice for improvement.

February 2016

Fixed counterweight

0.9t

Chassis, wheel rim: grey.

Color

Driver’s cab, superstructure and boom: engineering yellow.

We reserve the right to modify the design without notice for improvement.

February 2016

Technical specification of chassis

Left-hand drive steering wheel, drive/steering type is 4×2,

Type

rear axle for driving and front axle for steering.

In-house designed and manufactured by XCMG, the load-

Frame

bearing structure is optimized. It is made of high strength steel

and has anti-torsion box structure with walking surface

covered.

Engine

Model

SC7H230Q4

WP6.220E40

SC7H230Q5

WP6.220E50

In-line, 6 cylinder, water cooled, supercharging intercooler, high pressure

Type

common rail, compression ignition engine

WEICHAI

Shanghai Diesel

Manufacture

DEUTZ Engine

Engine Co., Ltd.

Co., Limited

Power/kw/rpm

170/2300

162/2300

170/2300

162/2300

Torque/N.m/rpm

900/1400

850/1400-1600

900/1200-1600

850/1200-1600

Displacement/L

6.44

6.75

6.44

6.75

Fuel tank

About 200

capacity/L

Emission

China National Ⅳ

China National V

standard

Remark

Chassis hydraulic system

Constant displacement open-type system

Shaanxi 6J85T and Datong DC6J95TA mechanical

Transmission

transmissions are adopted with manual long distance soft shaft

manipulation. Full-synchronizer Shaanxi transmission and half-

synchronizer Datong transmission are combined; with 6-

forward gear and 1-reverse gear, it is stable and reliable to

work.

Clutch

Single, dry, push-type, diaphragm spring clutch

Steering system

Mechanically steered plus hydraulic booster

We reserve the right to modify the design without notice for improvement.

February 2016

Axles

Two high strength load-bearing axles with reliable

performance, axle 2 for driving and axle 1 for

steering, designed by advanced foreign technology and

made by distinguished manufacturer.

1st axle: single tire, for steering;

2nd axle: double tire, for driving;

Drive shaft

Cross serrated flange is adopted for connection of drive shafts,

so transmission torque is enlarged and power transmission is

optimized. Consequently smooth and reliable transmission may

be gained.

Suspensions

Less disc taper-leaf spring suspension is adopted for front

suspension with light weight, low noise and good comfort;

Made of rubber, rear suspension adopts V-shaped propelling

rod with simple structure and strong carrying capacity.

Braking system

Service brake: pedal operated double-circuit air pressure brake.

The first circuit acts on wheels of axle 2; the second circuit acts

on wheels of axle 1.

Parking brake: air-release brake, acting on axle 2 by the spring

energy storing air chamber on each axle;

Auxiliary brake: engine exhaust brake+ engine compression

retarder brake (optional)

Hydraulic system

Constant displacement open-type system. The constant

displacement gear pump is connected to transmission through

PTO. Horizontal and vertical cylinders are mechanically

controlled.

H-shaped outrigger beam is supported by 4 points and

Outriggers

controlled by hydraulic. There is an outrigger control station

located at each side of the chassis, and there is a level gauge on

each control station. Outrigger floats are secured under jacks

through ball pivots. The outriggers are designed to support the

We reserve the right to modify the design without notice for improvement.

February 2016

entire crane for better operations under various working

conditions.

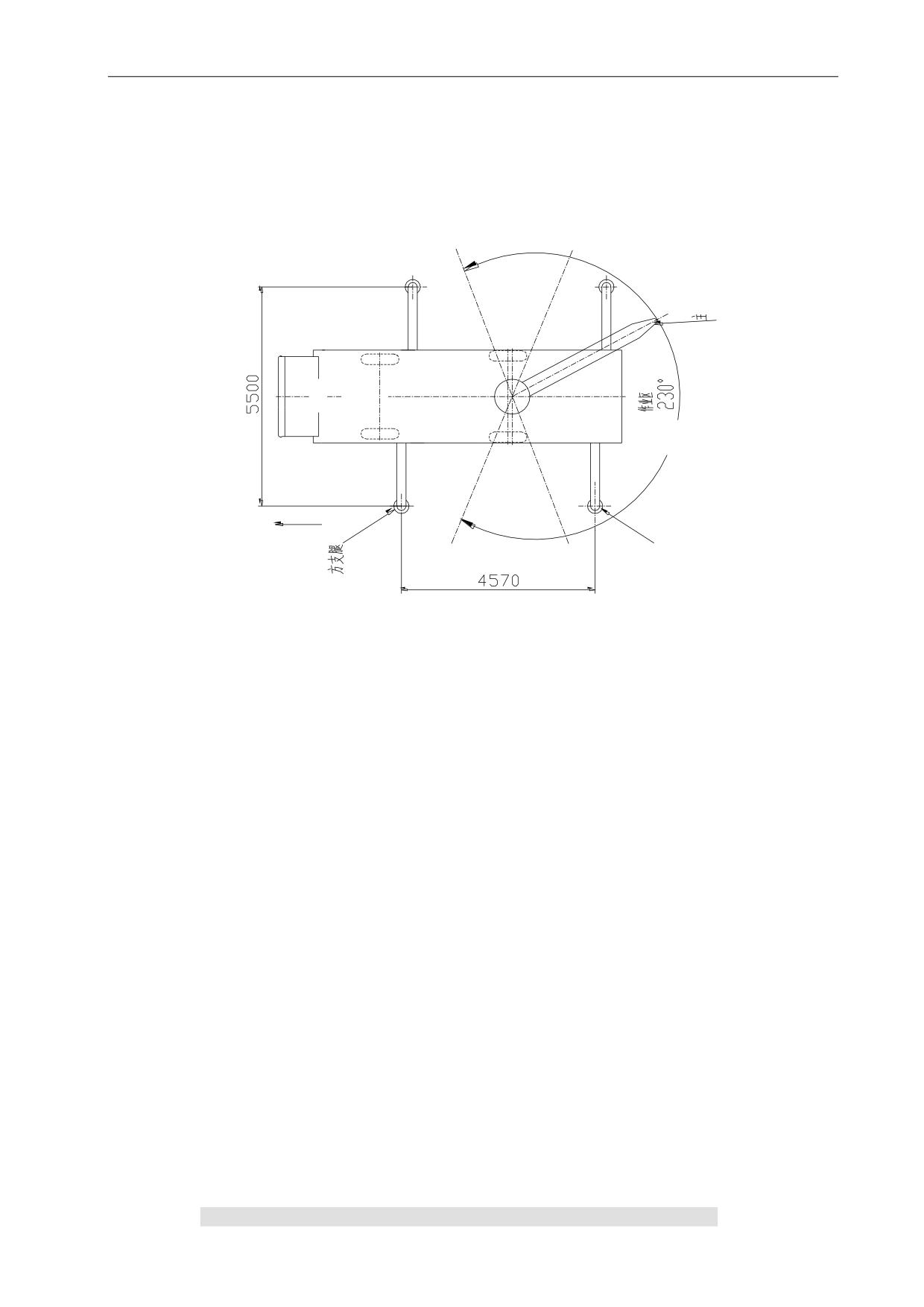

Outrigger span:

Longitudinal × lateral: 4.57m×5.5m

Float dimension: diameter of 350mm

Reaction force of outrigger at max. lifting load:189000N

Electric system

24V DC, negative ground, 2 batteries of 12V in series. Chassis

illuminating system complies with Chinese road traffic

standard, including adjustable head lamp, front and rear fog

lamp, reversing lamp, etc. Generator output voltage and current

is 28.5±0.3V and 70A.

Driver's cab

New full-dimension forward-control cab, luxury and comfort.

It can realize manual hydraulic tilting over with half-floating

suspension system, It is designed to be leakproof and

shockproof. It is equipped with a windshield offering

outstanding visibility, electric control washer, electronic lifters

of doors and windows, heater & air conditioner, radio cassette

player, etc. Steering wheel is adjustable for different height and

angle, so it is convenient to operate for people of different

stature. Driver and co-driver' seats adopt three-point safety belt.

A mechanical shock-absorber seat is adopted for the driver.

The rear seat is also a simple sleeper, which is installed to

supply comfort and reduce fatigue.

Tires

10.00-20 (standard)

10.00R20 (optional)

Tools

A set of maintenance tools is supplied.

We reserve the right to modify the design without notice for improvement.

February 2016

Main parts list

(Take real parts as standard)

No.

Name

Mamufacturer

Shanghai Diesel Engine Co., Ltd.

Engine

WEICHAI DEUTZ Engine Co., Limited

SHAANXI FAST GEAR Co., Ltd.

Transmission

SINOTRUK Datong Gear Co., Ltd.

Jiangmen Xingjiang Steering Gear Co., Ltd.

Steering gear

Nantong Huanqiu Steering Gear Co., Ltd.

Xuzhou Meritor Axle Co., Ltd./Shaanxi Hande Axle

Axle

Co.,Ltd

Xuzhou XuLun Rubber Co., Ltd./ Shanghai Double

Tire

Coin Group Tire Co., Ltd/ Guizhou Tyre Co., Ltd./

Triangle Group Co., Ltd

Jinan Hydraulic Pump Co., Ltd.

Chassis hydraulic pump

Xuzhou Keyuan Hydraulic Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Extension cylinder

Zhangjiakou Changyu Construction Machinery

Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Jack cylinder

Zhangjiakou Changyu Construction Machinery

Hydraulic Cylinder Co., Ltd.

Xuzhou Rothe Erde Slewing Bearing Co., Ltd.

Slewing ring

Maanshan Fangyuan Slewing Bearing Co., Ltd.

Qidong Liangyi Machinery Manufacture Co., Ltd./

Slewing motor

Zhejiang Shengbang Science & Technology Co.,

Ltd.

Xuzhou Shengbang Machinery Co., Ltd.

Slewing reducer

Qingdao Haili gear box Co., Ltd.

Guizhou Liyuan Hydraulic Co., Ltd./ Zhejiang

Main winch motor

Shengbang Science & Technology Co., Ltd.

Xuzhou Shengbang Machinery Co., Ltd.

Main winch reducer

Qingdao Haili gear box Co., Ltd.

Jiangsu Langshan wire Rope Co., Ltd.

Main/ Auxiliary winch rope

China Juli Sling Co., Ltd.

Guizhou Liyuan Hydraulic Co., Ltd./ Zhejiang

Auxiliary winch motor

Shengbang Science & Technology Co., Ltd.

Xuzhou Shengbang Mechinery Co., Ltd.

Auxiliary winch reducer

Qingdao Haili gear box Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Elevating cylinder

Chengdu Hydraulic Cylinder Co., Ltd.

Xuzhou Hydraulic Parts Co., Ltd. XCMG

Telescoping cylinder

Chengdu Hydraulic Cylinder Co., Ltd.

LMI

Xuzhou Hirschmann Electronics Co., Ltd.

boom plate

BAOSTEEL

We reserve the right to modify the design without notice for improvement.

February 2016

Technical Specifications

Main Technical Data Table of XCT12L4 in Travel configuration

(Subject to technical improvement)
