Midget & Intermediate Manual and Mechanical Valves
Technical Information
5
Material Specification
5
Flow Characteristics
5
Main Data
- Midget mechanically operated valves B43 series
6
- Intermediate mechanically operated valves B53 series
7
- Midget manually operated valves B43 series
8
- Intermediate manually operated valves B53 series
9
- Intermediate lever operated valves B53 series
10
- Midget foot operated valves B43 series
11
- Intermediate foot operated valves B53 series
11
Dimensions - Mechanically operated valves B43 series
12
- Manually operated valves B43 series
13
- Mechanically operated valves B53 series
14
- Manually operated valves B53 series
15 - 18
- Foot guard kit
18
Service and Replacement Parts
19
Accessories
20
Important !
NB !
Before carrying out any service work, ensure that
All technical data in this catalogue is typical only.
the valve and manifold have been vented.
Remove the primary supply air hose to ensure
The air quality is decisive for the valve life:
total disconnection of the air supply before
see ISO 8573.
dismantling valves or blank connection blocks.
WARNING
FAILURE OR IMPROPER SELECTION OR IMPROPER USE OF THE PRODUCTS AND/OR SYSTEMS DESCRIBED HEREIN OR RELATED ITEMS CAN CAUSE DEATH, PERSONAL INJURY AND
PROPERTY DAMAGE.
This document and other information from Parker Hannifin Corporation, its subsidiaries and authorized distributors provide product and/or system options for further investigation by users having technical
expertise. It is important that you analyze all aspects of your application and review the information concerning the product or system in the current product catalog. Due to the variety of operating conditions
and applications for these products or systems, the user, through its own analysis and testing, is solely responsible for making the final selection of the products and systems and assuring that all performance,
safety and warning requirements of the application are met. The products described herein, including without limitation, product features, specifications, designs, availability and pricing, are subject to change
by Parker Hannifin Corporation and its subsidiaries at any time without notice.
SALE CONDITIONS
The items described in this document are available for sale by Parker Hannifin Corporation, its subsidiaries or its authorized distributors. Any sale contract entered into by Parker will be governed by
the provisions stated in Parker’s standard terms and conditions of sale (copy available upon request).
Parker Hannifin Corporation
Pneumatic Division - Europe
2
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
Marketing Applications
• Manufacturing
• Packaging
• General Automation

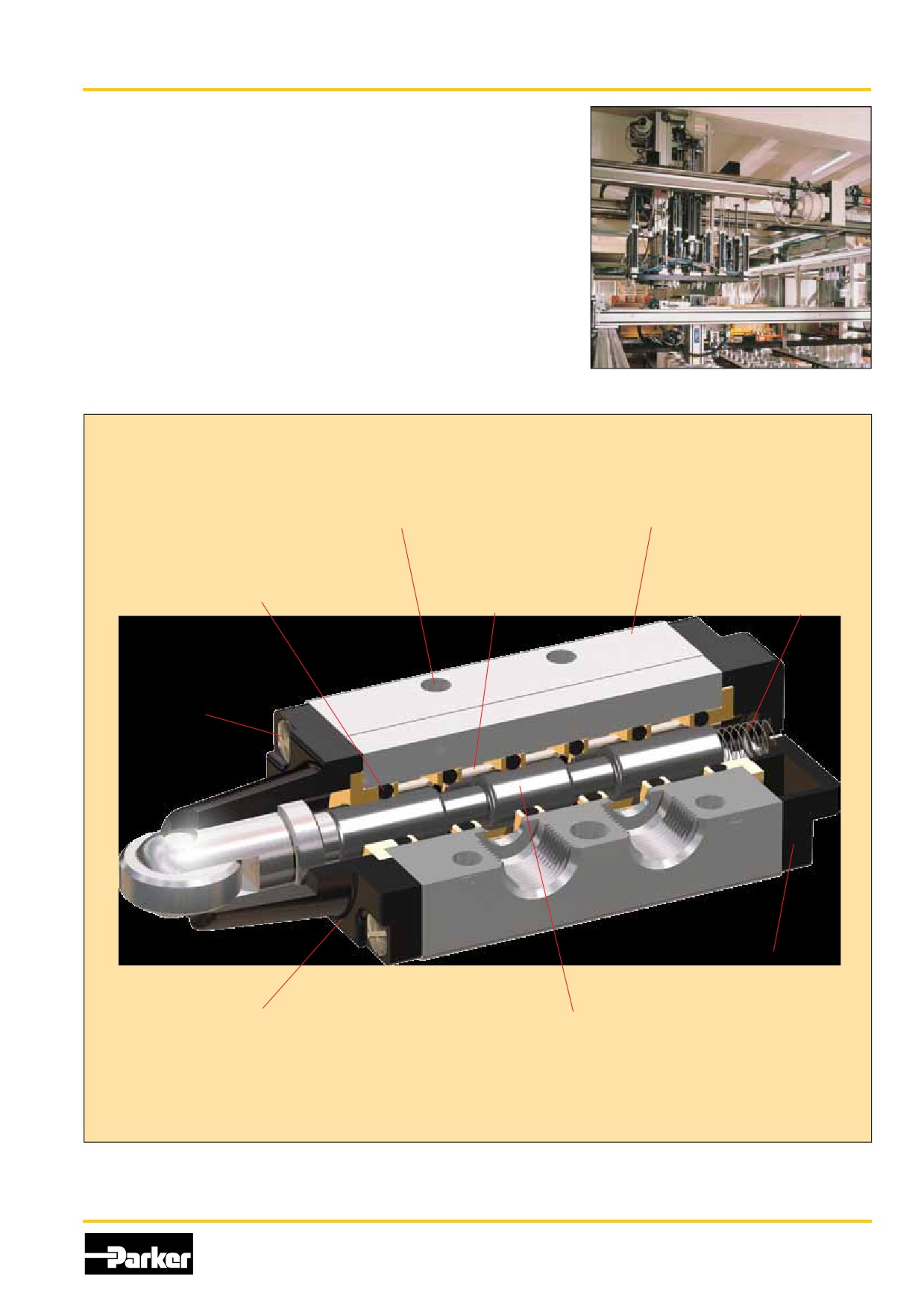

Integral mounting holes
Aluminium body
Zinc diecast
Spring
Static Viton 'O' rings
seal spacers
- zinc plated
End cover screws
- zinc plated
Nylon spring housing
Operator end cover
Stainless steel spool
- zinc diecast
Parker Hannifin Corporation
Pneumatic Division - Europe
3
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
Midget / Intermediate
High reliability
G1/8 & G1/4 Control Valves
Valves easily comply with the requirements for the EU Machinery
The compact design of these valves make them a popular choice for
Directive standards EN292-2 and EN983. The bodies of the Midget
manual or mechanical operation and their modular construction permit
and Intermediate valves are manufactured from aluminium with
different operators to be fitted to the actuator and return assemblies.
stainless steel spool, sealed by static viton 'O' rings. All operating parts
exposed to the working fluid are of non-corrosive material and all ports
threaded G1/8 or G1/4. The valves are designed to give long trouble
free service life when used with or without lubrication.
Wide application range
The Midget and Intermediate valves are designed to have balanced
forces across the spool so that 3/2 valves can be piped normally open
Modular construction
or normally closed by changing the inlet supply from port 1 to port 3.
Because forces across the spool are balanced 5/2 valves can also be
The modular construction of the valves allows any of the actuators to
piped in different ways to suit applications which require different
be spring return or air pilot return. Roller versions are designed to give
pressures through the same valve. For example when a cylinder needs
a common height on both 3/2 and 5/2 valves to ensure uniformity and
to advance with low force (pressure) to avoid bruising a component
efficiency in a multi-valve assembly.
and retracts with normal pressure.
Fast operating speeds
Maintenance
The G1/8 Midget valve has a short travel and lightweight spool so that
These valves can be serviced without disturbing the pipe-work simply
high operating speeds are possible. These valves have been tested at
by unscrewing the actuator and return assemblies and then removing
over 3000 cycles per minute.
the spool and 'O' ring assembly.
Working medium, air quality
Working medium: Dry, filtered compressed air to
ISO 8573-1 class 3.4.3.
Recommended air quality for valves
ISO 8573-1 quality classes
For best possible service life and trouble free operation, ISO 8573-1
Quality
Pollution
Water
Oil
quality class 3.4.3 should be used. This means 5µm filter (standard
class
particle
max.
max. press.
max.
filter) dew point +3OC for indoor operation (a lower dew point should
size
concentration
dew point
concentration
be selected for outdoor operation) and oil concentration 1.0 mg oil/m3,
(µm)
(mg/m3)
(OC)
(mg/m3)
which is what a standard compressor with a standard filter gives.
1
0,1
0,1
-70
0,01
2
1
1
-40
0,1
3
5
5
-20
1,0
4
15
8
+3
5,0
5
40
10
+7
25
6
-
-
+10
-
Parker Hannifin Corporation
Pneumatic Division - Europe
4
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
Material specification
Technical information
Valve body
Aluminium
Type
Spool valves
Spool
Stainless steel
Style
Body ported
Seal spacers
Zinc die cast
Port size
G1/8 & G1/4
Seals
Viton
Mounting
Any plane
Spring housing
Nylon
Pressure range
Vacuum to 10 bar
Spring
Zinc plated
Temperature range
-10OC to +80OC
End covers
Zinc die cast
Flow acc. (to ISO 6358)
Actuators
Zinc die cast
Midget B43 series Intermediate B53 series
End cover screws
Zinc plated
c = 1.13 NI/s x bar c = 3.69 NI/s x bar
b = 0.36
b = 0.33
Qn = 5.5 l/s
Qn = 17.5 l/s
Qmax = 9.0 l/s
Qmax = 29 l/s
Cv = 0.24
Cv = 1.02

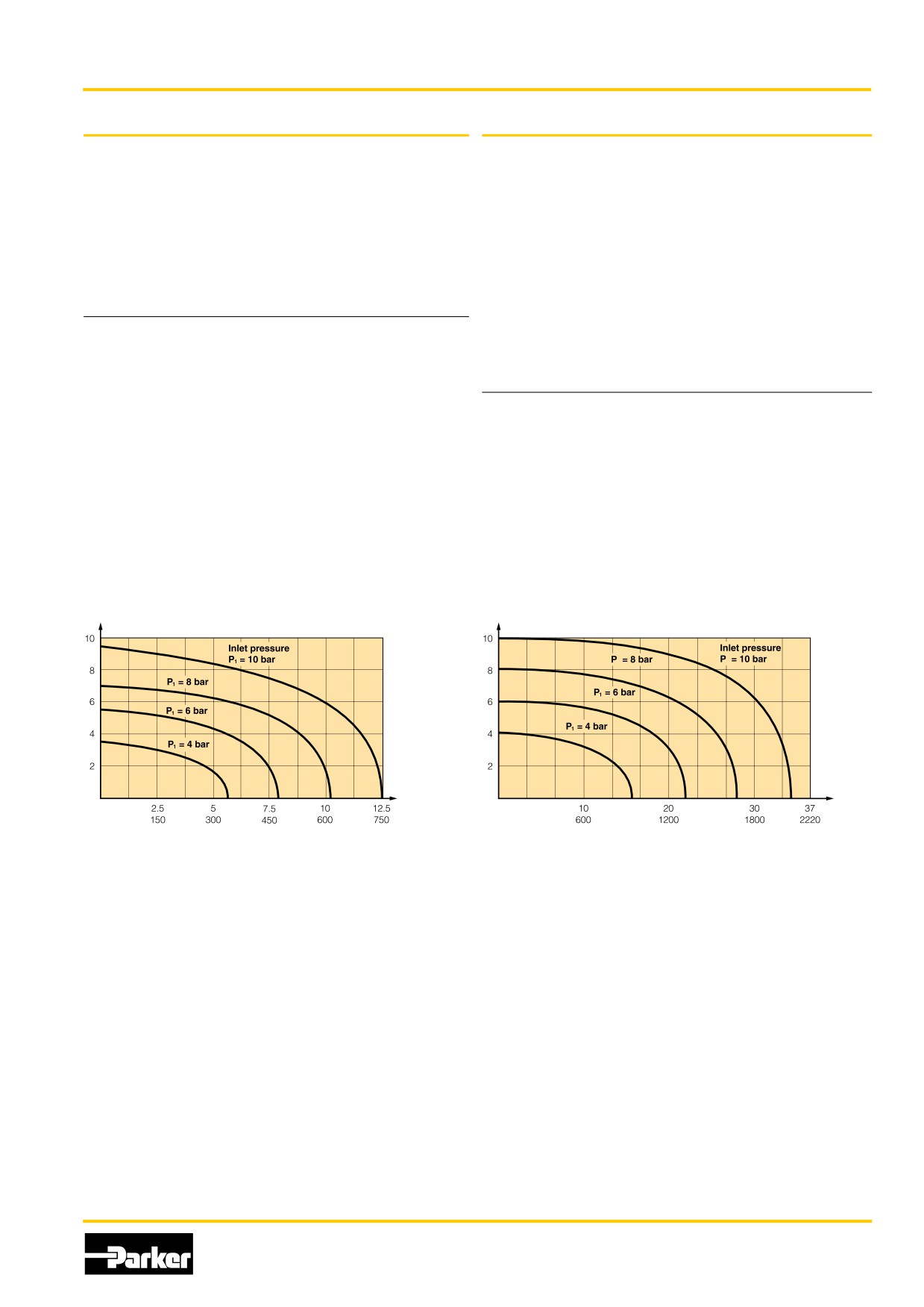

Flow characteristics
Flow capacities in accordance with ISO 6358
The flow curves shown below are typical.
Midget B43 series valves
Intermediate B53 series valves
Outlet pressure P2 (bar)
Outlet pressure P2 (bar)
Flow
(l/s)
Flow (l/s)
(l/min)
(l/min ANR)
Parker Hannifin Corporation
Pneumatic Division - Europe
5
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series

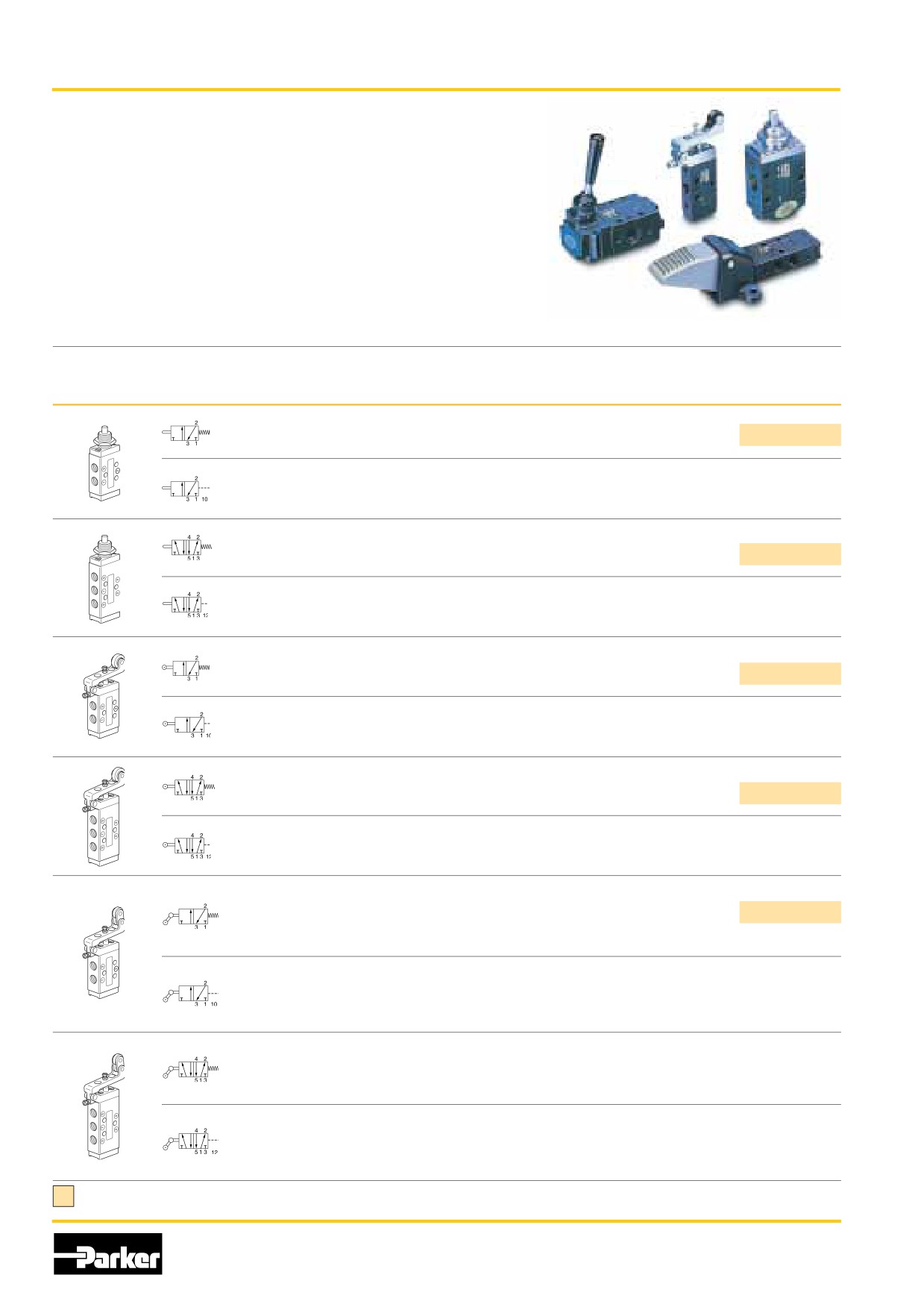

Midget mechanically operated valves, B43 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Plunger
Spring
36
G1/8
0,182
B43003CS
3/2
Plunger
Air
14
G1/8
0,202
B43003CP
5/2
Plunger
Spring
36
G1/8
0,222
B43004CS
5/2
Plunger
Air
14
G1/8
0,242
B43004CP
3/2
Roller Lever
Spring
20
G1/8
0,234
B43003RS
3/2
Roller lever
Air
7
G1/8
0,254
B43003RP
5/2
Roller Lever
Spring
20
G1/8
0,274
B43004RS
5/2
Roller lever
Air
7
G1/8
0,294
B43004RP
3/2
One way roller
Spring
20
G1/8
0,274
B43003RTS
lever
3/2
One way roller
Air
7
G1/8
0,294
B43003RTP
lever
5/2
One way roller
Spring
20
G1/8
0,314
B43004RTS
lever
5/2
One way roller
Air
7
G1/8
0,334
B43004RTP
lever
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
6
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series

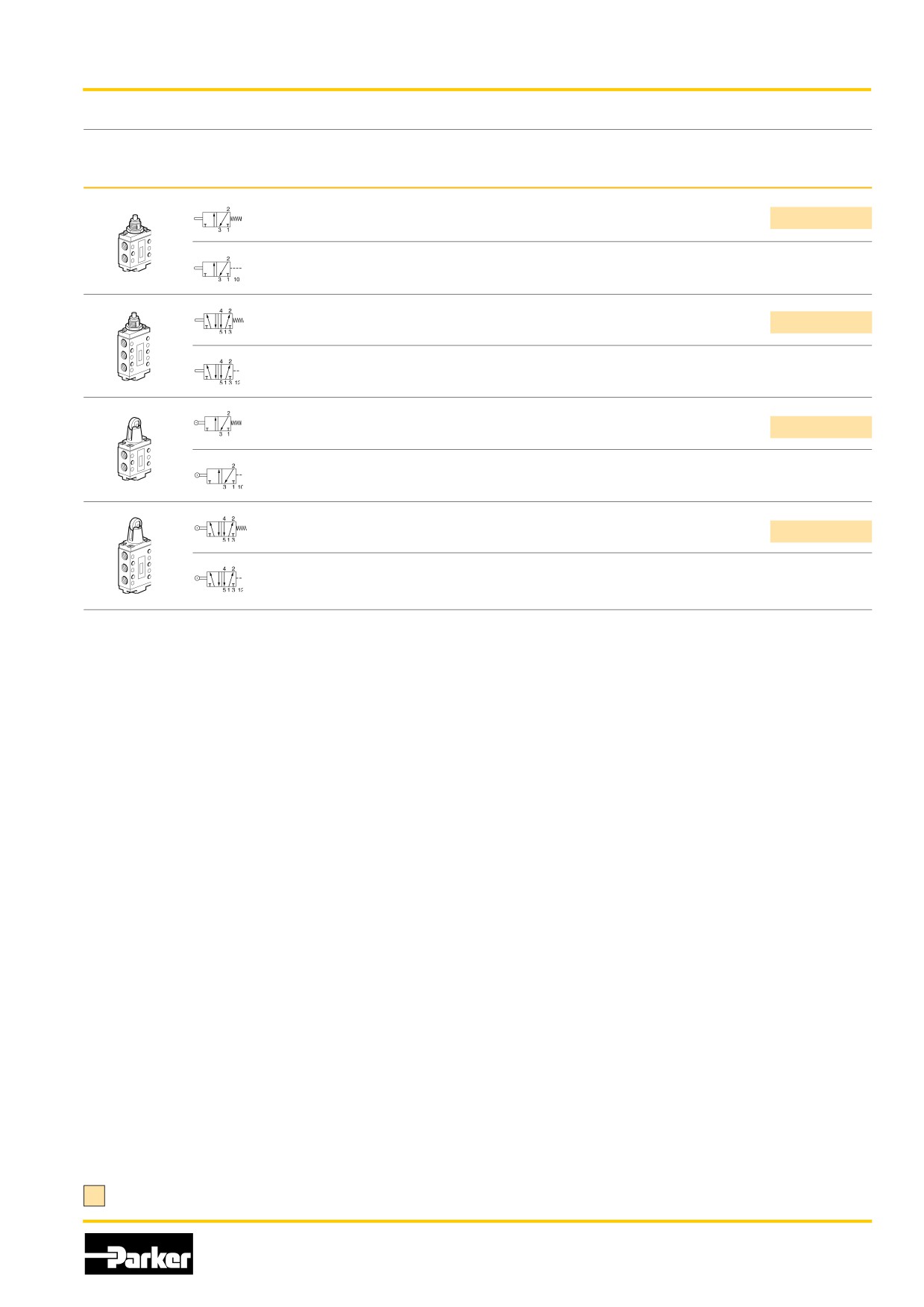

Intermediate mechanically operated valves, B53 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Plunger
Spring
53
G1/4
0,348
B53003CS
3/2
Plunger
Air
27
G1/4
0,388
B53003CP
5/2
Plunger
Spring
53
G1/4
0,478
B53004CS
5/2
Plunger
Air
27
G1/4
0,518
B53004CP
3/2
Roller
Spring
53
G1/4
0,350
B53003RS
3/2
Roller
Air
27
G1/4
0,390
B53003RP
5/2
Roller
Spring
53
G1/4
0,480
B53004RS
5/2
Roller
Air
27
G1/4
0,520
B53004RP
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
7
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series
Midget manually operated valves, B43 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Button, black
Spring
36
G1/8
0,200
B43003BXS
3/2
Button, black
Button
13
G1/8
0,200
B43003HXS
5/2
Button, black
Spring
36
G1/8
0,240
B43004BXS
5/2
Button, black
Button
13
G1/8
0,240
B43004HXS
3/2
Button, black
Air
13
G1/8
0,200
B43003BXP
3/2
Button, black
Air or button
13
G1/8
0,200
B43003HXP
5/2
Button, black
Air
13
G1/8
0,240
B43004BXP
5/2
Button, black
Air or button
13
G1/8
0,280
B43004XHP
3/2
Lock down lever
Spring
9
G1/8
0,202
B43003LS
3/2
Lock down lever
Spring
9
G1/8
0,242
B43004LS
3/2
Lock down lever
Air
3
G1/8
0,240
B43003LP
3/2
Lock down lever
Air
3
G1/8
0,280
B43004LP
Note: The standard button colour is black (X)
For optional colour buttons change 8th character of order code
e.g. B43004HXS = Black button, B43004HZS = Green button,
B43004HYS = Red button.
X = Black
Z = Green

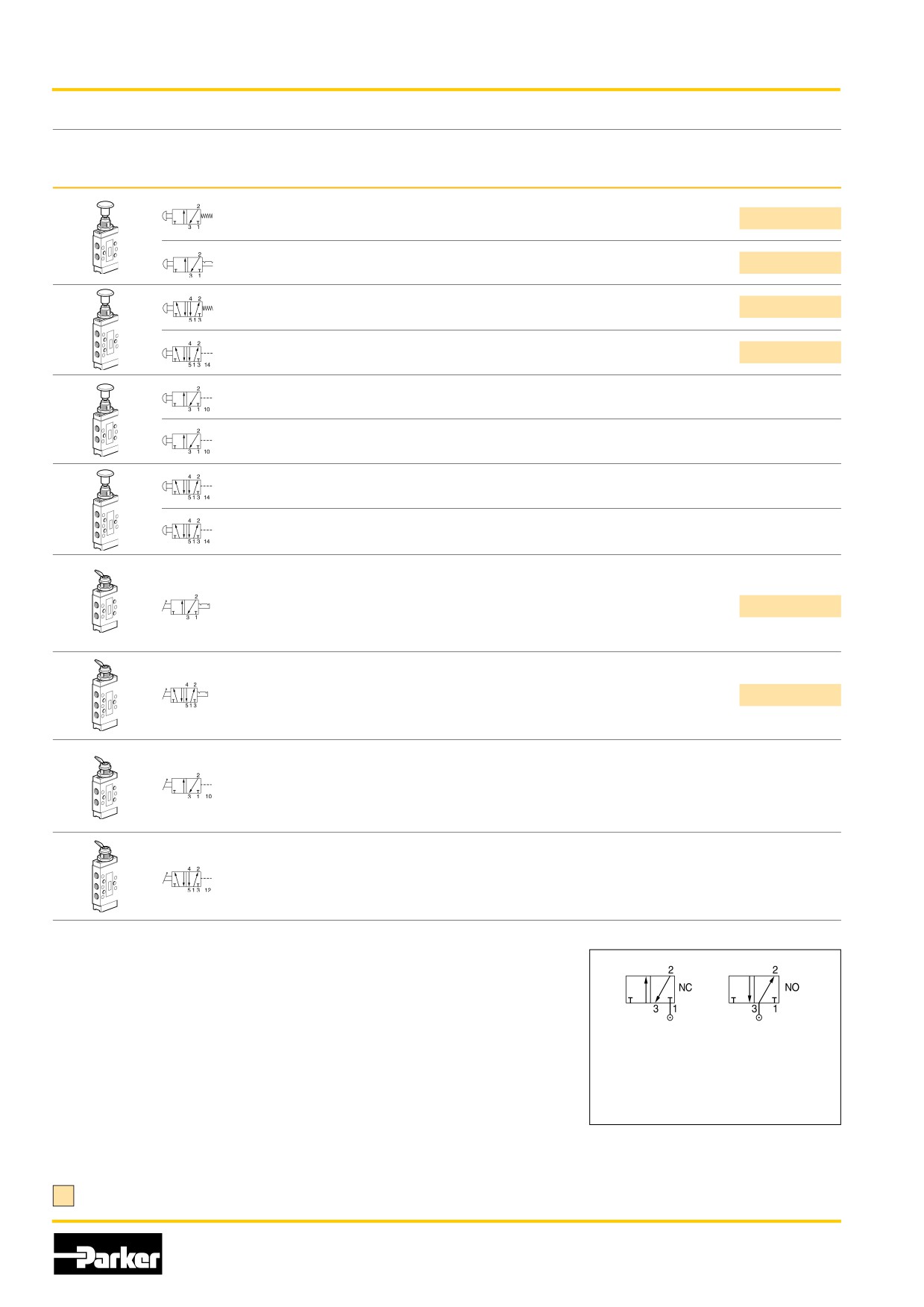

All 3/2 type B43 & B53 valves can be
connected either as normally closed 3/2
Y = Red
valve (NC) or normally open 3/2 valve
(NO) as required, by connecting the
primary air supply to port 1 or port 3
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
8
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series

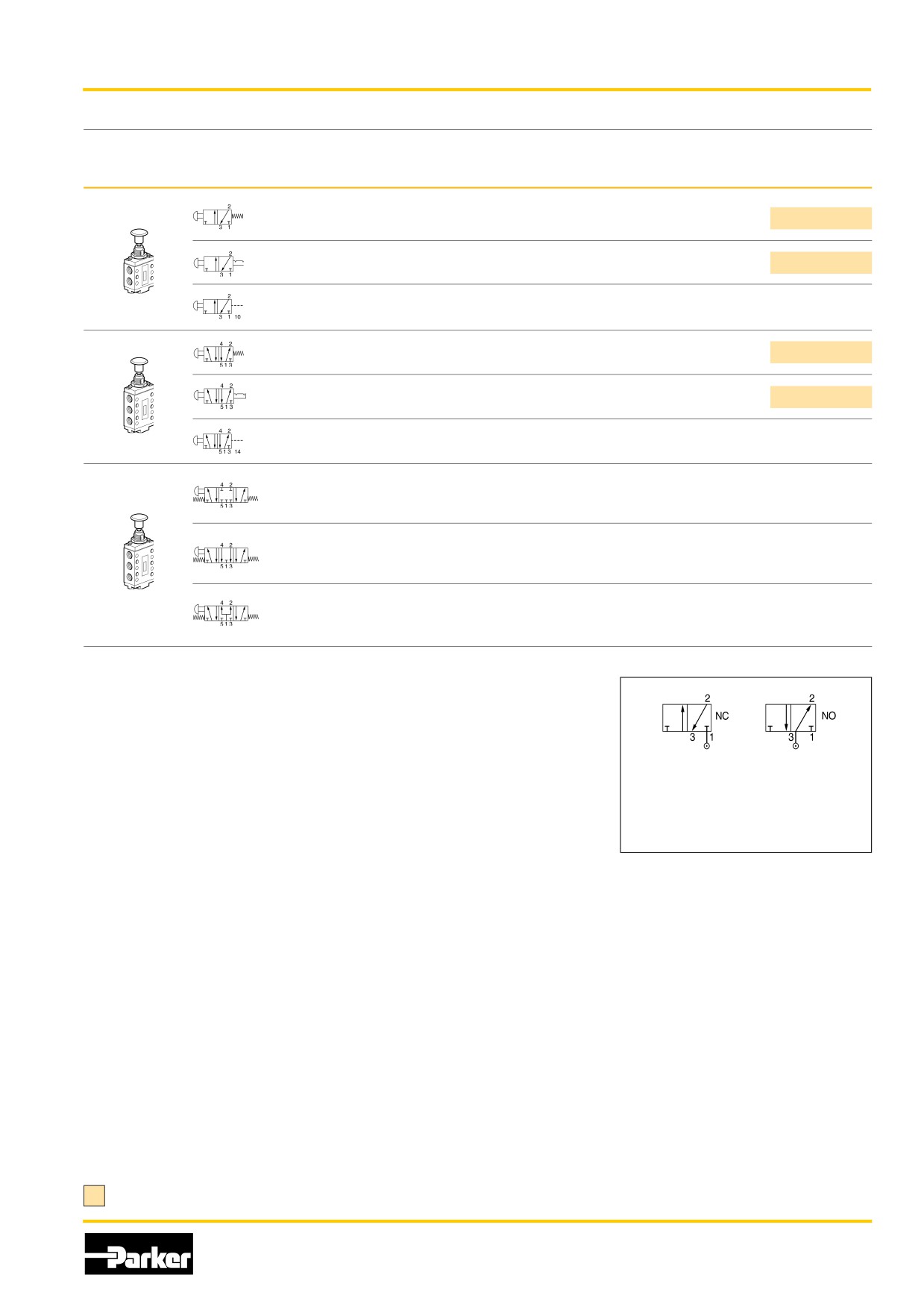

Intermediate manually operated valves, B53 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Button, black
Spring
53
G1/4
0,368
B53003HXS
3/2
Button, black
Button
27
G1/4
0,368
B53003HX
3/2
Button, black
Air
27
G1/4
0,380
B53003HXP
5/2
Button, black
Spring
53
G1/4
0,498
B53004HXS
5/2
Button, black
Button
27
G1/4
0,498
B53004HX
5/2
Button, black
Air
27
G1/4
0,510
B53004HXP
5/3
Button Closed
Button
53
G1/4
0,623
B53004HXX
centre position
Self centring
5/3
Button Vented
Button
53
G1/4
0,623
B53004HXY
centre position
Self centring
5/3
Button Pressurised
Button
53
G1/4
0,623
B53004HXZ
centre position
Self centring
Note: The standard button colour is black (X)
For optional colour buttons change 8th character of order code
e.g. B43004HXS = Black button, B43004HZS = Green button,
B43004HYS = Red button.
X = Black
Z = Green
All 3/2 type B43 & B53 valves can be
connected either as normally closed 3/2
Y = Red
valve (NC) or normally open 3/2 valve
(NO) as required, by connecting the
primary air supply to port 1 or port 3
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
9
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series

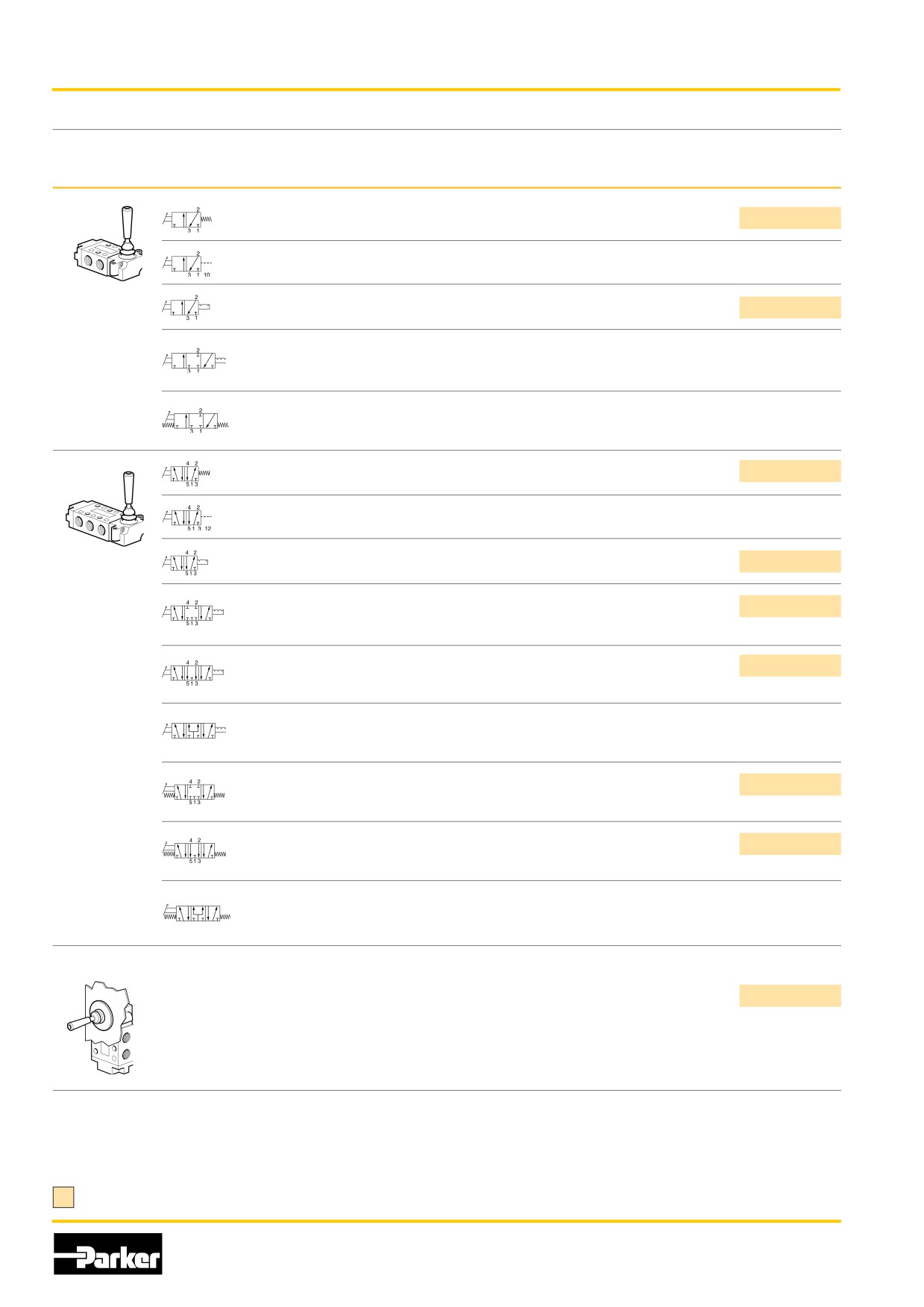

Intermediate lever operated valves, B53 series
Symbol
Type
Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Lever
Spring
14
G1/4
0,504
B53003LS
3/2
Lever
Air
9
G1/4
0,520
B53003LP
3/2
Lever
Lever
9
G1/4
0,500
B53003LT
3/3
Lever Closed
Lever
9
G1/4
0,504
B53003L
centre position
3/3
Lever Closed
Lever
14
G1/4
0,780
B53003LX
centre position
Self centring
5/2
Lever
Spring
14
G1/4
0,506
B53004LS
5/2
Lever
Air
14
G1/4
0,526
B53004LP
5/2
Lever
Lever
14
G1/4
0,632
B53004LT
5/3
Lever Closed
Lever held in
9
G1/4
0,640
B53004L
centre position
three positions
5/3
Lever Vented
Lever held in
9
G1/4
0,640
B53004LW
centre position
three positions
4
2
5/3
Lever Pressurised
Lever held in
9
G1/4
0,640
B53004LN
5
1
3
centre position
three positions
5/3
Lever Closed
Lever
14
G1/4
0,780
B53004LX
centre position
Self centring
5/3
Lever Vented
Lever
14
G1/4
0,780
B53004LY
centre position
Self centring
4
2
5/3
Lever Pressurised
Lever
14
G1/4
0,780
B53004LZ
5
1
3
centre position
Self centring
Mounting kit
Panel mounting kit
0,040
M53004L-10A
Kit includes panel plate and M5 counter sunk head screws
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
10
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43/53 Series

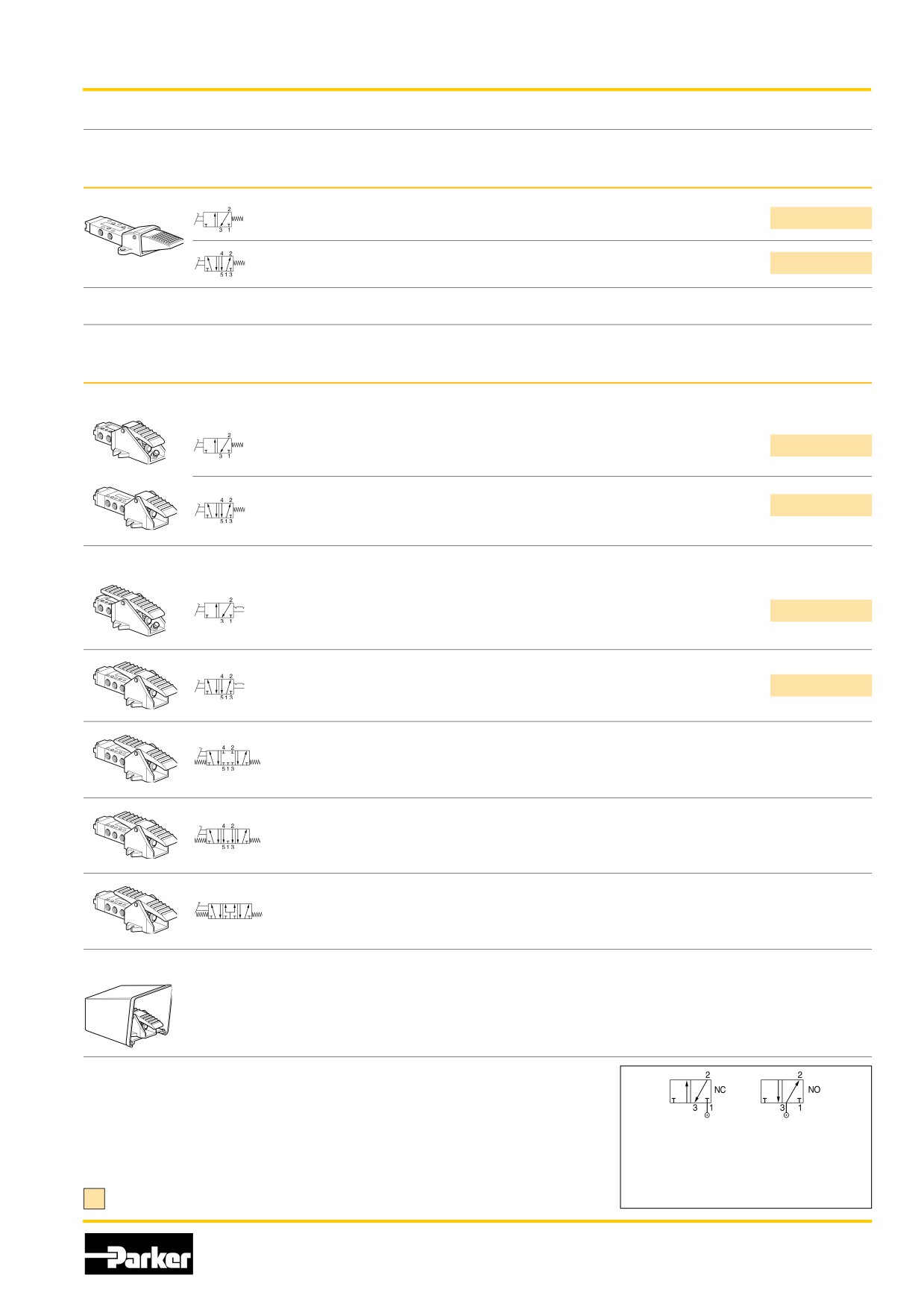

Midget foot operated valves, B43 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
3/2
Foot pedal
Spring
16
G1/8
0,312
B43003FS
5/2
Foot pedal
Spring
16
G1/8
0,370
B43004FS
Intermediate foot operated valves, B53 series
Symbol
Type Actuator
Return
Operating
Size
Weight
Order code
force
Kg
at 6 bar, N
Single pedal operated
3/2
Foot pedal
Spring
95
G1/4
1,34
B53003FS
5/2
Foot pedal
Spring
95
G1/4
1,48
B53004FS
Rocker pedal operated
3/2
Foot pedal
Foot pedal
18
G1/4
1,38
B53003G
5/2
Foot pedal
Foot pedal
18
G1/4
1,58
B53004G
5/3
Foot pedal
Foot pedal
18
G1/4
1,68
B53004GX
Closed centre
Self centring
position
5/3
Foot pedal
Foot pedal
18
G1/4
1,68
B53004GY
Vented centre
Self centring
position
5/3
Foot pedal
Foot pedal
18
G1/4
1,68
B53004GZ
4
2
Pressurised
Self centring
5
1
3
centre position
Accessories
Foot guard kit
1,16
3117
All 3/2 type B43 & B5/3 valves can be
connected either as normally closed 3/2
valve (NC) or normally open 3/2 valve
(NO) as required, by connecting the
Indicates stocked product.
primary air supply to port 1 or port 3
Parker Hannifin Corporation
Pneumatic Division - Europe
11
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43 Series
Dimensions, G1/8 ported spool valves
All dimensions in mm unless otherwise stated
Mechanically operated valves
3/2 valves
5/2 valves

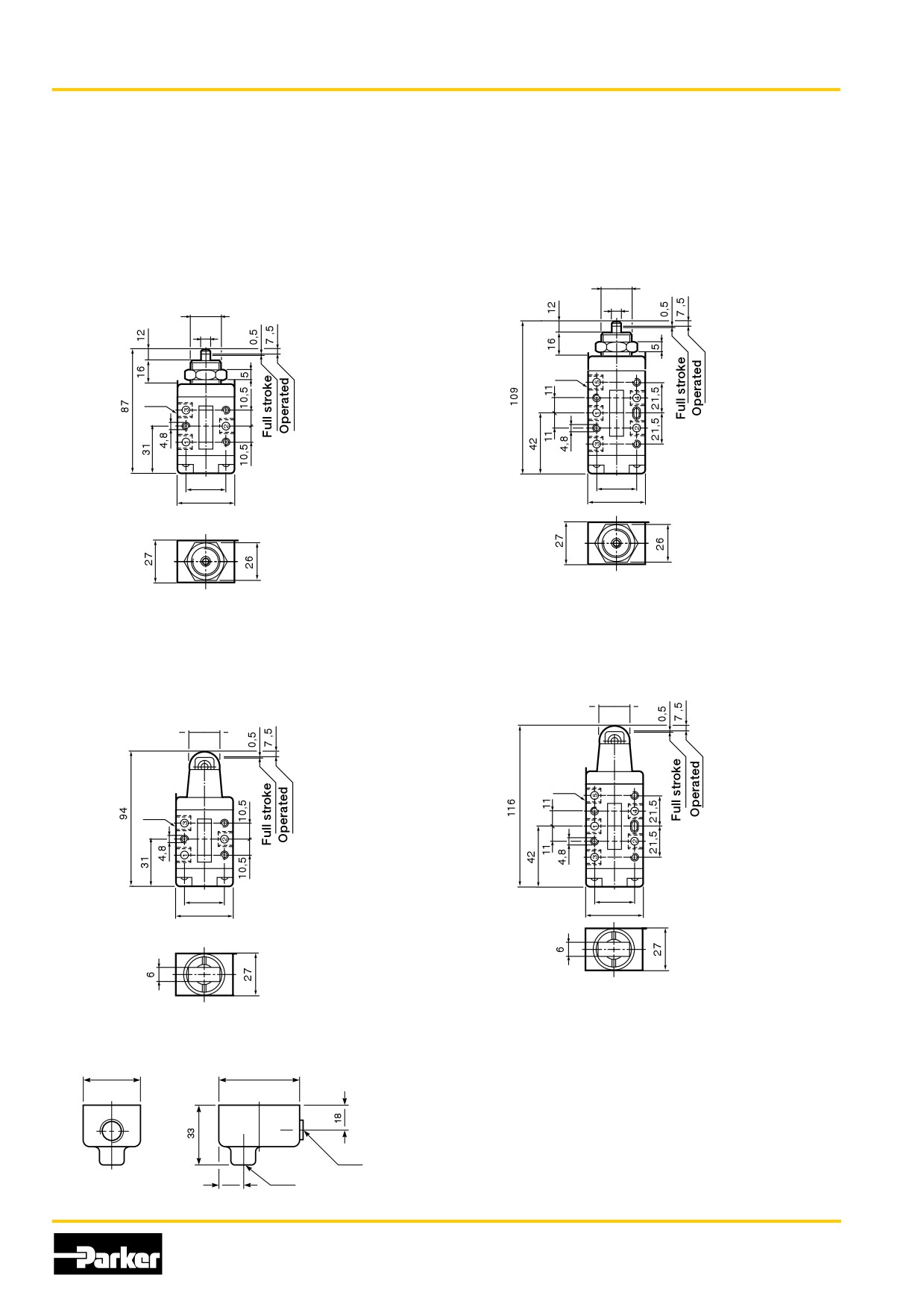

Plunger operated spring return
Plunger operated spring return
Operated
Operated
Full stroke
Ø16
Full stroke
Ø16
Ø6
Ø6
G1/8
G1/8
19
19
33
33

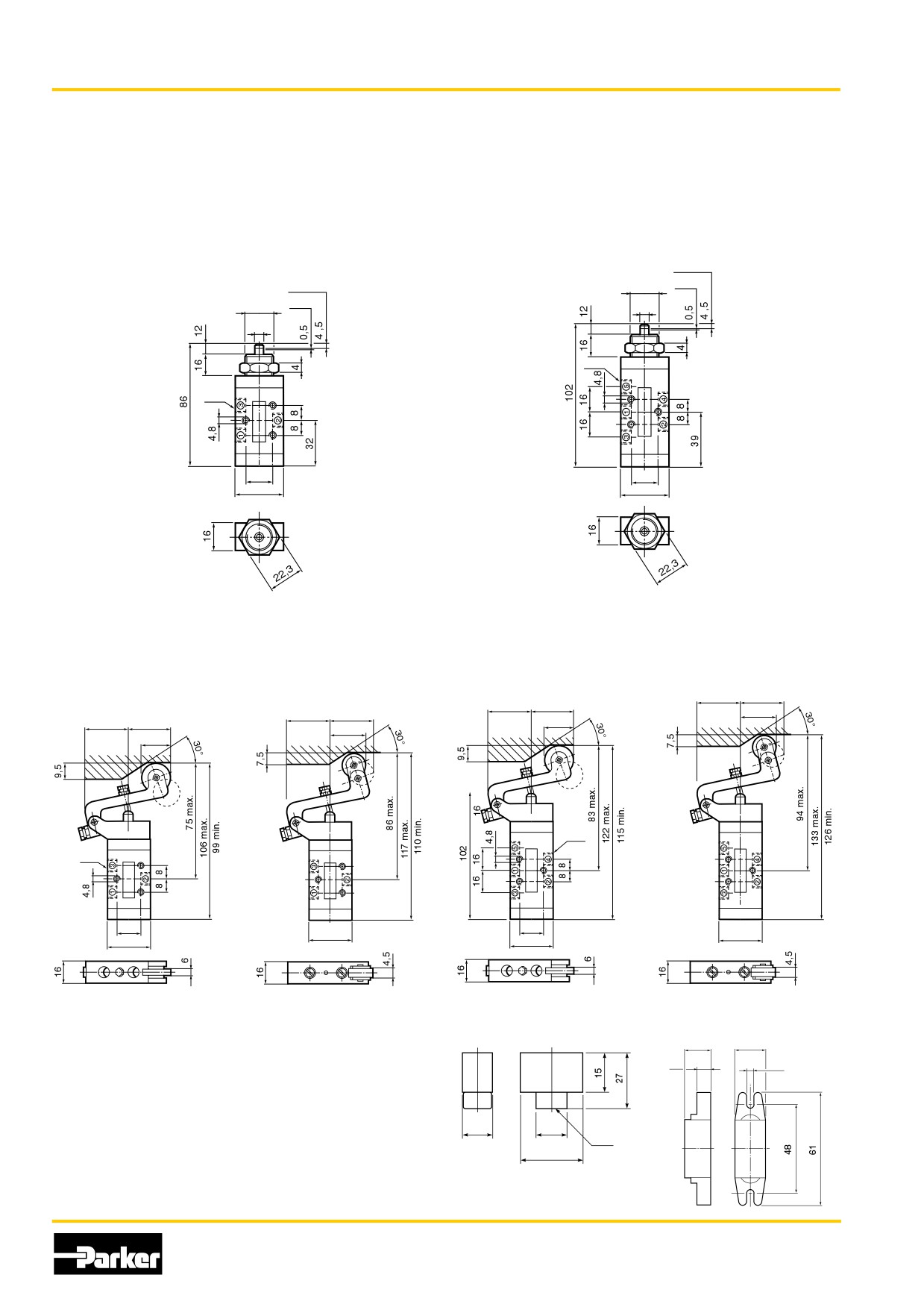

3/2 valves
5/2 valves
Roller operated spring return
One way roller trip operate
Roller operated spring return
One way roller trip operate
spring return
spring return
30
27
30
29
24
30
27
30
29
19
24
19
G1/8
G1/8
19
19
33
33
33
33
Air Pilot Return
Optional foot mounted -
Spring return housing
13.5
16
6.5
5.5
16
Ø15
G1/8
32
Parker Hannifin Corporation
Pneumatic Division - Europe
12
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B43 Series
Dimensions, G1/8 ported spool valves
All dimensions in mm unless otherwise stated
Manually operated valves

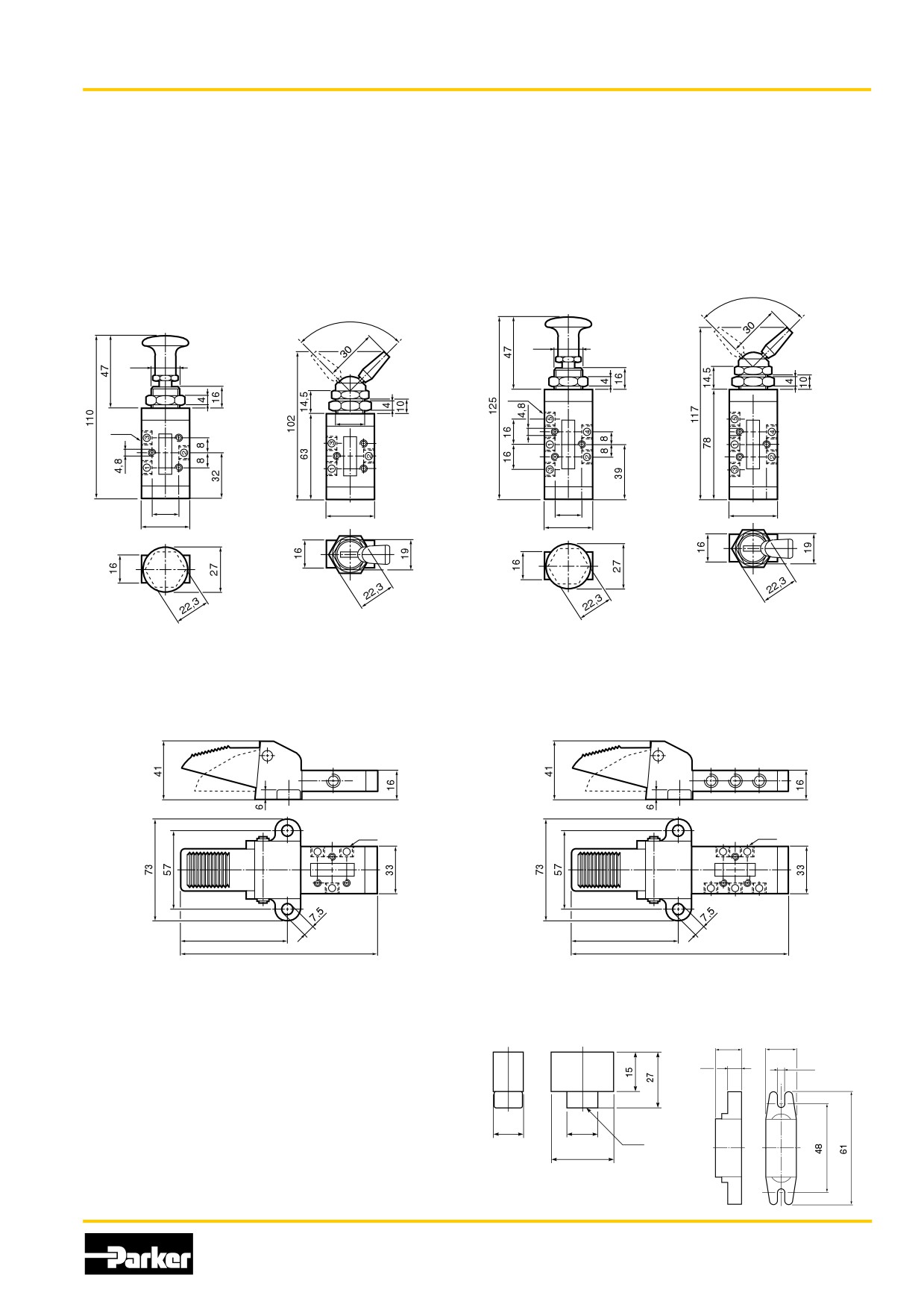

3/2 valves
5/2 valves
Button operated spring return
Lock down lever
Button operated spring return
Lock down lever
or button returned
operated spring return
or button returned
operated spring return
90°
90°
Ø16
Ø16
G1/8
16
G1/8
19
33
19
33
33
33
3/2 valves
5/2 valves
Foot pedal operated spring return
Foot pedal operated spring return
G1/8
G1/8
3
1
4
2
2
5
1
3
78
78
143
143
Air Pilot Return
Optional foot mounted -
Spring return housing
13.5
16
6.5
5.5
16
Ø15
G1/8
32
Parker Hannifin Corporation
Pneumatic Division - Europe
13
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B53 Series
Dimensions, G1/4 ported spool valves
All dimensions in mm unless otherwise stated
Mechanically operated valves
3/2 valves
5/2 valves
Plunger operated spring return
Plunger operated spring return
Ø19
Ø7
Ø19
Ø7
G1/4
G1/4
32
32
42
42
3/2 valves
5/2 valves
Roller operated spring return
Roller operated spring return
Ø19
Ø19
G1/4
G1/4
32
32
42
42
Air Pilot Return
27
42
G1/8
11
G1/8
Parker Hannifin Corporation
Pneumatic Division - Europe
14
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B53 Series
Dimensions, G1/4 ported spool valves
All dimensions in mm unless otherwise stated
Manually operated valves
3/2 valves
5/2 valves
Button operated spring return
Button operated spring return
or button returned
or button returned
Ø27
Ø27
Ø19
Ø19
G1/4
G1/4
32
32
42
42
3/2 valves
34°
5/2 valves
34°
Lever operated
Lever operated
G1/4
G1/4
82
104
31
42
11
11
14
14
4,8
4,8
3
1
5
1
3
2
4
2
10,5
10,5
21,5
21,5
M5
M5
Air Pilot Return
27
42
G1/8

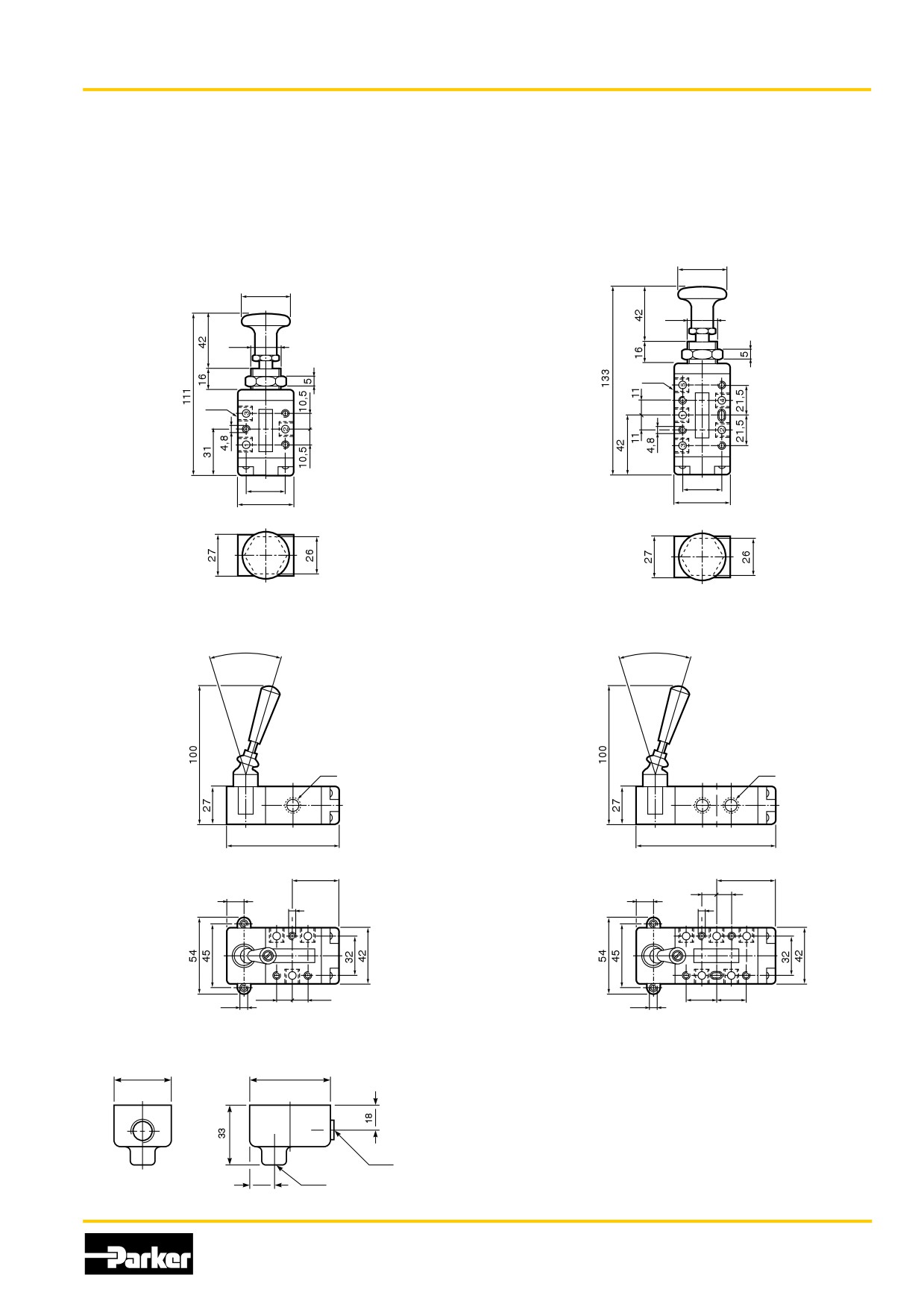

11
G1/8
Parker Hannifin Corporation
Pneumatic Division - Europe
15
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B53 Series
Dimensions, G1/4 ported spool valves
All dimensions in mm unless otherwise stated
Manually operated valves

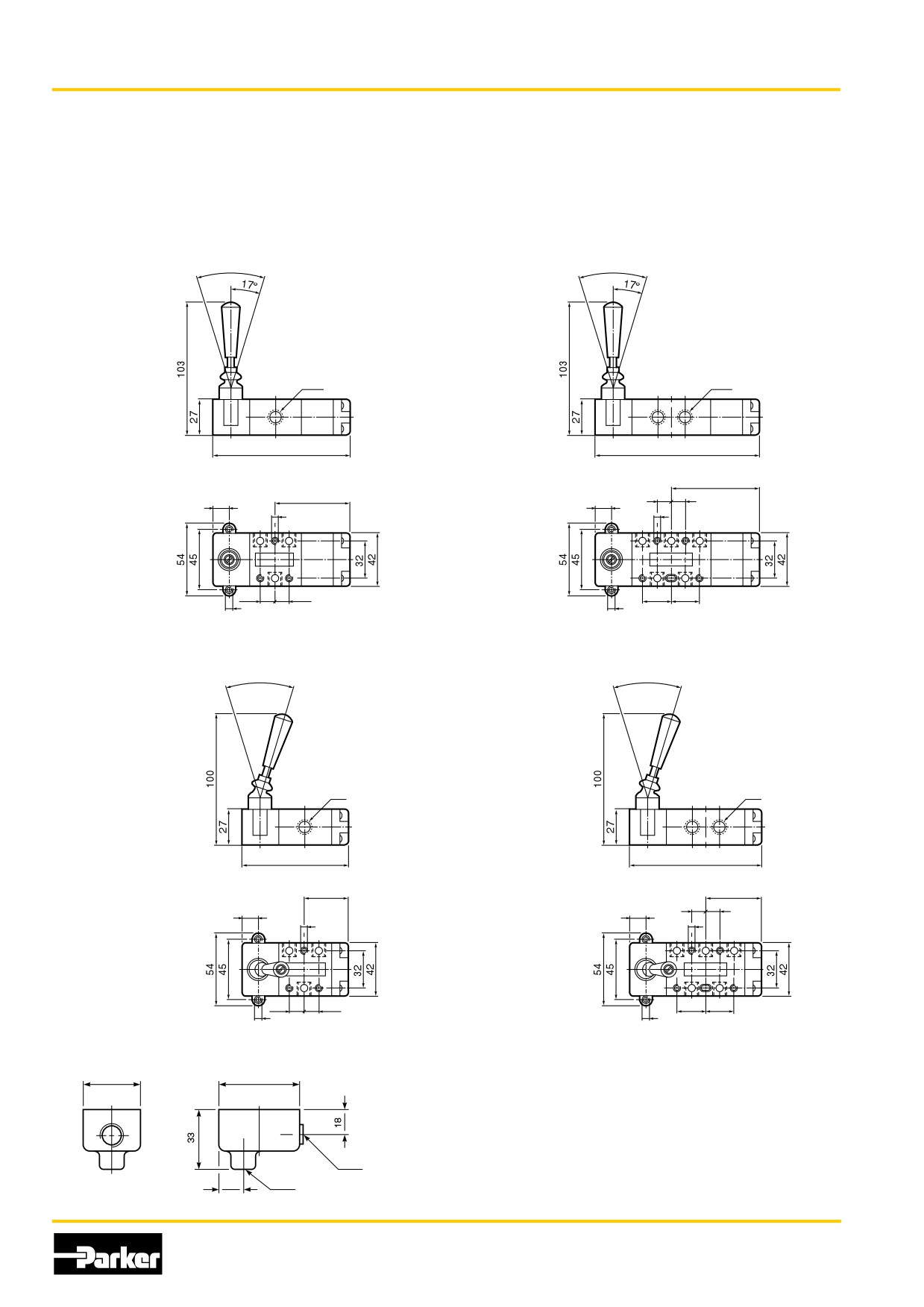

3/3 valves (Self centring)
5/3 valves (Self centring)
Lever operated
Lever operated
34°
34°
G1/4
G1/4
108
130
68
57
11
11
14
14
4,8
4,8
3
1
5
1
3
2
4
2
10,5
10,5
21,5
21,5
M5
M5
3/3 valves (3 positions)
5/3 valves (3 positions)
34°
34°
Lever operated
Lever operated
G1/4
G1/4
82
104
31
42
11
11
14
14
4,8
4,8
3
1
5
1
3
2
4
2
10,5
10,5
21,5
21,5
M5
M5
Air Pilot Return
27
42
G1/8
11
G1/8
Parker Hannifin Corporation
Pneumatic Division - Europe
16
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B53 Series
Dimensions, G1/4 ported spool valves
All dimensions in mm unless otherwise stated
Manually operated valves
3/2 valves
5/2 valves

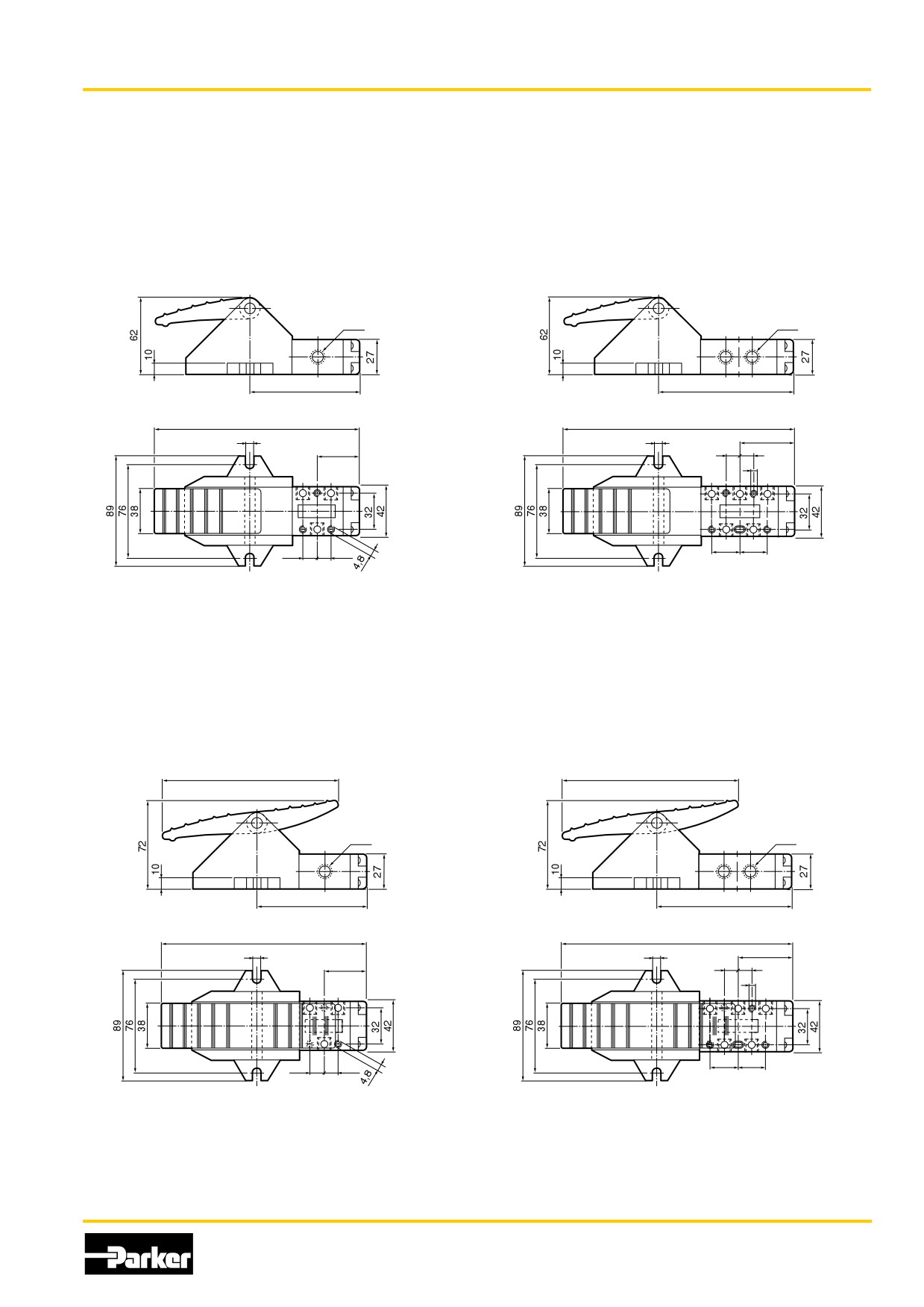

Foot pedal operated spring return
Foot pedal operated spring return
G1/4
G1/4
66
88
164
186
9
9
42
31
11
11
4,8
3
1
5
1
3
2
4
2
21,5
21,5
10,5
10,5
3/2 valves
5/2 valves
Foot pedal operated
Foot pedal operated
140
140
G1/4
G1/4
66
88
164
186
9
9
42
31
11
11
4,8
3
1
5
1
3
2
4
2
21,5
21,5
10,5
10,5
Parker Hannifin Corporation
Pneumatic Division - Europe
17
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves
B53 Series
Dimensions, G1/4 ported spool valves
All dimensions in mm unless otherwise stated
Manually operated valves

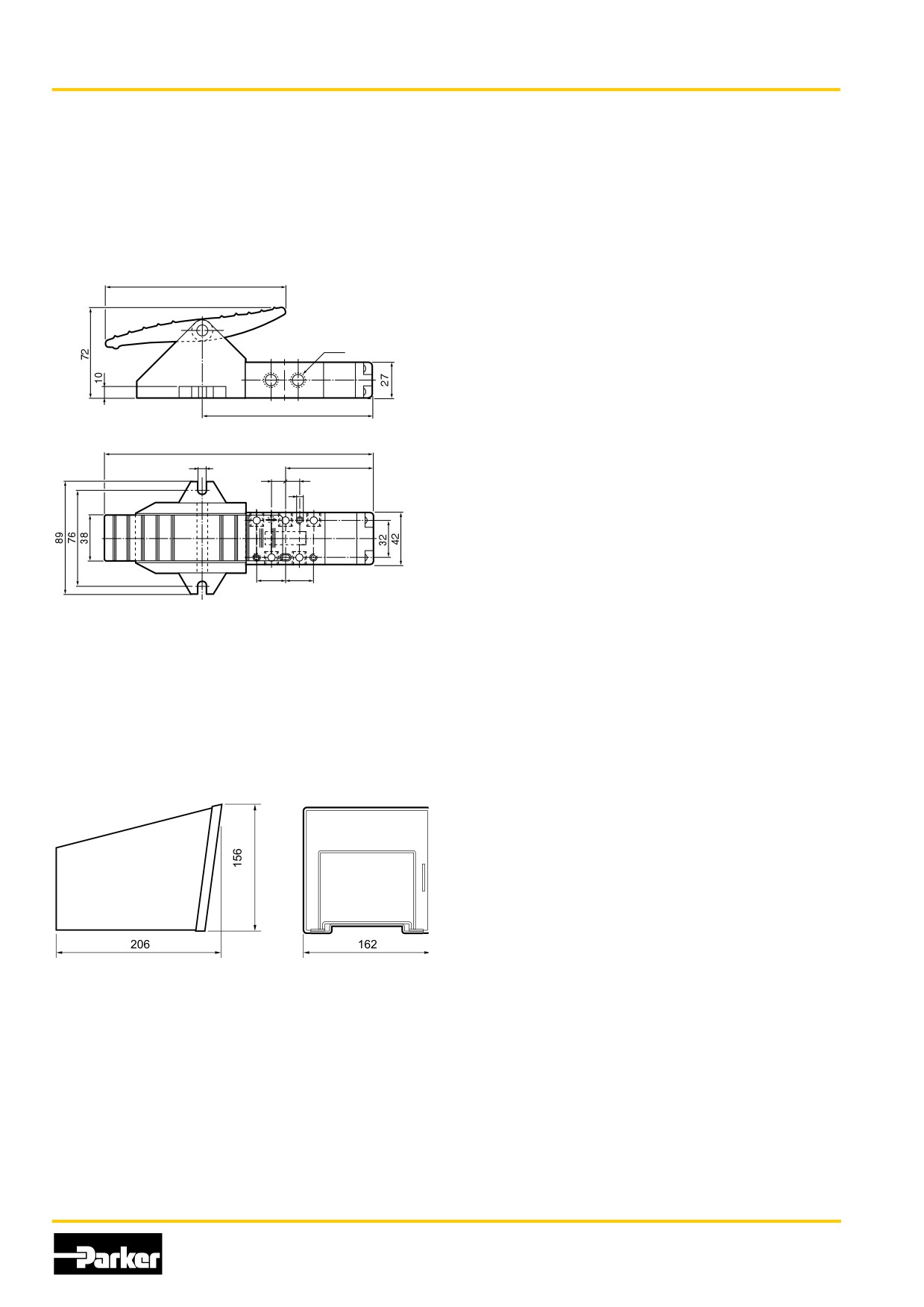

5/3 valves
Foot pedal operated
140
G1/4
114
212
9
68
11
11
4,8
5
1
3
4
2
21,5
21,5
Foot guard kit
3117
Parker Hannifin Corporation
Pneumatic Division - Europe
18
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves

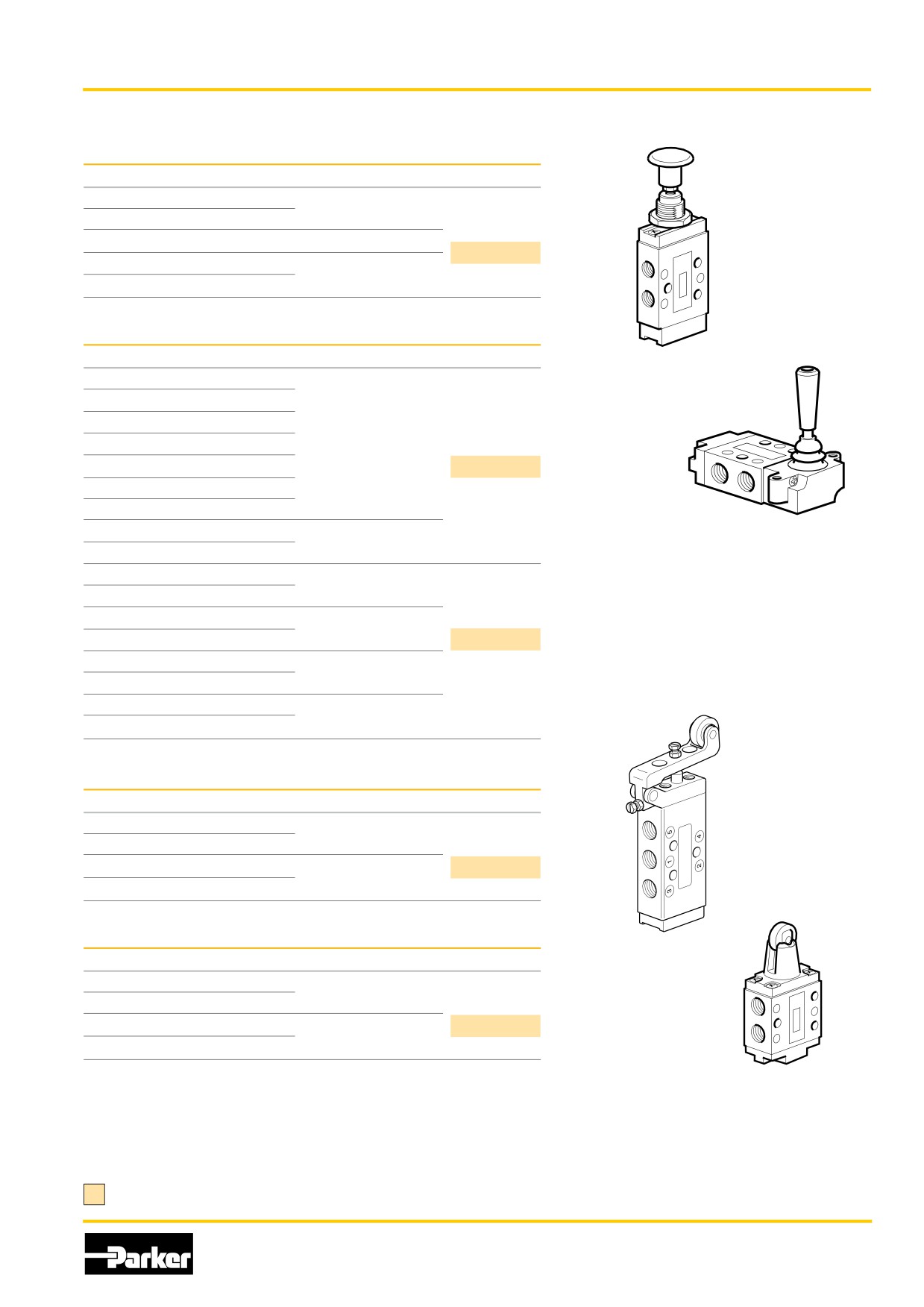

Service and Replacement Parts
Service and Replacement Parts
B43 Series Manually Operated Valves
Order code Actuator
Replacement actuator
Repair kit
B43003BXS Button
43004BX-100
B43004BXS Button
Body seal
B43004HXS Button, Push/Pull
43004H-100
43007A
B43003LS
Lockdown lever
43004L-200
B43004LS
Lockdown lever
B53 Series Manually Operated Valves
Order code Actuator
Replacement actuator
Repair kit
B53003HXS Button
B53004HXS Button
B53003HX
Button, Push/Pull
B53004HX
Button, Push/Pull
53004HX-100
Body seal
B53004HXX Button, Self centring
53007
B53004HXY Button, Self centring
B53004HXZ Button, Self centring
B53003FS
Foot
53004F-100
B53004FS
Foot
B53003LS
Lever
53004L-198
B53004LS
Lever
B53003LT
Lever, 2 positions
Body seal
53004L-196
B53004LT
Lever, 2 positions
53007
B53004L
Lever, 3 positions
Lever kit
53004L-100
B53004LW Lever, 3 positions
53004L-300R
B53004LX
Lever, Self centring
53004L-198
B53004LY
Lever, Self centring
B43 Series Mechanically Operated Valves
Order code Actuator
Replacement actuator
Repair kit
B43003CS
Plunger
43004C-100
B43004CS
Plunger
Body seal
B43003RS
Roller Lever
43007A
43004R-200
B43004RS
Roller Lever
B53 Series Mechanically Operated Valves
Order code Actuator
Replacement actuator
Repair kit
B53003CS
Plunger
53004C-100
B53004CS
Plunger
Body seal
B53003RS
Roller
53007
53004R-100
B53004RS
Roller
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
19
PDE2623TCUK
Midget & Intermediate Manual and Mechanical Valves

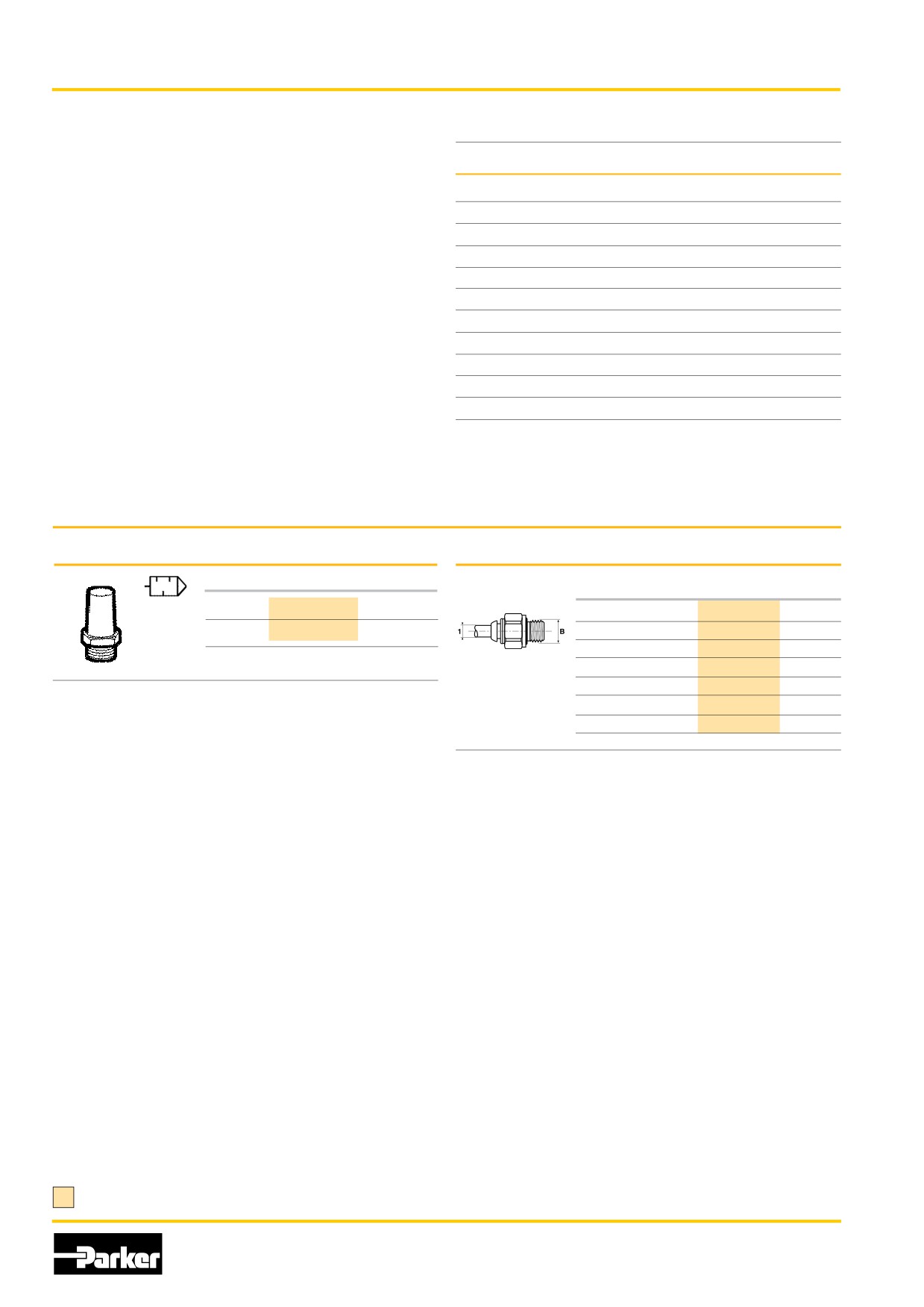

Accessories
Lubricating Oils
To ensure long life and trouble free service from valves, it is
Oil company
Grade
Viscosity
recommended the equipement should be adequately lubricated by
means of lubricators which disperse oil into the system.
Only paraffinic based oils can be used, and the following
Century oils
P.W.L.A
32
recommendations are given as a general guide to types of oil that
Alexander Duckham
Zircon 4
32
are suitable for use with Parker Pneumatic equipment.
Gulf oil (GB) Limited
Harmony 43 AW
32
The list opposite does not preclude the use of oils manufactured by
Shell (UK) oil
Tellus 37
37
other companies but oils must be paraffinic based.
Burmah Castrol
Hyspin AWS 32
32
As a general guide, lubricator drip rates should be 1 drip/minute for
Edgar Vaughan
Y Hydrodrive HP 100
32
every 5 litre/second (10 cubic feet per minute) passed through the
Esso Petroleum
Nuto H32
32
equipment.
B.P.
HLP 32
32
Mobile Oil Company
DTE Oil - Light
32
Motul
VPI-A
32
Silkolene
Derwent 32
32
Accessories
Sintered bronze series
Male straight connectors - Parallel thread
Port
Order code
Pack Qty
Tube Thread
Order code Box Qty
Ø1
B
G1/8
9090050700
1
4
1/8
F4PMB4-1/8
20
G1/4
P6M-BAA2
1
6
1/8
F4PMB6-1/8
30
6
1/4
F4PMB6-1/4
30
8
1/8
F4PB8-1/8
40
8
1/4
F4PB8-1/4
30
8
3/8
F4PB8-3/8
20
10
1/4
F4PB10-1/4
20
Indicates stocked product.
Parker Hannifin Corporation
Pneumatic Division - Europe
20
