Mini Design Inverter HV390

About HNC Electric

HNC Electric is an automation & drive focused global

company, providing global customers with control,

display, drive and system solutions & other related

products and services, under the support of its

excellent electrical and electronic technology as well

as strong control technical force.

HNC Electric listen and understand our clients

requirement, by improving and upgrading our product

functions and performance continuously , we provide

and develop perfect products and solutions according

to different requirement of the industry. Ourproducts

have been used and applied successfully in packing,

printing, textiles, plastic injection, elevator, machine

tool, robot,wood cutting, stone carving, ceramic, glass,

paper making industry, crane, fan & pump, new energy

resources etc.

HNC Electric, your professional electrical partner !

Mini Design Inverter HV390

Product description

At a glance

HV390 series inverter is a new generation of high

Advanced motor control technology V/f control with different input

performance vector control inverter developed by

voltage(220V single phase/220V 3 phase/380V 3 phase)

our company.

High starting torque characteristics

The product has advanced control mode, and

realizes high torque, high precision, high reliability

Rich and flexible I/O accesses and field bus options

and wide speed drive.

Customer benefits

The inverter built in simple PLC, PID controller,

programmable input and output terminals, RS485

Mini design housing suitable for micro automation such as packaging

interface, analog input / output control function

machine, labeling machine, conveyor belt etc.

and other rich control functions.

Installation back mounting system can insert the inverter directly into

It provides a high degree of integration solution for

the rack

equipment support, engineering transformation,

automation control and special industry

Programmable DI/DO/AI/AO as well as RS485 Modbus RTU make

application.

easy communication with other devices

All product type integrate force-cooling fan and braking unit

Integrated PID function support most of water supply applications

Integrated multi-speed function support most of texitile applications

Mini Design Inverter HV390

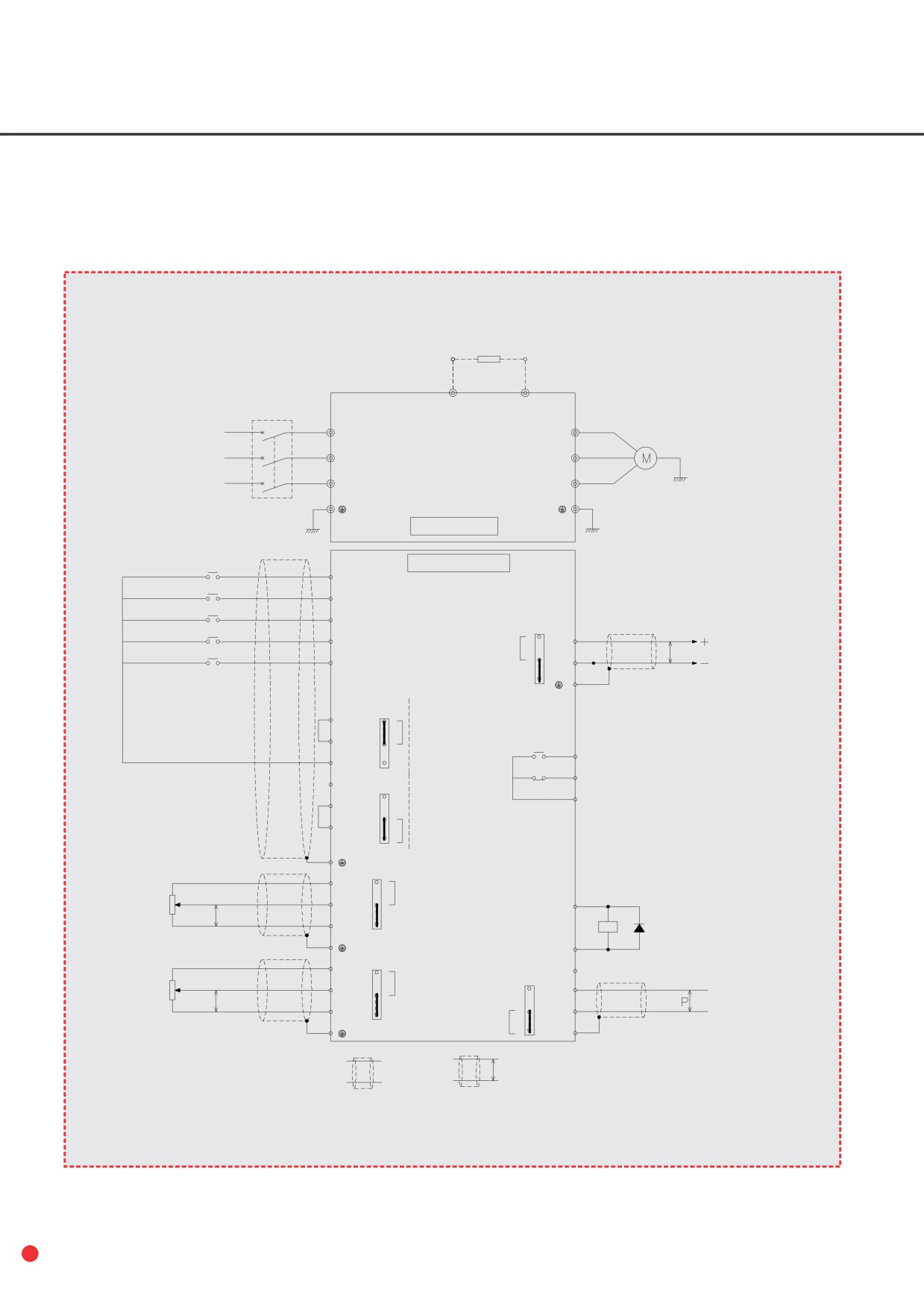

Connection Diagram

Braking Resistor

optional

Circuit breaker

Motor

Three phase AC

power supply

motor grounding

Power grounding

Main circult

Multi function input 1

Control circult

DI1

Multi function input 2

DI2

Multi function input 3

DI3

Multi function input 4

DI4

2-3short-circuit

AO1

AO1C 0-2mA DC

Multi function input 5

Analog output 1

DI5/HD1

GND

1-2 short-circuit(default)

AO1V 0-10V DC

+24V

Drain

RC1

drive(default)

Relay output1

RA1

250V AC/1A

+24V

RB1

30V DC/1A

source drive

2-3short-circuit

+10V

AI1C 0-20mA DC

AI1

10kΩ

+24V

1-2 short-circuit(default)

GND

AI1V 0-10V DC

2-3short-circuit

Relay

+10V

485

AI1C 0-20mA DC

terminal

AI2

resistor

485+

Modbus

10kΩ

selecting

communication

1-2

switch

485-

GND

short-circuit(default)

RS485

AI1C 0-20mA DC

GND

Shielding

Twisted shielding

cable

Mini Design Inverter HV390

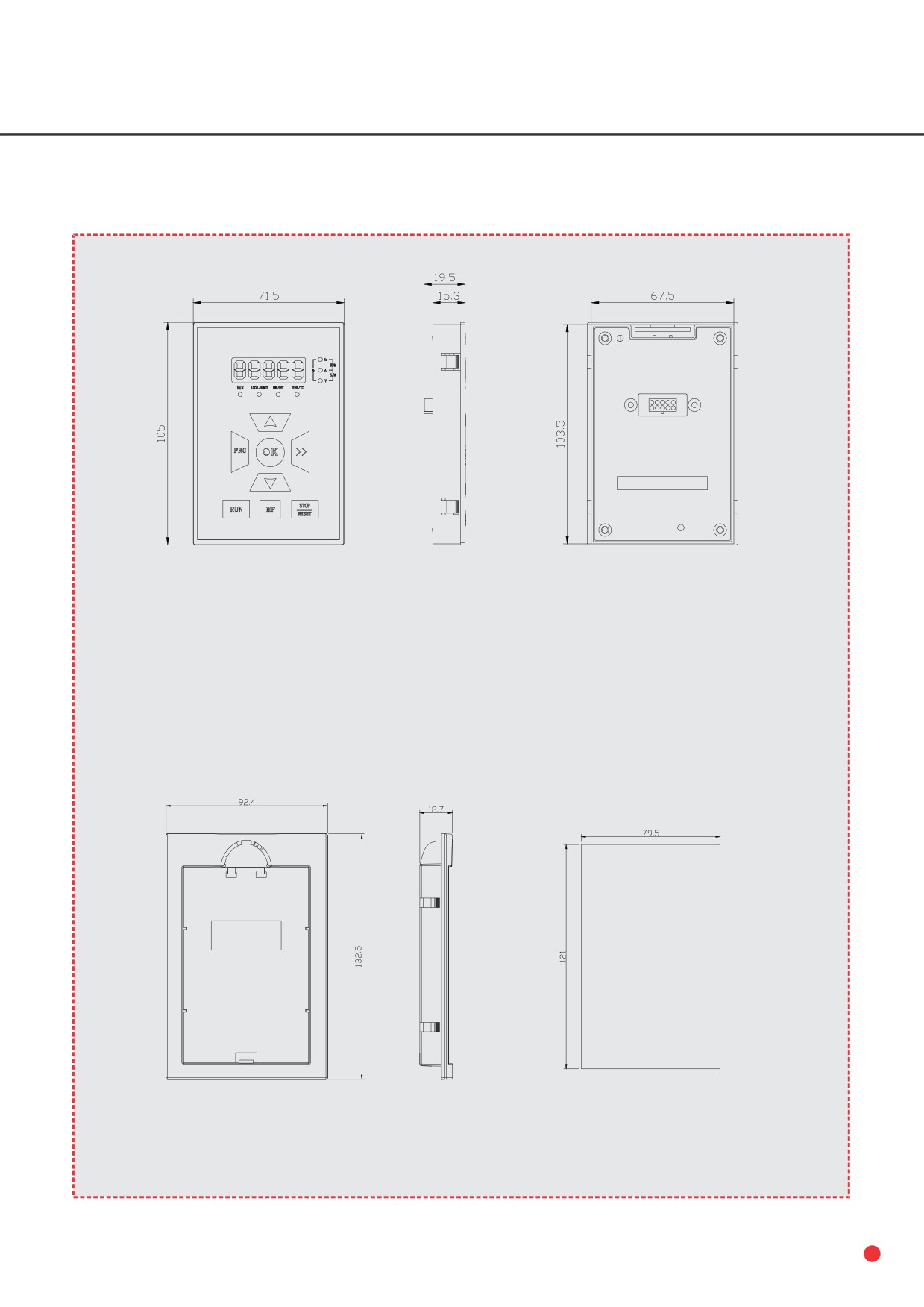

Dimensional Drawing

Keyboard (HV390-DP01)

Rear view of Keyboard

The shape and mounting dimensions of the operating panel（unit：mm）

HV390−DP03 is the operation panel to install plate cabinet use, its shape and size are as follows:

Mini Design Inverter HV390

Specificaiton

Item

Specifications

Voltage frequency

single-phase 220V、50/60Hz, three-phase 380V 50/60Hz

Power

Allowable fluctuation

voltage：±15%，frequency：±5%

Frequency range

0-600Hz

Output frequency precision

The maximum frequency value ±0.1%

Operate keyboard top and bottom keys：0.01Hz Potentiometer analog

Output frequency resolution

input：0.2Hz

The keyboard is given; the external terminal is given; the serial port is given

Run command given mode

by the host computer

carrier frequency

2.0-12.0KHz

Torque boost

0~20.0% adjustable, optional v/f curve optional

Overload capacity

150% rated output current 1 minute，180% rated output current 2 second

Acceleration and

0.1~3600 second

deceleration time

Using the power supply voltage compensation function, the motor rated

Rated output voltage

voltage is 100%, which can be set in the range of 50-100% (the output

Control

can not exceed the input voltage)

performance

AVR adjustment function

When the network voltage fluctuates, the output voltage fluctuation is

very small and almost constant V/F

PID control, acceleration and deceleration time is adjustable, variable

deceleration mode, carrier frequency, torque, current limiting, power off,

Standard feature

restart, jump frequency control, lower frequency running, multi speed, swing

frequency, RS485, analog output, fault slip compensation, automatic reset

Braking

Energy consumption braking, DC braking

Keyboard digital setting, external terminal AI1 (0-10V/0-20mA switchable),

Frequency setting input

AI2 (0-10V/0-20mA switchable), RS485 and signal combination and terminal

selection

External terminal AI1 (0-10V/0-20mA switchable), AI2 (0-10V/0-20mA

Signal feedback input

switchable), RS485

Start, stop, reverse, inching, multi segment speed, free parking, reset,

Input instruction signal

acceleration and deceleration time selection, frequency setting, channel

selection, external fault alarm, etc.

External output signal

Relay output, collector output, 0-10V output, 4-20mA output

Overvoltage, undervoltage, overcurrent, current limit, overload, overheating,

Protective function

electronic thermal overload relay, overvoltage stall, data protection, etc.

Mini Design Inverter HV390

Item

Specifications

15 kinds of parameters, such as frequency setting, output frequency, output

Four digit display (LED)

voltage, output current, motor speed, output torque, digital value terminals,

Display

program menu parameters and 33kinds of Fault codes

indicator lamp (LED)

Run/stop status, etc.

Environment

Inside, low than 1000m, free from dust, corrosive gas and direct sunlight

Ambient temperature

-10℃~+40℃（bare machine -10℃~+50℃），20%~90%RH（no condensing）

Operating

Vibration

less than 0.5g

environment

Storage temperature

-25℃~+65℃

Installation

Wall mounted or surface mounted inside a cabinet

Protection class

Ip20

Cooling

forced air cooling

Model Definition

Hv390 - 1R5 G3

HV 390 Series Inverter

Code

Inverter Type

1-2

Single phase 220V

3 phase 220V

3 phase 380V

Code

Motor

3 phase 460V

R75

0.75kW

1R5

1.5kW

Code

Inverter Type

2R2

2.2kW

General Purpose

5R5

5.5kW

Fan / Pump

Mini Design Inverter HV390

Outline and mounting dimension (mm)

Voltage class

Inverter model

Weight (kg)）

Mounting hole d

HV390-R40G1-2

single phase 220V

HV390-R75G1-2

188

126

178

1.5

HV390-1R5G1-2

HV390-R40G2

three phase 220V

HV390-R75G2

188

126

1.5

178

HV390-1R5G2

HV390-R40G3

HV390-R75G3

188

126

178

1.5

HV390-1R5G3

three phase 380V

HV390-2R2G3

HV390-004G3

225

137

215

1.5

HV390-5R5G3

HV390-R40G4

HV390-R75G4

188

126

178

1.5

HV390-1R5G4

three phase 460

HV390-2R2G4

HV390-004G4

225

137

215

HV390-5R5G4

//////////////////////
