Remote Analog Module User Manual & Application Case. HNC PLC User Manual

Contents

Analog Module User Manual

1. Product Model List and Dimension

2. Indicator Description

3. Power Supply Specification

4. Environmental Specifications for Product

5. Analog Input (AI) Specification

6. Analog Output (AQ) Specification

7. Analog Input (AI) Wiring Diagram

8. Analog Output (AQ) Wiring Diagram

9. MPU Terminal Wiring Diagram

10. Module Parameter Table (CR code is corresponding to the Modbus register address)

4-channel analog module parameter table

8-channel analog module parameter table

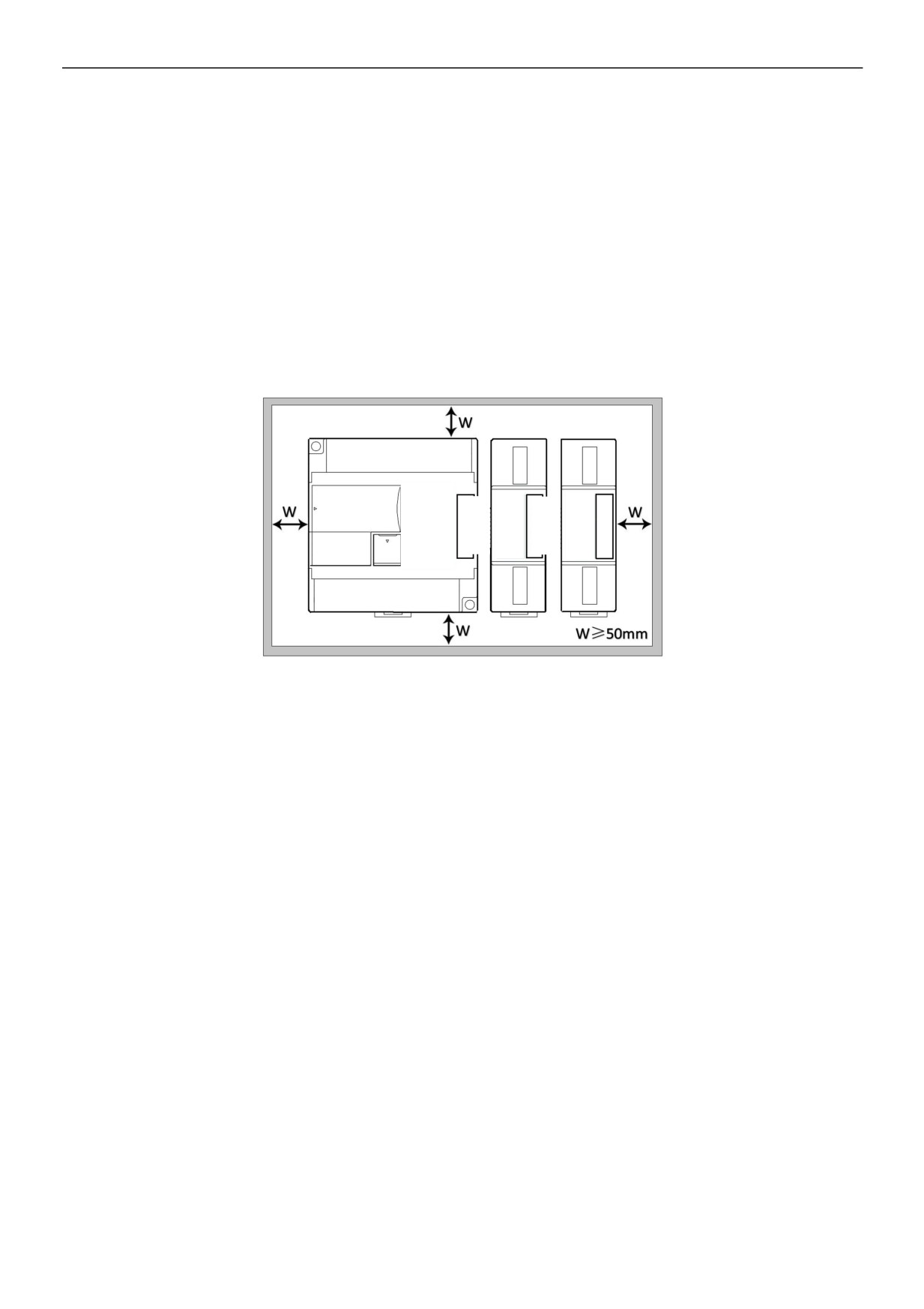

11. Mounting and installation

Analog Module Application Case

1 Module used as remote IO

1.1. Module power supply

1.2. Communication port introduction

1.3. Communication protocols and default parameters

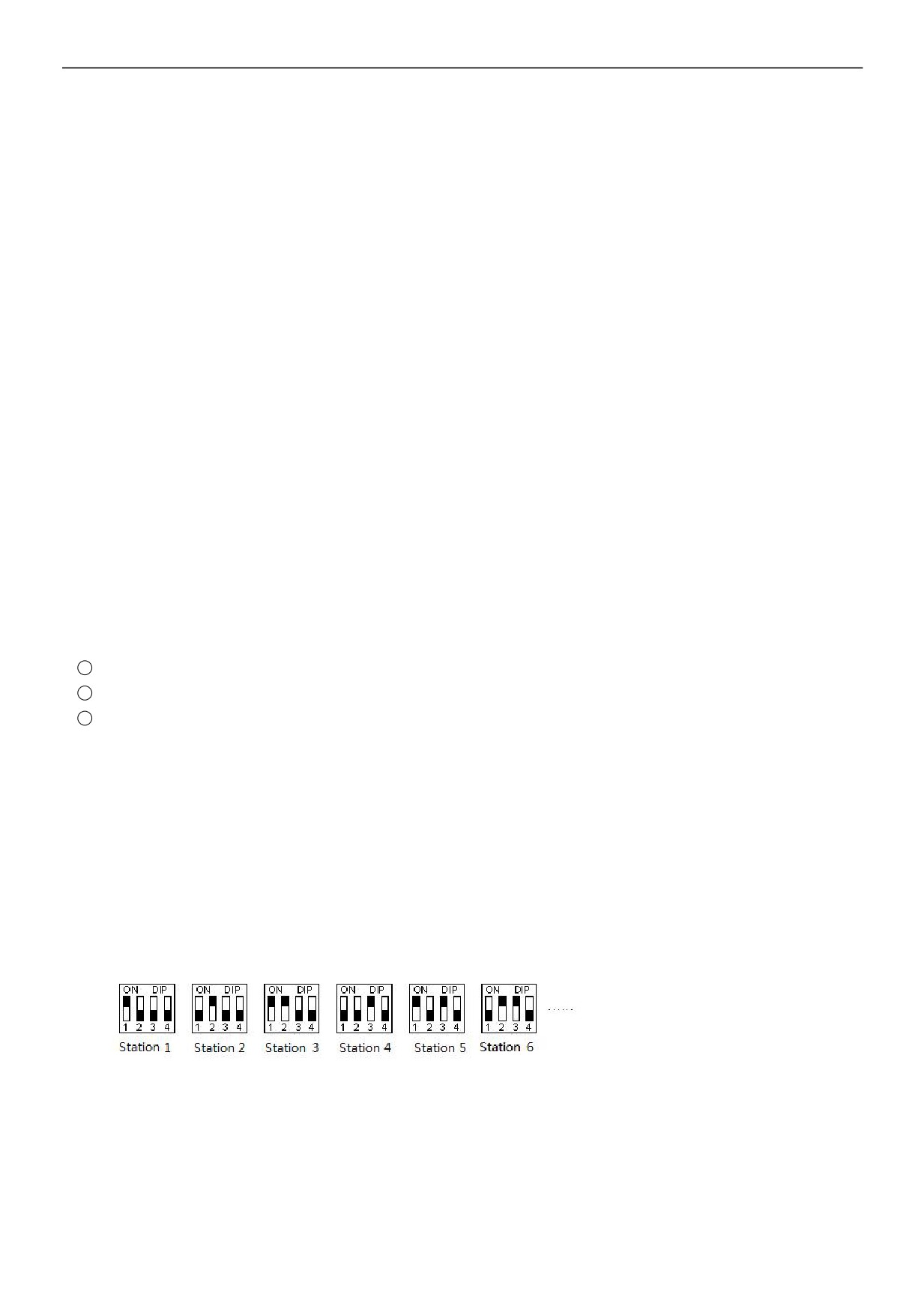

1.4. Module parameter configuration method introduction, when the module is used as remote IO

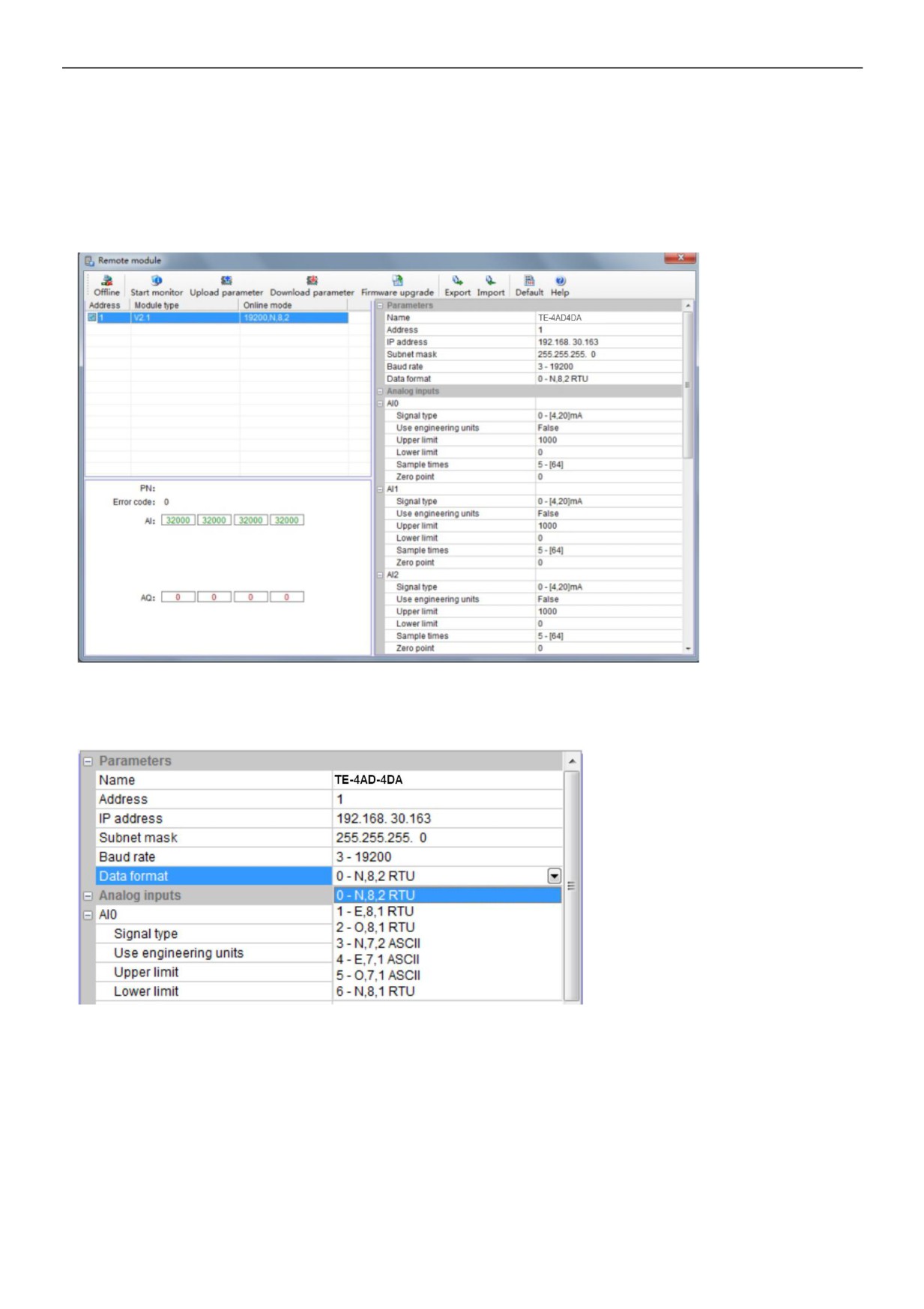

1.5. Parameter configuration example: The module is configured by programming software remote module tool

Hardware connection

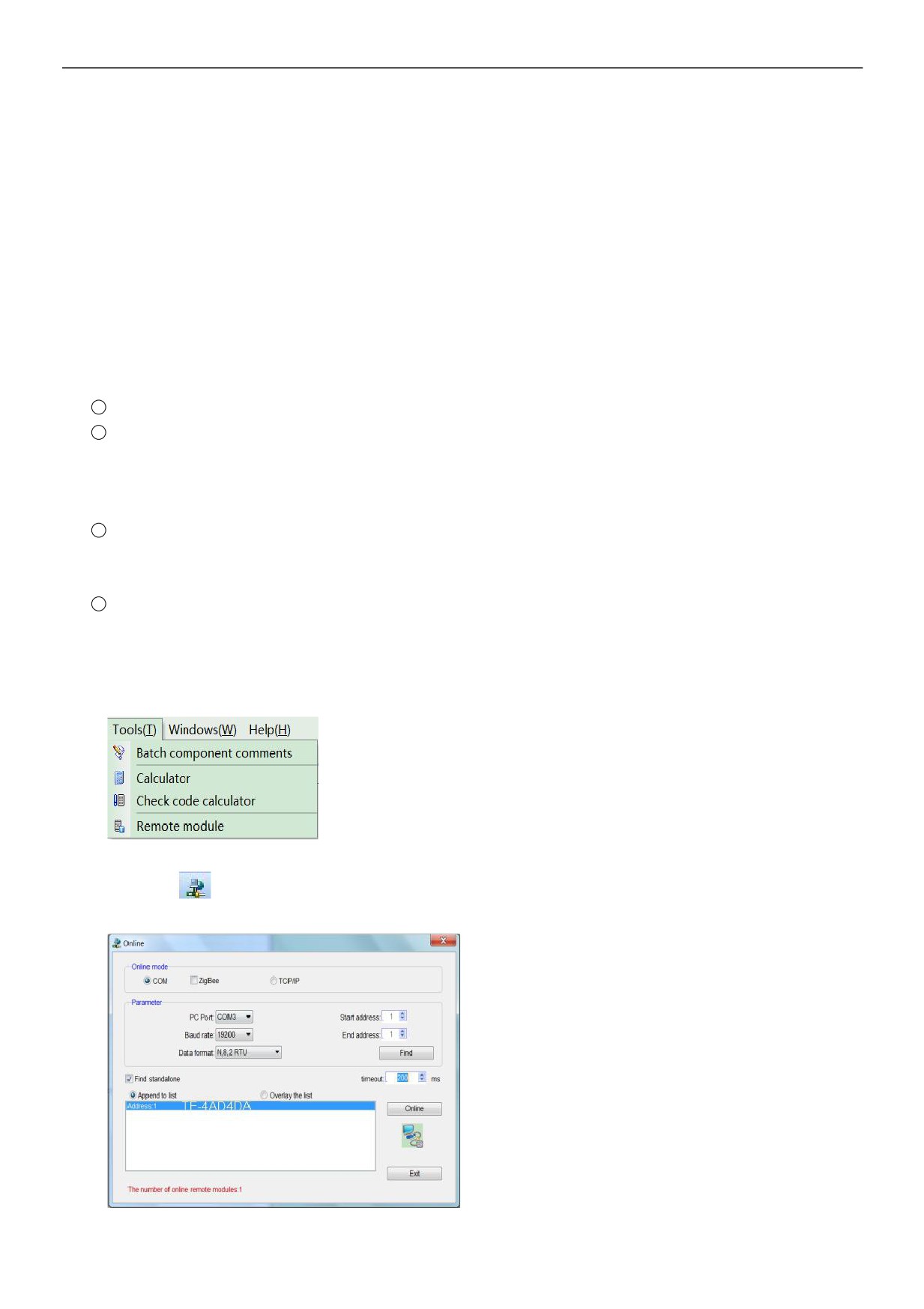

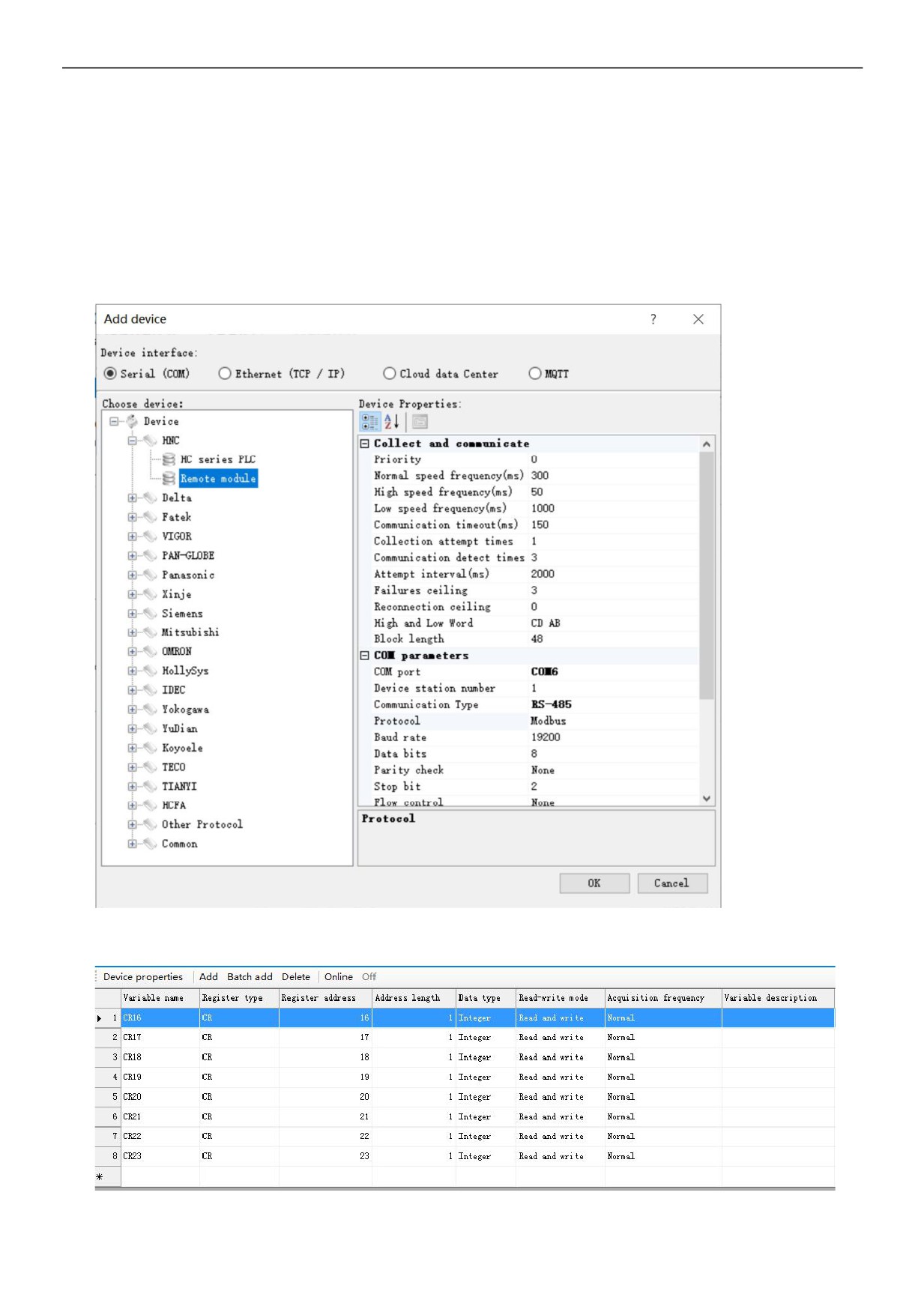

Software operation steps

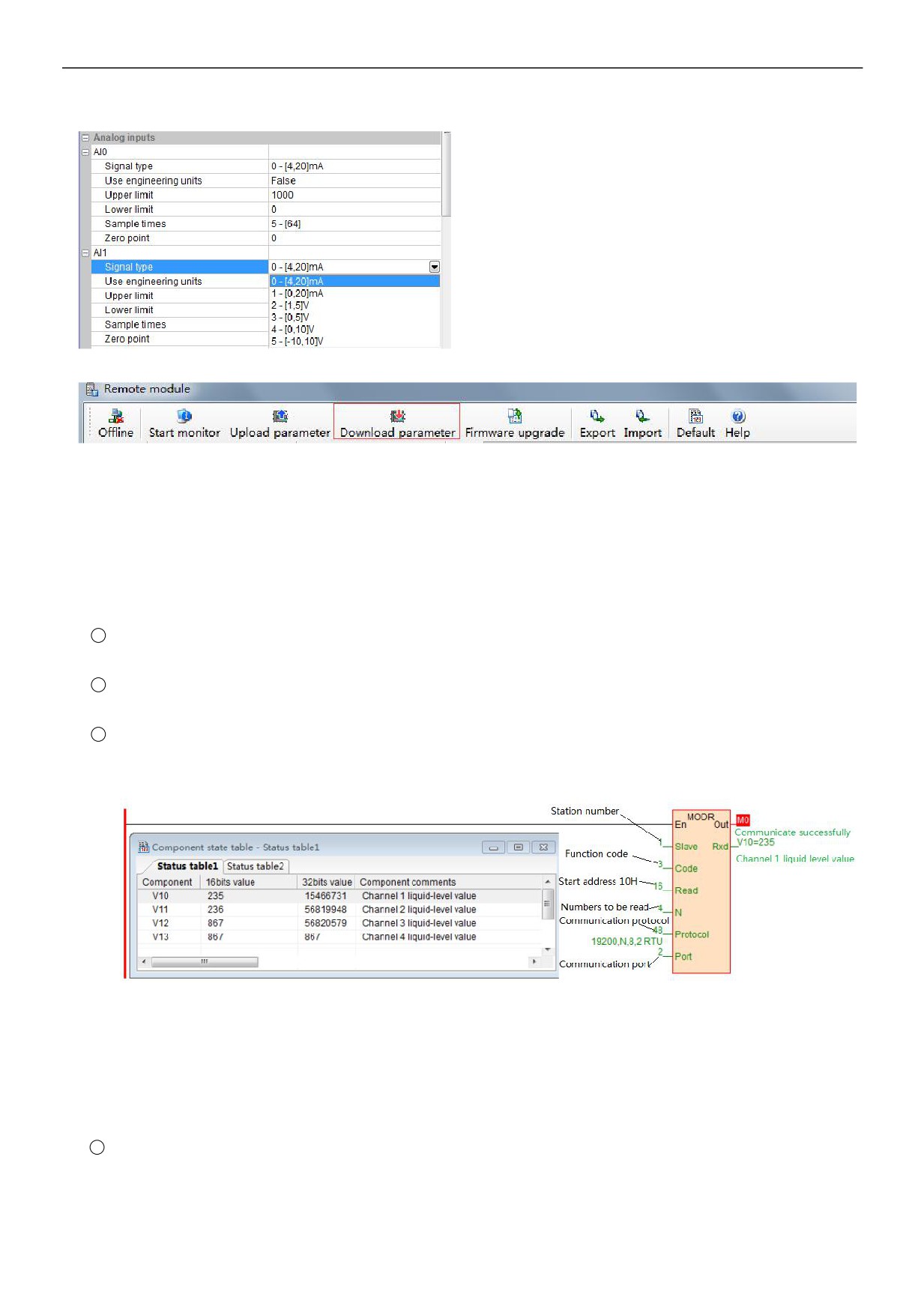

1.6. Remote IO application example(RS485 mode): The PLC read the 4-channel temperature values of TE-4AD

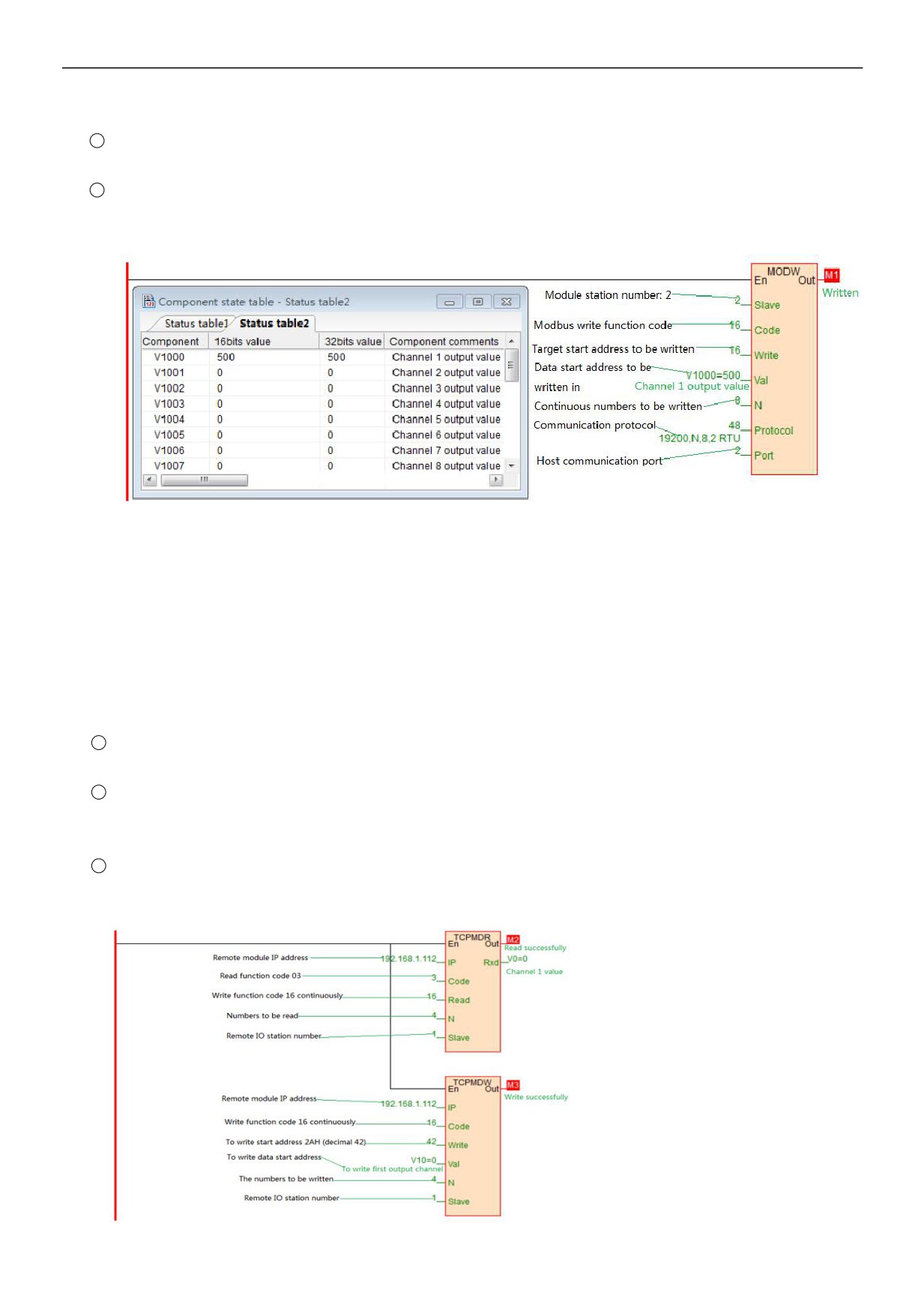

1.7. Remote IO application example (RS485 mode): The PLC writes the 8-channel output values of TE-8DA module

1.8. Remote IO application example(Ethernet mode): PLC read and write each channel AI/AO values of TE-4AD4DAe

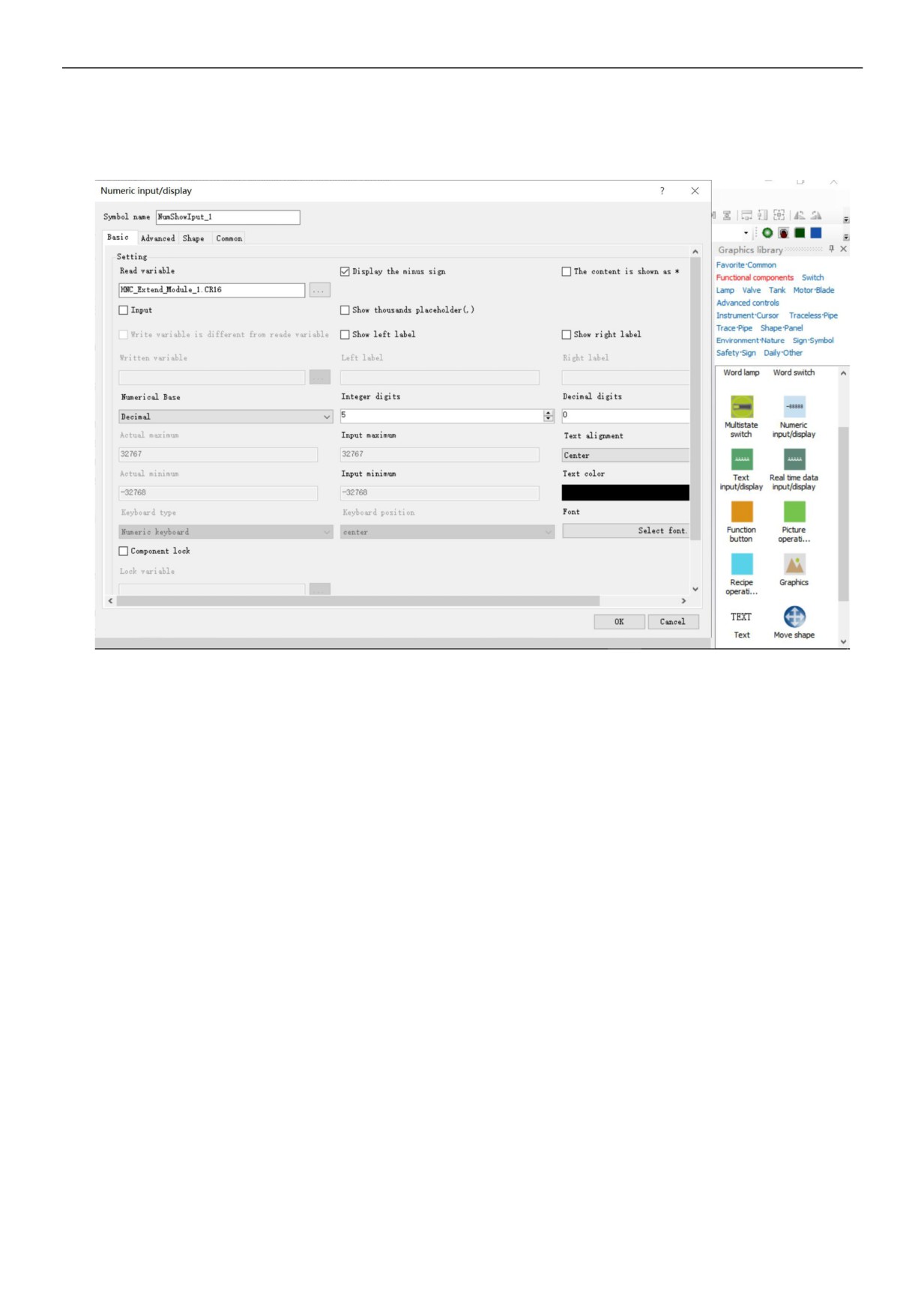

1.9. HTCloud Designer communicates directly with TE-8AD module example

2 / 15

Analog Module User Manual

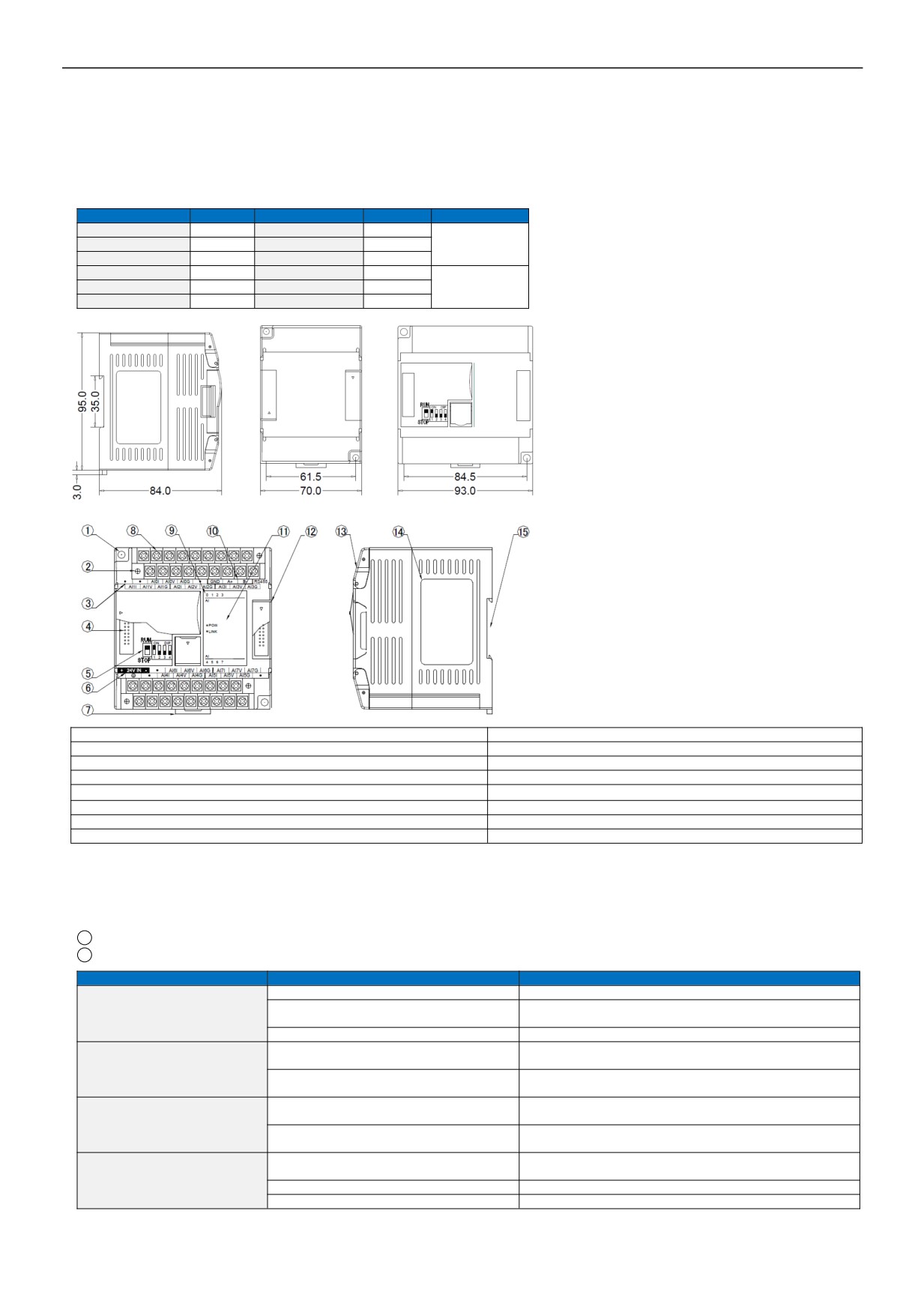

Product Model List and Dimension

Ethernet Model

24VDC

Model

24VDC

Dimension

TE-4AD

0.07A

TE-4DA

0.15A

70×95×82mm

TE-2AD2DA

0.1A

TE-8AD-e

0.11A

TE-8AD

0.08A

TE-8DA-e

0.25A

TE-8DA

0.22A

93×95×82mm

TE-4AD4DAe

0.18A

TE-4AD4DA

0.15A

Fixed hole

Removable terminal

Removable terminal screw

Analog input channel indicator

Terminal definition

10.

RS485 communication port

Module expansion port

11.

PWR power indicator, LINK module communication indicator

DIP switch（4-channel module without DIP switch）

12.

Module expansion port

External power supply terminal

13.

Transparent cover of module terminal

Guide rail buckle

14.

Module nameplate

15.

35mm DIN guide rail

Indicator Description

PWR: power indicator. green, constant light -Power normal; Not light - Power abnormal.

LINK: multi-status indicator . three colors (Red. Yellow. Green), as follow:

Reference processing mode

Module bus state

LINK indicator state

No communication of module

No light

MPU has identified the module but no

Normal

Constant light in green

communication

Serial or parallel port in communication

Green jitter: indicator on 30ms and off 30ms

Without serial or parallel port in

Parallel power supply not

Yellow flicker: indicator on 0.5s and off 0.5s

communication

enough, must connect to external

Yellow is darkened and jitter alternately: indicator off 0.5s and

power supply

With serial or parallel port in communication

jitter 0.5s

Without serial or parallel port in

Red flicker: indicator on 0.5s and off 0.5s

Firmware upgrade failed,

communication

reupgrade the module firmware

Red is darkened and jitter alternately: indicator off 0.5s and

With serial or parallel port in communication

jitter 0.5s

Without serial or parallel port in

Constant light in red

Hardware failure and

communication

maintenance

With serial or parallel port in communication

Red jitter quickly: indicator on 30ms and off 30ms

3 / 15

RJ45 Ethernet indicator: there are two Ethernet LEDs, green and yellow, as shown on the picture:

Color

Status description

Green light is long bright

Physical connection of TCP module and external device is normal;

Green light goes out

TCP module fails to connect with external device or the module itself is abnormal

TCP module is connected to an external device normally, and blinking frequency

Yellow light blinks

indicates the data transmission speed. When speed is fast, human eye is not easy

to distinguish, at this time, yellow light is long bright.

Yellow light goes out

No data transmission communication of TCP module and external device

Power Supply Specification

Item

DC Power Supply

Power supply voltage

24VDC

-15%~+20%

Power supply frequency

——

Instantaneous surge

MAX 20A 1.5ms @24VDC

Power loss time

10ms or less

Fuse

0.3A, 250V

24V Output voltage (for input and expansion)

None

Isolation Type

No Electrical isolation

Power Protection

DC input power polarity reverse, over voltage protection

Environmental Specifications for Product

Item

Environment Specification

Temperature/Humidity

Operating temperature:0~+55℃ Storage temperature:-25~+70℃ Humidity: 5~95%RH, No condensation

Vibration Resistance

10~57 HZ, amplitude=0.075mm, 57HZ~150HZ acceleration=1G, 10 times each for X-axis, Y-axis and Z-axis

Impact Resistance

15G, duration=11ms, 6 times each for X-axis, Y-axis and Z-axis

Interference Immunity

DC EFT:±2500V Surge:±1000V

Over Voltage Resistance

1500VAC/1min between AC terminal and PE terminal, 500VAC/1min between DC terminal and PE terminal

Insulation Impedance

Between AC terminal and PE terminal @500VDC,>=5MΩ ,all input/output points to PE terminal @500VDC

Operating environment

Avoid dust, moisture, corrosion, electric shock and external shocks

Analog Input (AI) Specification

Item

Voltage input

Current input

Input range

-10V~+10V

0V~+10V

0V~+5V

1V~+5V

0~20mA

4~20mA

Resolution

5mV

2.5mV

1.25mV

5μA

Input impedance

6MΩ

250Ω

Maximum input range

±13V

±30mA

Input indication

LED light ON means normal ,OFF means external disconnect

Response time

5ms/4 Channel

Digital input range

12 bits,Code range:0~32000(H series module 16 bits A/D convert)

Precision

0.2% F.S

Power supply

MPU use internal power supply, extend module use external power supply 24VDC ±10%

5VA

Isolation mode

Optoelectronic isolation,Non-isolation between Channels, between analog and digital is optoelectronic isolation

Power consumption

24VDC ±20%,100mA(maximum)

Analog Output (AQ) Specification

Item

Voltage output

Current output

Output range

-10V~+10V

0V~ +10V

0V~+5V

1V~+5V

0~20mA

4~20mA

Resolution

5mV

2.5mV

1.25mV

5uA

Output load impedance

1KΩ@10V

≥500Ω@10V

≤500Ω

Output indication

LED ON means normal

Drive capability

10mA

Response time

3ms

Digital output range

12 bits,Code range:0~32000(H series module 16 bits D/A convert)

Precision

0.2% F.S

Power supply

MPU use internal power supply, expansion modules use external power supply 24VDC ±10%

5VA

Isolation mode

Optoelectronic isolation,Non-isolation between Channels ,between analog and digital is optoelectronic isolation

Power consumption

24VDC ±20%,100mA(maximum)

4 / 15

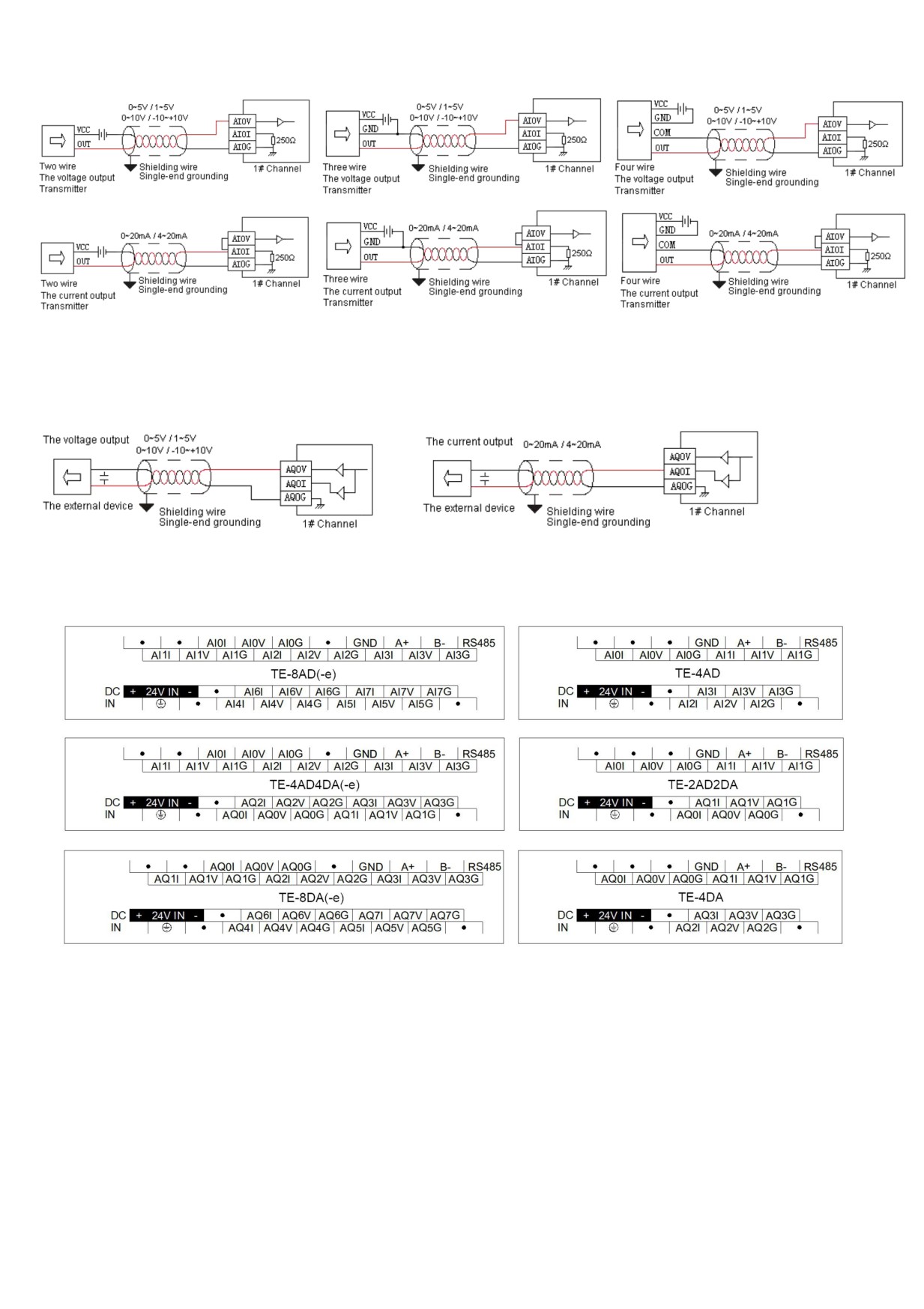

Analog Input (AI) Wiring Diagram

Analog Output (AQ) Wiring Diagram

Terminal Wiring Diagram

5 / 15

10. Module Parameter Table (CR code is corresponding to the Modbus register address)

4-channel analog module parameter table

Note: CR code is corresponding to the Modbus register address, the ray parts are read-only ,the white parts are readable and

writable.

Function description

CR code

TE-4AD

TE-4DA

TE-2AD2DA

00H

Low byte for module code, and high byte for module version number.

01H

Communication address

Communication protocol: The low 4-bit of the low byte: 0 - N,8,2 For RTU, 1 - E,8,1 For RTU, 2 - O,8,1 For RTU, 3 - N,7,2 For ASCII, 4 -

02H

E,7,1 For ASCII, 5 - O,7,1 For ASCII, 6 - N,8, 1 For RTU

The high 4-bit of the low byte: 0 - 2400, 1 - 4800, 2 - 9600, 3 - 19200, 4 - 38400, 5 - 57600, 6 - 115200

03H~06H

Module name

07H~08H

Default IP address: 192.168.1.111

09~0AH

Reserve

0BH

High byte subnet mask (b3~b0,1 indicates 255, 0 indicates 0, for example subnet mask 255.255.255.0, b3~b0=1110), low byte reserved

0CH-0EH

Reserve

Error code: 0-Normal, 1-Illegal firmware identity, 2-Incomplete firmware, 3-System data access exception, 4-No external 24V power

0FH

supply

10H

channel 1 input value

channel 1 output value

input channel 1 input value

11H

channel 2 input value

channel 2 output value

input channel 2 input value

12H

channel 3 input value

channel 3 output value

input channel 1 signal type, note 2

13H

channel 4 input value

channel 4 output value

input channel 2 signal type, note 2

14H

channel 1 signal type, note 2

Use the engineering value mark, note 6

15H

channel 2 signal type, note 2

input channel 1 engineering lower limiting value

16H

channel 3 signal type, note 2

input channel 2 engineering lower limiting value

17H

channel 4 signal type, note 2

input channel 1 engineering upper limiting value

18H

Use the engineering value mark, note 6

input channel 2 engineering upper limiting value

channel 1 engineering lower limiting

19H

input channel 1

sampling frequency, note 1

value

channel 2 engineering lower limiting

1AH

input channel 2

sampling frequency, note 1

value

channel 3 engineering lower limiting

1BH

input channel 1 zero point correction value

value

channel 4 engineering lower limiting

1CH

input channel 2 zero point correction value

value

channel 1 engineering upper limiting

1DH

Channel 1~2 input disconnection alarm, note 5

value

channel 2 engineering upper limiting

1EH

output channel 1 output value

value

channel 3 engineering upper limiting

1FH

output channel 2 output value

value

channel 4 engineering upper limiting

20H

output channel 1 signal type, note 2

value

21H

channel 1

sampling frequency, note 1

power-off output mark, note 8

output channel 2 signal type, note 2

22H

channel 2

sampling frequency, note 1

channel 1 power-off output value

Use the engineering value mark, note 6

23H

channel 3

sampling frequency, note 1

channel 2 power-off output value

output channel 1 engineering lower limiting value

24H

Channel 4 sampling frequency, note 1

channel 3 power-off output value

output channel 2 engineering lower limiting value

25H

channel 1 zero point correction value

channel 4 power-off output value

output channel 1 engineering upper limiting value

26H

channel 2 zero point correction value

Channel indicator status, note 7

output channel 2 engineering upper limiting value

27H

channel 3 zero point correction value

Reserve

power-off output mark, note 8

28H

channel 4 zero point correction value

output channel 1 power-off output value

Channel 1~4 input disconnection

29H

output channel 2 power-off output value

alarm, note 5

2AH

Reserve

output channel indicator, note 7

2BH~2FH

Reserve

8-channel analog module parameter table

Note: CR code is corresponding to the Modbus register address, the gray parts are read-only, the white parts are R/W.

Function description

CR code

TE-8AD(e)

TE-8DA(e)

TE-4AD4DA(e)

00H

Low byte for module code, and high byte for module version number.

01H

Communication address

Communication protocol: The low 4-bit of the low byte: 0 - N,8,2 For RTU, 1 - E,8,1 For RTU, 2 - O,8,1 For RTU, 3 - N,7,2 For ASCII, 4 -

02H

E,7,1 For ASCII, 5 - O,7,1 For ASCII, 6 - N,8, 1 For RTU

The high 4-bit of the low bytes: 0 - 2400, 1 - 4800, 2 - 9600, 3 - 19200, 4 - 38400, 5 - 57600, 6 - 115200

03H~06H

Module name

07H~08H

Default IP address: 192.168.1.111

09~0AH

Reserve

0BH

High byte subnet mask(b3~b0,1 indicates 255,0 indicates 0 , for example, subnet mask 255.255.255.0, b3~b0=1110), low byte Reserved

0CH~0EH

Reserve

Error code: 0-Normal, 1-Illegally firmware identity, 2-Incomplete firmware, 3-System data access exception, 4-No external 24V power

0FH

supply

10H

channel 1 input value

channel 1 output value

input channel 1 input value

6 / 15

Function description

CR code

TE-8AD(e)

TE-8DA(e)

TE-4AD4DA(e)

11H

channel 2 input value

channel 2 output value

input channel 2 input value

12H

channel 3 input value

channel 3 output value

input channel 3 input value

13H

channel 4 input value

channel 4 output value

input channel 4 input value

14H

channel 5 input value

channel 5 output value

input channel 1 signal type, note 2

15H

channel 6 input value

channel 6 output value

input channel 2 signal type, note 2

16H

channel 7 input value

channel 7 output value

input channel 3 signal type, note 2

17H

channel 8 input value

channel 8 output value

input channel 4 signal type, note 2

18H

channel 1 signal type, note 2

Use the engineering value mark, note 6

19H

channel 2 signal type, note 2

input channel 1 engineering lower limiting value

1AH

channel 3 signal type, note 2

input channel 2 engineering lower limiting value

1BH

channel 4 signal type, note 2

input channel 3 engineering lower limiting value

1CH

channel 5 signal type, note 2

input channel 4 engineering lower limiting value

1DH

channel 6 signal type, note 2

input channel 1 engineering upper limiting value

1EH

channel 7 signal type, note 2

input channel 2 engineering upper limiting value

1FH

channel 8 signal type, note 2

input channel 3 engineering upper limiting value

20H

Use the engineering value mark, note 6

Use the engineering value mark, note

input channel 4 engineering upper limiting value

channel 1 engineering lower limiting

21H

input channel 1

sampling frequency, note 1

value

channel 2 engineering lower limiting

22H

input channel 2

sampling frequency, note 1

value

channel 3 engineering lower limiting

23H

input channel 3

sampling frequency, note 1

value

channel 4 engineering lower limiting

24H

input channel 4

sampling frequency, note 1

value

channel 5 engineering lower limiting

25H

input channel 1 zero point correction value

value

channel 6 engineering lower limiting

26H

input channel 2 zero point correction value

value

channel 7 engineering lower limiting

27H

input channel 3 zero point correction value

value

channel 8 engineering lower limiting

28H

input channel 4 zero point correction value

value

channel 1 engineering upper limiting

29H

Channel 1~4 input disconnection alarm, note 5

value

channel 2 engineering upper limiting

2AH

output channel 1 output value

value

channel 3 engineering upper limiting

2BH

output channel 2 output value

value

channel 4 engineering upper limiting

2CH

output channel 3 output value

value

channel 5 engineering upper limiting

2DH

output channel 4 output value

value

channel 6 engineering upper limiting

2EH

output channel 1 signal type, note 2

value

channel 7 engineering upper limiting

2FH

output channel 2 signal type, note 2

value

channel 8 engineering upper limiting

30H

output channel 3 signal type, note 2

value

31H

channel 1

sampling frequency, note

power-off output mark, note 8

output channel 4 signal type, note 2

32H

channel 2

sampling frequency, note

channel 1 power-off output value

Use the engineering value mark, note 6

33H

channel 3

sampling frequency, note

channel 2 power-off output value

output channel 1 engineering lower limiting value

34H

channel 4

sampling frequency, note

channel 3 power-off output value

output channel 2 engineering lower limiting value

35H

channel 5

sampling frequency, note

channel 4 power-off output value

output channel 3 engineering lower limiting value

36H

channel 6

sampling frequency, note

channel 5 power-off output value

output channel 4 engineering lower limiting value

37H

channel 7

sampling frequency, note

channel 6 power-off output value

output channel 1 engineering upper limiting value

38H

channel 8

sampling frequency, note

channel 7 power-off output value

output channel 2 engineering upper limiting value

39H

channel 1 zero point correction value

channel 8 power-off output value

output channel 3 engineering upper limiting value

3AH

channel 2 zero point correction value

Channel indicator status, note 7

output channel 4 engineering upper limiting value

3BH

channel 3 zero point correction value

Reserve

power-off output mark, note 8

3CH

channel 4 zero point correction value

output channel 1 power-off output value

3DH

channel 5 zero point correction value

output channel 2 power-off output value

3EH

channel 6 zero point correction value

output channel 3 power-off output value

3FH

channel 7 zero point correction value

output channel 4 power-off output value

40H

channel 8 zero point correction value

output channel indicator, note 7

Channel 1~8 input disconnection alarm,

41H

Reserve

note 5

42H~4FH

Reserve

Note:

1. Sampling frequency:0 - 2 times, 1 - 4 times,

2 - 8 times, 3 - 16 times, 4 - 32 times, 5 - 64 times, 6 - 128 times, 7 - 256 times

2. Signal type: 0 - [4,20]mA, 1 - [0,20]mA, 2 - [1,5]V, 3 - [0,5]V, 4 - [0,10]V, 5 - [-10,10]V

3. Disconnection alarm:Each bit indicates 1 channel, 0-normal, 1-disconnection

4. Use the engineering value mark:Each bit indicates 1 channel, 0-No, 1-Yes

5. Channel indicator status:Each bit indicates 1 channel, 0-off, 1-on

6. Power-off output mark:Each bit indicates 1 channel, 0-No, 1-Yes

7 / 15

11. Mounting and installation

The PLC should be secured to an enclosed cabinet while mounting. For heat dissipation, make sure to provide a minimum

clearance of 50mm between the unit and all sides of the cabinet. (See the figure.)

Rail Mounting: Use standard 35 mm rail.

Screw Mounting: Each MPU or expansion module has two positioning screw holes, the diameter of the hole is 4.5mm. Please

refer to the dimension figure for the location of the positioning holes and their spacing.

To avoid over temperature and for a better heat dissipation, do not mount PLC to a position near to the bottom/top of the cabinet.

Do not mount PLC in vertical direction.

8 / 15

HNC PLC - Analog Module Application Case

Analog Module Application Case

Module used as remote IO

HNC TE series remote module is built-in one RS485 communication port (Some models with Ethernet communication port), which

supports serial bus( Use the RS485 communication port of module networking with communication port of host PLC, and host

PLC controls the remote module by communication instructions), when using the serial bus to expand (that is, remote IO module),

it doesn't have expansion limit of system points and can be distributed installation.

Distributed installation is very important for the system which needs to collect and monitor a large number of decentralized digital

or analog signals(temperature, humidity, differential pressure, blowing rate, flow, fan speed, valve opening, etc.), it can easily

achieve distributed installation control and unlimited points of expansion, greatly improving the control system configuration

flexibility and future control expansion capabilities, reducing the number of signal wiring, also reducing the interference problem of

too long analog signal line, saving the project investment costs.

The following will introduce the operation key points and techniques.

1.1. Module power supply

When the module is used as remote IO, there are two optional models of 24VDC.If the module is powered normally, the PWR

indicator will light.

1.2. Communication port introduction

All analog modules are built-in RS485 port.

As for 8-channel analog module, you can choose the Ethernet port.

RS485 communication port and Ethernet port can be used at the same time, for example, the RS485 of module

communicates with PLC, Ethernet port can also communicates with multiple host computers (up to 6).

1.3. Communication protocols and default parameters

RS485: Support standard Modbus RTU / ASCII protocol, it can communicate with the configuration, touch screen, text, PLC

and other third-party host computer, which must support standard Modbus protocol. Among them:

Address: 1 ~ 254 can be set; module address is divided into soft address and hard address, hard address has the highest

priority.

Soft address: The address set through programming software - remote tool, address range 1-254;

Hard address: The address set through the 4-bit DIP switch of module hardware, address range 1-15. Hardware address

setting example:

Baud rate: 2400, 4800, 9600, 19200, 38400, 57600, 115200 optional;

Data format : N, 8, 2 RTU, E, 8, 1 RTU, O, 8, 1 RTU, N, 8, 1 RTU, E, 7, 1 ASCII, O, 7, 1 ASCII, N, 7, 2 ASCII optional.

RS485 default parameter: 19200, N 8 2 RTU, station number is 1.

9/15

HNC PLC - Analog Module Application Case

Ethernet +: Support the standard Modbus TCP protocol, it can communicate with the configuration, touch screen, PLC and

other third-party host computers, which must support Modbus TCP protocol. Among them:

Ethernet default parameters:

IP: 192.168.1.111

Subnet mask: 255.255.255.0

Gateway: 192.168.1.1

1.4. Module parameter configuration method introduction, when the module is used as remote IO

There are three ways to configure remote IO parameters:

It can be configured via programming software - tools - remote modules (recommended);

It can be configured via MODW instructions through the serial communication.

1.5. Parameter configuration example: The module is configured by programming software remote module tool

Hardware connection

Through the RS485 communication port (the terminals of A +,B- on the module) connection: If the computer has a serial

port, you can use the converter of 232 to 485 connecting with the module; if it has one USB interface, you can use the

converter of USB to 485 connecting with the module.

Through the connection of Ethernet + communication interface: You can connect the module with the computer's

network port directly by the standard network cable, or take the computer and module connected to the switch.

Software operation steps

Click on the the menu bar tool of programming software- "remote module":

Click the button

in the pop-up window to open the "Online" window. The module default address is 1,19200, N 8 2 RTU,

the online success is as follows:

10 / 15

HNC PLC - Analog Module Application Case

If there is only one machine connected with RS485, then check "stand-alone search"; if there are more than one, then remove

the button of "stand-alone search", and set the start address and end address, so that all the machines connected with RS485

can be found and achieve parameter configuration.

Click to exit, enter the configuration interface, as shown below:

We can change the module name, address, IP, subnet mask, baud rate, data format and other communication parameters in

the communication parameter area.

In the external analog input area, we can set the signal type of each channel, choose whether to use engineering value or not,

the upper and lower limits of engineering value(it can be set if you check the use of engineering value), sampling times and zero

correction.

11 / 15

HNC PLC - Analog Module Application Case

After setting, select the "parameter download" to download the parameter into the module.

In addition, we can do the following operations through the remote module tool:

Online monitoring the channel value of module, error code.

Upload the module paramater, upgrade the module firmware, then make the module support new features.

It can export the module configuration to save or import and restore the default value.

1.6. Remote IO application example(RS485 mode): The PLC read the 4 communication temperature values of TE-4AD module

Hardware wiring: PLC connects to 485 port of module by shielded twisted pair, A + connects to A +, B- connects to B-, if

the PLC connects to multiple remote IO modules, it needs to use Hand in hand way to connect.

Modbus address: From the above 4-channel analog CR parameter table shows that, the channel 1 ~ 4 input values are

stored in 10H ~ 13H of TE-4AD module.

PLC program: Host PLC wants to read the 4-channel liquid level values of remote IO module TE-4AD, 0 ~ 1000 indicates

that 0 ~ 1.0m. In this example, TE-4AD communication is the default parameter: Station number address is 1, baud rate

is 19200, data format is N 8 2 RTU. The program of PLC reads the 4-channel liquid level values is as follows:

The host PLC reads the 4-channel liquid level values of TE-4AD by Modbus read instruction MODR, the start address is

10H (hexadecimal), that is, the decimal value is 16. When the communication is successful, M0 is ON, the liquid level

values which are read back will be stored in V0-V3, V0=235, indicating that the actual temperature of the first channel is

0.235m, the same as V3=867, indicating that the actual temperature of the fourth channel is 0.867m.

1.7. Remote IO application example (RS485 mode): The PLC writes the 8-channel output values of TE-8DA module

Hardware wiring: PLC connects to 485 port of module by shielded twisted pair, A + connects to A +, B- connects to B-, if

the PLC connects to multiple remote IO modules, it needs to use Hand in hand way to connect.

12 / 15

HNC PLC - Analog Module Application Case

Modbus address: From the above 8-channel analog CR parameter table shows that, the channel 1 ~ 8 output values of

TE-8DA module are stored in address 10H~17H .

PLC program: Host PLC wants to write the 8-channel analog output values of remote IO module TE-8DA. In this example,

TE-8DA communication parameters: Station number address is 2 (set by DIP switch), baud rate 19200, data format N 8

2 RTU. The program of writing 8-channel analog output values is as follows:

Host PLC writes the 8-channel analog output values of TE-8DA by Modbus write instruction MODW, the start address is

10H(hexadecimal), that is, the decimal value is 16. When writing successfully, M1 is ON, the 8-channel values which will

be written into are stored in V1000-1007.

In this example, for the channel 1 of analog output, check the use of engineering value, the lower limit value is 0, the

upper limit value is 3600, indicating that the valve opening is 0.0~360.0°, this case V1000=500, so the first output

channel value is 500, that is, the valve opening is 50.0°.

1.8. Remote IO application example(Ethernet mode): PLC read and write each channel input and output values of

TE-4AD4DAe

Hardware wiring: PLC and module Ethernet port connected with a shielded network cable, they can be connected

directly or through the switch.

Modbus address: From the above TE-4AD4DAe analog module CR parameter table shows that the input values of

module input channel 1 ~ 4 are stored in the address 10H ~ 13H. The output values of module output channel 1-4 are

stored in 2AH ~ 2DH.

PLC program: Read the 4-channel measurements of remote Ethernet module TE-4AD4DAe and write the 4-channel

output values of TE-4AD4DAe, if the module IP address is 192.168.1.112, station number address is 1, the read results

are stored in the V0 ~ V3, the values to be written are stored in the register V10-V13. As follows:

13 / 15

HNC PLC - Analog Module Application Case

1.9. HTCloud Desinger communicates directly with TE-8AD module example

Open the software, select the "new project", choose to add the device in the "device", then choose serial port or Ethernet

according to the module which supports the Ethernet or RS485, this example for serial port, the serial port number of USB to

RS485 is COM6, as shown below:

Default parameter 19200 N 8 2 RTU for the module, station number address is 1. And directly select HNC remote module

driver in serial port：

Click OK, then we are prompted to start set up variables, the establishment of eight variables indicates 8 channels:

14 / 15

HNC PLC - Analog Module Application Case

Then set up the screen, we can use the display primitives to bind the corresponding channel variable values. If you need to

display the decimal places, it can set the corresponding decimal places on the display primitive. As shown below:

//////////////////////
