Takeuchi Mini Excavator TB230. Specifications
ENGINE
UNDERCARRIAGE AND FRAME
HYDRAULIC & WORKING EQUIPMENT
- U.S. EPA Final Tier 4
- Triple Flanged Track Rollers
-
Variable Displacement, Open Center
Hydraulics
- Automatic Fuel Bleed System
-
2-Speed Travel with Automatic Shift
-
Cushioned Boom and Swing Cylinders
- Dual Element Air Filter
- Sloped Frame with Open Centers
-
Hydraulic Pilot Controls
- Automatic Idle
- Heavy Duty Dozer Blade with Float
-
Proportional Auxiliary Controls with
- Large Wrap Around Counterweight
ELECTRICAL
Detent
-
11.8” Rubber Tracks
- Multi-Informational Display
-
Auxiliary Flow Adjustable from
- Power Angle Blade with Float and,
Operator’s Seat
- Sealed Rocker Switches
Bolt-on Cutting Edge (optional)
-
Hydraulic Reservoir with Fluid Level
-
12 volt System with 40 amp Alternator
Sight Gauge
- Halogen Work Lights: Two Forward
OPERATOR’S STATION
-
Primary Auxiliary Hydraulic Circuit
Facing
-
ROPS / TOPS / OPG Four Post
Plumbed to Arm
- Engine Preheat
Canopy
-
Multiple Attachment Presets
- Hour Meter
-
Deluxe High Back Suspension Seat
-
Flow Selector Valve, Primary Auxiliary
- Travel Alarm
-
Adjustable Arm Rests
Circuit
- Horn
-
2” Retractable Seat Belt
-
Pattern Change Valve (ISO or SAE)
-
3” Retractable Seat Belt (optional)
-
Pilot Accumulator
TAKEUCHI FLEET MANAGEMENT
-
Long Arm with Integrated Thumb
-
2 Year Standard Service
Mount
- Minimize Downtime
-
Main Boom Cylinder Guard
- Remote Diagnostics
-
Dual Pin Position Bucket (optional)
- Utilization Tracking
-
Mechanical Bucket Quick Coupler
- Proactive Maintenance
(optional)
- Control Costs
-
Main Pin Hydraulic Thumb (optional)
Spacious Cabin
Automotive Styled Interior
2-Speed Travel w/ Auto Shift
Wraparound Counterweight
Triple Flanged Track Rollers
Segmented Lines

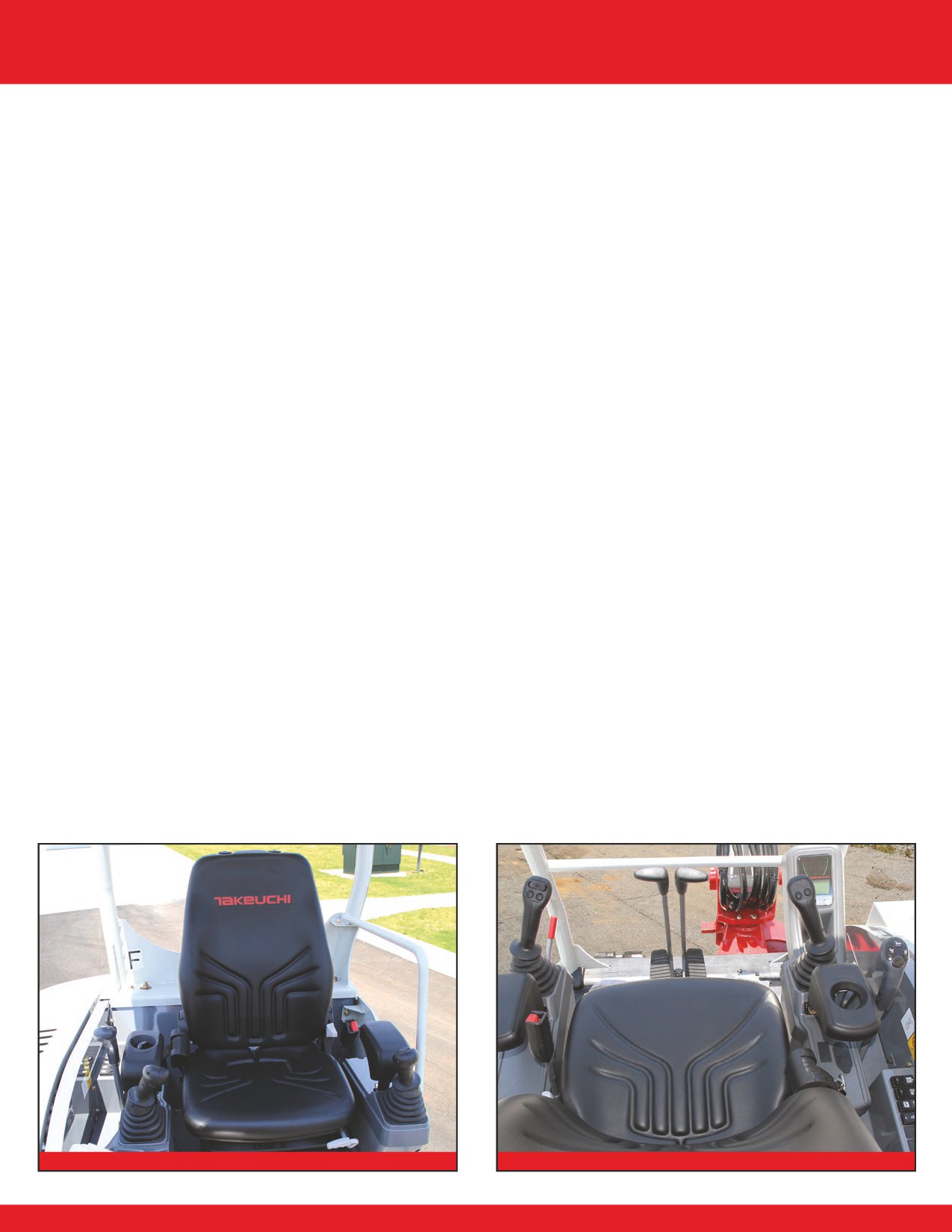

The TB230 is less than 5 ft 0.0 in wide giving it
Additional features include a U.S. EPA Final Tier
outstanding accessibility to job sites. It features
4 compliant engine, automatic fuel bleed system,
all steel construction, a spacious operator station,
duel element air filter, and a large wraparound
automotive styled interior, smooth and powerful
counterweight that protects engine components from
hydraulic system, pattern change valve, and
damage. The operator is protected by a four post
cushioned boom and swing cylinders. The TB230
ROPS/TOPS/OPG operator protective structure that
provides impressive dig depth, reach and lifting
keeps the operator safe and comfortable on any job
capacity for maximum productivity making it a great
site.
choice for the most demanding applications.

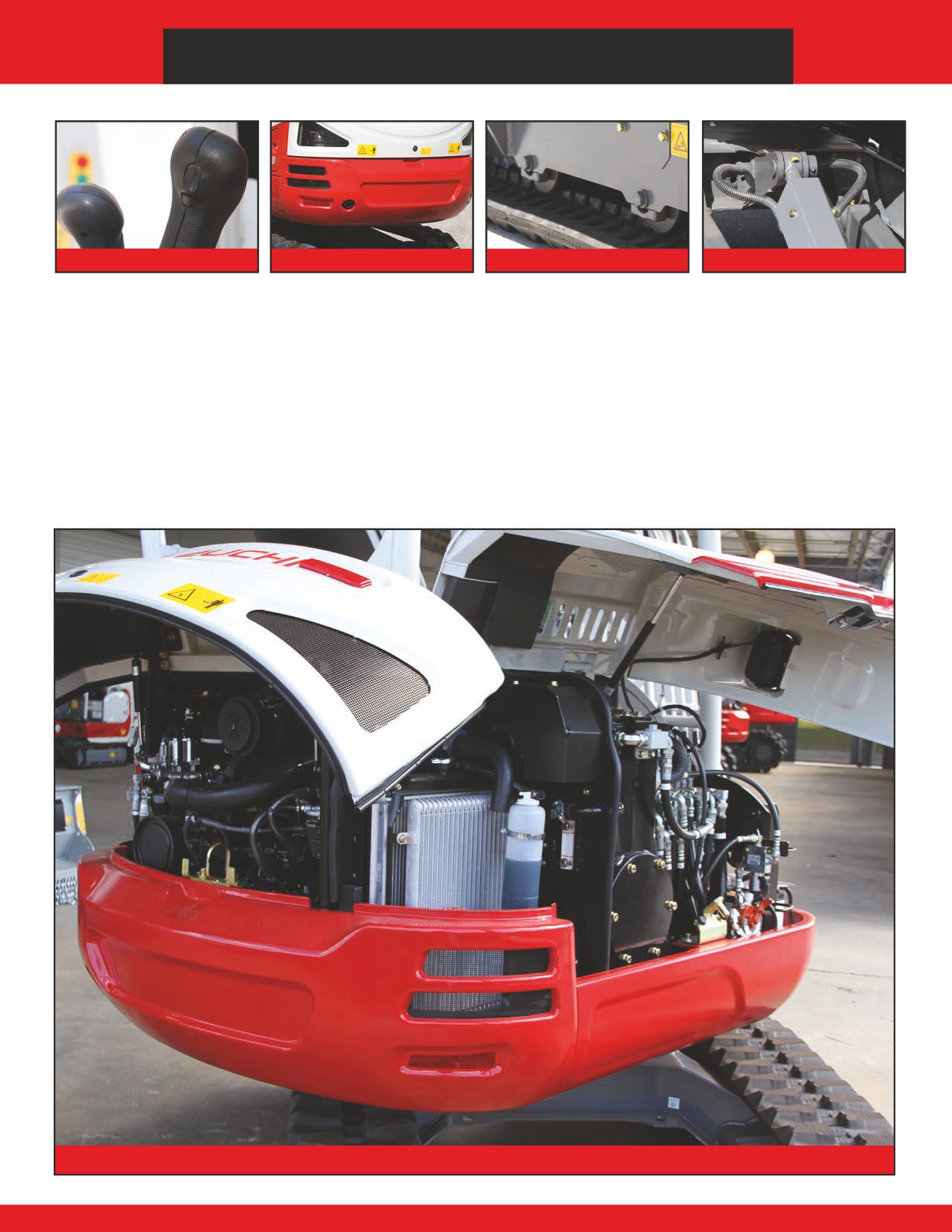

Large lockable service hoods provide vandalism protection and outstanding maintenance access.
OPERATING PERFORMANCE
ENGINE
Operating Weight
6,360 lb
(2,885 kg)
Make / Model
Yanmar / 3TNV88F
Maximum Bucket Breakout Force
6,471 lb
(2,935 kg)
Displacement
81.0 cu in
(1.3 L)
Maximum Arm Digging Force
2,900 lb
(1,325 kg)
Horsepower @ 2,200 rpm
24.4 hp
(18.2 kW)
Arm Length
4 ft 9.0 in
(1,445 mm)
Maximum Torque @ 1,440 rpm
63 ft-lb
(85.3 Nm)
Slew Speed
10.3 rpm
FLUID CAPACITIES
Traction Force
6,340 lb
(2,876 kg)
Ground Pressure
4.3 psi
(29.4 kPa)
Engine Lubrication
5.0 qt
(4.7 L)
Max Travel Speed
Cooling System
4.2 qt
(4.0 L)
Low Range
1.8 mph
(2.9 km / hr)
Fuel Tank Capacity
14.0 gal
(53.0 L)
High Range
3.2 mph
(5.2 km / hr)
Fuel Consumption (65% of Full Load)
0.8 gal / hr
(3.3 L / hr)
Hydraulic Reservoir Capacity
9.2 gal
(35.0 L)
HYDRAULIC SYSTEM
Hydraulic System Capacity
14.8 gal
(56.0 L)
Total Hydraulic Flow
24.2 gpm
(91.6 Lpm)
Auxiliary Flow - Primary Circuit
13.4 gpm
(50.6 Lpm)
Hydraulic System Pressure
3,046 psi
(21.0 MPa)

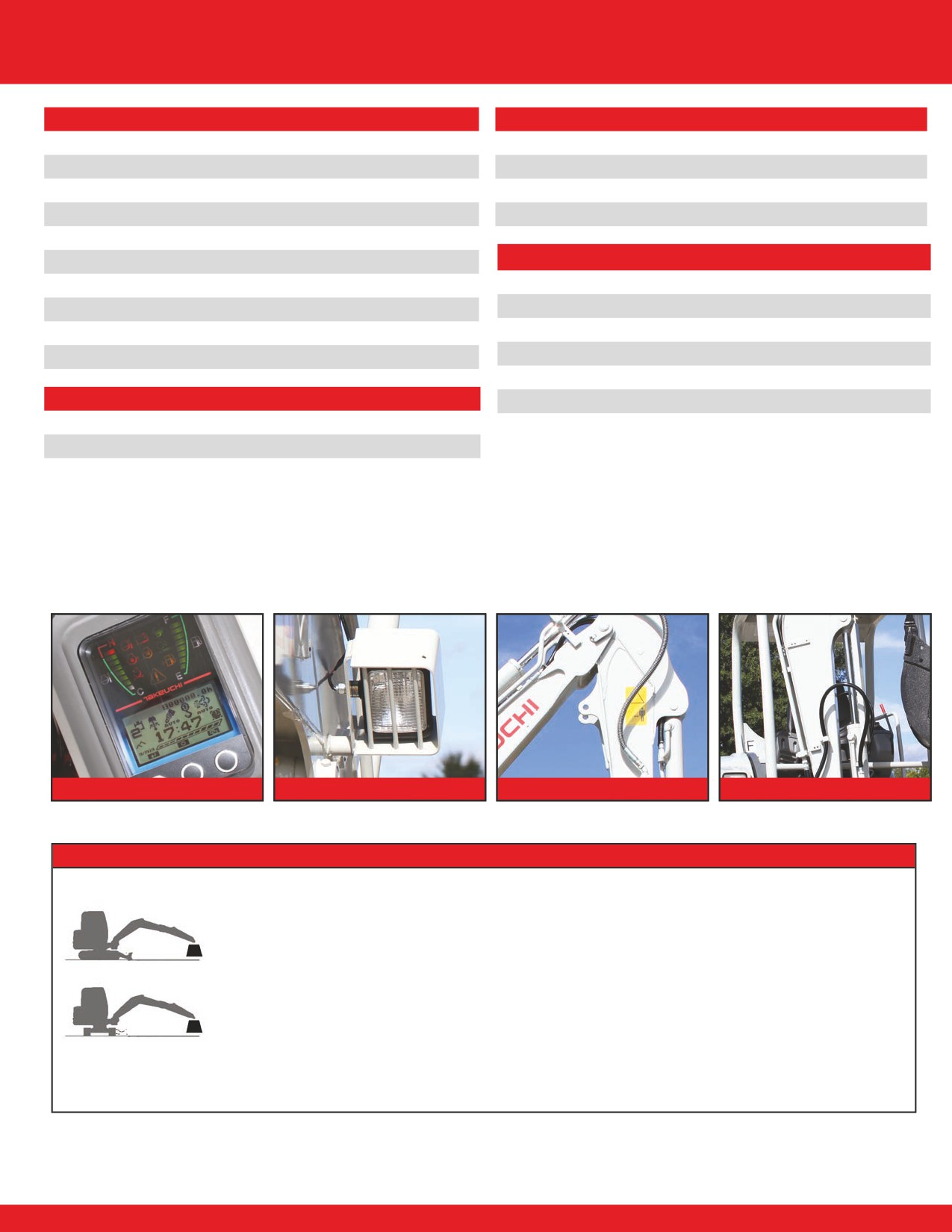

Multi-Informational Display
Work Lights
Long Arm with Thumb Mount
Main Boom Cylinder Guard
TB230 Lifting Capacities at Ground Level*
Lift Point Radius from Rotation Axis
9 ft (2,743 mm)
12 ft (3,657 mm)
Lifting Capacities
2,031 lb
(921 kg)
1,360 lb
(617 kg)
Over Front, Blade Down
Lifting Capacities
1,398 lb
(634 kg)
933 lb
(423 kg)
Over Side
* Ratings based on ISO10567 and do not exceed 87% of hydraulic lift or 75% of tipping load.
ATTACHMENTS
Takeuchi now offers attachments for all of your Takeuchi equipment.
See your authorized Takeuchi dealer for additional information and attachment options.
G
H
I
E
F
N
L
O
C
D
K
B
A
M
J

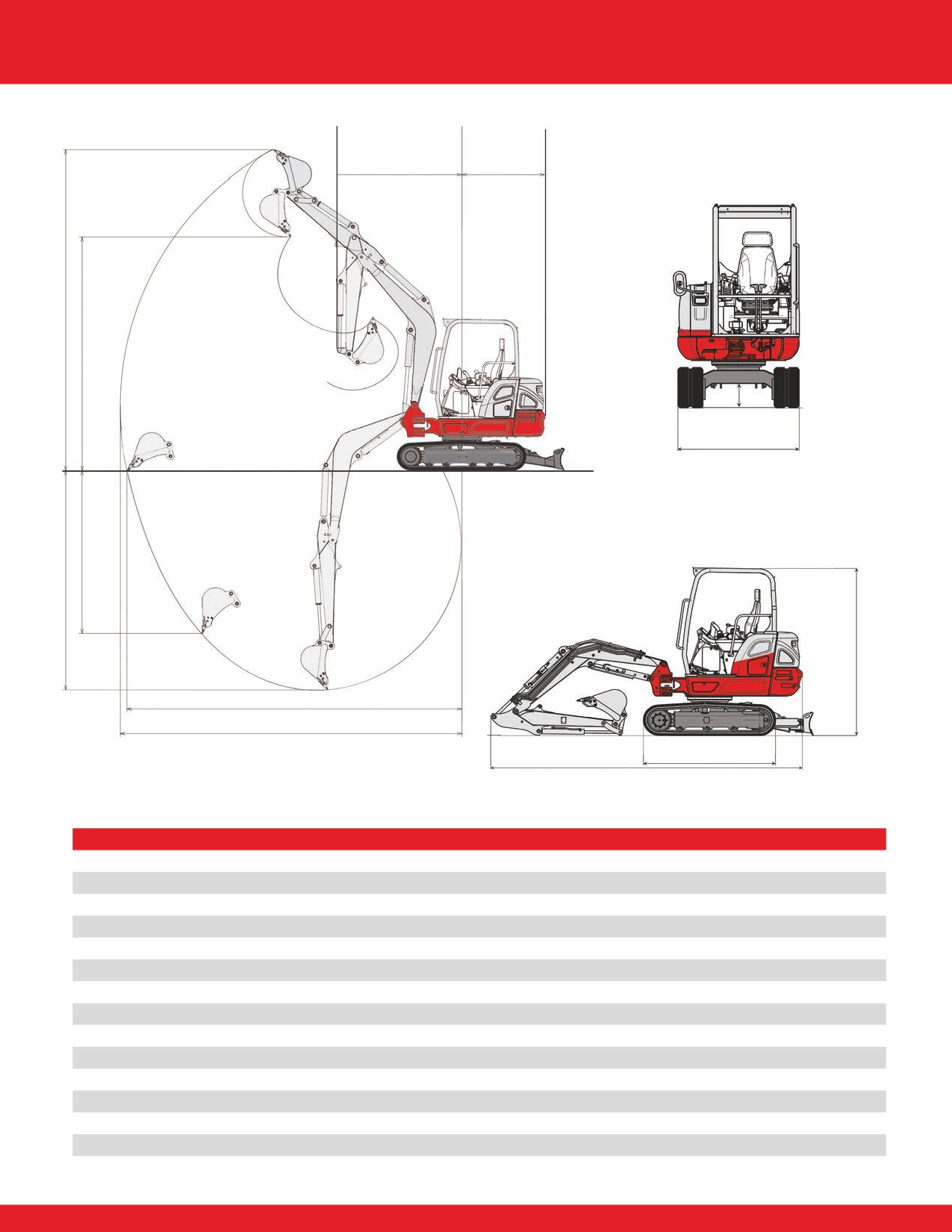

MACHINE DIMENSIONS
A Maximum Reach
15 ft 10.9 in
(4,850 mm)
B Maximum Reach at Ground Level
15 ft 5.4 in
(4,710 mm)
C Maximum Digging Depth
9 ft 3.6 in
(2,835 mm)
D Maximum Vertical Digging Depth
7 ft 1.2 in
(2,165 mm)
E Maximum Dig Height
14 ft 7.0 in
(4,450 mm)
F Maximum Dumping Height
10 ft 7.2 in
(3,230 mm)
G Front Swing Radius
6 ft 2.7 in
(1,895 mm)
H Front Swing Radius with Boom Offset
4 ft 11.2 in
(1,505 mm)
I
Tail Swing (Slew) Radius
4 ft 4.4 in
(1,330 mm)
J Transport Length
15 ft 0.9 in
(4,595 mm)
K Transport Height
8 ft 3.9 in
(2,540 mm)
L Ground Clearance
11.9 in
(305 mm)
M Undercarriage Length
6 ft 2.9 in
(1,900 mm)
N Track Width (Rubber)
11.8 in
(300 mm)
O Undercarriage Width
4 ft 9.1 in
(1,450 mm)
