320DV SERIES ISOLATION FLOAT VENT VALVES. INSTALLATION AND MAINTENANCE INSTRUCTION

KPTI017-EN rev 0 2016-05-27

320DV SERIES ISOLATION FLOAT VENT VALVES

INSTALLATION AND MAINTENANCE INSTRUCTION

Please read these warnings and use the assembly instructions completely and carefully before starting.

Failure to do so may cause product failure, or result in environmental contamination due to liquid leak-

age into the soil, creating hazardous spill conditions.

Check to make sure the unit is intact and undamaged and all parts have been supplied. Never substitute

parts for those supplied. Doing so may cause product failure and void warranty.

Using electrically operated equipment near gasoline or gasoline vapors may result in a fire or explosion, causing personal

injury and property damage. Be sure that the working area is free from such hazards, and always use proper precautions.

At all times when product is in the storage tank keep the riser pipe capped, so the vapors cannot escape into the environment.

THIS MANUAL MUST BE LEFT WITH FACILITY MANAGEMENT

Please visit OPW’s website: www.opwglobal.com for further information

KPTI017-EN rev 0 2016-05-27

1. FIELD INSTALLATION INSTRUCTIONS

OPW Overfill Warning Systems should only be used on submerged pumping systems,

and not with suction pump systems. OPW Overfill Warning Systems should only be used

on gravity drop systems. DO NOT use where Pump Off Unloading is used.

Valve must be mounted vertically with the two threads at the top of the valve. Ball float will

only operate properly if installed vertically.

1. Apply a non-hardening, gasoline resistant pipe compound on the two threads. Tighten down to

pipes or plug.

Do not use plastic or teflon tape!

2. Attach bottom of fitting to 2” pipe (50 mm) using supplied gasket and nut.

3. Make sure ball float moves freely, full stroke, without binding.

2. PREVENTIVE MAINTENANCE

Every three years, remove and inspect the valve for damage, contamination, corrosion, and free-

dom of movement of the ball float. Replace if damaged or corroded.

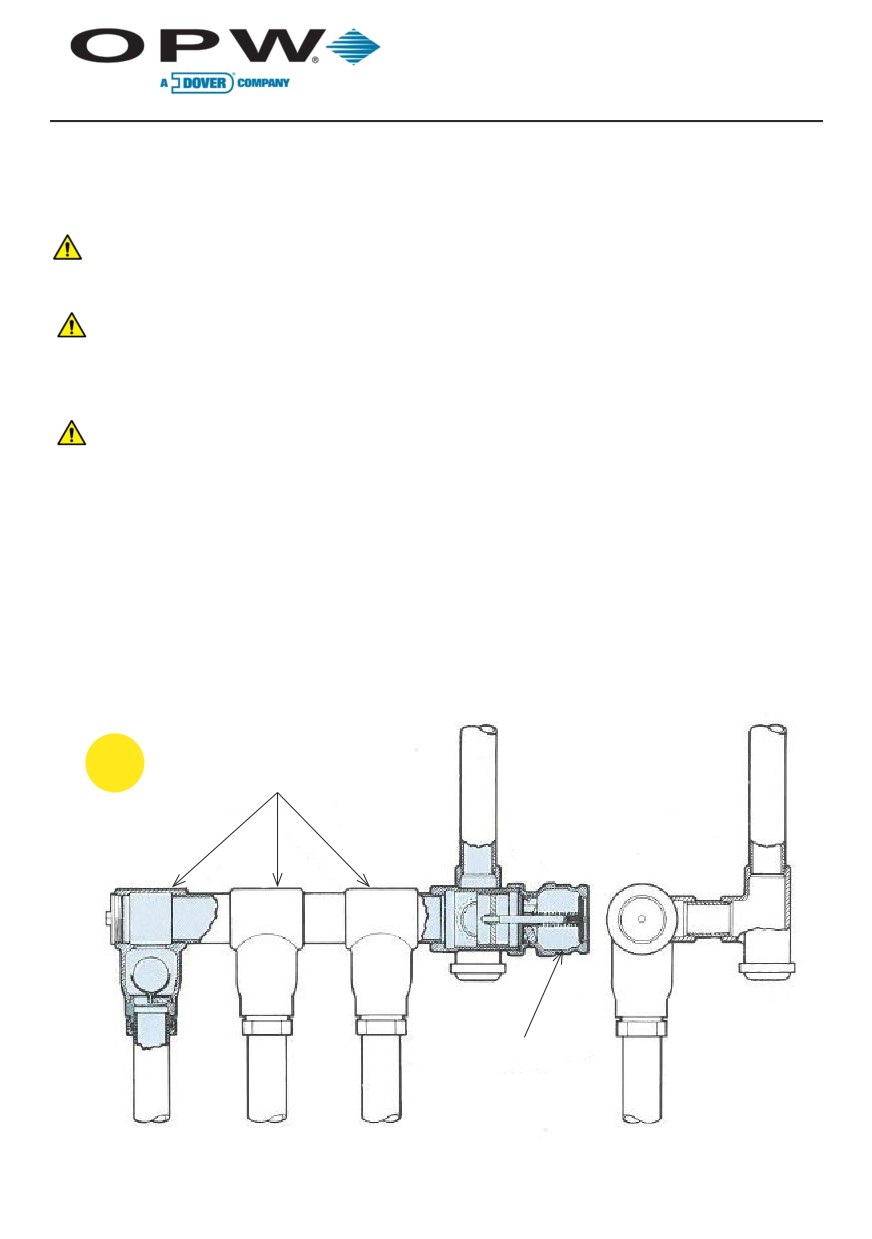

320-DVB-3” X3” X2”

320-DVB-3”X2”

WITH 1611-VRB-3”

1611-VRB-3”

Please visit OPW’s website: www.opwglobal.com for further information

KPTI017-EN rev 0 2016-05-27

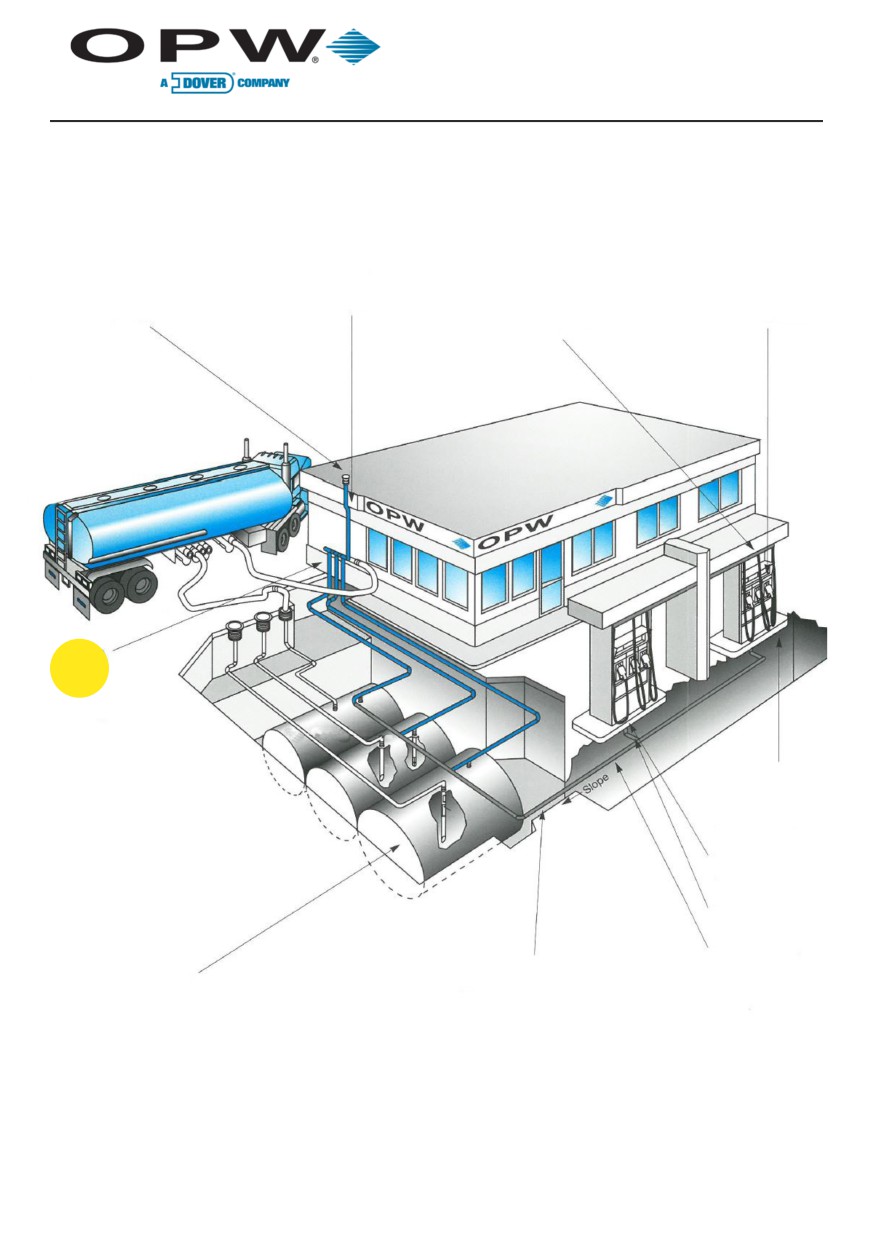

Stage II fittings to

3” manifolded

Stage II vapour

OPW 23, 523-Series

adapt underground

vented line

recovery nozzle, if

Vapour Vent

piping to coaxial

vapour recovery hoses

required

1” galvanized riser

pipe stubbed either

inside dispenser or

on pump island

1” vapour line shear

valve

2” Stage II lines

3” Manifold lines

Typically 1/4” per foot continuous

Lowest grade or

slope back to the UST

octane
