900 MHz RTK—Base Station Setup

System Overview

The StarFire™ RTK system consists of a local base

station placed in a field or mounted on a structure that

transmits high accuracy corrections to the vehicle StarFire

receiver using RTK radios. The StarFire receiver on the

RTK-equipped vehicle must have a direct line of sight with

the base station in order to receive the RTK signal.

Performance of the RTK system is related to the operating

distance from the base station. When operating beyond

20 km (12 miles), degraded accuracy will occur and it may

take longer to initially acquire the RTK signal.

A repeater, which is simply an RTK radio supplied with 12

volts of power, can be used to receive the base station

signal and establish a new line of sight point. However,

performance limitations can still be expected if trying to use

the repeater to transmit the RTK signal to a vehicle that is

farther than 20 km (12 miles) away from the base station.

NOTE: Old antennas from past receivers are not

compatible with the StarFire 3000 receiver.

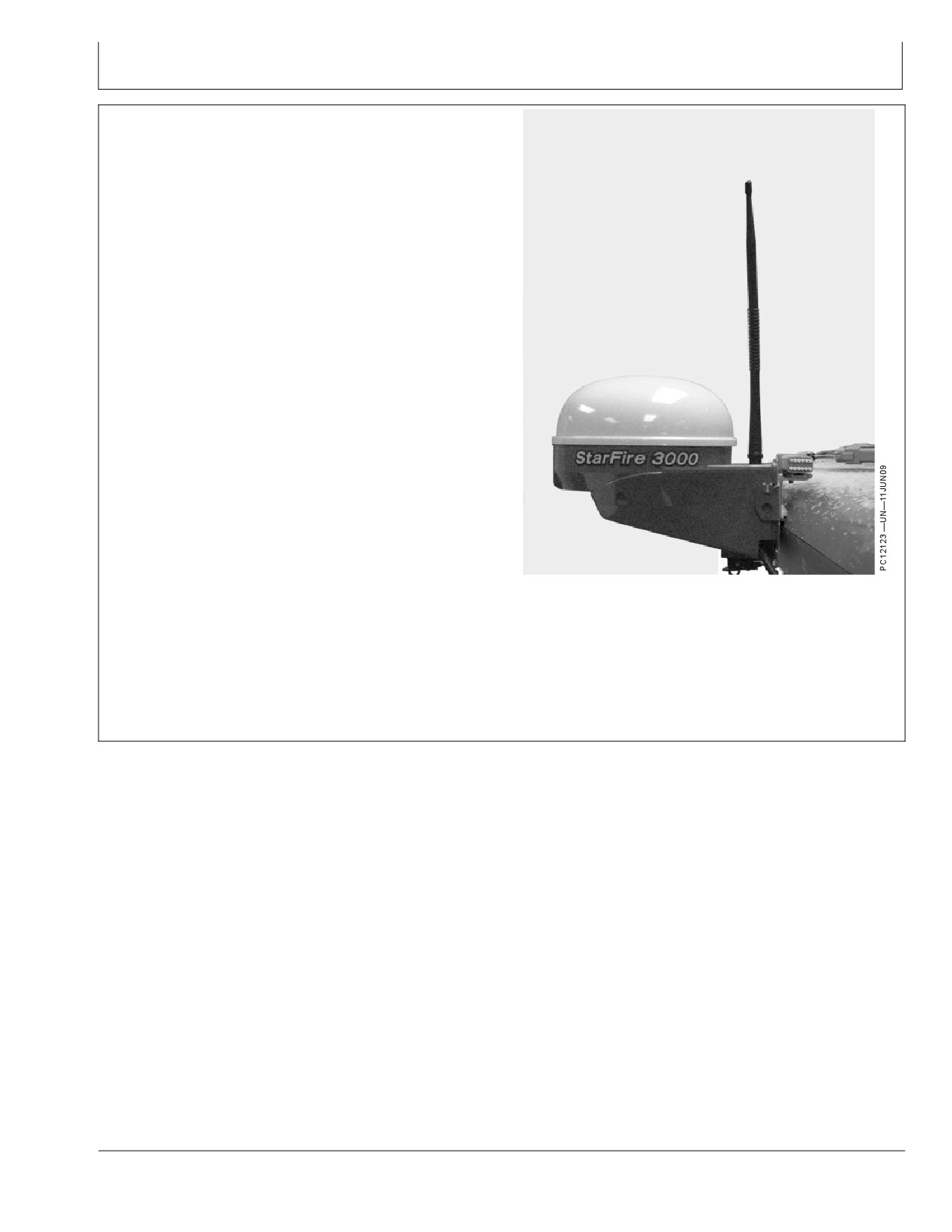

Receiver—On Vehicle

Position receiver with integrated RTK radio module is

located on top of machine. Position receiver receives

global positioning and differential correction signal through

a single receiver and integrates signal for use with system.

The receiver has a dedicated operating mode (Vehicle

Mode). Refer to “Operating Mode—RTK” in “StarFire

3000” Section for setup of the receiver on vehicle.

Removing the antenna while transmitting

may damage the radio module.

IMPORTANT: The antenna must be installed before

the radio module is powered ON.

NOTE: Actual receiver position may vary with the use of

an Original Shroud or Deluxe Shroud bracket.

Avoid water intrusion by keeping the antenna

attached whenever possible.

Continued on next page

JS56696,00007FF -19-15APR10-1/3

121511

20-1

PN=9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

Receiver—On Base Station

The base station is the most critical part of an RTK system.

During installation, care must be taken to ensure the base

has problem-free operation. There are two issues that

are responsible for most problems with a base station:

Shading and Multipathing. If a base station experiences

one of these problems, it could be detrimental to your

RTK operation. Although it may not be possible to locate

a base station in an ideal location, this guide is aimed at

helping to define the best option available.

Base station operating mode can be either Absolute

Survey Base Mode or Quick survey Base Mode. Refer to

“Operating Mode—RTK” in “StarFire 3000” Section for

setup of the receiver on base station.

Refer to “Base Station Operation and Setup” in “StarFire

3000” Section for proper use and setup of the base station.

Continued on next page

JS56696,00007FF -19-15APR10-2/3

121511

20-2

PN=10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

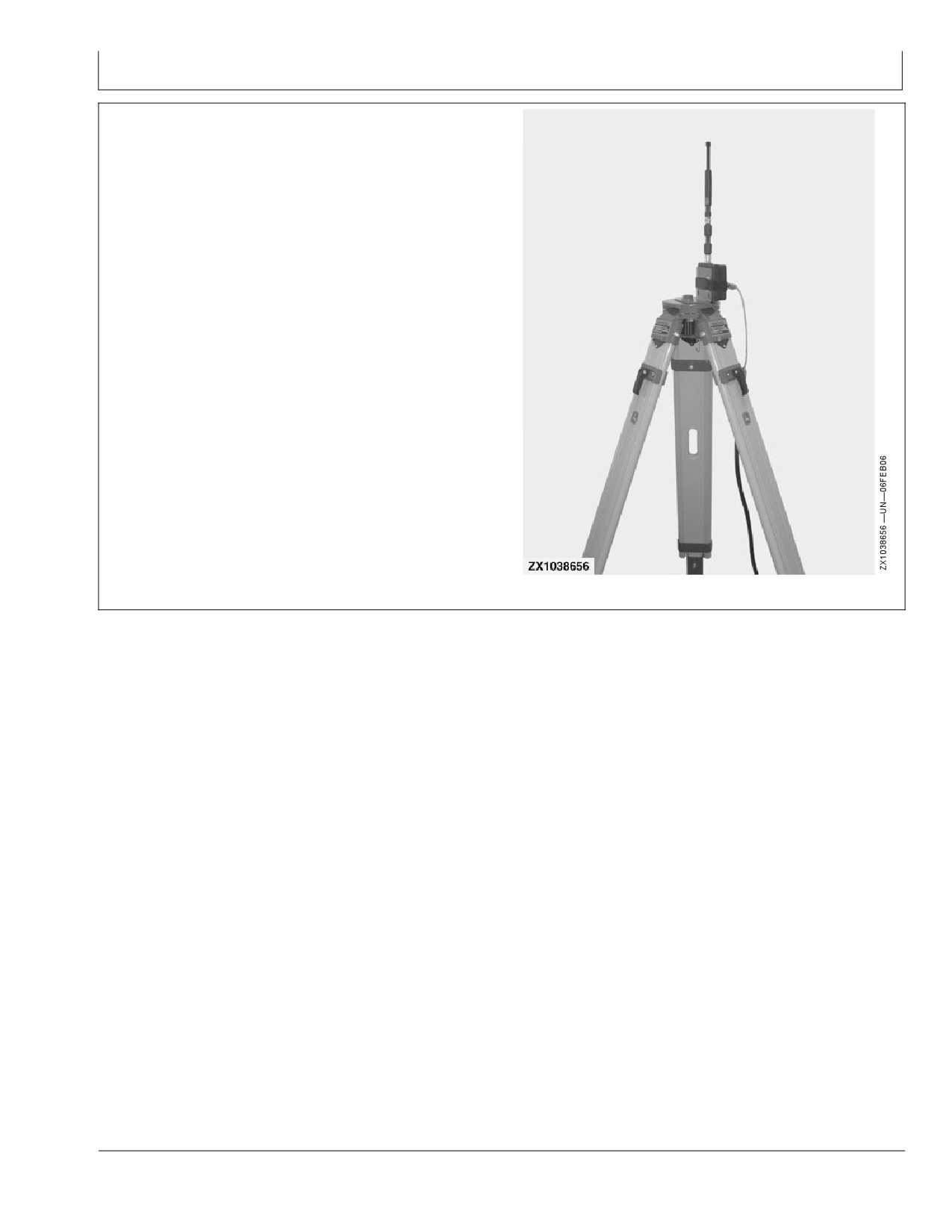

Repeater Radio

The radio can be configured to act separately as a

repeater. A repeater is required if obstructions (i.e. trees,

hills, etc.) exist between the base station and vehicle(s) or

if base station is too far away from the vehicles.

A repeater consists of:

• Radio (configured as a repeater)

• Harness

• Mounting Bracket

• 12 Volt Power Source

• Tripod or wall mount cradle

IMPORTANT: A repeater can only be used to repeat

a signal from a base station to a vehicle.

Therefore, a repeater cannot be used in a

''daisy chain,'' repeating the signal from

one repeater to another.

Refer to “Repeater—RTK” in “StarFire 3000” Section to

properly configure radio as repeater.

JS56696,00007FF -19-15APR10-3/3

121511

20-3

PN=11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

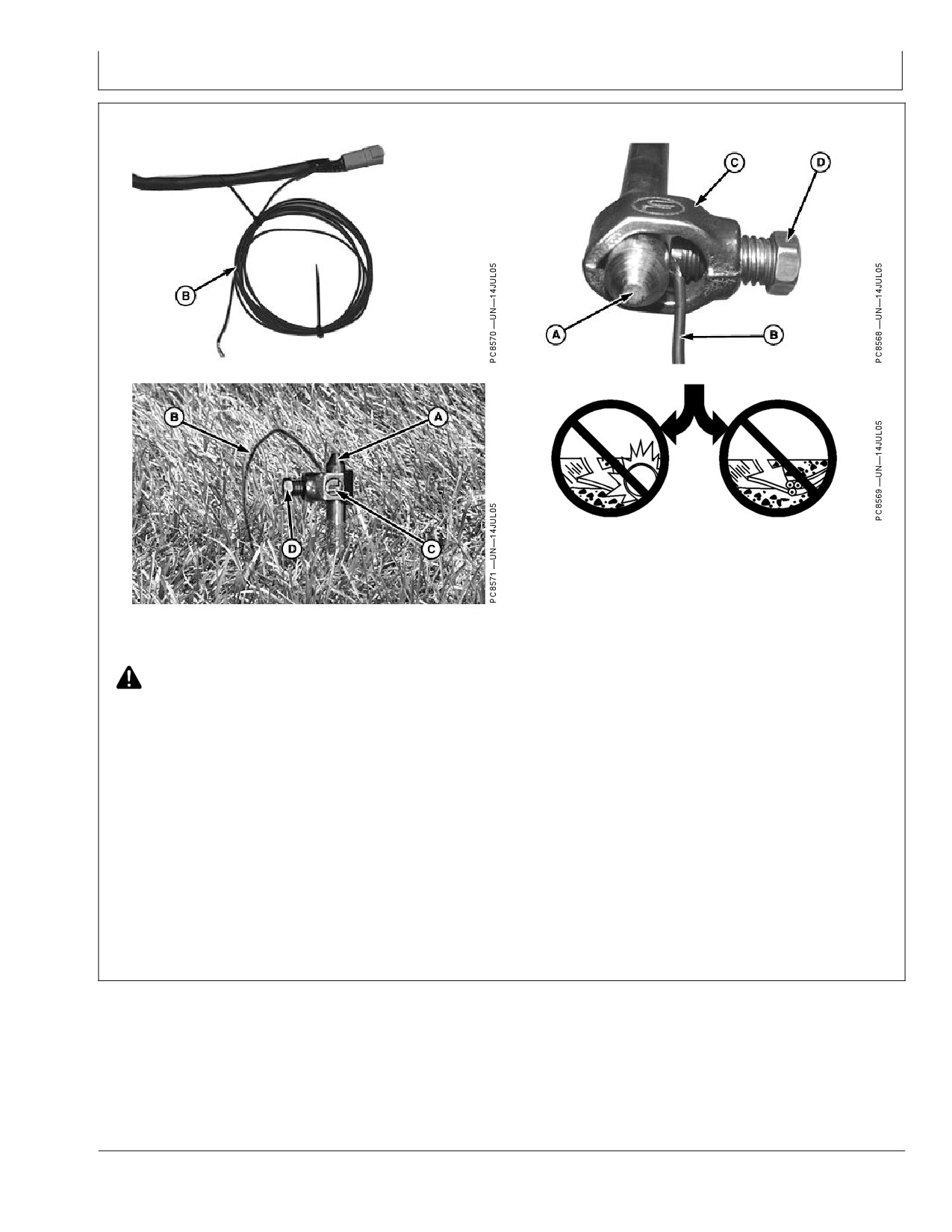

Attaching RTK Harness

A—Rod

B—Grounding Wire

C—Collar

D—Screw

CAUTION: Avoid serious injury or death to you or

3. Route grounding wire (B) from harness to rod.

others. Contact your local utility companies to

Grounding wire may be extended if necessary to

determine the location of gas, electric, or water

reach rod.

lines. Placement of grounding rod must be a safe

4. Remove insulation from end of grounding wire.

distance away from pipelines and cables.

5. Place collar (C) over end of rod.

IMPORTANT: Carefully choose location of rod so that

it is away from paths where it could damage

6. Place grounding wire between rod and screw (D).

equipment or be damaged by equipment.

7. Tighten screw.

DO NOT route RTK Extension harness along any

8. Restrain harness to supporting structures as

other power sources. Keep harness at least 2m

necessary to keep them away from equipment,

(6 ft) away from any other AC power lines.

damage, and to reduce wire strain.

1. Attach harness between radio and receiver.

2. Carefully determine placement of rod (A) a safe

distance away from pipelines and cables. Drive into

ground leaving one end above surface.

JS56696,0000801 -19-15APR10-1/1

121511

20-5

PN=13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

RTK Network Base Station Setup

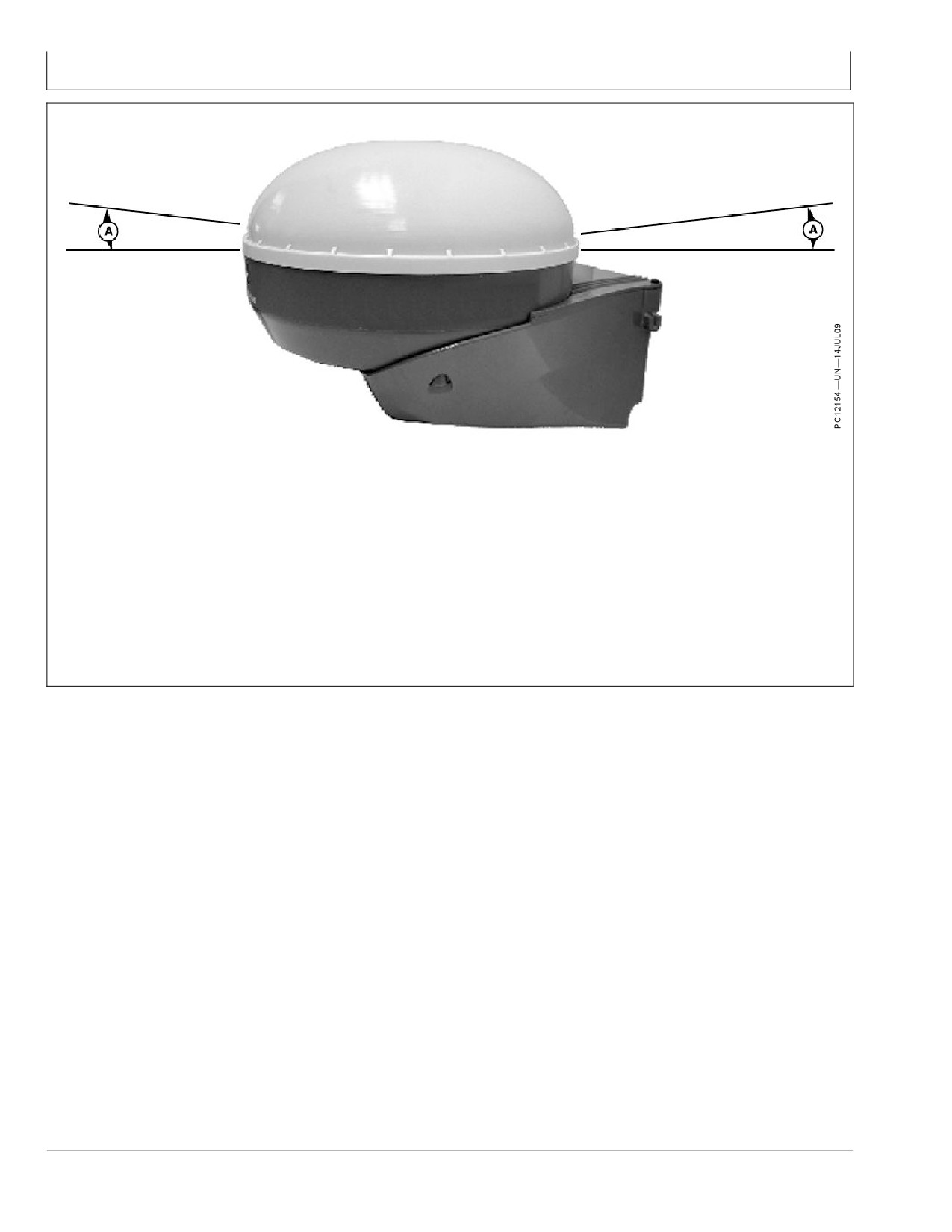

A—5 Degrees Off the Horizon

(Mask)

Installing and operation of the Base Station Receiver.

directions above 5 degrees off the horizon. Both the base

receiver and the vehicle receiver will use any satellites

The base station is the most critical part of the RTK

that are above 5 degrees off the horizon. If a base station

operation. Setting up a base station correctly is vital to the

receiver cannot use a satellite above 5 degrees, then all

operation of the RTK system. If the Base Station Receiver

vehicles operating on that base station also cannot use

is setup in a questionable location, the receiver could

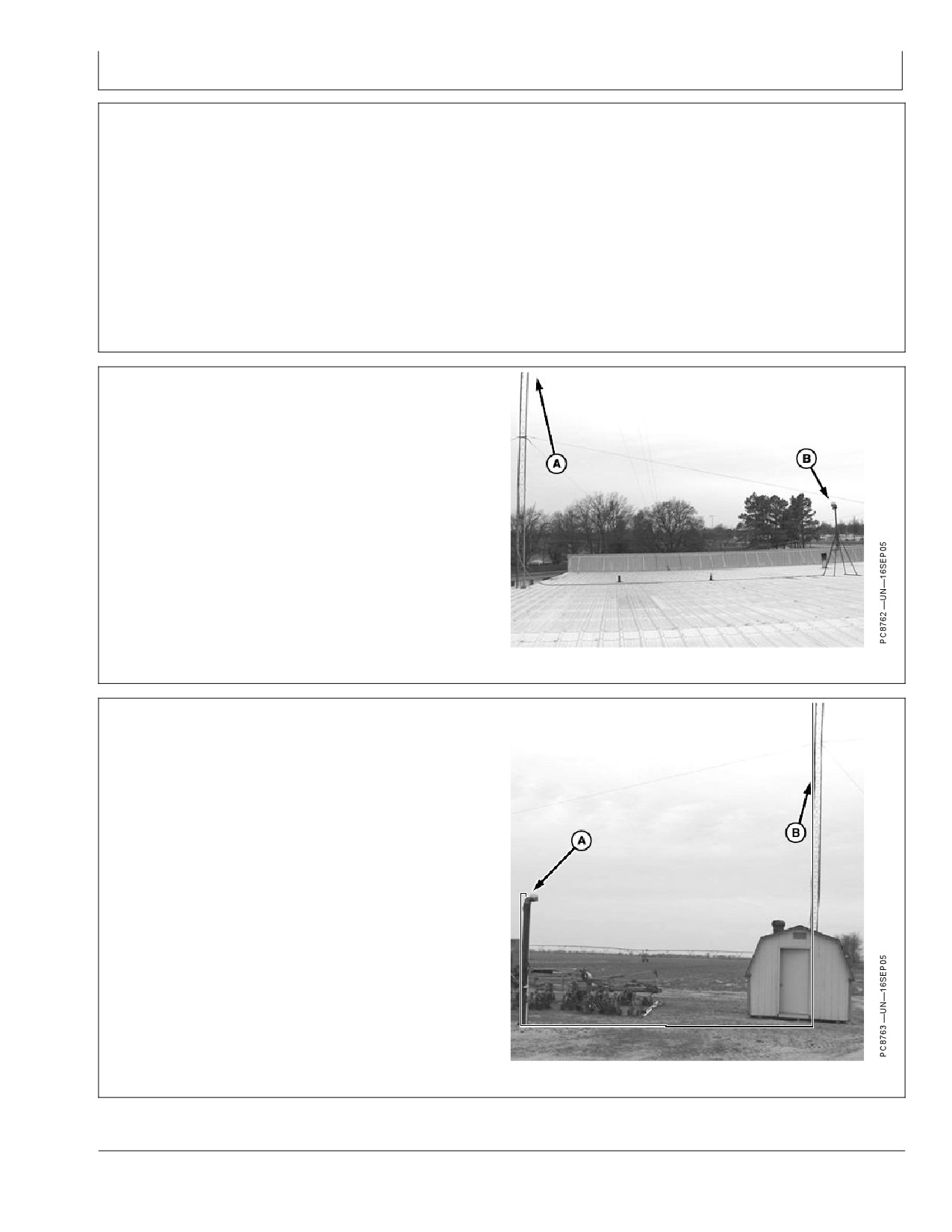

that blocked satellite. This is called Shading of the base

have two separate issues; Shading and Multipathing.

station. If enough shading occurs, the RTK system may

become inaccurate. Many things can cause shading, such

Shading:

as buildings, towers, poles, and grain legs.

To ensure proper operation of a RTK base station, the

GPS Receiver must have a clear view of the sky in all

Continued on next page

DK01672,0000209 -19-01DEC11-1/3

121511

20-6

PN=14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

When selecting a base station location, there are three

main points to look for: rigidity, good view of the sky,

and few reflective objects. The base station provides

corrections to the vehicle receiver based on the fixed

known position which is surveyed in with an absolute

survey or quick survey. Any motion of the base station

receiver will translate directly to the vehicle position.

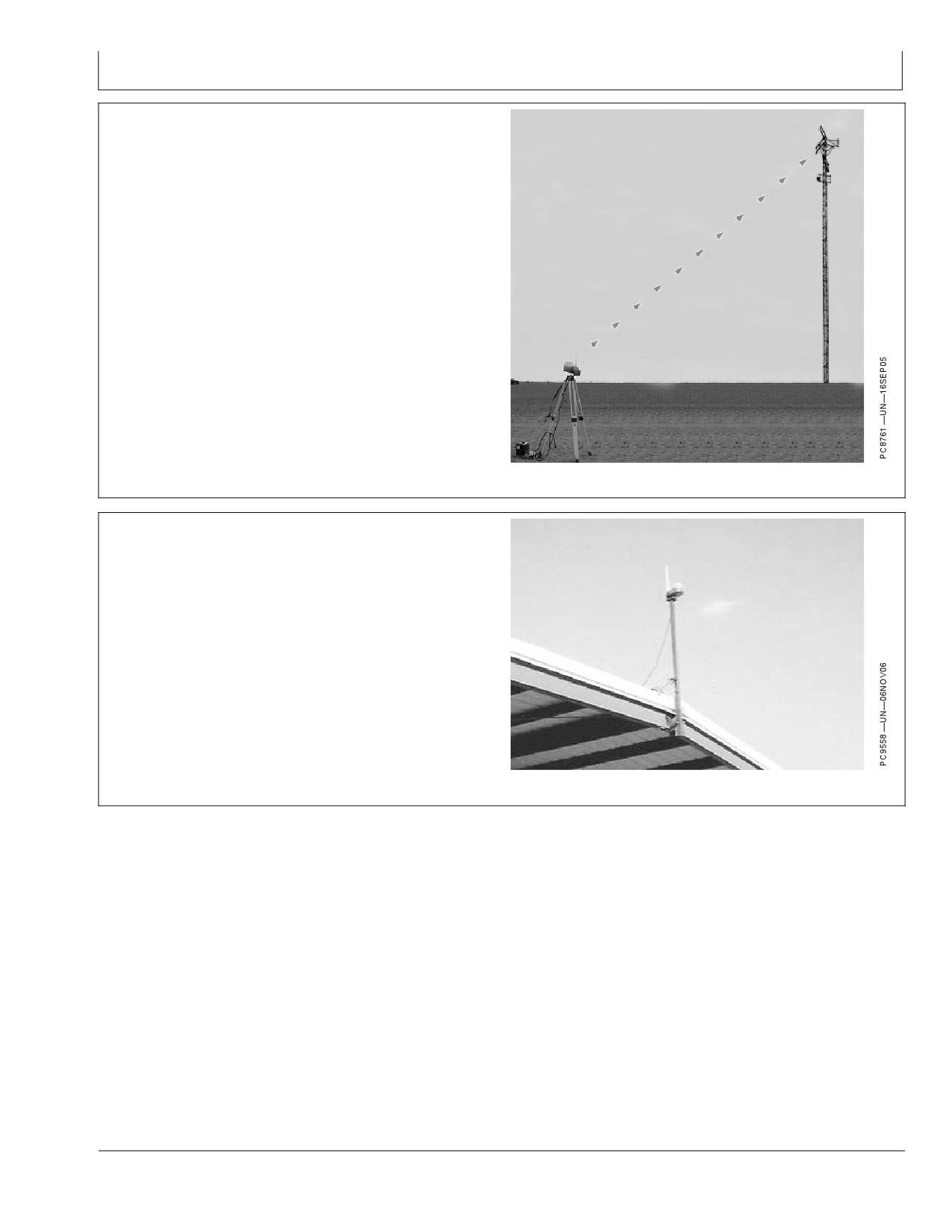

Mount the base station on a rigid structure, such as the

pole in the photo. When mounting on a structure such as

a building, the receiver should generally be installed 2

meters above the highest point.

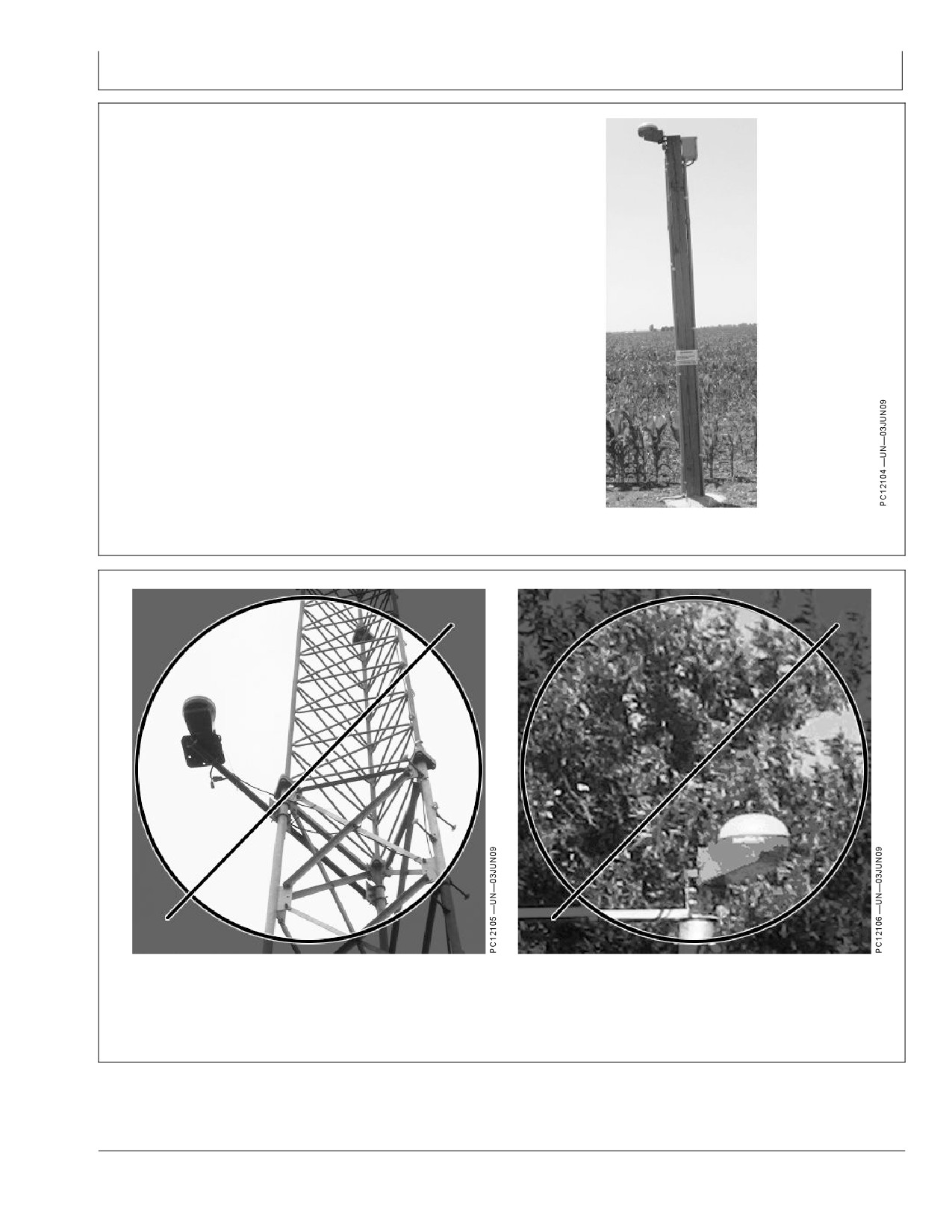

Receiver on Rigid Pole

DK01672,0000209 -19-01DEC11-2/3

Receiver on Radio Tower

Receiver Next to Trees

Since GPS satellites orbit the earth, the base station

view of the sky are much more reliable than those with

needs to have a clear view of the sky in all directions

shading. Installing the receiver on the side of radio towers

above a 5 degree mask angle. Base stations with a good

or next to trees is not recommended.

DK01672,0000209 -19-01DEC11-3/3

121511

20-7

PN=15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

Multipathing

Signal reflections are another important error source

for base stations that should be minimized. Reflected

signals also reach the base station receiver and make

the satellite range measurement longer. Reflections can

even interfere with the direct signal enough so that the

receiver will temporarily lose lock on the satellite. Metal

buildings, chain-link fences, and bodies of water are all

good reflectors that can make a base station less reliable.

Take care to place your base station receiver far away

from strong reflectors for reliable base station operation.

A base station should have a continuous 12V power

source such as an AC/DC converter to power the base

station. A battery back-up is recommended to keep the

base station running in the case of power outages for

dependable operation.

NOTE: The AC/DC converter is not supplied

by John Deere.

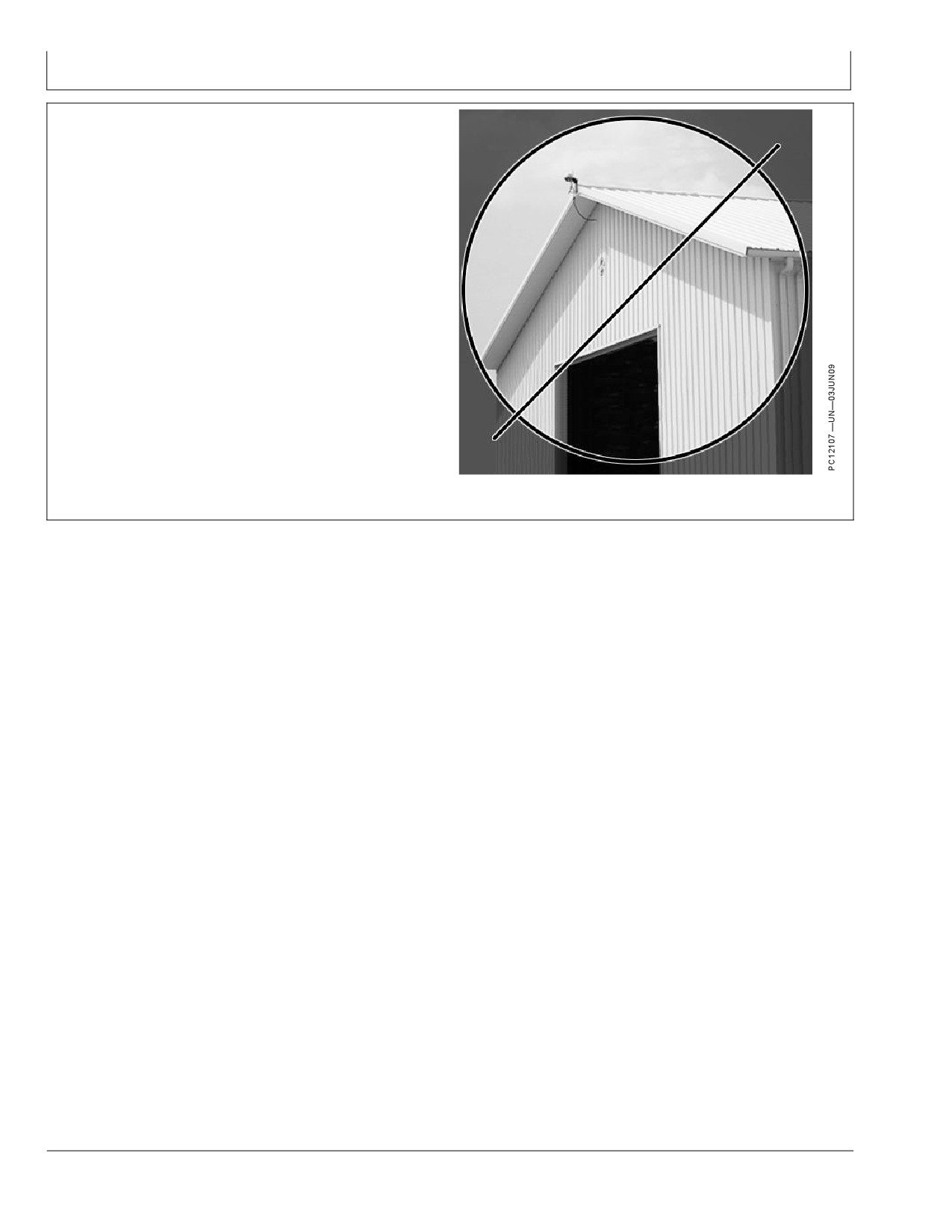

Reflection off Metal Building

DK01672,00001C2 -19-11NOV11-1/1

121511

20-8

PN=16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

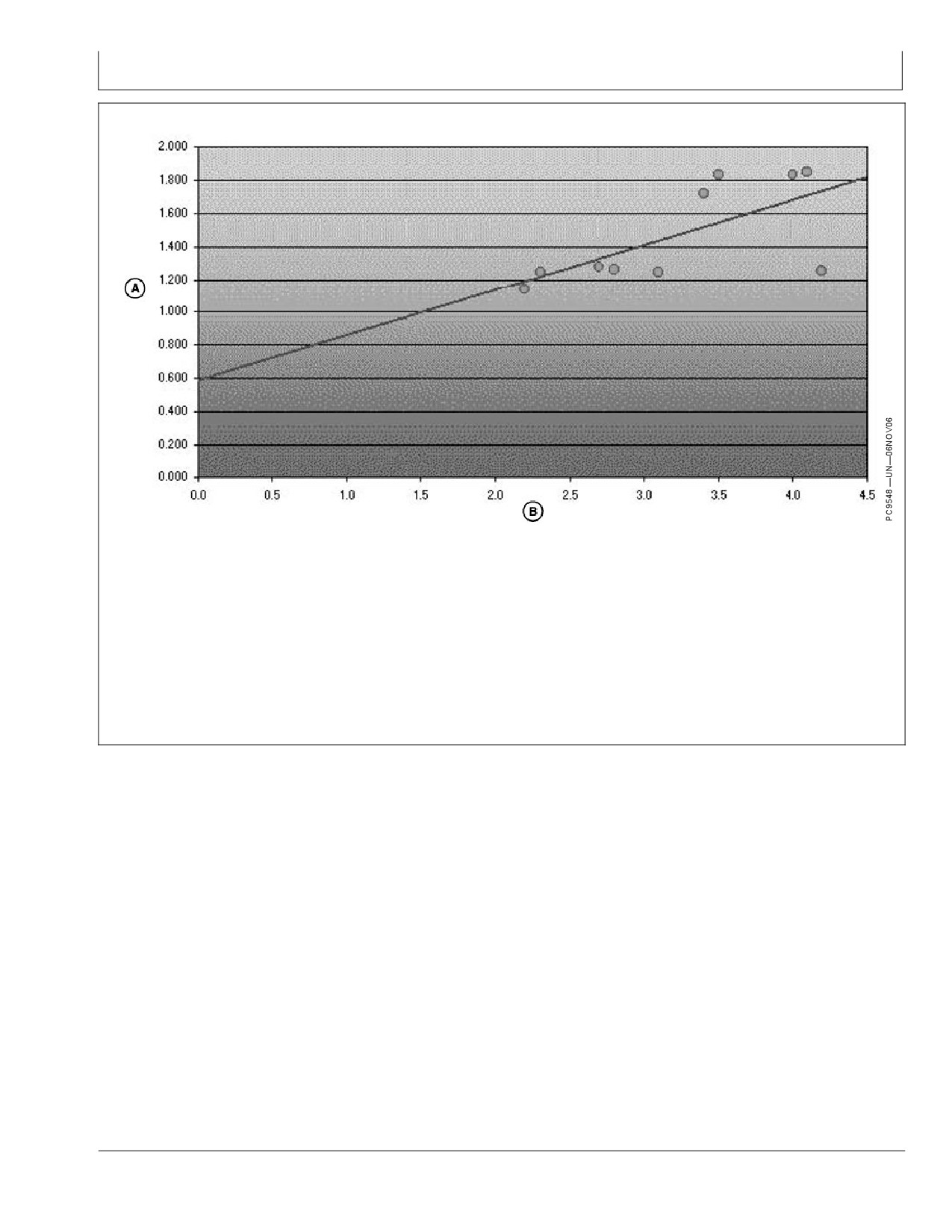

PDOP Definition

A—Horizontal Precision (m)

B—Maximum PDOP Value

The Position Dilution of Precision (PDOP) is likely one

as ground control points to register an April 4, 1999 aerial

of the most critical GPS AutoTrac values to monitor.

photograph of the University area. You can see that

As the PDOP value increases, both the horizontal and

as the PDOP value climbs from a minimum of 1.15 to a

vertical precision (guidance accuracy) of your data points

maximum of approximately 4.5, the horizontal precision

decreases.

and accuracy decreases from about 1.15 meters to about

1.9 meters. PDOP values below 7 are generally required

To help illustrate this relationship, please review the

to collect data at a 1 meter accuracy range (as determined

graph, which plots the PDOP value against the horizontal

by the PDOP mask set on your data logger) and any value

precision points collected on and around the University of

below 3.5 is considered in-range for AutoTrac applications.

Montana campus. Ten locations were collected to serve

Continued on next page

DK01672,00001E2 -19-15NOV11-1/2

121511

20-9

PN=17

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

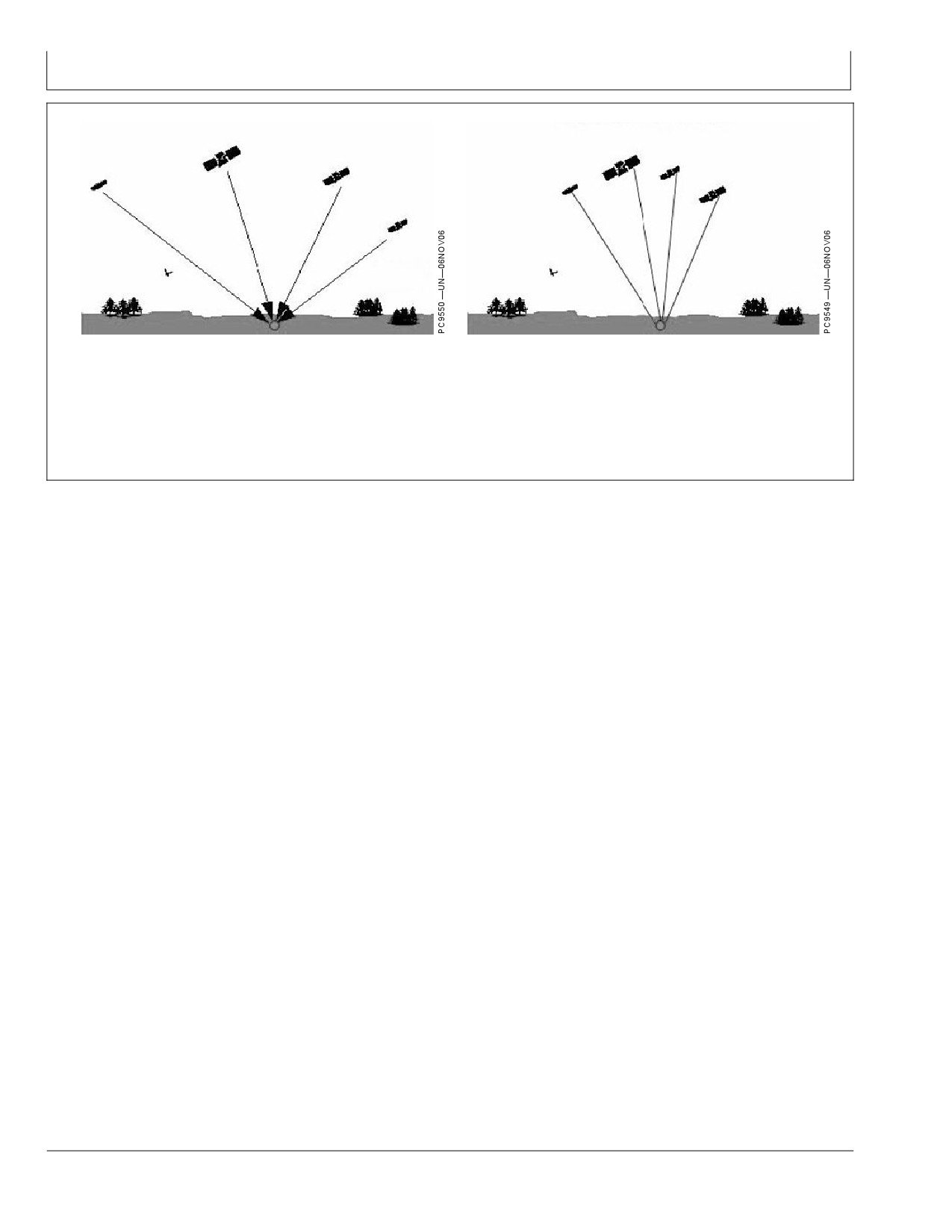

GOOD

BAD

Keep in mind that PDOP (Position Dilution of Precision)

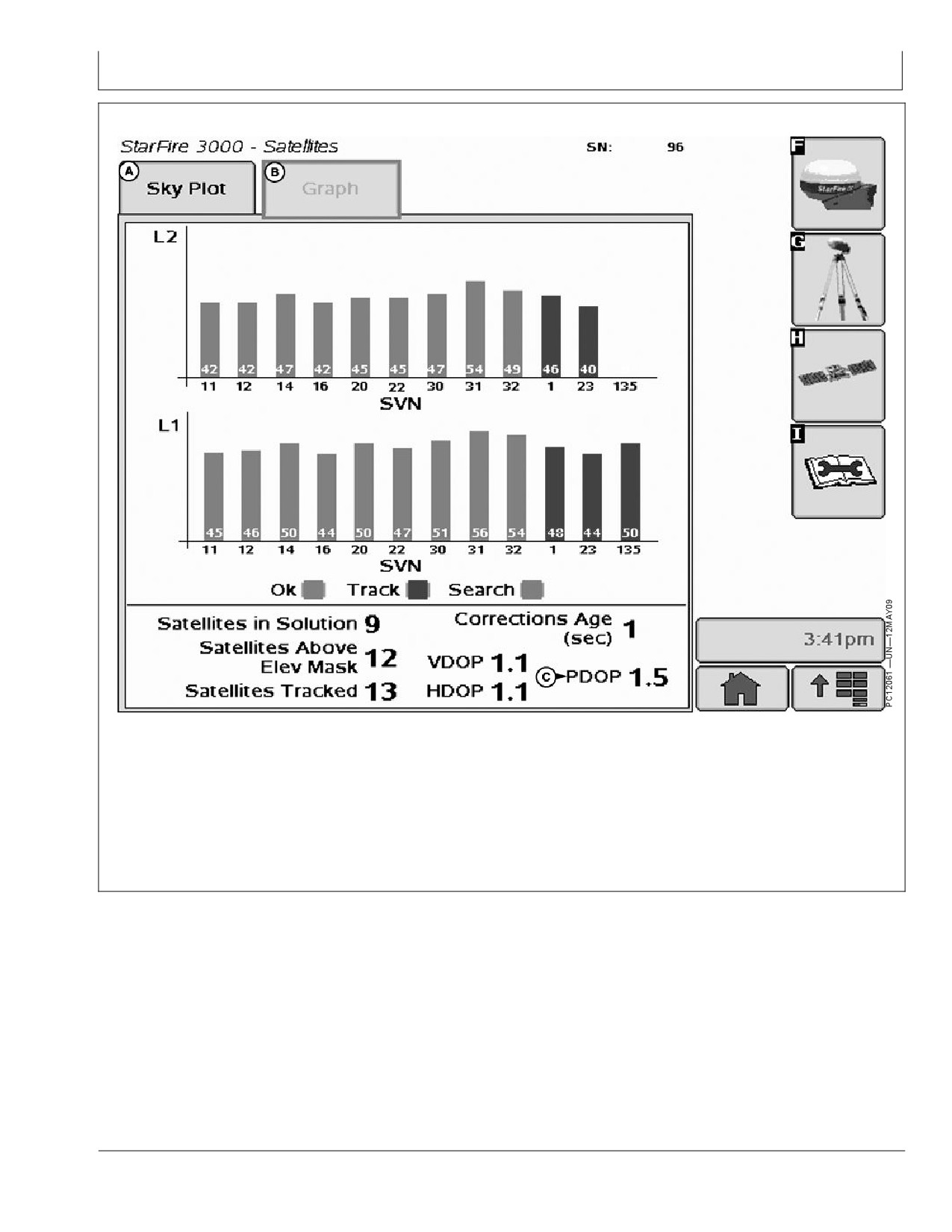

During vehicle operation, the PDOP can be viewed

is the measure of the geometrical strength of the GPS

under the StarFire information pages in both the Original

satellite configuration. As a general rule, any PDOP value

GreenStar Display, 2600 Display, and 2630 Display.

below 3.5 is acceptable to use while operating AutoTrac

but, the lower the number, the more precise the steering

accuracy will be.

DK01672,00001E2 -19-15NOV11-2/2

121511

20-10

PN=18

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

PDOP Operating Values

StarFire 3000 - Satellites

A—SkyPlot tab

B—Graph tab

C—PDOP

PDOP operating values should remain BELOW 3.5

high PDOP values (4 to 20+) will be experienced for

DURING ALL AUTOTRAC OPERATIONS, especially RTK

upwards of 15 minutes (under normal conditions).

high precision operations. As the value of PDOP rises

It is important to monitor PDOP along with GPS signal

above 3.5, position accuracy will be compromised.

quality while performing field operations.

As a rule, when the GPS receiver is warming up from

being in a powered off state and gathering satellite signals

JS56696,0000805 -19-15APR10-1/1

121511

20-11

PN=19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

StarFire Signal Monitoring System

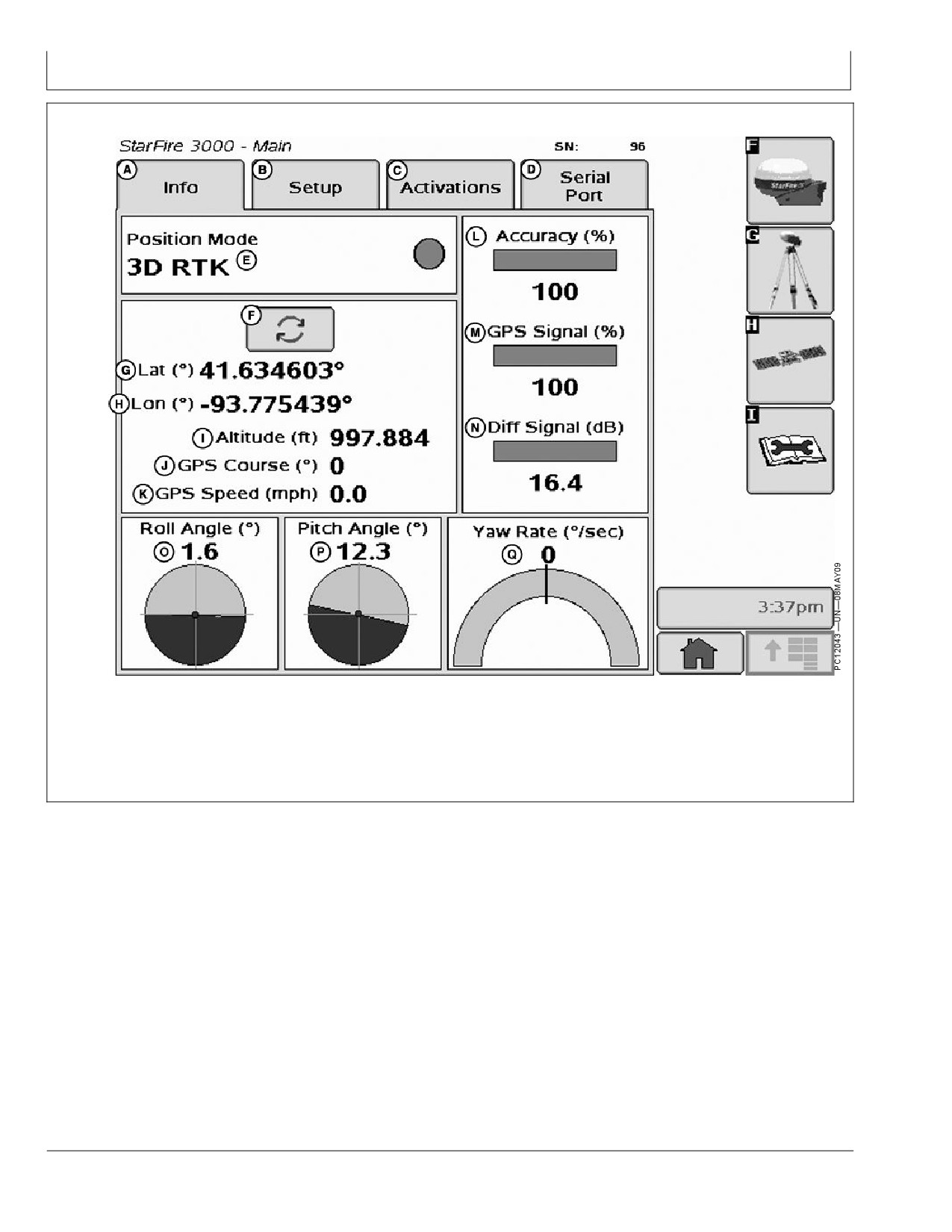

StarFire 3000 Main

A—Info tab

F— Degrees/Minutes/Seconds to

K—GPS Speed

P—Pitch Angle

B—Setup tab

Decimal Toggle

L— Accuracy

Q—Yaw Rate

C—Activations tab

G—Latitude

M—GPS Signal

D—Serial Port tab

H—Longitude

N—Differential Signal

E—Position Mode

I— Altitude

O—Roll Angle

J— GPS Course

Continued on next page

JS56696,0000806 -19-15APR10-1/5

121511

20-12

PN=20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

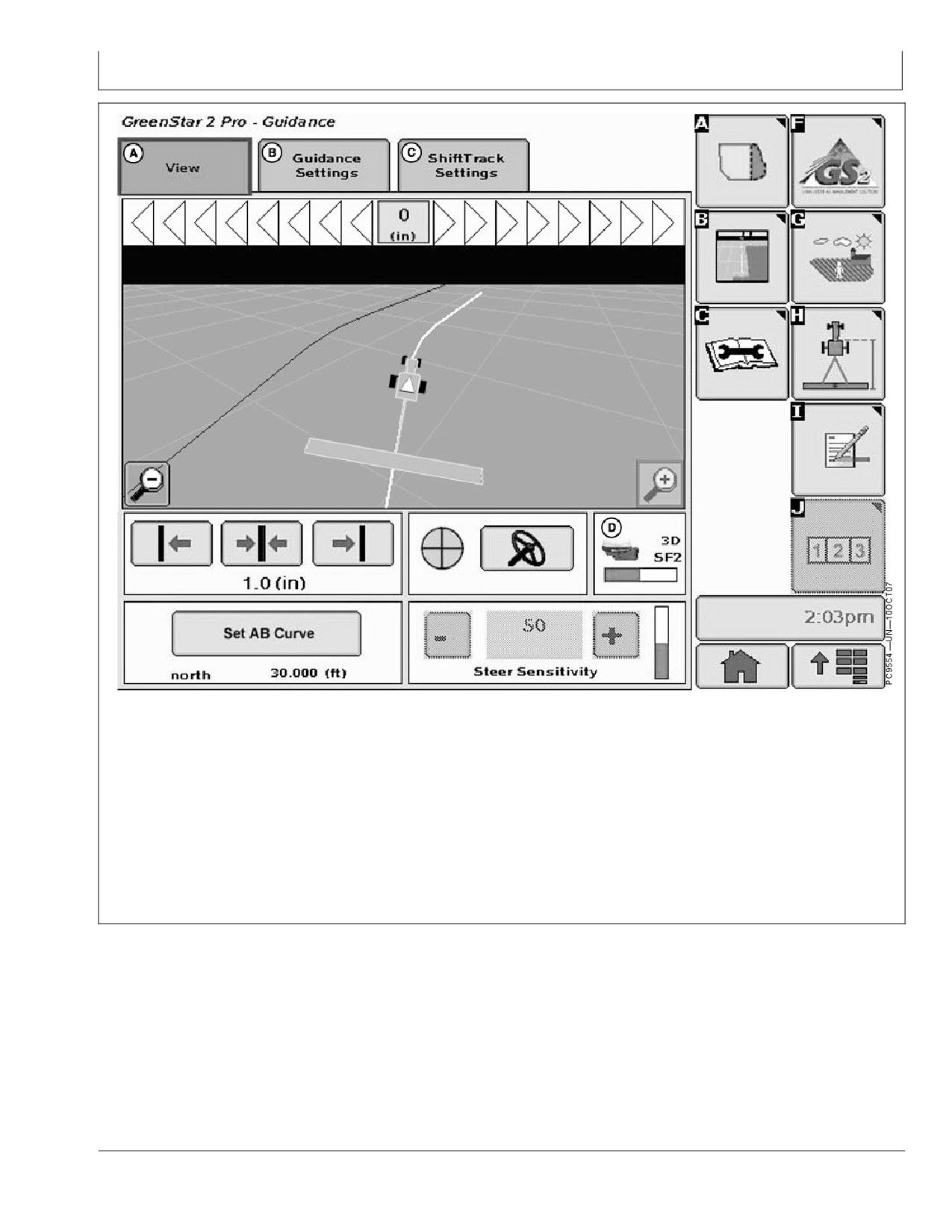

GreenStar2 Pro - Guidance

A—View

B—Guidance Settings

C—ShiftTrack Settings

D—Signal Quality

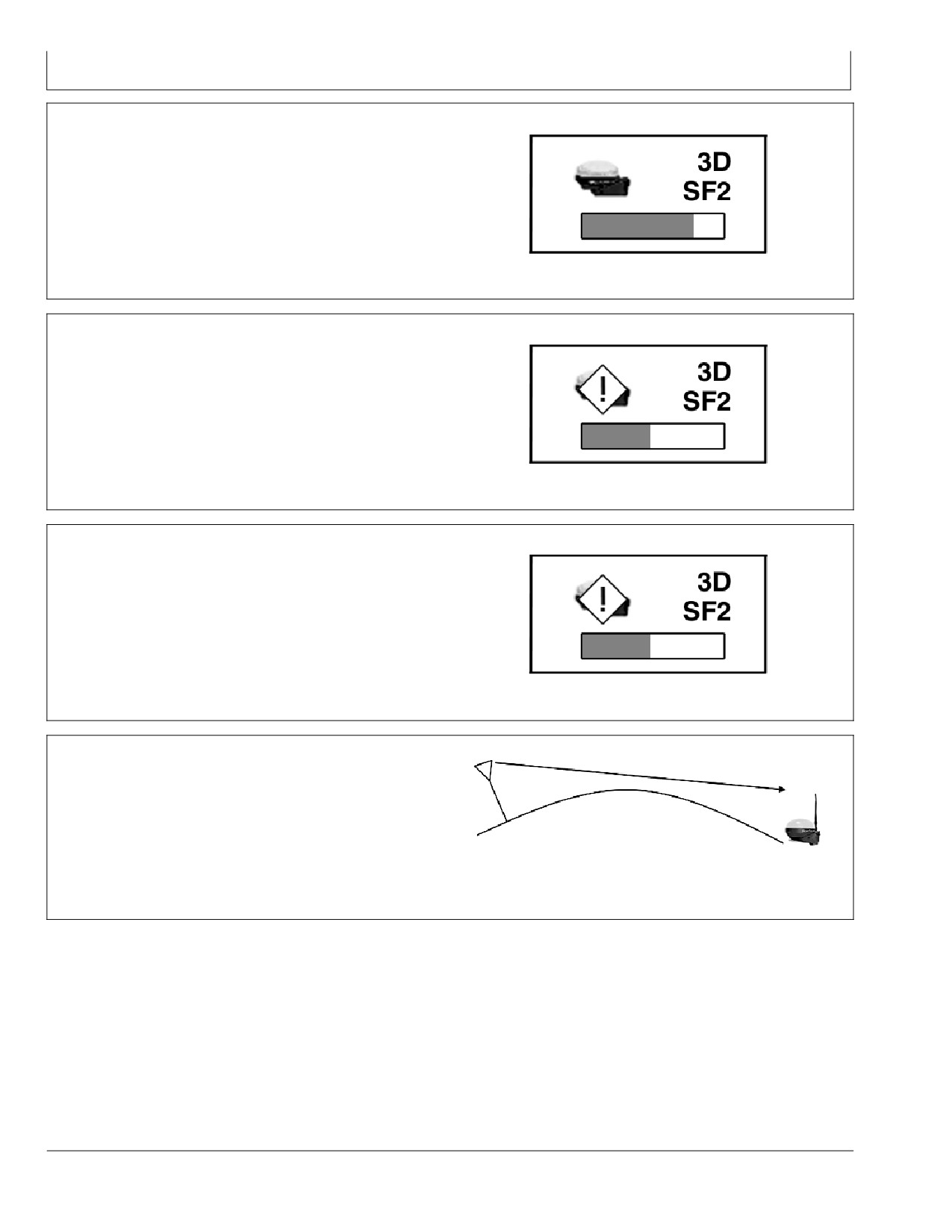

The GS2 alerts the operator when the current StarFire

NOTE: Operating in RTK or RTK-X, both PDOP and

signal is not accurate. There are three levels of this

“Number of Satellites” are used to determine

alarm system (Normal, Marginal, and Poor). The levels

the level of alarm.

are determined both by the StarFire Receiver's PDOP

value and the number of satellites being tracked. It is

Operating at a signal level less than RTK (SF2,

recommend that if the StarFire receiver is being used

SF1, WAAS, ect.) only PDOP will be used to

in high accuracy operations that care be taken when

determine the level of alarm.

the StarFire Signal Monitoring system indicates that

the current status is Marginal or Poor, as accuracy

degradation may occur.

Continued on next page

JS56696,0000806 -19-15APR10-2/5

121511

20-13

PN=21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

PC9387 —UN—17OCT06

Normal

• Green Bar

•

Normal Operating Range

• Acceptable range for high accuracy operations

•

PDOP value: 0 - 3.5

• 6 or more satellites in solution

Normal

JS56696,0000806

-19-15APR10-3/5

PC9388 —UN—17OCT07

Marginal

• Orange bar with permanent operator alert sign

•

Marginal operating range

• Moderate risk of accuracy degradation

•

PDOP value: 3.5 - 4.5

• 5 satellites in solution

Marginal

JS56696,0000806

-19-15APR10-4/5

PC9388 —UN—17OCT07

Poor

• Red bar and flashing operator alert sign

•

Poor operating range

• Significant risk of accuracy degradation - high accuracy

operations are not advised

• PDOP value greater than 4.6

•

4 satellites or less in solution

Poor

JS56696,0000806

-19-15APR10-5/5

PC9393 —UN—23OCT06

Antenna Height

RTK Shared Base Station: Antenna Height

In order to maintain a good RTK Radio link, the antenna

must be mounted high enough to radiate over the earth’s

curvature and any obstacles. As shown in the figure, the

curve of the earth can block the signal from the RTK link.

If the radiating base station radio antenna is mounted too

low, the broadcasting range will be drastically reduced.

JS56696,0000807

-19-15APR10-1/1

121511

20-14

PN=22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

Specific Tower Setup Information

was built to be buried underground, so it is suggested to

bury all extra harness underground to protect the harness.

It is recommended that the receiver be, at minimum, 9.1

m (30 ft) away from the tower to prevent both Shading

After deciding what structure that you will be mounting

and Multipathing. This distance may vary depending on

your base station on, there are five different ways to set

the frame design of the tower or structure that you are

up your base station.

mounting it around.

• Utilizing Both The 91 m (300 ft) RTK Extension Harness

When using the 91 m (300 ft) extension harness, do not

And Low Loss Coax Cable

cut the harness to the length needed. This harness has

• Utilizing The RTK Extension Harness

built in voltage protection and is shielded. Cutting the

• Utilizing A Repeater

harness will limit the effectiveness of the harness and will

• Utilizing Just Low Loss Coax Cable

cause failures of either the radio or the receiver due to

• Leaving The Radio And Receiver As A Single Unit

static electricity build up on the harness. This harness

JS56696,0000808 -19-15APR10-1/1

Utilizing The RTK Extension Harness

This base station setup allows you to mount the receiver

at a secure location and mounting the radio, with antenna,

to an elevated position, and utilizing 91 m (300 ft) of

RS232 cable between the receiver and radio.

A—Radio mounted on tower

B—Base Station Receiver

JS56696,000080A -19-15APR10-1/1

Utilizing Just Low Loss Coax Cable

This base station set up leaves the receiver and radio in a

secure location and using low loss coax cable running to

the antenna at an elevated position.

A—Receiver and Radio

B—Coax Cable

JS56696,000080C -19-15APR10-1/1

121511

20-15

PN=23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

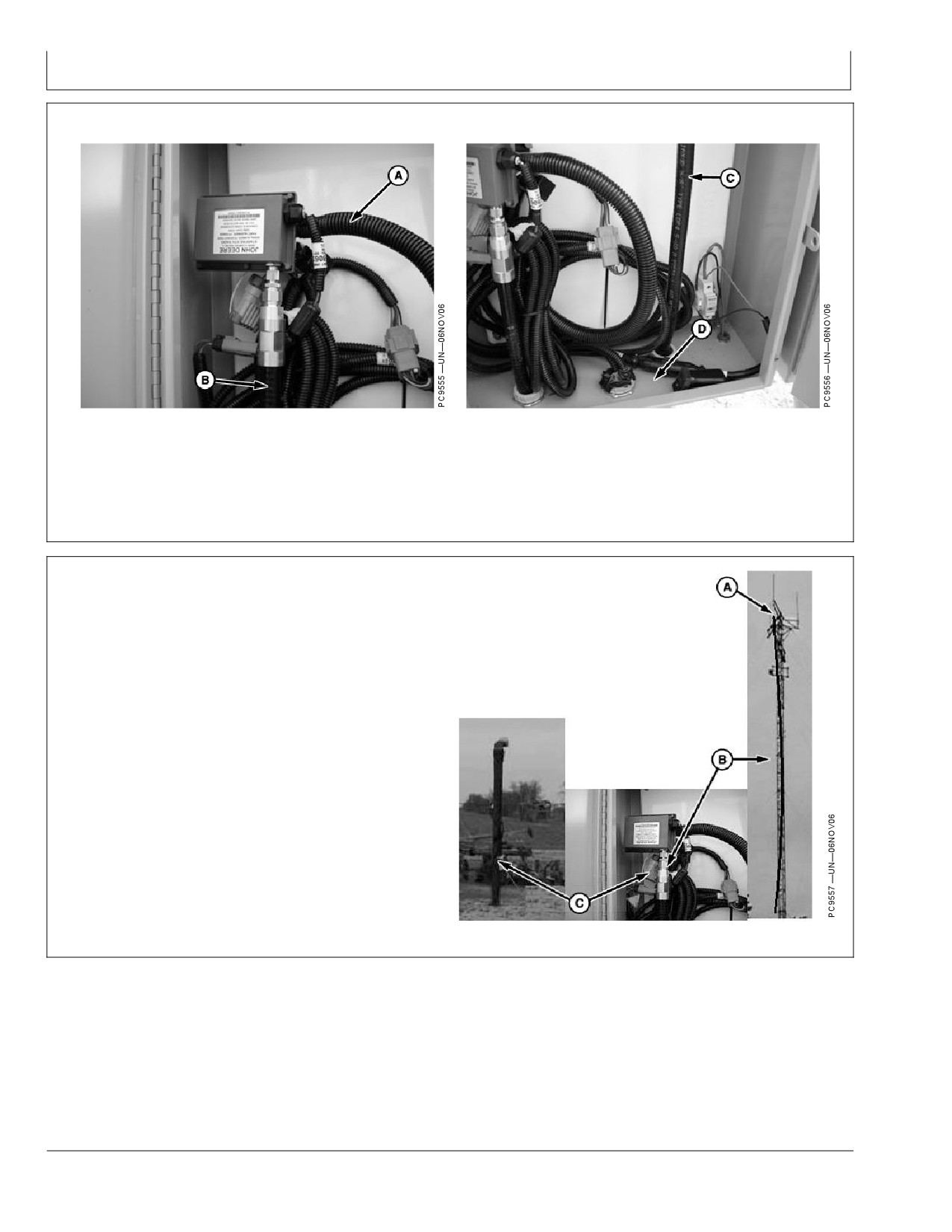

Utilizing Both The 91 m (300 ft) RTK Extension Harness And Low Loss Coax Cable

A—91.4 m (300 ft) RS232 Cable

B—Coax cable connection from C—Coax running up tower to

D—Coax looped under electrical

from receiver

antenna

antenna

box

This base station setup allows the placement of the

receiver to be up to 91.4 m (300 ft) away from the radio,

giving the base station an absolute clear view of the sky.

JS56696,0000809 -19-15APR10-1/2

The radio, usually installed in a secure location at the

bottom of a tower, is then connected to low loss coax that

is ran up the tower to the antenna.

A—Antenna

C—91.4 m (300 ft) RS232 Cable

B—Low-Loss Coax Cable

JS56696,0000809 -19-15APR10-2/2

121511

20-16

PN=24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Base Station Setup

Utilizing A Repeater

This base station setup allows the placement of the

receiver and radio in a location with no obstructions.

A repeater, with its own power source, is placed at an

elevated location. The base station radio sends its signal

up to the repeater and the repeater then sends out the

signal.

NOTE: With this type of base station setup, no other

repeaters can be used with the base station.

JS56696,000080B -19-15APR10-1/1

Leaving The Radio And Receiver As A Single

Unit

This base station setup keeps the receiver and radio as a

single unit usually mounted in an elevated location.

IMPORTANT: Receiver must have a clear view of the

sky and must be free of Multipathing.

The receiver must not move. Any movement

of the receiver will result in movement of

the vehicle receivers.

JS56696,000080D -19-15APR10-1/1

121511

20-17

PN=25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

PC8663 —UN—05AUG05

RTK softkey

Allows for setup and display of RTK information

• Operating Mode

• RTK Network Configuration

MENU button

PC12042 —UN—08MAY09

• Base Station Data

• Radio Data

RTK can be operated in six modes

• OFF

• Vehicle

• Vehicle Repeater

StarFire 3000 button

• Repeater

PC8681 —UN—05AUG05

• Quick Survey Base

• Absolute Base

IMPORTANT: Anytime the radio is disconnected,

power must be cycled at the GPS receiver

before continuing.

Vehicle Mode Select for receiver on vehicle.

RTK softkey

Vehicle Repeater Mode Allows for the vehicle to accept

of corrected position. For this reason, it is important to

and repeat RTK corrections.

mount receiver to a fixed position like a building or post

mounted in concrete.

Repeater Mode A repeater is required if obstructions (i.e

trees, hill, etc.) exist between base station and vehicle(s).

OFF Mode This mode disables all RTK functionality in

receiver. RTK Operating Mode must be OFF for normal

SF1 or SF2 operation on SF2-licensed receiver.

Quick Survey Base Mode Select Quick Survey Base

NOTE: Radio can be configured to act separately as

Mode if exact location of guidance tracks will not be used

repeater. A repeater is required if obstructions

for future applications. If Quick Survey Base Mode is used

(i.e. trees, hills, etc) exist between base

to establish rows or paths used at a later date, location or

station and vehicle(s).

Track 0 must be stored using Current Track 0 in Guidance

Setup - Set Track 0. When Track 0 is recalled, a one-time

A repeater consists of:

use of Shift Track feature is needed to align vehicle on

previous tracks. See Setup Quick Survey Base Mode

• Radio (configured as a repeater)

section.

• Harness

• Mounting Bracket

NOTE: Quick Survey Base Mode requires a 15 minute self

• 12 volt Power Source

survey to be conducted on location before first use.

To configure radio as repeater:

Select: MENU button >> StarFire 3000 button >> RTK

Absolute Survey Base Mode Select Absolute Survey

softkey

Base Mode if exact location of guidance tracks need

Select RTK Operating Mode (Vehicle, Quick Survey Base

to be stored for future guidance applications without

or Absolute Base).

relying on visual reference for track position to align

using Shift Track feature. Track 0 must be stored using

NOTE: A radio can be configured as a repeater from

Current Track 0 in Guidance Setup - Set Track 0 in order

any RTK Operating Mode.

to follow previously used tracks. Absolute Base Mode

requires 24-hour self survey to be conducted on location

1. Disconnect original radio from receiver.

before first use. After survey is completed, base station

2. Connect radio to be configured to receiver RTK

will then transmit corrections. If base station is moved to

harness.

another position and then returned to original surveyed

3. Check that the radio serial number and software

position, it is important that base station is mounted in

version are displayed.

exact same position. Any difference between original

surveyed position and mounted position will result in offset

Continued on next page

DK01672,00001C1 -19-11NOV11-1/2

121511

25-1

PN=26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

Vehicle

StarFire - RTK

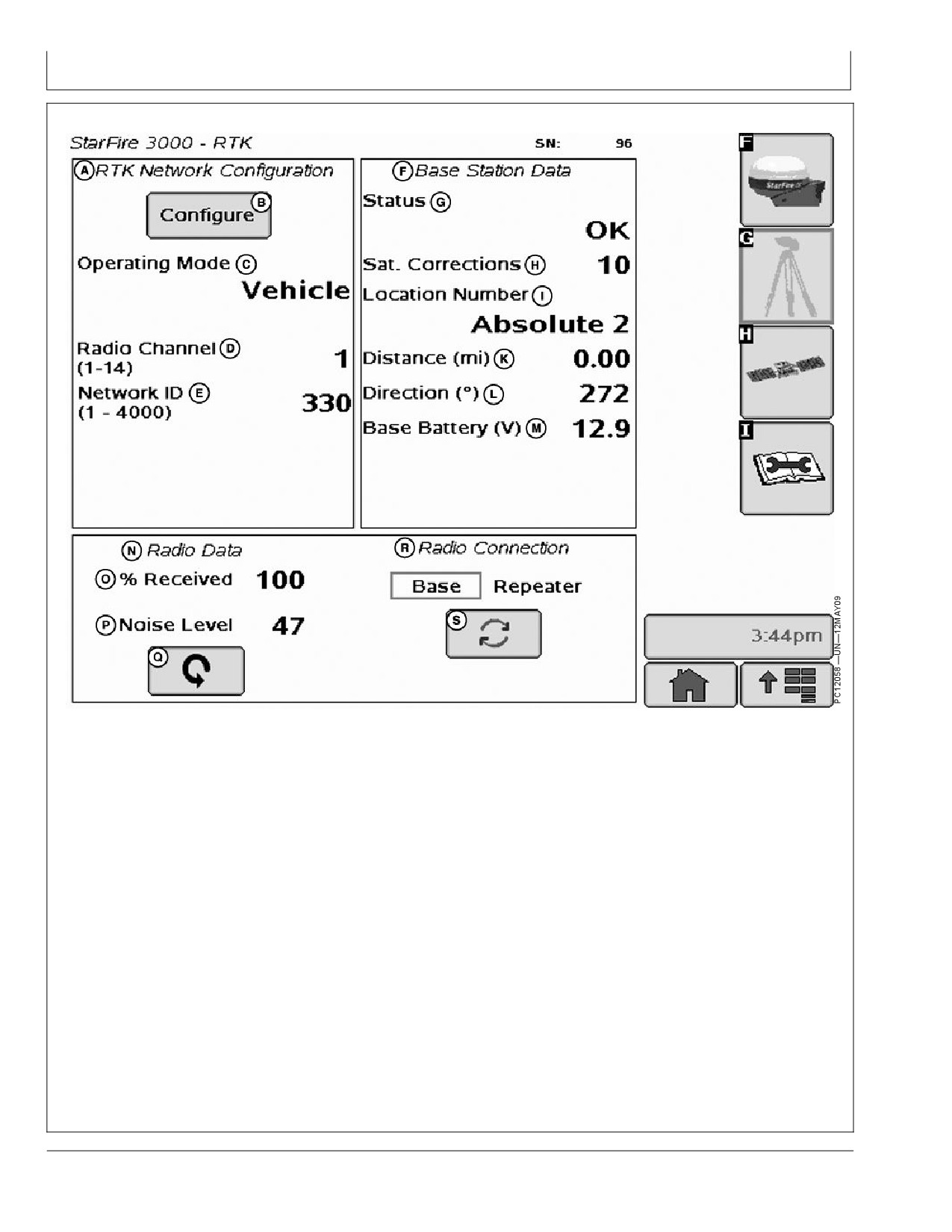

A—RTK Network Configuration

F— Base Station Data

L— Direction (degrees)

Q—Refresh button

B—Configure button

G—Status

M—Base Battery (V)

R—Radio Connection

C—Operating Mode

H—Satellite Corrections

N—Radio Data

S—Radio Connection Toggle

D—Radio Channel

I— Location Number

O—Percent Received

button

E—Network ID

K—Distance

P—Noise Level

IMPORTANT: Base station receiver and vehicle

receiver must be setup before operating

RTK. See RTK Setup sections.

Extend Mode (RTK-X) If communication between base

station and vehicle radio is lost for more than 10 seconds,

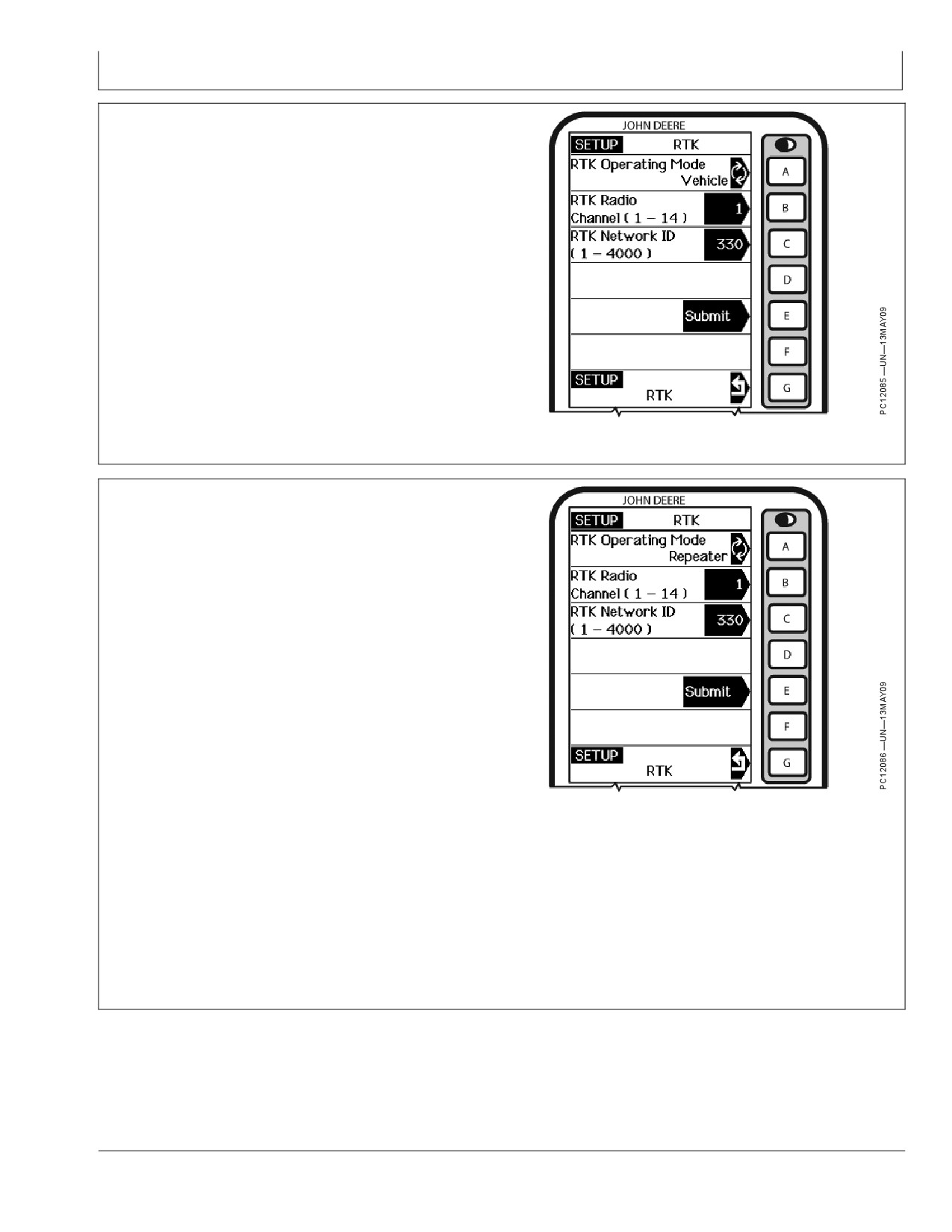

Select: MENU button >> StarFire 3000 button >> RTK

vehicle receiver will automatically switch to Extend Mode

softkey >> CONFIGURE button >> OPERATING MODE

and will maintain RTK accuracy for a period of time. If the

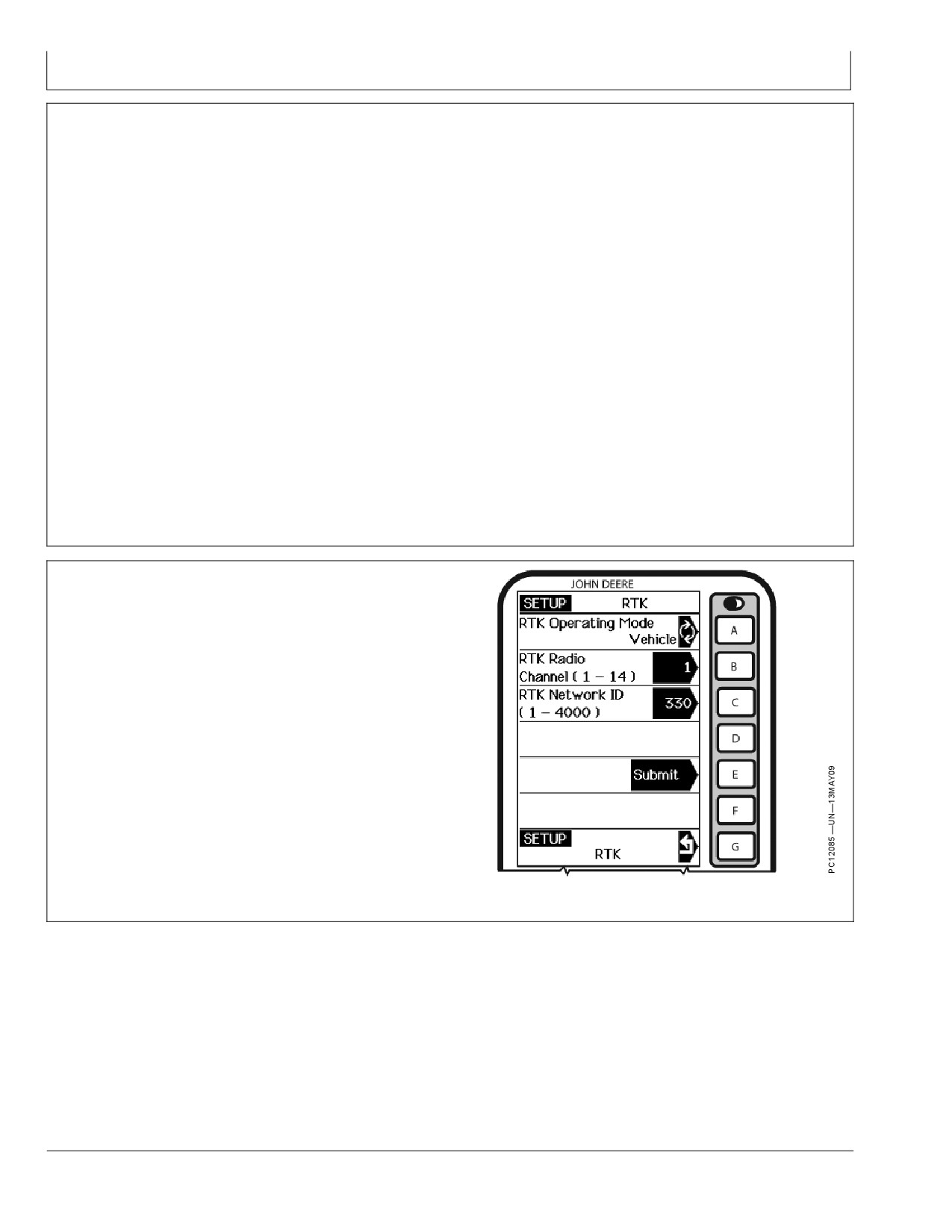

drop down box >> VEHICLE

base station has been navigating in SF2 for less than 1

hour, the RTK-X timeout can vary from 2 minutes to 15

When vehicle receiver is powered-up, No GPS, No Diff

minutes depending on the accuracy of the base station’s

will be displayed on Guidance View or home page screen

SF2 solution. As the base station solution pulls in, more

until an initial position is determined. When base station

RTK-X time will be allowed. After the base station has

transmits correction signal, 3D RTK will be displayed.

been navigating in SF2 mode for 1 hour, the vehicle

NOTE: If communication loss occurs WITHIN first

receiver will have 15 minutes of RTK-X after the radio

hour of base station operation, Extend Mode will

communication is lost. If base station communication is

provide RTK accuracy for two minutes.

not re-established after Extend period, receiver will default

to WAAS in North America, or NO DIFF where WAAS

If Communication loss occurs AFTER first hour of

is not available. To re-establish communication, move

base station operation, Extend Mode will provide

vehicle to a location where line of sight to base station can

RTK accuracy for 15 minutes.

be established.

Continued on next page

DK01672,00001BE -19-11NOV11-1/2

121511

25-3

PN=28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

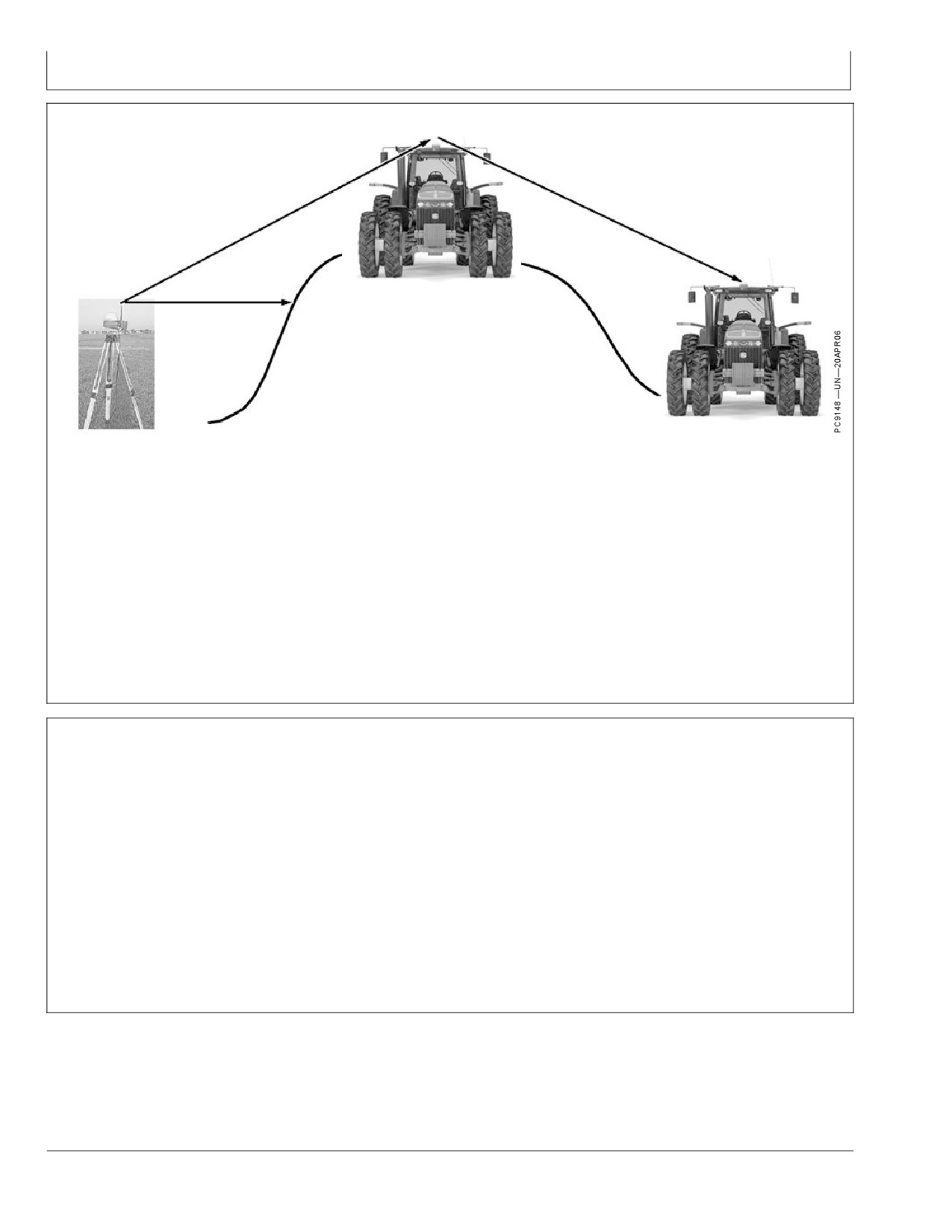

Vehicle Repeater

Press: MENU button >> StarFire 3000 button >> RTK

transmitting the base correction signal to another RTK

Softkey

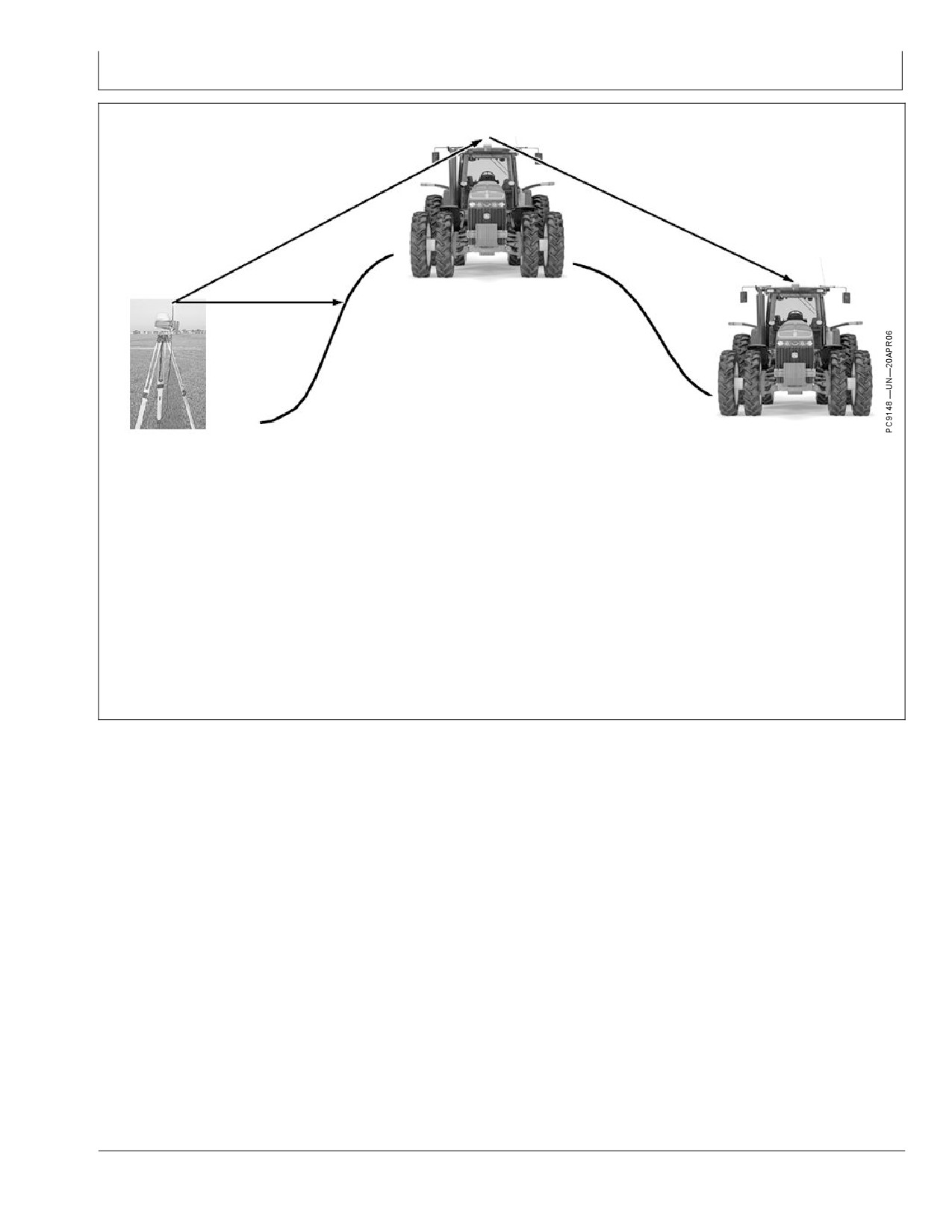

vehicle that does not have line-of-sight to the base station.

Select “Vehicle Repeater” from Operating Mode list box.

The ‘Vehicle Repeater’ needs to be between the base

station and the ‘Vehicle’. The ‘Vehicle Repeater’ must be

In this mode the RTK vehicle radio not only receives

able to communicate with the base station. The ‘Vehicle’

messages but also rebroadcasts them (similar to a RTK

must then have either line of sight communication to the

repeater) to other RTK vehicles in close proximity.

base station or ‘Vehicle Repeater’.

NOTE: Vehicle Repeater is identical to the Vehicle

IMPORTANT: There should be only ONE Vehicle

mode with the addition of having the radio

Repeater or Repeater in the same vicinity

rebroadcast the RTK messages.

with the same Network ID.

The Vehicle Repeater mode allows an RTK vehicle

to function normally as an RTK vehicle while also

JS56696,00007ED -19-15APR10-1/1

Quick Survey Mode

NOTE: Display is not required after base station receiver

If power is removed from base station (but not moved)

has been configured to operate in Quick Survey

power can be restored and same base station position

Mode and RTK Radio Frequency, Network ID

will be used for corrections. If previously used Track 0 is

and Radio Channel have been set.

recalled, Shift Track may not be needed.

Connect display to base station.

Press: MENU button >> StarFire 3000 button >> RTK

If power is removed and base station is moved a new

softkey

position will be calculated when power is restored. If

previously used Track 0 is recalled, Shift Track will have

Select Quick Survey Base from Operating Mode list box.

to be used to center Track 0 on previous vehicle track.

NOTE: Quick Survey Base Mode allows base

station to broadcast corrections after receiver

calculates GPS position.

JS56696,00007EE -19-15APR10-1/1

121511

25-5

PN=30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

Absolute Base Mode

IMPORTANT: Absolute Base Mode requires base

receiver to be mounted in a rigid position.

Tripod is not recommended.

NOTE: Display is not required after base station receiver

has been configured to operate in Absolute Survey

Base Mode and RTK Radio Frequency, Network

ID and Radio Channel have been set.

Connect Display to Base Station.

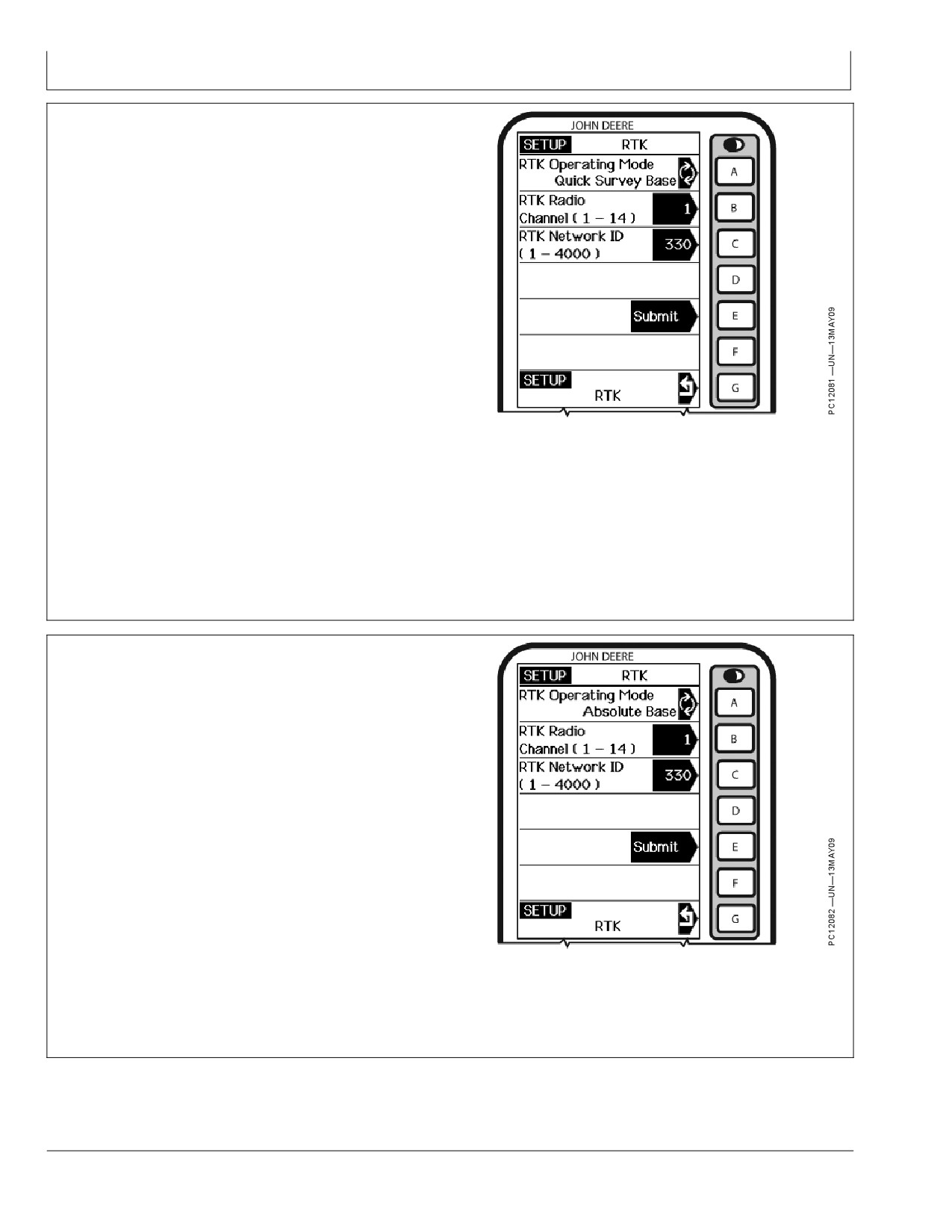

Press: MENU >> StarFire 3000 button >> RTK softkey

Select Configure button.

Select Absolute Base from Operating Mode drop-down

and set other settings.

After radio is configured, select the Edit Store RTK Base

button on lower right.

A 24-hour survey has to be performed and saved to a

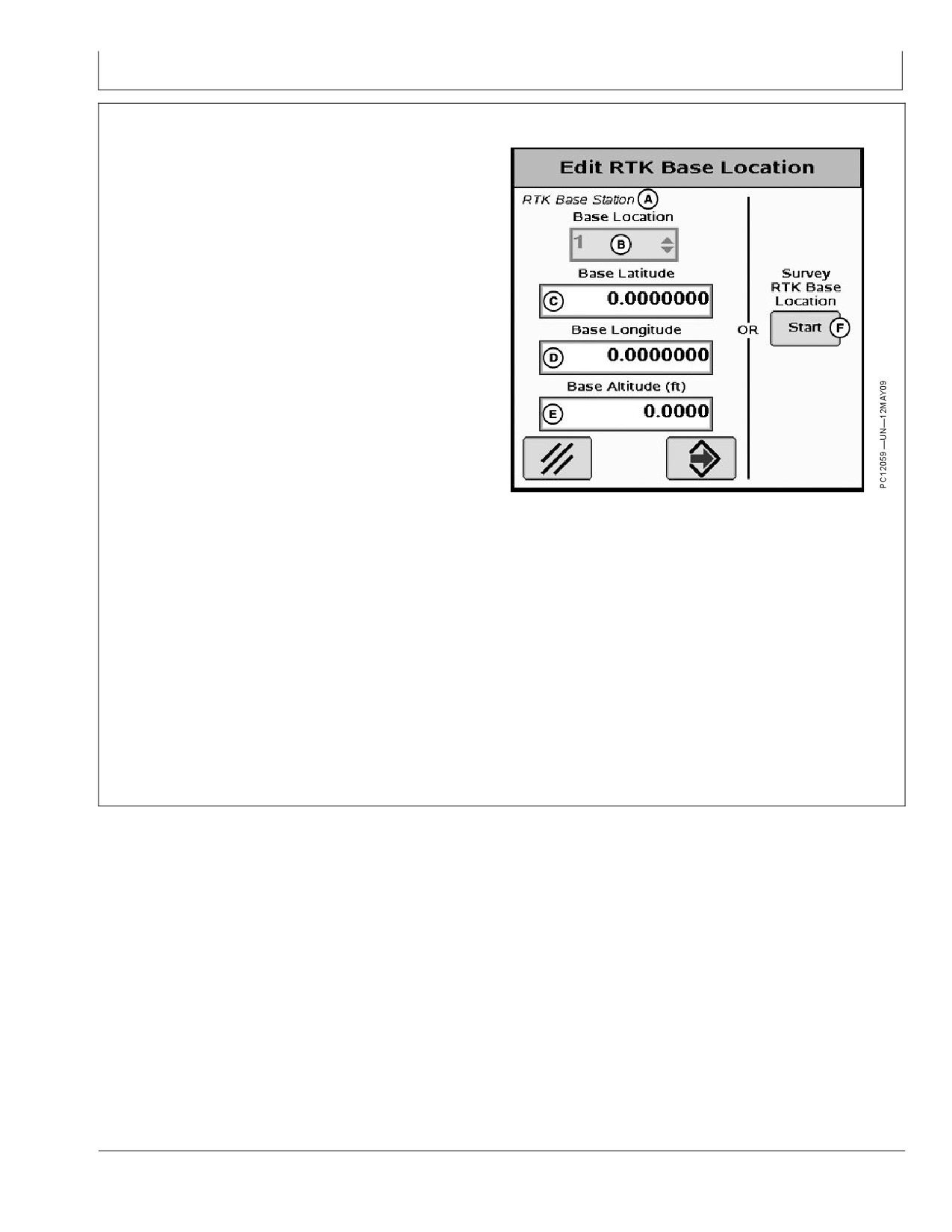

Survey RTK Base Location

RTK Base Location (1-200).

NOTE: Enter unique location number each time base

A—RTK Base Station

D—Base Longitude

station is moved to new mounting location

B—Base Location

E—Base Altitude

(i.e. location 1 = West 40, location 2 = Farm

C—Base Latitude

F— Survey RTK Base Location

Start button

Shop). Edit Stored RTK Base: Allows operator

to setup Absolute Base Station Locations and

conduct 24-hour survey or enter in known location

coordinates. Unknown Coordinates: Press START

button located under Edit Stored RTK Base.

After (24 hour) self survey is complete, base

station coordinates will automatically be stored

and associated with base location number (1 -

200). Verify base station coordinates, Press START

button located under Edit Stored RTK Base while in

Absolute Base operating mode and choose base

location from base location drop-down box.

Continued on next page

JS56696,00007EF -19-15APR10-1/2

121511

25-6

PN=31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

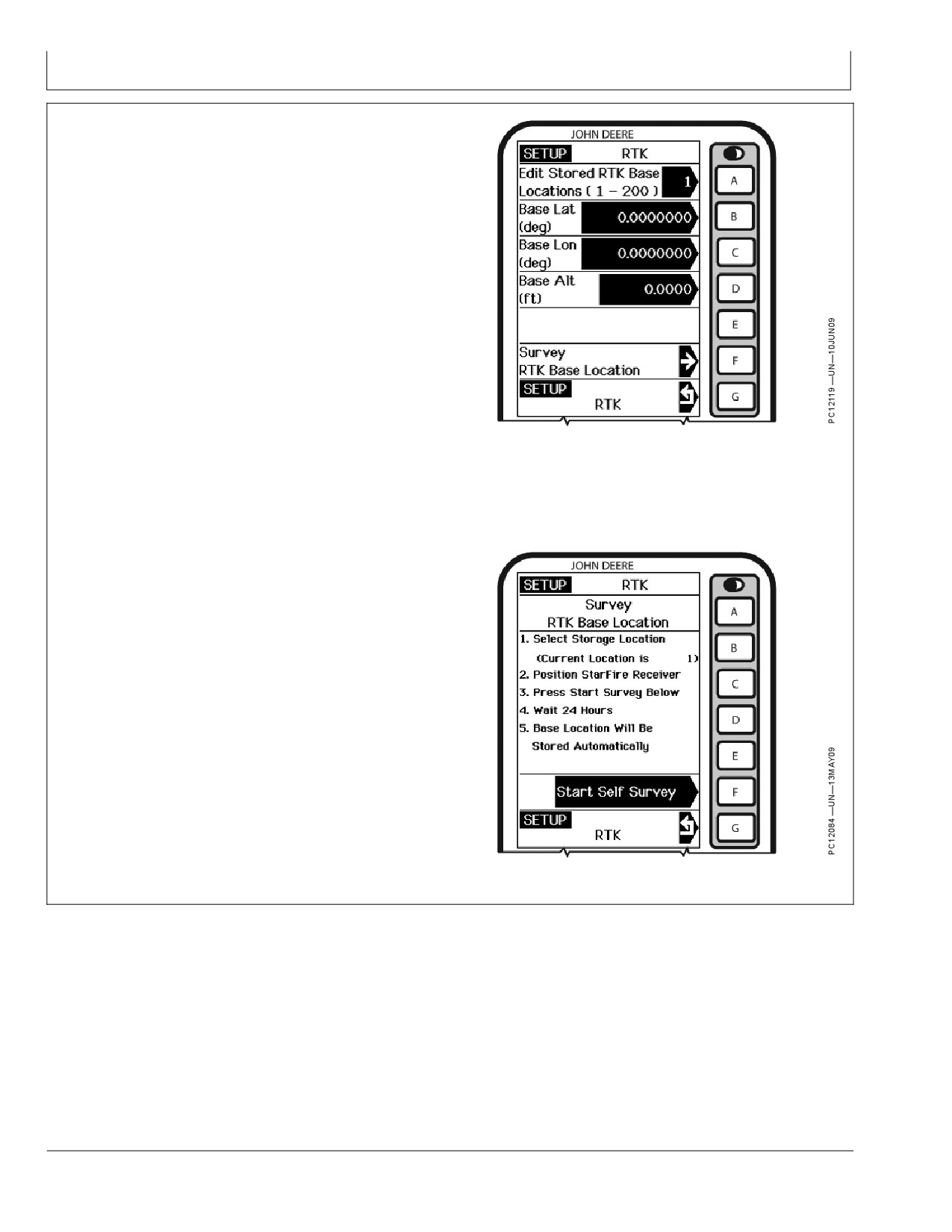

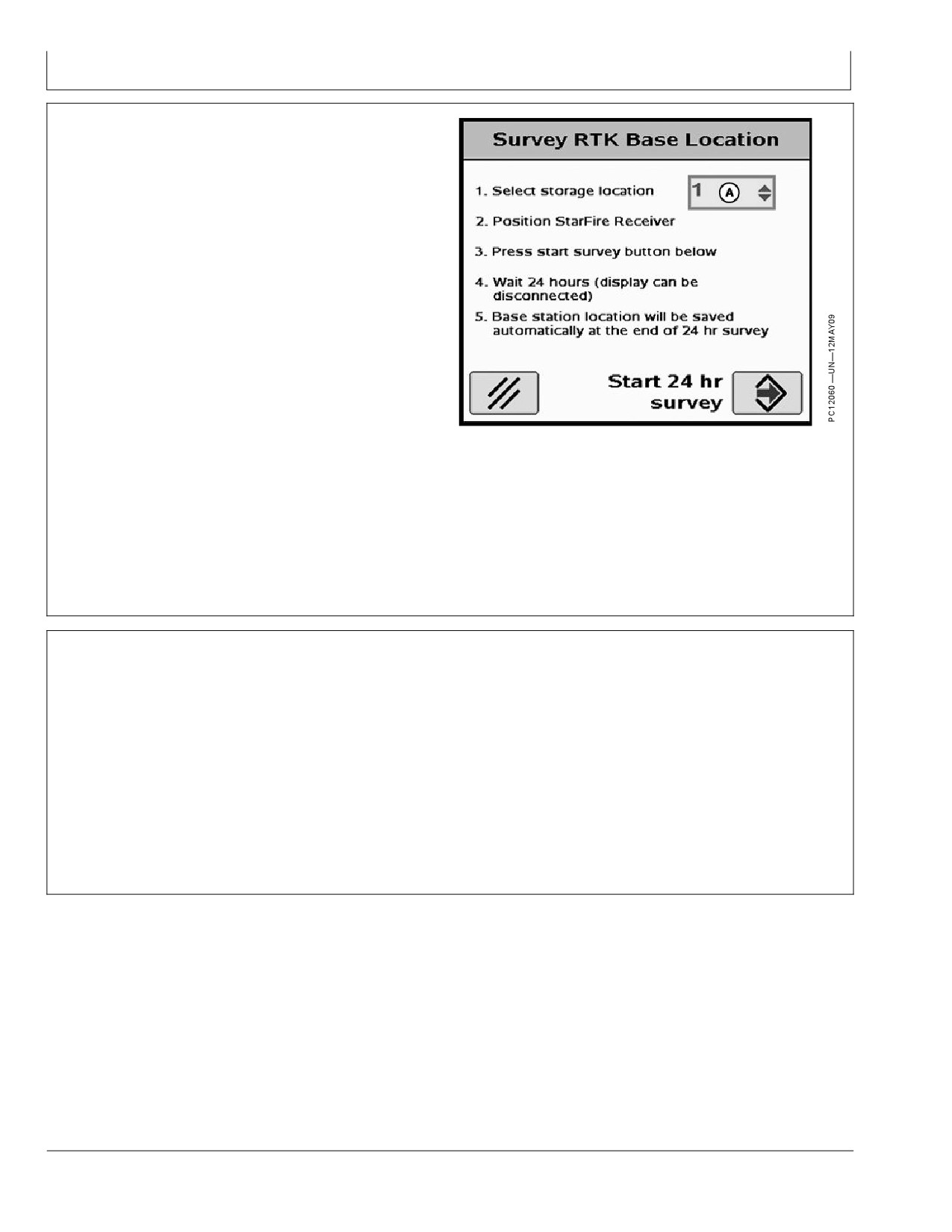

Start 24 hour Self Survey

1. Press START button located under Survey RTK Base

Location.

2. Select Storage location from drop-down box (1 - 200)

3. Press START button (Starts 24 hour survey)

NOTE: Display can be removed while survey

is in progress.

After 24 hour survey is complete, base station will

automatically store surveyed coordinates and begin

transmitting corrections.

IMPORTANT: Manually record coordinates

and elevation and store in safe location.

These coordinates may be used to enter

previously surveyed base station location

into different receiver.

NOTE: Absolute Base Mode, coordinates may be

manually entered, if known from previous survey.

See Known Location section below.

A—Select Storage Location

Known Location

3. Select Base Longitude - enter value (deg)

Press START button located under Edit Stored RTK Base.

4. Select Base Altitude - enter value (ft)

5. Press ENTER button

1. Select desired Base Location from drop-down box

(1-200)

2. Select Base Latitude - enter value (deg)

JS56696,00007EF -19-15APR10-2/2

RTK Network Configuration

Network ID - RTK

Radio Channel - RTK

NOTE: 4000 network ID’s are available, default ID is 1.

NOTE: 14 Radio Channels are available. The

default Radio Channel is 1.

Press input box and enter value (1 - 4000)

Press input box and enter value (1 - 14)

Network ID for base station and vehicle receiver must

match. If more than one base station with same Network

The Radio Channel may be changed if other RTK systems

ID numbers are within range, vehicle may lock on to either

are operating in area interference is causing decreased

one of the base stations. To prevent this from happening,

base station communication performance.

be sure to use unique network ID.

JS56696,00007F0 -19-15APR10-1/1

121511

25-7

PN=32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

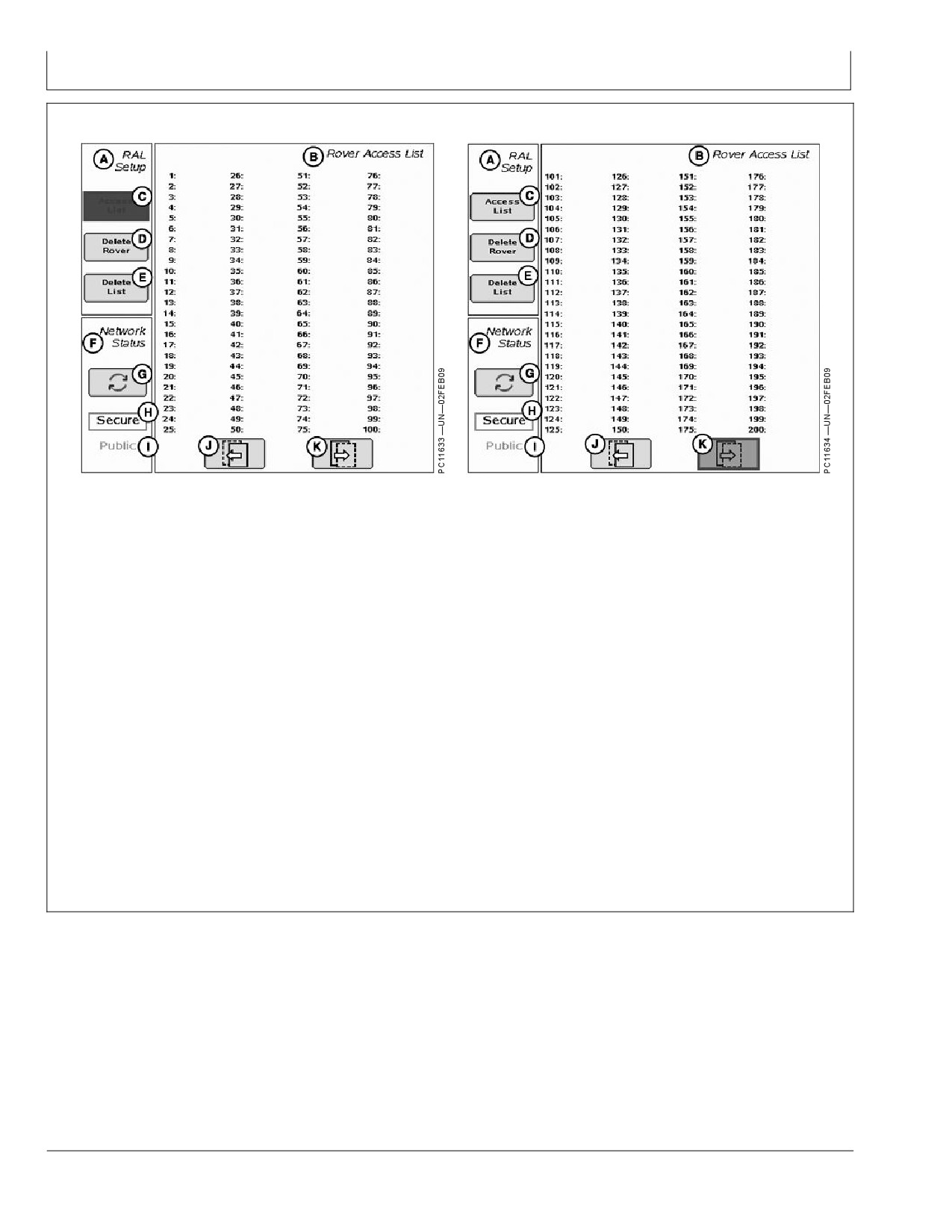

Shared Base Station Security—Setup

A—Rover Access List Setup

D—Delete Rover

G—Toggle Button

J— Previous Page

B—Rover Access List

E—Delete List

H—Secure

K—Next Page

C—Access List

F— Network Status

I— Public

Network ID must be set between 4001 - 4090 to setup and

Delete Rover button (D) allows operator to remove a

use SBS RTK security. When the network ID has been set

receiver from the Access List.

between 4001 - 4090, the SBS RTK Security softkey will

appear. Select this softkey to setup SBS RTK Security.

Delete List button (E) allows operator to clear all inputted

receiver serial numbers from the Access List.

The SBS RTK Network operator will enter into the base

station the serial numbers of RTK vehicle receivers that

SBS Security can be operated in a Public or Secure mode.

are allowed to access the RTK corrections from that base

station. RTK vehicle serial numbers can be added and

• Public - This mode does not restrict RTK vehicles from

removed at any time. Only those rover serial numbers

receiving RTK corrections as long as they have the

that are on the access list on the base station receiver

same Network ID and Frequency as the base station.

will be allowed to access the RTK corrections from the

This mode can be used when conducting a RTK demo

base station.

for potential customers or field days.

• Secure - This mode restricts RTK vehicles from

The StarFire 3000 - Shared Base Station Security screen

receiving RTK corrections if their serial numbers are

displays the RTK vehicle receiver serial number and

not entered into the RAL

location it is stored. Only the serial numbers on the RAL

will be able to receive RTK corrections from the base

Network Status (F) can be toggled between secure status

station when RTK Network is in SECURE mode.

(H) and public status (I) using toggle button (G).

Access List button (C) allows operator to input the serial

number of a receiver into the Access List.

Continued on next page

JS56696,00007F2 -19-15APR10-1/4

121511

25-9

PN=34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

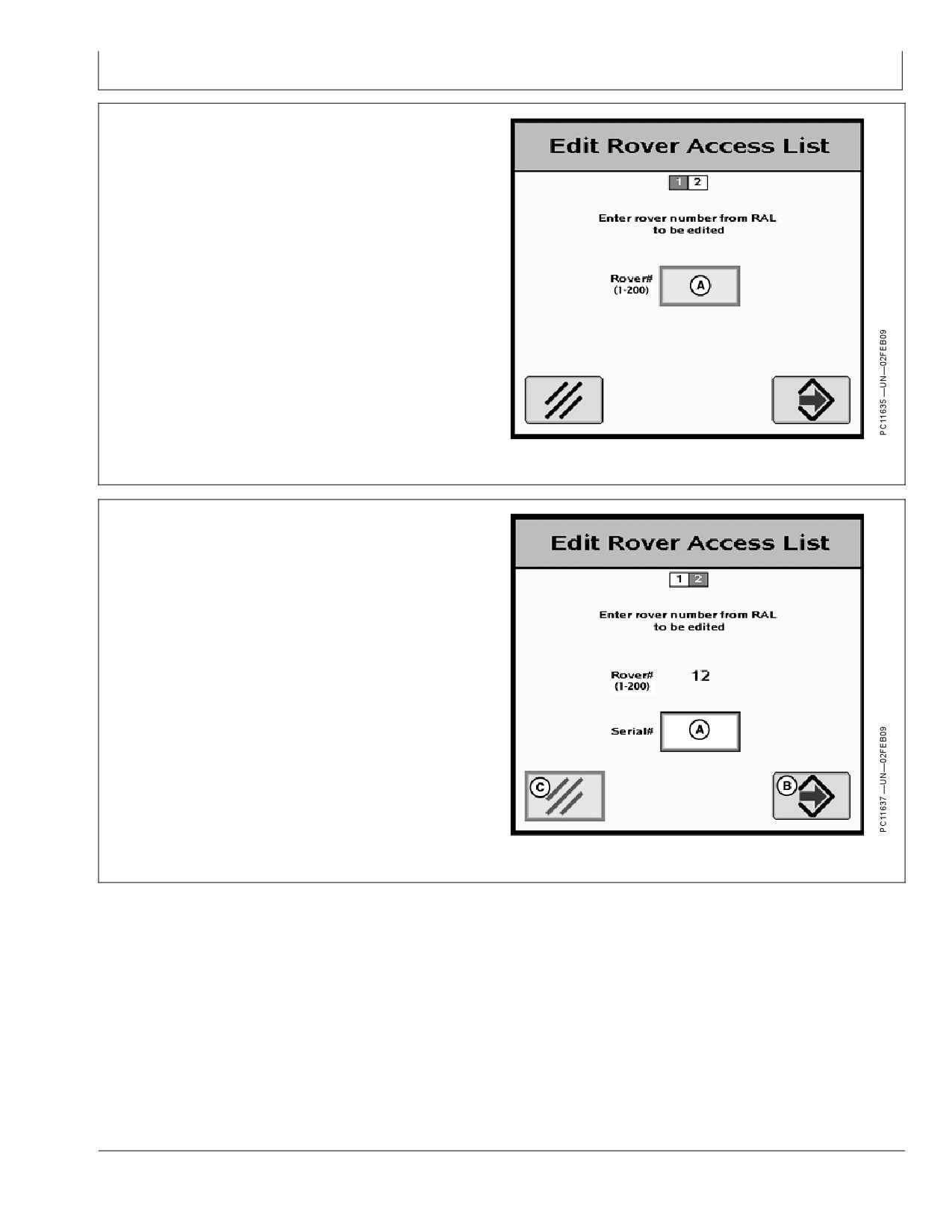

Edit Rover Access List

1. Press Access List button on StarFire 3000 - Shared

Base Station Security screen.

2. Enter a rover number from the Rover Access List in

the entry box.

A—Rover Number (1-200)

Edit Rover Access List — Page 1

JS56696,00007F2 -19-15APR10-2/4

3. Enter the serial number of the vehicle receiver to be

added to the Rover Access List in the entry box (A).

NOTE: The six digit hardware serial number can be

found on StarFire 3000 - Activations tab. Go to

the display in RTK vehicle and press MENU >>

StarFire 3000 >> Activations tab.

4. Press Enter button (B) to put receiver on the Rover

Access List.

5. Press Cancel button (C) to return to Rover Access List

without adding receiver to list.

A—Serial Number

C—Cancel button

B—Enter button

Edit Rover Access List — Page 2

Continued on next page

JS56696,00007F2 -19-15APR10-3/4

121511

25-10

PN=35

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

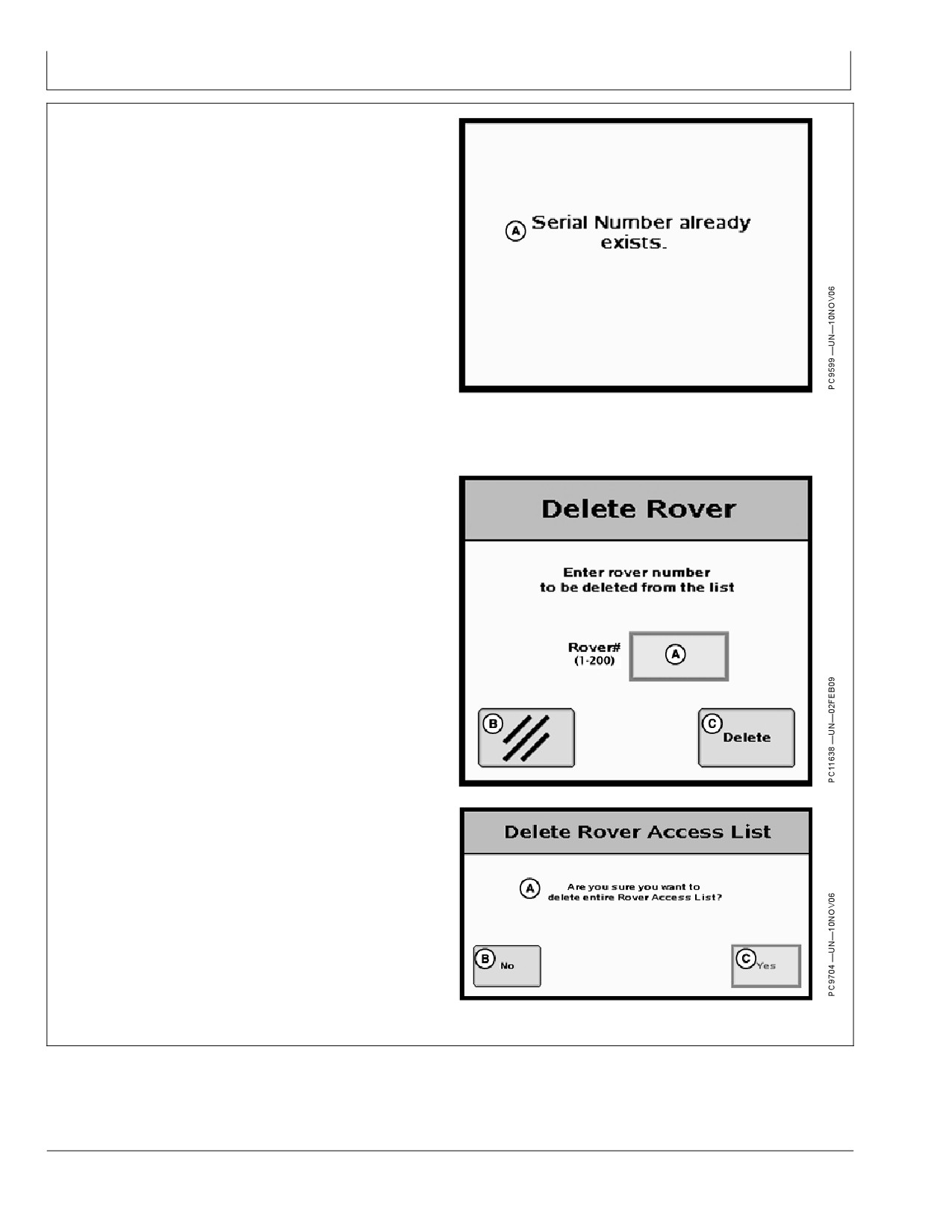

If the serial number is already entered on the Rover

Access List, “Serial Number Already Exists.” will appear

on the screen.

RTK vehicle serial numbers can be deleted individually or

the entire list can be deleted.

Deleting individual entries:

1. Press Delete Rover button on StarFire 3000 - Shared

Base Station Security screen.

2. Enter rover number to be deleted from the list.

3. Press Delete button (C) to delete the rover from the list.

NOTE: Once a RTK vehicle serial number has been

deleted from the RAL, it will take approximately 18

minutes before the RTK vehicle will not longer be

able to operate off of that base station. During this

Duplicate Serial Number

time the vehicle will transition into RTK extend.

A—Serial Number already

NOTE: Verify rover has been deleted by viewing RAL list .

exists

Deleting All Entries:

1. Press Delete List button on StarFire 3000 - Shared

Base Station Security screen.

2. Press Yes button (C) to delete all receivers from the

list..

NOTE: Press No button (B) to return to StarFire 3000

- Shared Base Station Security screen without

deleting all the receivers from the list.

A—Rover Number (1-200)

C—Delete button

B—Cancel button

A—Are you sure you want to

C—Yes

delete entire Rover Access

List?

B—No

Delete Rover

Delete Rover Access List

JS56696,00007F2 -19-15APR10-4/4

121511

25-11

PN=36

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

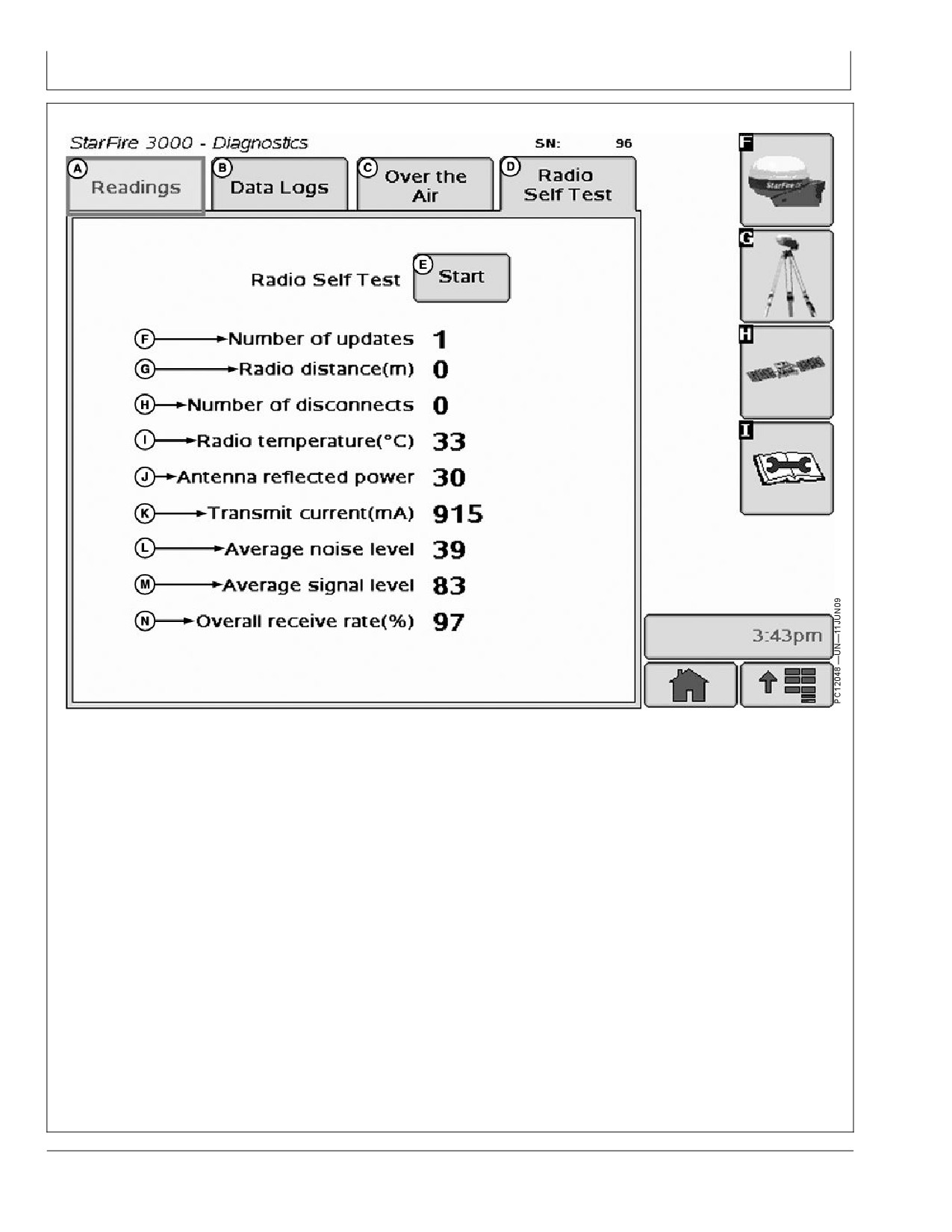

900 MHz RTK—GS2 Display

Radio Self Test

A—Readings tab

E—Radio Self Test Start button

I— Radio Temperature

M—Average Signal Level

B—Data Logs tab

F— Number of Updates

J— Antenna Reflected Power

N—Overall Receive Rate (%)

C—Over the Air tab

G—Radio Distance (m)

K—Transmit Current (mA)

D—Radio Self Test tab

H—Number of Disconnects

L— Average Noise Level

IMPORTANT: The Radio Self Test needs to be

75) generally indicate issues with the antenna, possibly

performed while the vehicle is not moving.

an antenna that is broken.

StarFire 3000 MUST be in RTK mode to

(K) Transmit current — Amount of current consumed

perform the radio self test.

during radio transmission. Acceptable operating range

is approximately 500 mA or less. Value can range any

NOTE: This is an average and putting the radio into

where between 400 and 1000 mA.

test mode will decrease this average until it is

(L) Average Noise level — Level of background noise

put back into operational mode and allowed

and interference seen at this radio. This is an average

to run for several minutes.

reading taken at regular intervals by the radio. Putting the

radio in setup mode (which is what happens during the

(G) Radio Distance — Distance from master to slave

radio test) will affect this reading. Average noise levels

radio.

would be somewhere between 15 and 30. Levels lower

(I) Radio Temperature — Internal temperature of the

than 15 are ok, but levels higher than 30 may start to

radio, measured in degrees Celsius. Acceptable range of

show signs of signal degradation.

values: -40 to +75 degrees Celsius.

(J) Antenna Reflected Power — A voltage ratio used to

indicate problems with the antenna. Higher values (above

Continued on next page

DK01672,000020A -19-01DEC11-1/3

121511

25-13

PN=38

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—GS2 Display

(M) Average signal level — Level of received signal that

(N) Overall receive rate —Percentage of data that was

this radio is seeing from the other radio transmitting to it.

successfully transmitted from master to slave radio on

This value should be at least a value of 15 higher than

the first attempt. Values higher than 75 indicate a good

the noise. If it is not, the link between the two radios is

radio link.

probably not stable and reliable.

DK01672,000020A -19-01DEC11-2/3

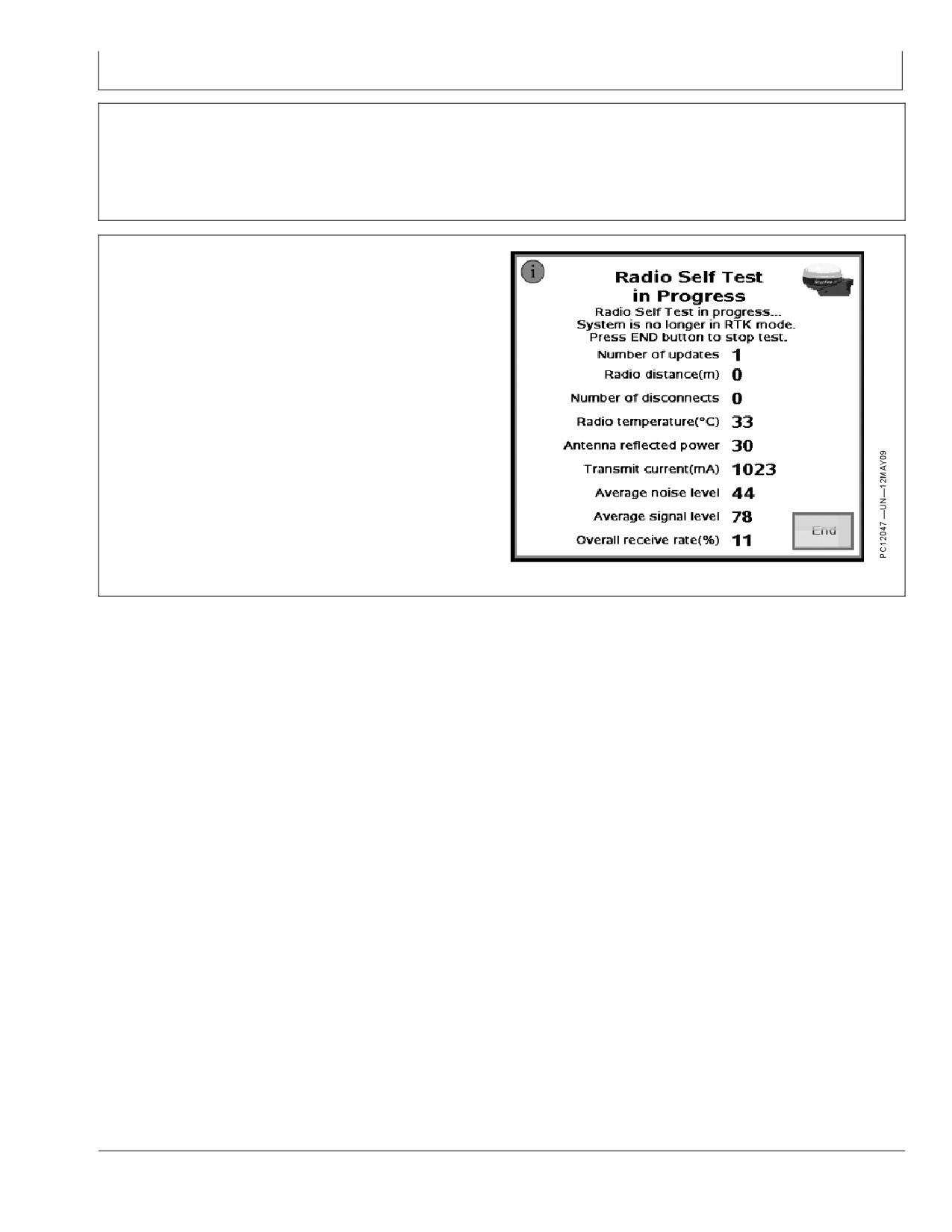

While the test is in progress the screen will read:

Radio Self Test in progress. . .

System is no longer in RTK mode.

Select END button to stop test.

DK01672,000020A -19-01DEC11-3/3

121511

25-14

PN=39

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Operating Mode

IMPORTANT: Before starting SETUP procedures,

enter RTK activation number, see Enter

RTK Activation section.

NOTE: Radio can function in six different modes:

• Vehicle

• Quick Survey Base Mode

• Absolute Base Mode

• Vehicle Repeater

• Repeater

• Off

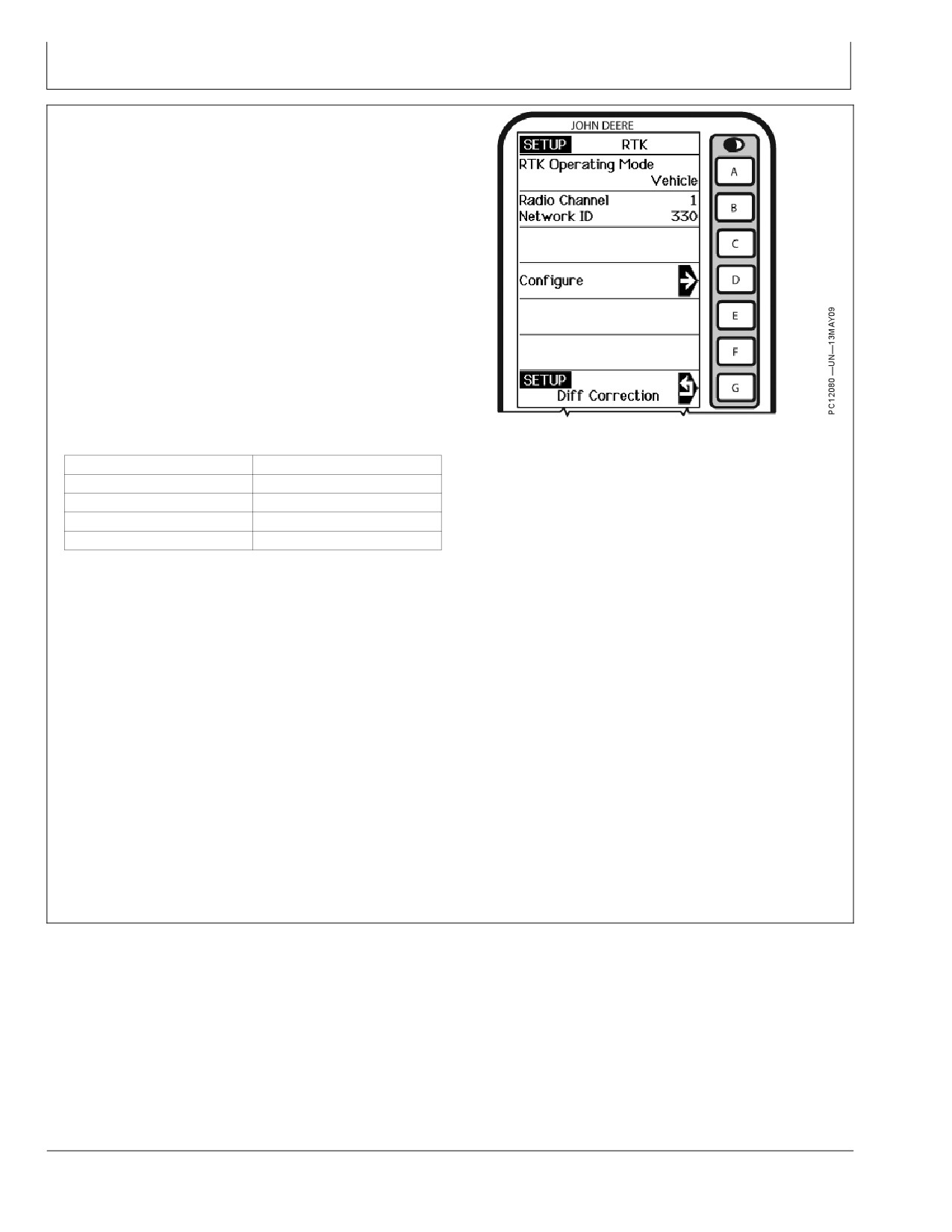

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

Press letter button next to RTK OPERATION MODE and

SETUP - RTK

toggle to desired selection.

Quick Survey Base Mode

Absolute Base Mode

A—RTK Operating Mode

E——

Custom Operations

Drip Tape

B—RTK Radio Channel

F— —

Network ID

G—Return to Differential

Tillage

Strip Till

C——

Correction

Broad-acre Seeding

Controlled Traffic

D—Configure

Row Crop

Suggested Base Station Mode For Operation

Absolute Survey Base Mode: Select if exact location

Vehicle Mode: Select for receiver on vehicle.

of guidance tracks need to be stored for future guidance

Vehicle Repeater Mode: This mode should only be used

applications without relying on visual reference for track

in situations where multiple RTK vehicles are operating

position to align using Shift Track feature. Track 0 must

in the same field and due to the terrain, line-of-sight is

be stored using Current Field in Tracking Setup in order

obstructed between one of the vehicles and the base

to follow previously used tracks. Absolute Base Mode

station.

requires 24-hour self survey to be conducted on location

before first use. After survey is completed, base station

Quick Survey Base Mode: Select if exact location

will then transmit corrections. If base station is moved to

of guidance tracks do not need to be stored for future

another position and then returned to original surveyed

applications. If Quick Survey Base Mode is used to

position, it is very important that base station is mounted

establish rows or paths that will be used at a later date,

in exact same position. Any difference between original

location of Track 0 must be saved using Current Field

surveyed position and mounted position will result in offset

setting in Tracking Setup (see AutoTrac Operator's

of corrected position. For this reason, it is important to

Manual). When Current Field is recalled, a one-time use

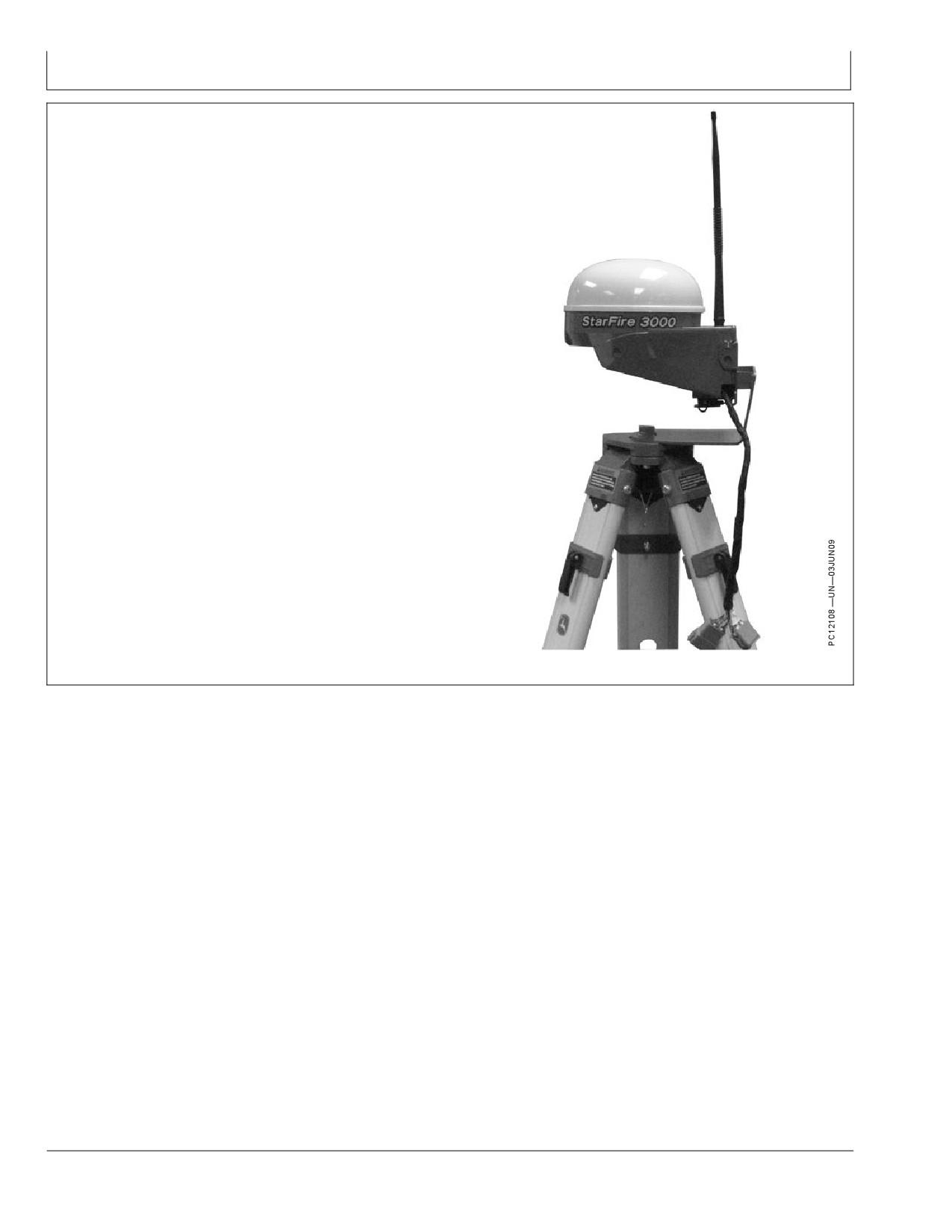

mount receiver to a fixed position like building or post

of Shift Track feature will be needed to align vehicle on

mounted in concrete.

previous tracks. See Setup Quick Survey Base Mode

section.

OFF Mode: This mode disables all RTK functionality in

receiver. RTK Operating Mode must be OFF for normal

NOTE: Quick Survey Base Mode requires a 15 minute self

SF2 operation on SF2 licensed receiver.

survey to be conducted on location before first use.

JS56696,00007F4 -19-15APR10-1/1

121511

30-1

PN=40

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Vehicle Repeater

Press: SETUP button >> StarFire 3000 >> Differential

transmitting the base correction signal to another RTK

Correction Setup (D) >> RTK Setup (A)

vehicle that does not have line-of-sight to the base station.

Toggle (A) button next to RTK Operating Mode until

The ‘Vehicle Repeater’ needs to be between the base

“VEHICLE REPEATER” appears in the cell.

station and the ‘Vehicle’. The ‘Vehicle Repeater’ must be

able to communicate with the base station. The ‘Vehicle’

In this mode the RTK vehicle radio not only receives

must then have either line of sight communication to the

messages but also rebroadcasts them (similar to a RTK

base station or ‘Vehicle Repeater’.

repeater) to other RTK vehicles in close proximity.

IMPORTANT: There should be only ONE Vehicle

NOTE: Vehicle Repeater is identical to the Vehicle

Repeater or Repeater in the same vicinity

mode with the addition of having the radio

with the same Network ID.

rebroadcast the RTK messages.

The Vehicle Repeater mode allows an RTK vehicle

to function normally as an RTK vehicle while also

JS56696,00007F5 -19-15APR10-1/1

121511

30-2

PN=41

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Quick Survey Mode

NOTE: Display is not required after base station

receiver has been configured to operate in Quick

Survey Base Mode and RTK Frequency, Radio

Channel/Network ID have been set.

Connect display to base station..

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

NOTE: Quick Survey Base Mode allows base

station to broadcast corrections after receiver

calculates GPS position.

If power is removed from base station (but not

moved) power can be restored and same base

station position will be used for corrections. If

SETUP - RTK

previously used Track 0 is recalled in Parallel

Tracking/Auto Trac no Shift Track will be needed.

A—RTK Operating Mode

E—Submit

If power is removed and base station is moved, a new

B—RTK Radio Channel

F— —

position will be calculated when power is restored.

C—RTK Network ID

G—Ruturn to RTK setup

If previously used Track 0 is recalled in Parallel

D——

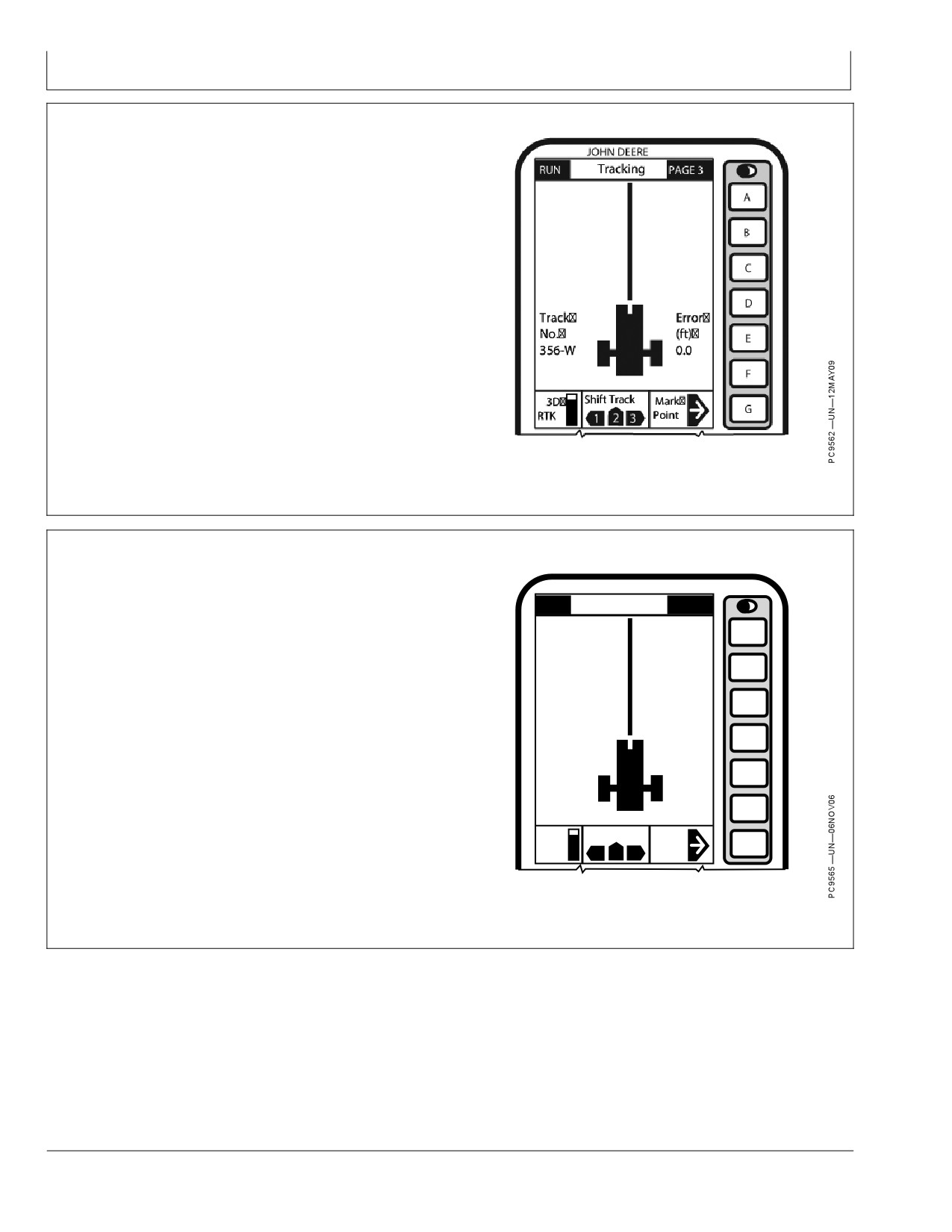

Tracking/Auto Trac, use Shift Track. (See AutoTrac

Operator's Manual for Shift Track procedures.)

Press letter button next to RTK OPERATING MODE and

toggle to QUICK SURVEY BASE MODE.

JS56696,00007F6

-19-15APR10-1/1

Absolute Mode

IMPORTANT: Absolute Base Mode requires base

receiver to be mounted in a rigid position.

Tripod is not recommended.

NOTE: Display is not required after base station

receiver has been configured to operate in

Absolute Survey Base Mode and RTK Radio

Channel/Network ID have been set.

Connect display to base station.

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

Press letter button next to RTK OPERATING MODE and

toggle to ABSOLUTE SURVEY BASE MODE.

SETUP - RTK

A—RTK Operating Mode

E—Submit

B—RTK Radio Channel

F— —

C—RTK Network ID

G—Return to RTK Setup

D——

Continued on next page

JS56696,00007F7 -19-15APR10-1/3

121511

30-3

PN=42

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Press letter button next to EDIT STORED RTK BASE

LOCATION (1-200) and SETUP - RTK screen will be

displayed.

NOTE: Enter unique location number each time base

station is moved to new mounting location (i.e.

location 1 = West 40, Field location 2 = North

80, Field location 3 = Farm shop).

Press letter button next to EDIT STORED RTK BASE

LOCATION (1-200) and enter desired location number.

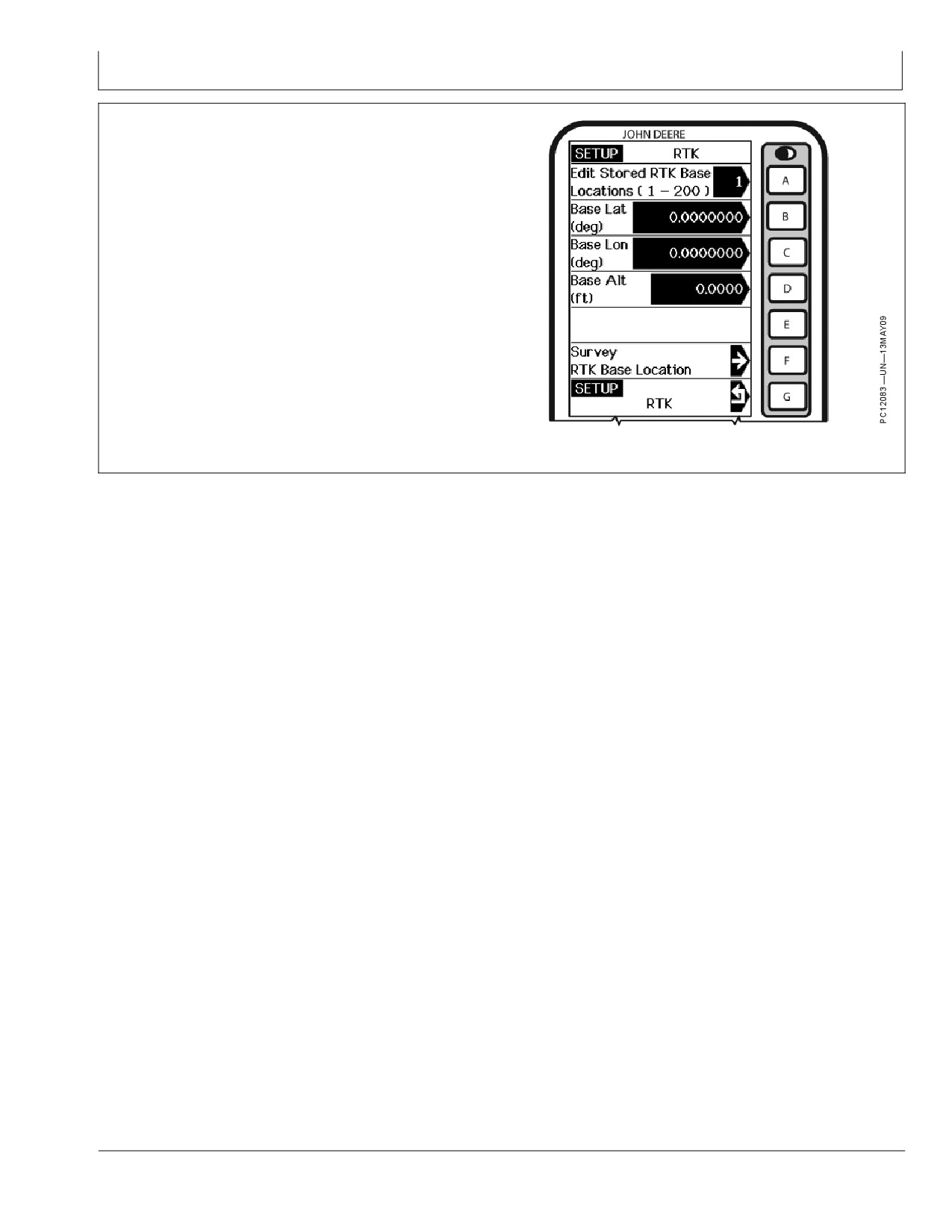

A—Edit Stored RTK Base

E——

Locations

F— Survey RTK Base Location

B—Base Latitude

G—Return to RTK Setup

C—Base Longitude

D—Base Altitude

SETUP - RTK

Continued on next page

JS56696,00007F7 -19-15APR10-2/3

121511

30-4

PN=43

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Not known coordinates: Press letter button next to

SURVEY RTK BASE LOCATION.

NOTE: After (24 hour) self survey is complete, base

station coordinates will automatically be stored and

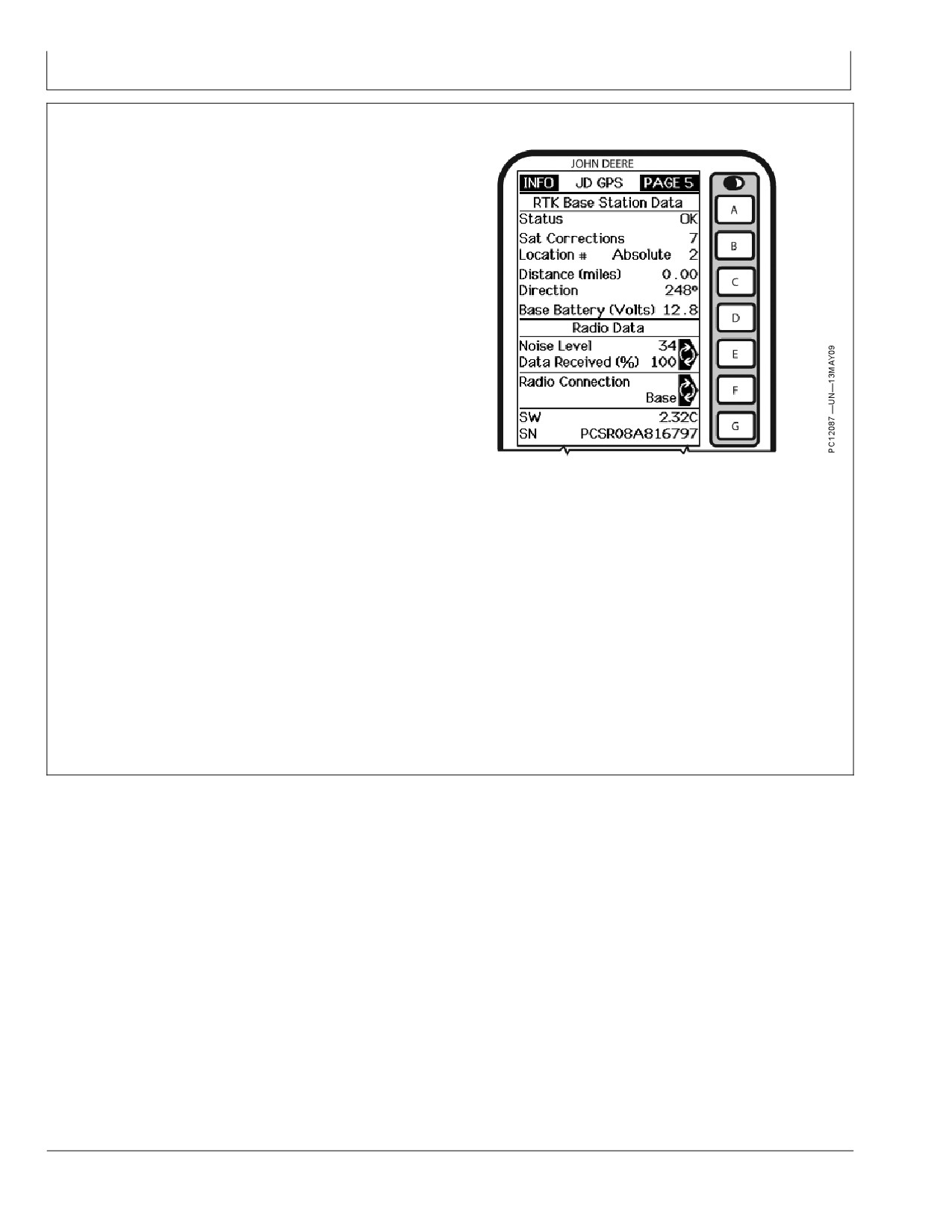

associated with base location number (1-200). Verify

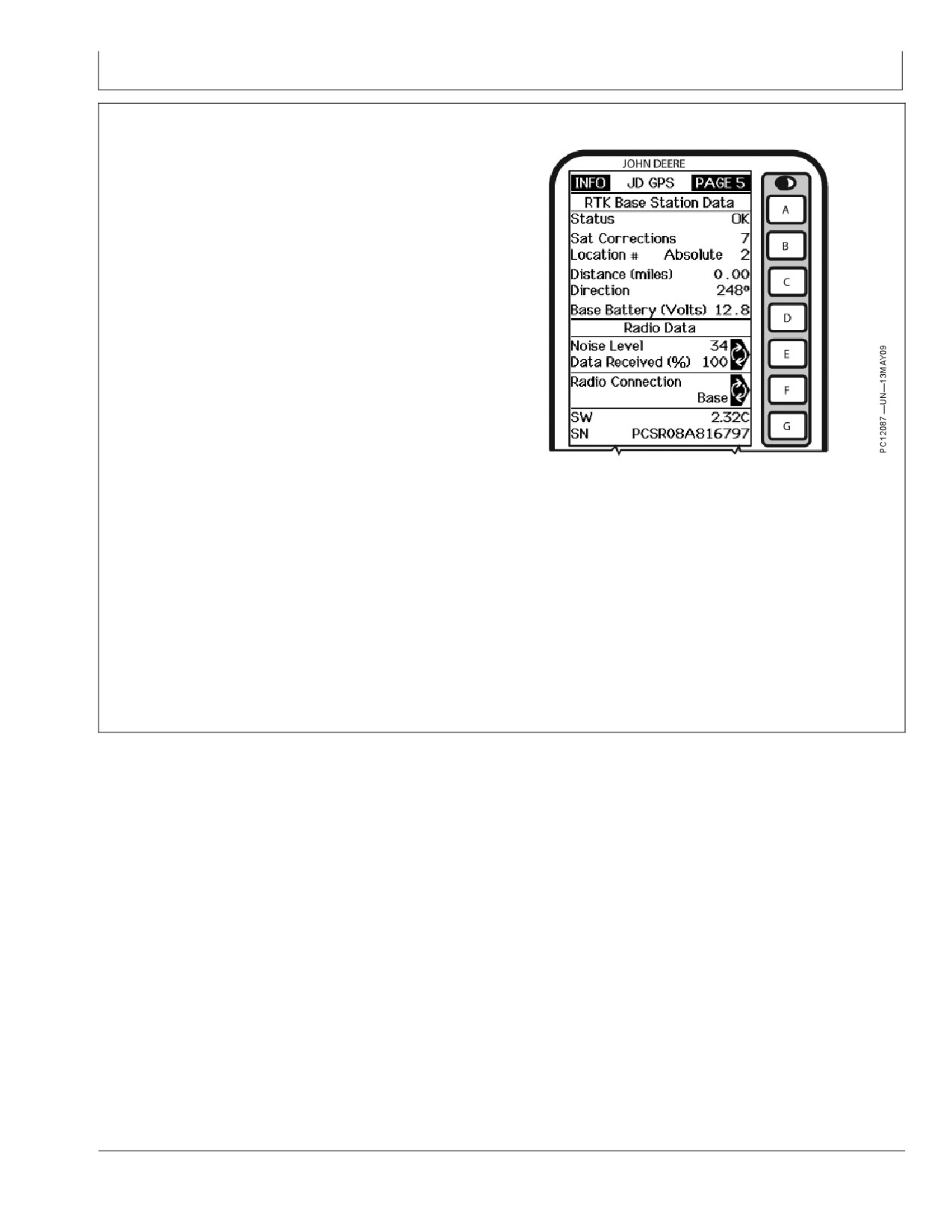

base station coordinates, see RTK INFO Pages.

Press letter button next to START SELF SURVEY. Display

can be removed while survey is in progress.

After 24 hour survey is complete, base station will

automatically store surveyed coordinates and begin

transmitting corrections. Manually record coordinates and

elevation and store in safe location. These coordinates

may be used to enter previously surveyed base station

location into different receiver.

NOTE: Absolute Base Mode, coordinates may be

manually entered, if known from previous survey.

SETUP - RTK

Known Location: Press letter button next to BASE

(LATITUDE, LONGITUDE AND ALTITUDE) and enter

A—Edit Stored RTK Base

E——

values for;

Locations (1 - 200)

F— Survey RTK Base Location

B—Base Latitude (deg)

G—Return to RTK Setup

• Base Lat (deg)

C—Base Longitude (deg)

• Base Lon (deg)

D—Base Altitude

• Base Alt (ft)

A—Survey

E—Base Location will be

RTK Base Location

Stored Automatically

B—Select Storage Location

F— Start Self Survey

C—Position StarFire Receiver

G—Return to RTK Setup

Press Start Survey Below

D—Wait 24 hours

Setup - RTK

JS56696,00007F7 -19-15APR10-3/3

121511

30-5

PN=44

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

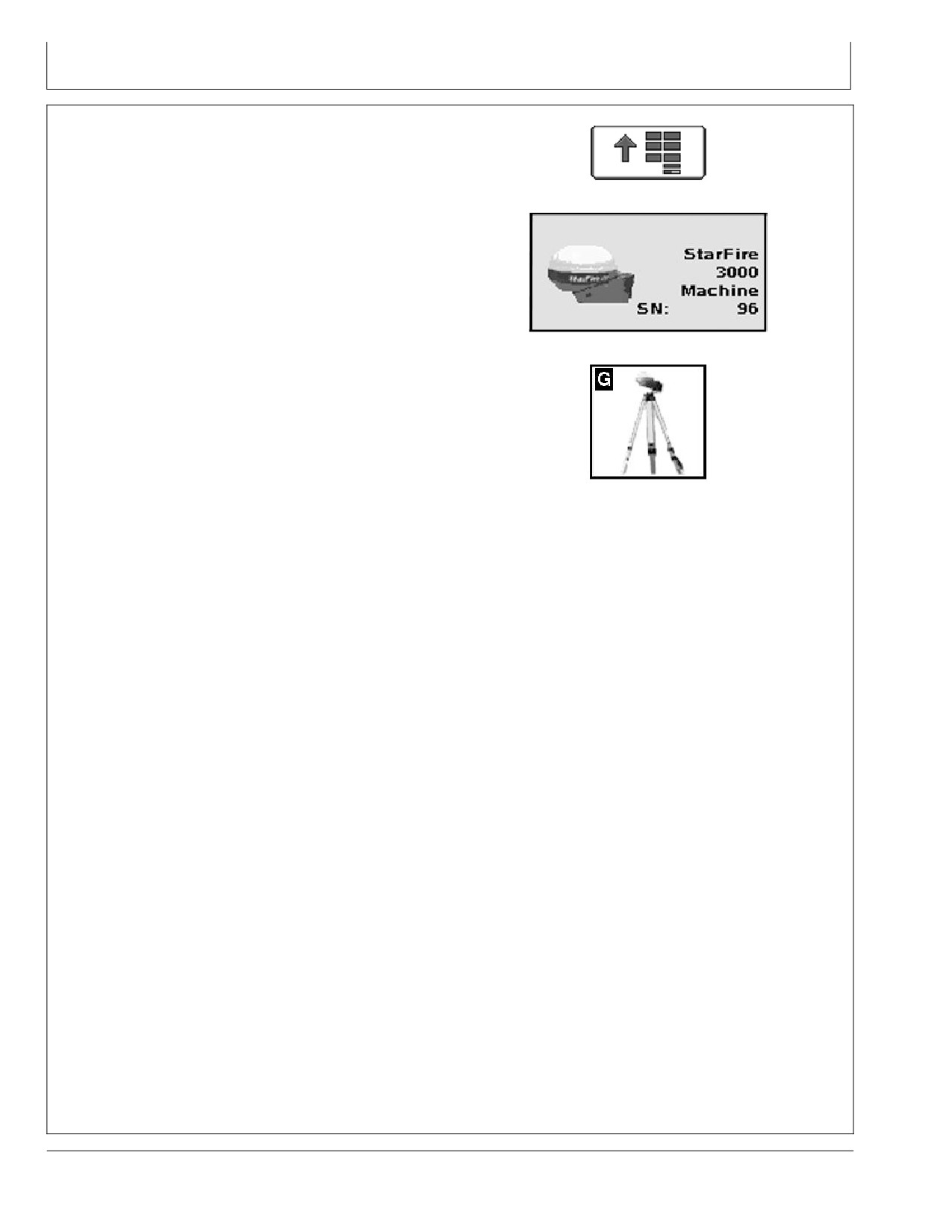

(Displayed on INFO - GPS - PAGE 3 (StarFire 3000) or

RTK Vehicle Setup

PAGE 5 (Original StarFire) or Cell G on GSD or on Cell G

of the Original GreenStar Monitor on a GS2 display).

Original GreenStar Display

Unknown - The RTK Vehicle StarFire, upon power up,

Screen: SETUP - RTK StarFire 3000

is in an “unknown” RTK authorization state. It will exist

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

in this state until communication with the base station is

SETUP >> RTK SETUP >> VEHICLE

established. No message will be displayed in cell G of

the GreenStar Display.

Original StarFire

Authorized - On power-up of a RTK Vehicle StarFire that

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

is properly configured and on the authorization list, the

SETUP >> RTK SETUP >> VEHICLE

message “RTK Network: Authorized” will be displayed

NOTE: RTK vehicle can be operated in either Vehicle

in cell G as soon as it establishes communication with

or Vehicle Repeater Mode.

the secure RTK base station, and it determines that it is

authorized to receive RTK corrections.

Enter the same RTK Network ID that the base station is

Unauthorized - On power-up of a RTK Vehicle StarFire

configured to.

that is properly configured, but the serial number has not

RTK Vehicle Security Status

been entered into the base station RAL, the message

“RTK Network: Not Authorized” will be displayed in cell

The RTK Vehicle (when operating off of a Secure Network

G as soon as it establishes communication with the

ID) will exist in one of the three following RTK authorization

secure RTK base station, and it determines that it is not

states: Unknown, Authorized, or Not Authorized.

authorized to receive RTK corrections.

These states are displayed in one or more of the following

locations depending on display and receiver used:

DK01672,00001C0 -19-11NOV11-2/2

Radio Channel

NOTE: 14 Radio Channels are available. The

default Radio Channel is 1

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

The Radio Channel may be changed if other RTK

systems are operating in area and interference is causing

decreased base station communication performance.

A—RTK Operating Mode

E—Submit

B—RTK Radio Channel

F— —

C—RTK Network ID

G—Return to RTK Setup

D——

SETUP - RTK

JS56696,00007F9 -19-15APR10-1/1

121511

30-7

PN=46

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Network ID

NOTE: 4000 network ID's are available (default ID is 1).

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

Network ID for base station and vehicle receiver must

match. If more than one base station with same Network

ID numbers are within range, vehicle may lock on to either

one of base stations. To prevent this from happening, be

sure to use unique network ID.

A—RTK Operating Mode

E—Submit

B—RTK Radio Channel

F— —

C—RTK Network ID

G—Return to RTK Setup

D——

SETUP - RTK

JS56696,00007FA -19-15APR10-1/1

Repeater

NOTE: The radio can be configured to act separately

as repeater. A repeater is required if obstructions

(i.e. trees, hills, etc.) exist between base

station and vehicle(s).

A repeater consists of:

• Radio (configured as a repeater)

• Harness

• Mounting Bracket

• 12 Volt Power Source

To configure radio as repeater:

Screen: SETUP - RTK

Press: SETUP >> StarFire 3000 >> DIFF CORRECTION

SETUP >> RTK SETUP

1. Connect radio to receiver RTK harness.

SETUP - RTK

2. Check that receiver has GPS position calculated.

A—RTK Operating Mode

E—Submit

3. Check that base station, vehicle, and repeater have

B—RTK Radio Channel

F— —

same Frequency, Network ID and Radio Channel.

C—RTK Network ID

G—Return to RTK Setup

D——

4. Toggle RTK Operating Mode to Repeater.

5. Radio will configure as repeater.

8. Toggle Mode to Vehicle.

6. Disconnect repeater from receiver and wiring harness.

7. Reconnect original radio.

JS56696,00007FB -19-15APR10-1/1

121511

30-8

PN=47

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

Operating Vehicle

IMPORTANT: The base station receiver and vehicle

receiver must be setup before operating RTK.

See Setup sections for setup procedures.

When vehicle receiver is powered-up, No GPS, No Diff

will be displayed on RUN - TRACKING - PAGE screen

until an initial position is determined. When base station

transmits correction signal, 3D RTK will be displayed on

RUN - TRACKING - PAGE screen.

NOTE: If communication loss is WITHIN first hour of

base station operation, Extend Mode will provide

RTK accuracy for two minutes.

Communication loss AFTER first hour of base

station operation, Extend Mode will provide

RTK accuracy for 15 minutes.

A——

E—Track Number, Error

B——

F— —

C——

G—3D RTK, Shift Track, Mark

D——

Point

RUN - Tracking - PAGE 3

JS56696,00007FC -19-15APR10-1/2

Extend Mode (RTK-X): If communication between base

station and vehicle radio is lost for more than 10 seconds,

vehicle receiver will automatically switch to Extend Mode

JOHN DEERE

and will maintain RTK accuracy for a period of time.

RUN

Tracking

PAGE 3

RTK-X will be available for approximately 2 to 15 minutes

A

if base station has been powered up for less than 1 hour.

If base station communication is not re-established after

Extend period, receiver will default to WAAS, or NO DIFF

B

where WAAS is not available.

C

A——

E—Track Number, Error

B——

F— —

D

C——

G—3D RTK, Shift Track, Mark

Track

Error

D——

Point

No.

(ft)

E

356-W

0.0

F

3D

Shift Track

Mark

G

RTK-X

Point

1

2

3

RUN - Tracking - PAGE 3

JS56696,00007FC -19-15APR10-2/2

121511

30-9

PN=48

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

INFO Pages, Base Station

Screen: INFO - GPS - PAGE 5

This screen allows operator to view:

• Status

- OK - Base Station is transmitting correction.

- No Stored Base - 24 hour self survey is required for

current location.

- Initializing - Receiver is initializing radio, acquiring

GPS signal.

- Self Survey - 24 hour self survey in progress.

• Sat Corrections - Indicates number of GPS satellites

for which base station is transmitting correction.

• Distance - Difference between base station location

(known position) and location indicated by uncorrected

GPS.

• Direction - Direction from base station location (known

position) to location indicated by uncorrected GPS.

• Base Battery (volts) - Base Station voltage.

• Signal Level - Level of signal that is detected at radio.

The signal level will range from 0 to 100 (-180 dBm to -80

dBm or above). Press E button to refresh signal level.

A—RTK Base Station Data

E—Signal Level

Status

Data Received

NOTE: For Data Received (%): Value less than

B—Satellite Corrections

F— Radio Connection

100 % indicates an obstruction between base

Location Number

G—Software Version

station radio and vehicle radio.

C—Distance

Serial Number

Direction

If percent of received correction is 0, and signal

D—Base Battery

level is high, check for potential radio interference

Radio Data

sources such as two-way radios, radio towers, etc.

• Data Received (%) - Percent of received correction to

• SW - Version of radio software

base station from vehicle.

• SN - Serial number of radio connected to receiver.

• Radio Connection - Indicates source of correction. If

there is no connection, this will toggle between base

and repeater.

JS56696,00007FD -19-15APR10-1/1

121511

30-10

PN=49

-------------------------------------------------------------------------------------------------------------------------------------------------------------

900 MHz RTK—Original GreenStar Display

INFO Pages, Vehicle

Screen: INFO - GPS - PAGE 5

This screen allows operator to view:

• Status

- OK - Base Station is transmitting correction.

- No Stored Base - 24 hour self survey is required for

current location.

- Initializing - Receiver is initializing radio, acquiring

GPS signal.

- Self Survey - 24 hour self survey in progress at base

station.

- No Signal - Vehicle radio is not receiving signal from

base station.

• Sat Corrections - Indicates number of GPS satellites

for which base station is transmitting correction.

• Distance - Distance from base station to vehicle

receiver.

• Direction - Direction in degrees to base station.

• Base Battery (volts) - Base Station voltage.

Vehicle connected to Absolute Base

• Signal Level - Level of signal that is detected at radio.

The signal level will range from 0 to 100 (-180 dBm to -80

dBm or above). Press E button to refresh signal level.

A—RTK Base Station Data

E—Signal Level

Status

Data Received

NOTE: For Data Received (%): Value less than

B—Satellite Corrections

F— Radio Connection

100 % indicates an obstruction between base

Location Number

G—Software Version

station radio and vehicle radio.

C—Distance

Serial Number

Direction

If percent of received correction is 0, and signal

D—Base Battery

Radio Data

level is high, check for potential radio interference

sources such as two-way radios, radio towers, etc.

If percent of received correction is 0, and

• Radio Connection - Indicates source of correction. If

signal level is low, check for potential

there is no connection, this will toggle between base

obstructions of line of sight conditions such

and repeater.

as hills, buildings, trees, etc.

• SW - Version of radio software.

•

SN - Serial number of radio connected to receiver.

• Data Received (%) - Percent of received correction to

vehicle from base station.

JS56696,00007FE -19-15APR10-1/1

121511

30-11

PN=50

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications

Unified Inch Bolt and Screw Torque Values

TS1671 —UN—01MAY03

SAE Grade 1

SAE Grade 2^a

SAE Grade 5, 5.1 or 5.2

SAE Grade 8 or 8.2

Bolt or Screw

Size

Lubricated^b

Dry^c

Lubricated^b

Dry^c

Lubricated^b

Dry^c

Lubricated^b

Dry^c

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

1/4

3.7

33

4.7

42

6

53

7.5

66

9.5

84

12

106

13.5

120

17

150

N·m

lb.-ft.

N·m

lb.-ft.

5/16

7.7

68

9.8

86

12

106

15.5

137

19.5

172

25

221

28

20.5

35

26

N·m

lb.-ft.

N·m

lb.-ft.

3/8

13.5

120

17.5

155

22

194

27

240

35

26

44

32.5

49

36

63

46

N·m

lb.-ft.

N·m

lb.-ft.

N·m

lb.-ft.

7/16

22

194

28

20.5

35

26

44

32.5

56

41

70

52

80

59

100

74

N·m

lb.-ft.

1/2

34

25

42

31

53

39

67

49

85

63

110

80

120

88

155

115

9/16

48

35.5

60

45

76

56

95

70

125

92

155

115

175

130

220

165

5/8

67

49

85

63

105

77

135

100

170

125

215

160

240

175

305

225

3/4

120

88

150

110

190

140

240

175

300

220

380

280

425

315

540

400

7/8

190

140

240

175

190

140

240

175

490

360

615

455

690

510

870

640

1

285

210

360

265

285

210

360

265

730

540

920

680

1030

760

1300

960

1-1/8

400

300

510

375

400

300

510

375

910

670

1150

850

1450

1075

1850

1350

1-1/4

570

420

725

535

570

420

725

535

1280

945

1630

1200

2050

1500

2600

1920

1-3/8

750

550

950

700

750

550

950

700

1700

1250

2140

1580

2700

2000

3400

2500

1-1/2

990

730

1250

930

990

730

1250

930

2250

1650

2850

2100

3600

2650

4550

3350

Torque values listed are for general use only, based on the strength of the bolt

Replace fasteners with the same or higher grade. If higher

or screw. DO NOT use these values if a different torque value or tightening

grade fasteners are used, tighten these to the strength of the

procedure is given for a specific application. For plastic insert or crimped steel

original. Make sure fastener threads are clean and that you

type lock nuts, for stainless steel fasteners, or for nuts on U-bolts, see the

properly start thread engagement. When possible, lubricate

tightening instructions for the specific application. Shear bolts are designed to fail

plain or zinc plated fasteners other than lock nuts, wheel bolts

under predetermined loads. Always replace shear bolts with identical grade.

or wheel nuts, unless different instructions are given for the

specific application.

^aGrade 2 applies for hex cap screws (not hex bolts) up to 6 in.

(152 mm) long. Grade 1 applies for hex cap screws over 6

in.

(152 mm) long, and for all other types of bolts and screws of any length.

^b“Lubricated” means coated with a lubricant such as engine oil, fasteners with phosphate and oil coatings, or 7/8 in.

and larger fasteners with JDM F13C, F13F or F13J zinc flake coating.

^c“Dry” means plain or zinc plated without any lubrication, or 1/4 to 3/4 in. fasteners with JDM F13B, F13E or F13H zinc flake coating.

DX,TORQ1 -19-12JAN11-1/1

121511

40-1

PN=51

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Specifications

Metric Bolt and Screw Torque Values

TS1670 —UN—01MAY03

4.8

8.8

9.8

10.9

12.9

12.9

4.8

8.8

9.8

10.9

12.9

12.9

Class 4.8

Class 8.8 or 9.8

Class 10.9

Class 12.9

Bolt or Screw

Size

Lubricated^a

Dry^b

Lubricated^a

Dry^b

Lubricated^a

Dry^b

Lubricated^a

Dry^b

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

N·m

lb.-in.

M6

4.7

42

6

53

8.9

79

11.3

100

13

115

16.5

146

15.5

137

19.5

172

N·m

lb.-ft.

N·m

lb.-ft.

N·m

lb.-ft.

N·m

lb.-ft.

M8

11.5

102

14.5

128

22

194

27.5

243

32

23.5

40

29.5

37

27.5

47

35

N·m

lb.-ft.

N·m

lb.-ft.

N·m

lb.-ft.

M10

23

204

29

21

43

32

55

40

63

46

80

59

75

55

95

70

N·m

lb.-ft.

M12

40

29.5

50

37

75

55

95

70

110

80

140

105

130

95

165

120

M14

63

46

80

59

120

88

150

110

175

130

220

165

205

150

260

190

M16

100

74

125

92

190

140

240

175

275

200

350

255

320

235

400

300

M18

135

100

170

125

265

195

330

245

375

275

475

350

440

325

560

410

M20

190

140

245

180

375

275

475

350

530

390

675

500

625

460

790

580

M22

265

195

330

245

510

375

650

480

725

535

920

680

850

625

1080

800

M24

330

245

425

315

650

480

820

600

920

680

1150

850

1080

800

1350

1000

M27

490

360

625

460

950

700

1200

885

1350

1000

1700

1250

1580

1160

2000

1475

M30

660

490

850

625

1290

950

1630

1200

1850

1350

2300

1700

2140

1580

2700

2000

M33

900

665

1150

850

1750

1300

2200

1625

2500

1850

3150

2325

2900

2150

3700

2730

M36

1150

850

1450

1075

2250

1650

2850

2100

3200

2350

4050

3000

3750

2770

4750

3500

Torque values listed are for general use only, based on the strength of

Shear bolts are designed to fail under predetermined loads. Always

the bolt or screw. DO NOT use these values if a different torque value or

replace shear bolts with identical property class. Replace fasteners with

tightening procedure is given for a specific application. For stainless steel

the same or higher property class. If higher property class fasteners are

fasteners or for nuts on U-bolts, see the tightening instructions for the

used, tighten these to the strength of the original. Make sure fastener

specific application. Tighten plastic insert or crimped steel type lock nuts

threads are clean and that you properly start thread engagement. When

by turning the nut to the dry torque shown in the chart, unless different

possible, lubricate plain or zinc plated fasteners other than lock nuts,

instructions are given for the specific application.

wheel bolts or wheel nuts, unless different instructions are given for the

specific application.

^a“Lubricated” means coated with a lubricant such as engine oil, fasteners with phosphate and oil coatings, or M20

and larger fasteners with JDM F13C, F13F or F13J zinc flake coating.

^b“Dry” means plain or zinc plated without any lubrication, or M6 to M18 fasteners with JDM F13B, F13E or F13H zinc flake coating.

DX,TORQ2 -19-12JAN11-1/1

121511

40-2

PN=52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

John Deere Service Literature Available

Technical Information

Technical information can be purchased from John Deere.

Some of this information is available in electronic media,

such as CD-ROM disks, and in printed form. There are

many ways to order. Contact your John Deere dealer.

Call 1-800-522-7448 to order using a credit card. Search

online from http://www.JohnDeere.com. Please have

available the model number, serial number, and name of

the product.

Available information includes:

• PARTS CATALOGS list service parts available for your

machine with exploded view illustrations to help you

identify the correct parts. It is also useful in assembling

and disassembling.

• OPERATOR’S MANUALS providing safety, operating,

maintenance, and service information. These manuals

and safety signs on your machine may also be available

in other languages.

• OPERATOR’S VIDEO TAPES showing highlights of

safety, operating, maintenance, and service information.

These tapes may be available in multiple languages

and formats.

• TECHNICAL MANUALS outlining service information

for your machine. Included are specifications, illustrated

assembly and disassembly procedures, hydraulic oil

flow diagrams, and wiring diagrams. Some products

have separate manuals for repair and diagnostic

information. Some components, such as engines, are

available in separate component technical manuals

• FUNDAMENTAL MANUALS detailing basic information

regardless of manufacturer:

- Agricultural Primer series covers technology in farming

and ranching, featuring subjects like computers, the

Internet, and precision farming.

- Farm Business Management series examines

“real-world” problems and offers practical solutions

in the areas of marketing, financing, equipment

selection, and compliance.

- Fundamentals of Services manuals show you how to

repair and maintain off-road equipment.

- Fundamentals of Machine Operation manuals

explain machine capacities and adjustments, how to

improve machine performance, and how to eliminate

unnecessary field operations.

DX,SERVLIT -19-31JUL03-1/1

121511

SERVLIT-1

PN=55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

///////////////////////////////////////
