INSTALLATION INSTRUCTIONS STARFIRE Real Time Kinematic (RTK)





-------------------------------------------------------------------------------------------------------------------------------------------------------------

STARFIRE Real Time
Kinematic (RTK)
INSTALLATION INSTRUCTIONS
STARFIRE Real Time Kinematic
(RTK)
PC20235 18DEC03 (ENGLISH)
John Deere Ag Management Solutions
PC20235 (18DEC03)
COPYRIGHT  2003
DEERE & COMPANY
Moline, Illinois
All rights reserved
A John Deere ILLUSTRUCTION® Manual
PC20235-19-18DEC03

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
Introduction
IMPORTANT: Read through this instruction
thoroughly and familiarize yourself with
process before performing procedure.
This instruction covers installation of Real Time Kinematic
(RTK) on your STARFIRE system.
OUO6084,0001B83
-19-08SEP03-1/1
Installation Time
Installation time of Real Time Kinematic (RTK) varies
considerably depending on what receiver is being
mounted to. Installation time will typically take between
1—3 hours with an average installation time of 1.5 hours.
OUO6043,00016F9
-19-30MAY03-1/1
PC20235 (18DEC03)
1
Installation Instructions
121803
PN=3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
Parts List
PF90258 Vehicle Bundle
PF90260 Base Station with Universal Mounting
Bracket and STARFIRE
• PF11579 Screws, Phillips #8-32, 7/16 in. (2 Used)
• PF80608 Radio
• PF11621 Bracket, RTK Base Station Mount
• PF80611 Harness, STARFIRE RTK Rover
• PF11622 Bracket, RTK Base Station Quick Tach
• PF80623 Bracket STARFIRE
• PF80610 Harness, STARFIRE RTK Base Station
• PF80631 Antenna, Low Gain
• PF80647 Harness, STARFIRE RTK Base Receiver
• PF80677 Cable, Antenna Extension
• PF80653 Bracket, RTK Base Station
• PF80654 Assembly, Receiver and Radio
PF90259 Base Station with Tripod and STARFIRE
• PF80660 Harness, Power Adaptor
• PF80610 Harness, STARFIRE RTK Base Station
PF90264 Base Station with Universal Mounting
• PF80625 Bracket, Tripod
Bracket, Less STARFIRE
• PF80629 RTK Radio Kit
• PF80632 Tripod
• PF80610 Harness, STARFIRE RTK Base Station
• PF80633 Harness, No TCM Plug
• PF80623 Bracket STARFIRE
• PF80647 Harness, STARFIRE RTK Base Receiver
• PF80629 RTK Radio Kit
• PF80654 Assembly, Receiver and Radio
• PF80633 Harness, No TCM Plug
• PF80655 Case
• PF80647 Harness, STARFIRE RTK Base Receiver
• PF80656 Case Insert
• PF80653 Bracket, RTK Base Station
• PF80657 Receiver, STARFIRE Gen. II
• PF80660 Harness, Power Adaptor
- 21M7267 Screw, M6X20 (6 Used)
- PC20234 Instruction, Licensing STARFIRE
Attachments
- PF10134 Cover, Upper GPS Receiver
- PF10135 Cover, Lower GPS Receiver
• PF80632 Tripod
- PF80385 Position Receiver
• PF80646 Harness, RTK Receiver Extension Harness
- PF80611 Harness, STARFIRE RTK Rover
• PF80652 Harness, RTK Radio Extension Harness
- PF80623 Bracket STARFIRE
• PF80653 Bracket, RTK Base Station
• PF80660 Harness, Power Adaptor
• PF90261 Repeater
- Bolt, #8-1/2 in. Phillips (2 Used)
PF90263 Base Station with Tripod, Less
- 19H1866 Bolt (2 Used)
STARFIRE
- N10217 Nut (2 Used)
- PF11542 Bracket, Repeater
• PF80610 Harness, STARFIRE RTK Base Station
- PF11614 Magnet (2 Used)
• PF80623 Bracket STARFIRE
- PF11625 Weld Nut
• PF80625 Bracket, Tripod
- PF80608 RTK Radio
• PF80629 RTK Radio Kit
- PF80609 Harness, STARFIRE RTK Repeater
• PF80632 Tripod
- PF80630 Assembly Repeater Bracket
• PF80633 Harness, No TCM Plug
- PF80631 Antenna, Low Gain
• PF80647 Harness, STARFIRE RTK Base Receiver
- PF80660 Harness, Power Adaptor
• PF80655 Case
- PF80666 Assembly, Repeater Magnetic Mount
• PF80656 Case Insert
• PF80660 Harness, Power Adaptor
OUO6043,00016FB
-19-30MAY03-1/1
PC20235 (18DEC03)
2
Installation Instructions
121803
PN=4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

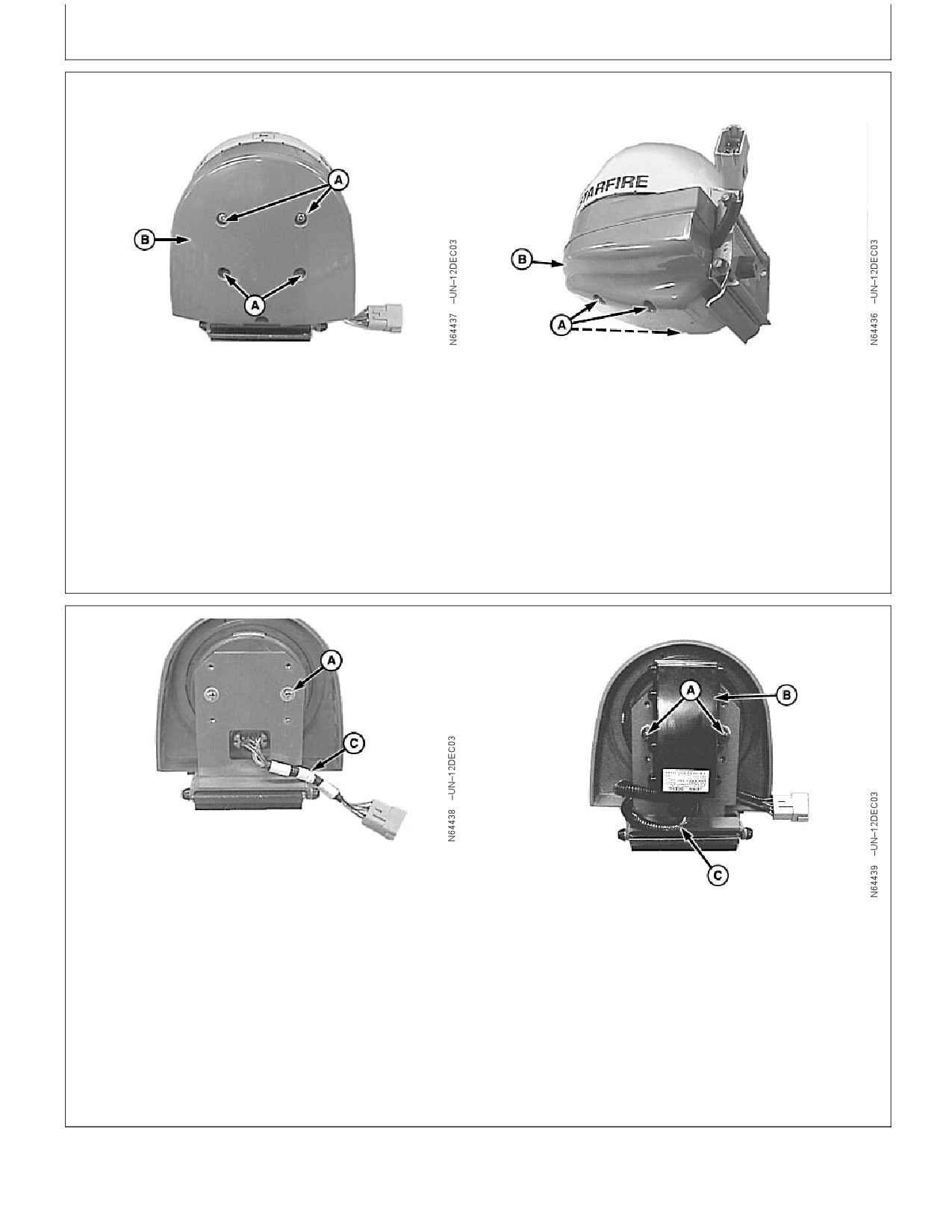

Radio Installation
Without TCM
With TCM
A—Screws (Four Used)
B—Shroud
1. Remove four screws (A) and lower shroud (B).
OUO6050,0000501
-19-16DEC03-1/11
Without TCM
With TCM
A—Screws (Two Used)
B—TCM
C—Harness
2. Remove screws (A).
4. Disconnect harness (C).
3. Remove TCM (B)—if equipped.
5. Discard harness and bracket.
Continued on next page
OUO6050,0000501
-19-16DEC03-2/11
PC20235 (18DEC03)
3
Installation Instructions
121803
PN=5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

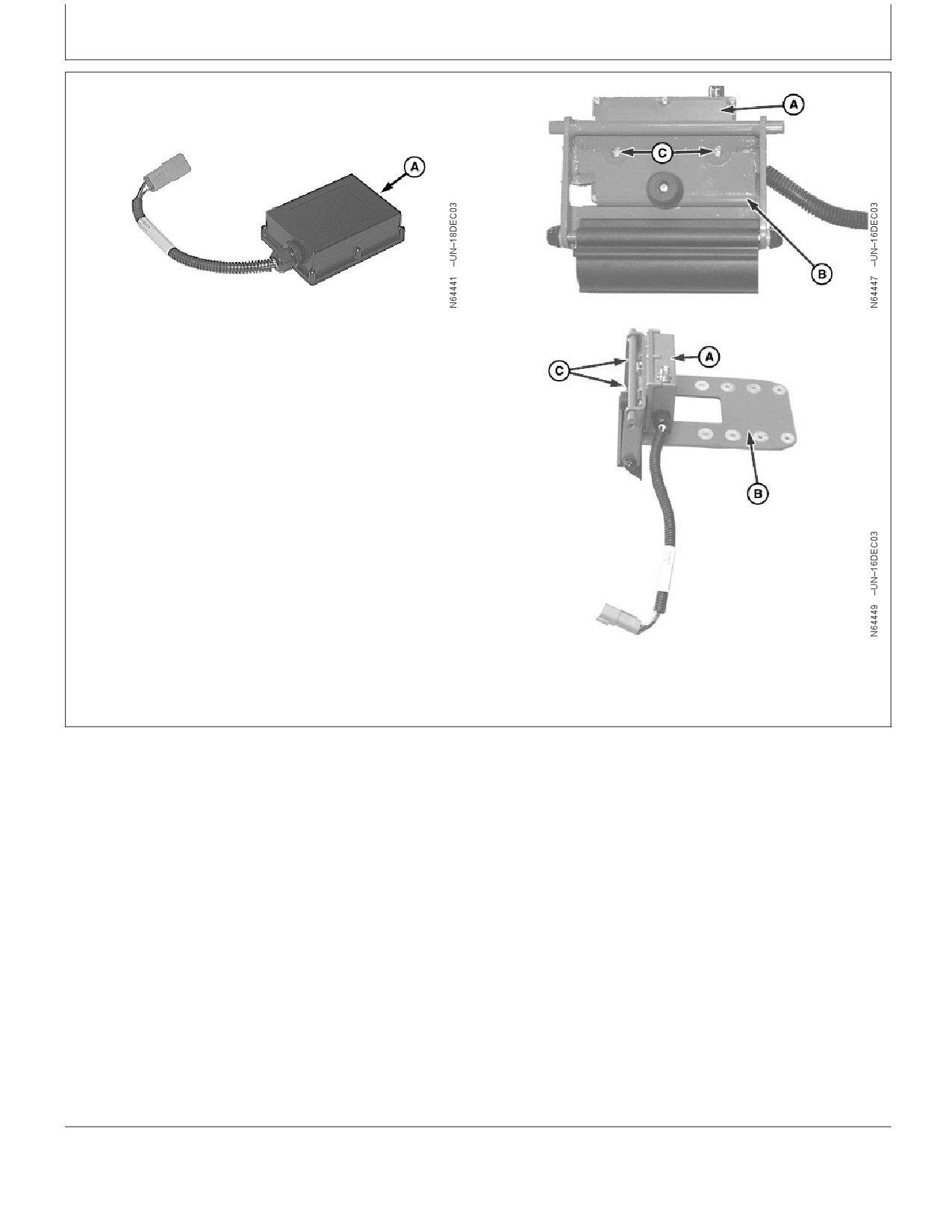

Radio
6. Attach radio (A) to new bracket (B) with 7/16 in. screws
(C).
A—Radio
B—New Bracket
C—Screw, Phillips, 7/16 in. (2 Used)
Continued on next page
OUO6050,0000501
-19-16DEC03-3/11
PC20235 (18DEC03)
4
Installation Instructions
121803
PN=6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

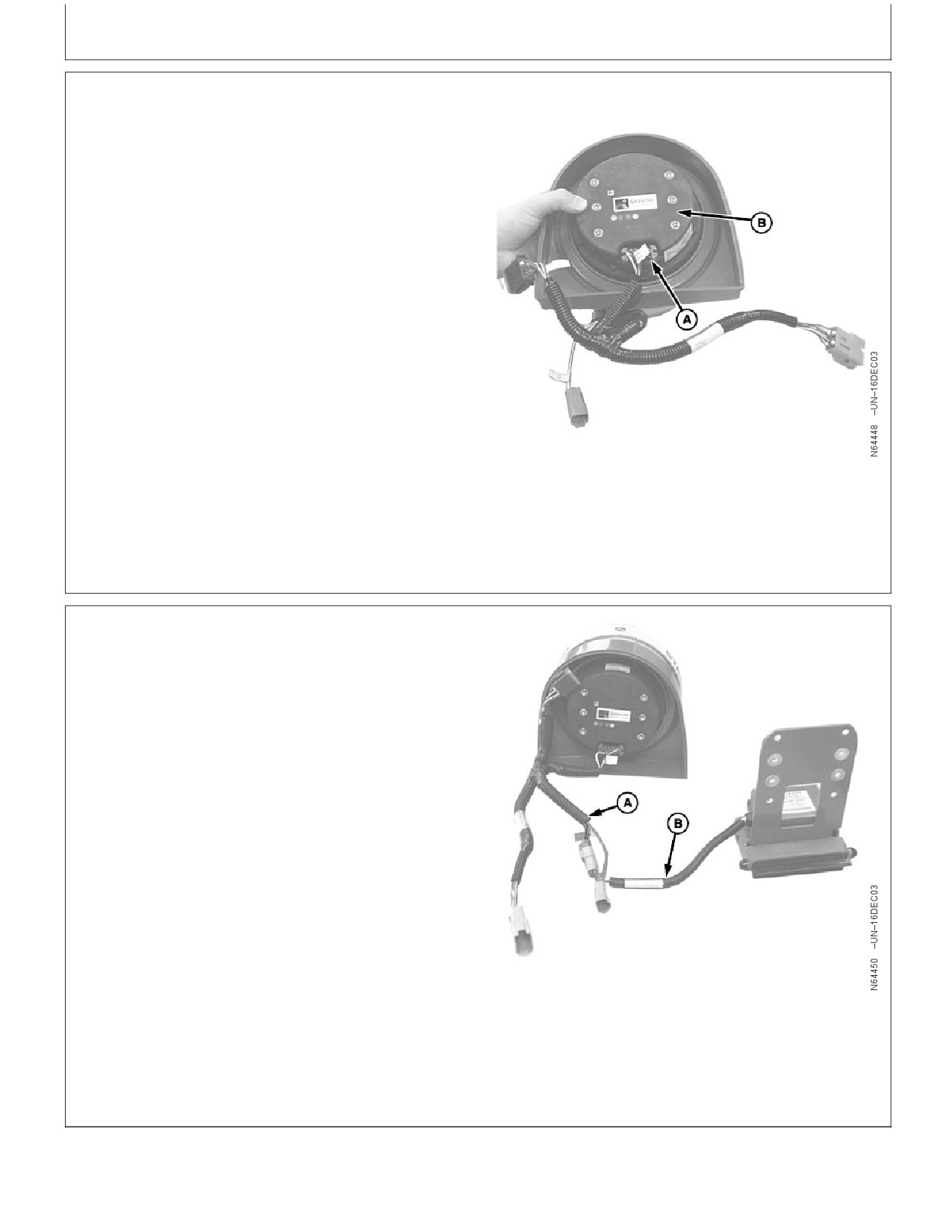

7. Connect RTK harness (A) to receiver (B).
A—RTK Harness
B—Receiver
OUO6050,0000501
-19-16DEC03-4/11
8. Connect RTK harness (A) to radio harness (B).
A—RTK Harness
B—Radio Harness
Continued on next page
OUO6050,0000501
-19-16DEC03-5/11
PC20235 (18DEC03)
5
Installation Instructions
121803
PN=7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

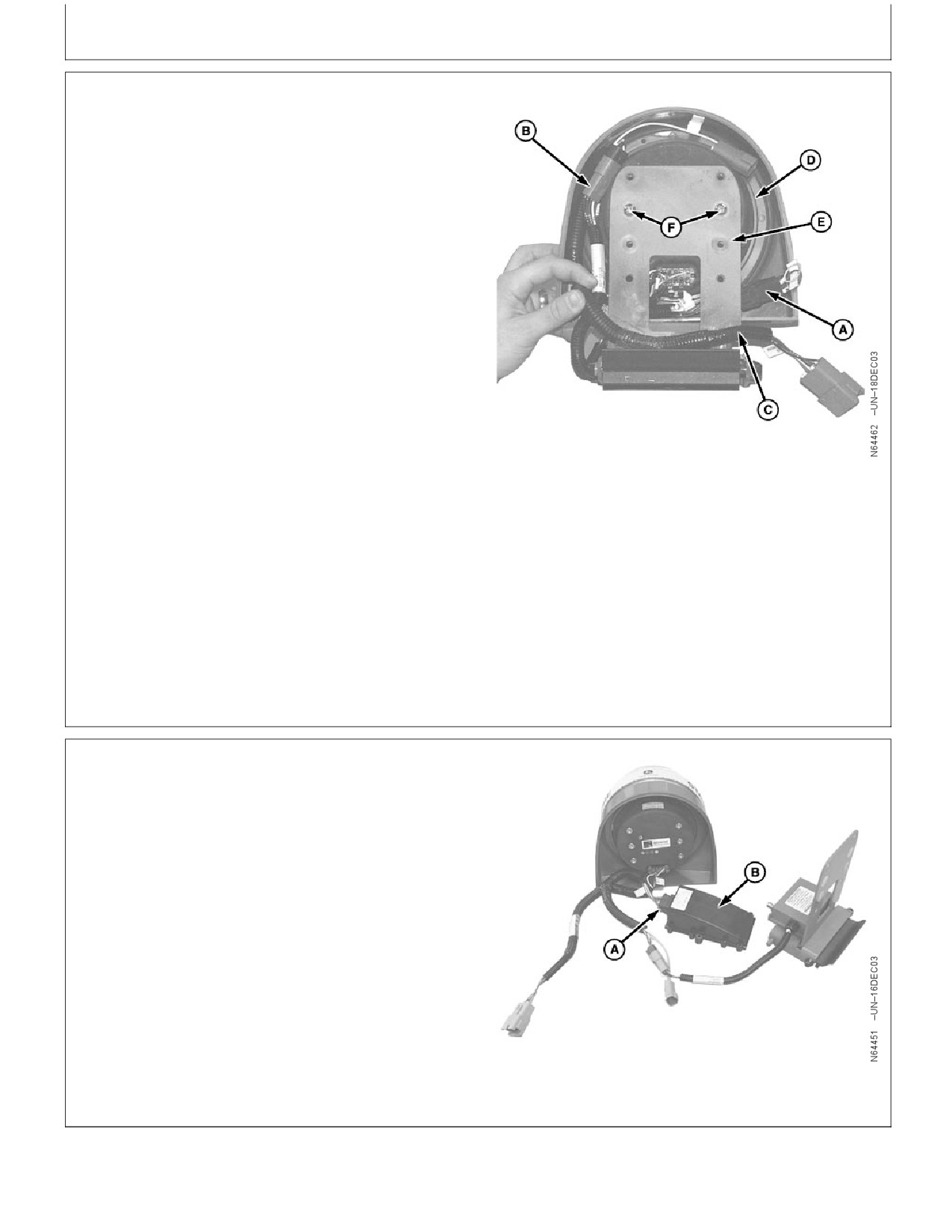

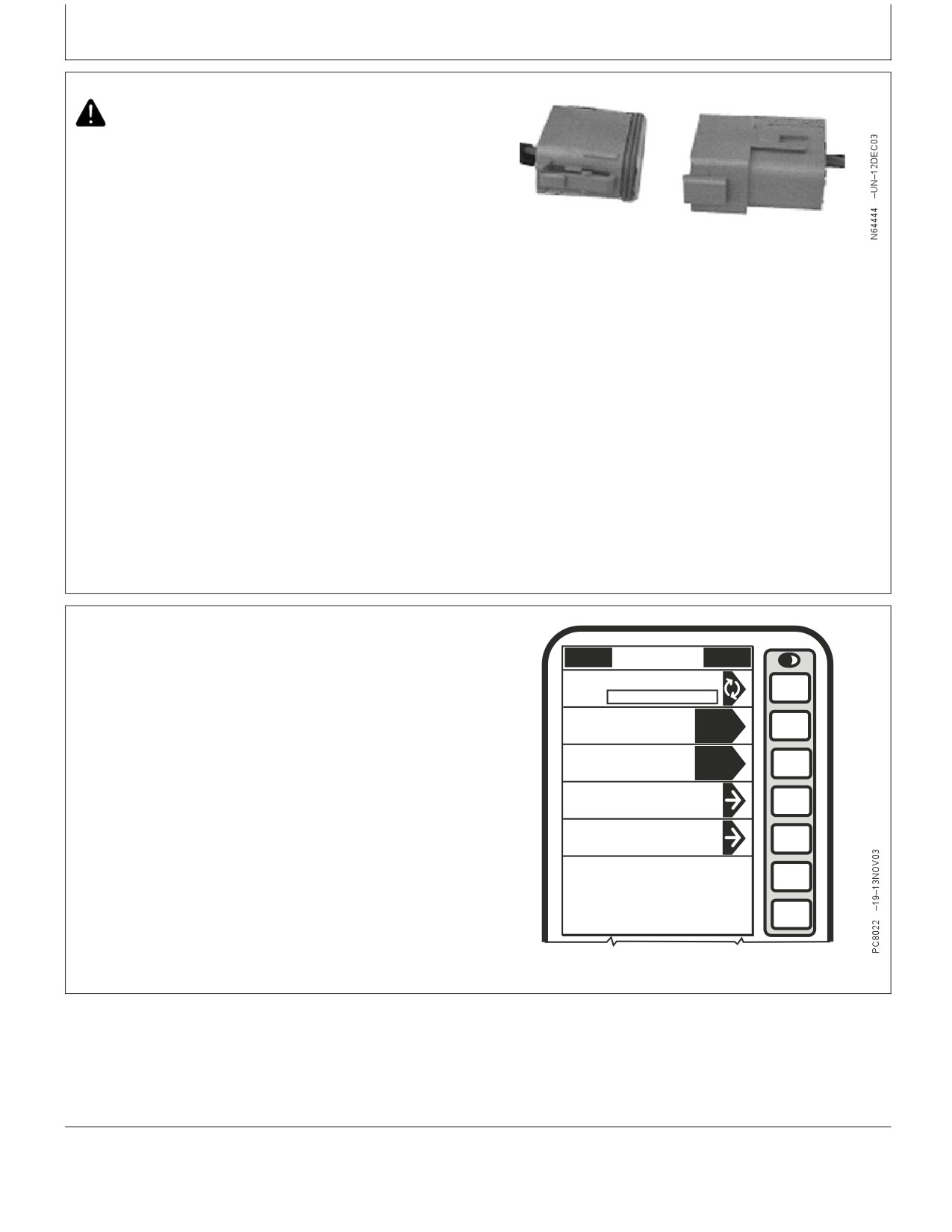

IMPORTANT: If base station does not have a TCM, a
cap is required on TCM connector on
harness or STARFIRE will not function.
NOTE: RTK Vehicles REQUIRE a TCM.
Base stations DO NOT REQUIRE a TCM.
9. Receivers without TCM: Connect RTK harness to
TCM cap (A) and position section of harness in upper
receiver shroud as shown.
10. Position radio harness (B) in upper receiver shroud as
shown.
11. Position harness (C) as shown.
12. Attach receiver (D) and bracket (E) with screws (F).
A—TCM Cap
B—Radio Harness
C—Harness
D—Receiver
E—Bracket
F—Screws (2 Used)
OUO6050,0000501
-19-16DEC03-6/11
13. Receivers with TCM:Connect RTK harness (A) to
TCM (B).
A—RTK Harness
B—TCM
Continued on next page
OUO6050,0000501
-19-16DEC03-7/11
PC20235 (18DEC03)
6
Installation Instructions
121803
PN=8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

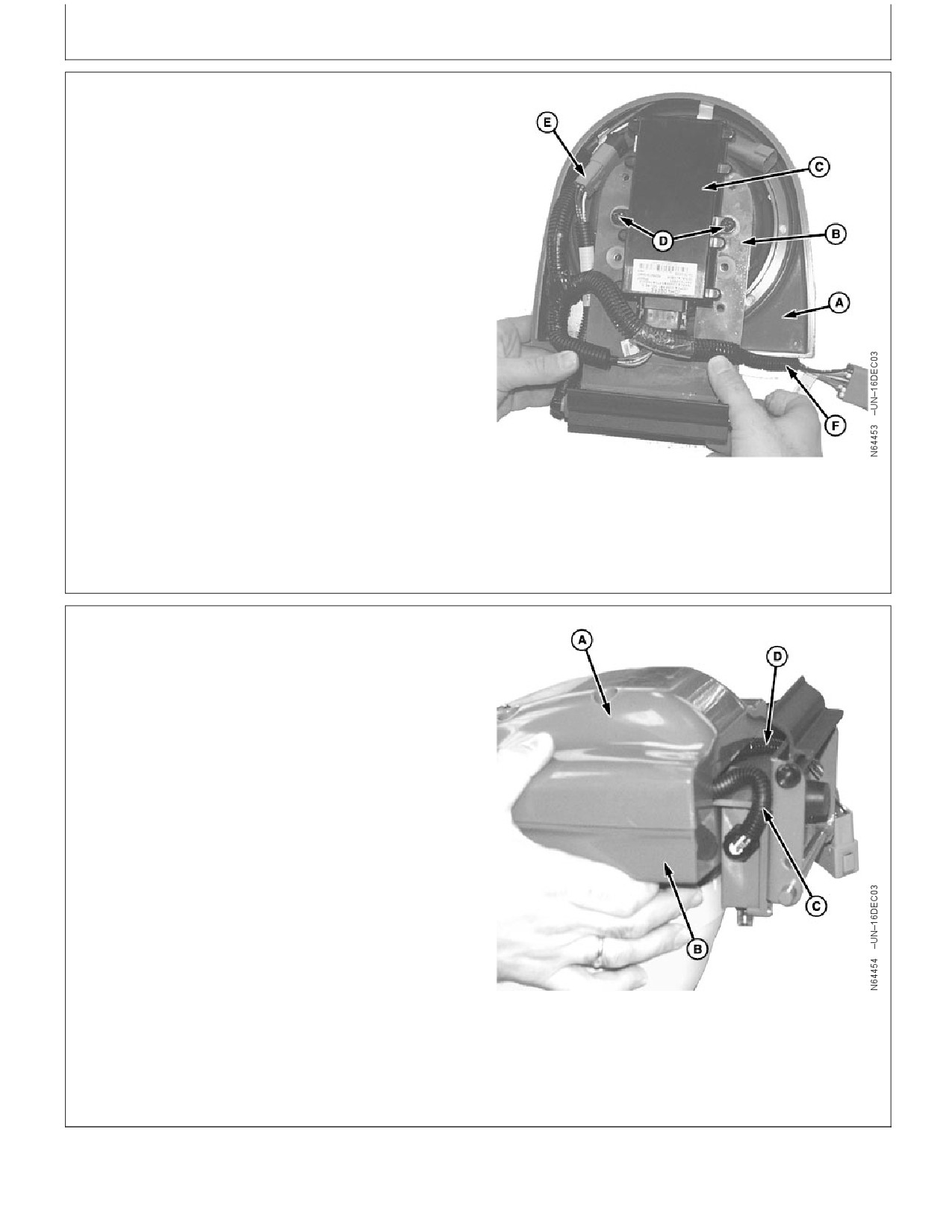

14. Receivers with TCM:Attach receiver (A), bracket (B),
and TCM (C) with screws (D).
15. Route radio harness (E) in upper receiver shroud as
shown.
16. Route harness (F) over bracket as shown.
A—Receiver
B—Bracket
C—TCM
D—Screw (2 Used)
E—Radio Harness
F—Harness
OUO6050,0000501
-19-16DEC03-8/11
IMPORTANT: System failure can occur if harness is
pinched. Ensure harness is routed
properly.
17. Position lower shroud (A) and upper shroud (B)
together using care not to pinch any of the harnesses.
18. Harness connected to radio should have a drip loop
(C) before going into receiver shroud.
19. Connector (D) is routed out of receiver on opposite
side of bracket from harness connected to radio.
A—Lower Shroud
B—Upper Shroud
C—Drip Loop
D—Connector
Continued on next page
OUO6050,0000501
-19-16DEC03-9/11
PC20235 (18DEC03)
7
Installation Instructions
121803
PN=9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
IMPORTANT: System failure can occur if harness is
pinched. Ensure harness is routed
properly prior to tightening hardware.

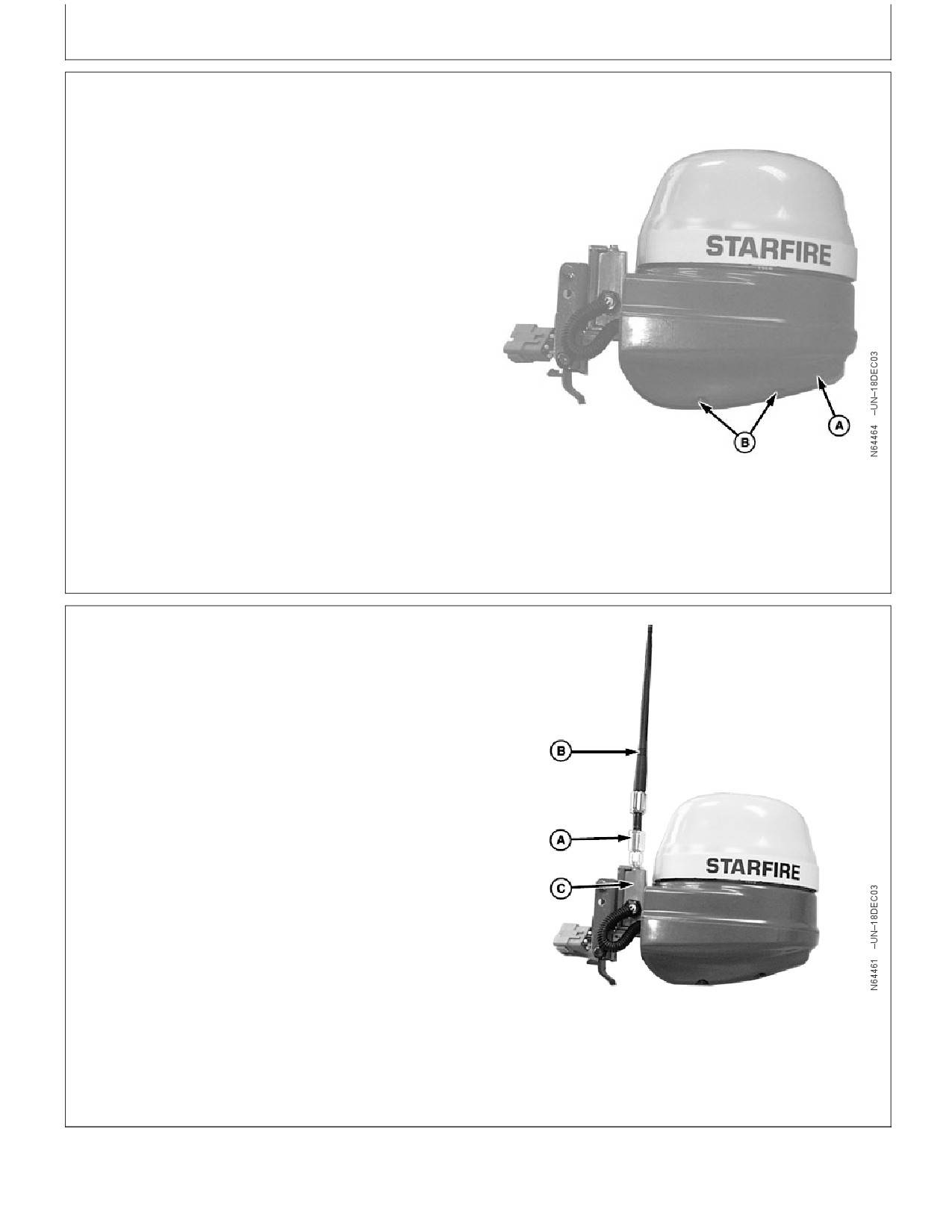

20. Attach shroud (A) with previously removed screws
(B).
A—Shroud
B—Screws (Four Used)
OUO6050,0000501
-19-16DEC03-10/11

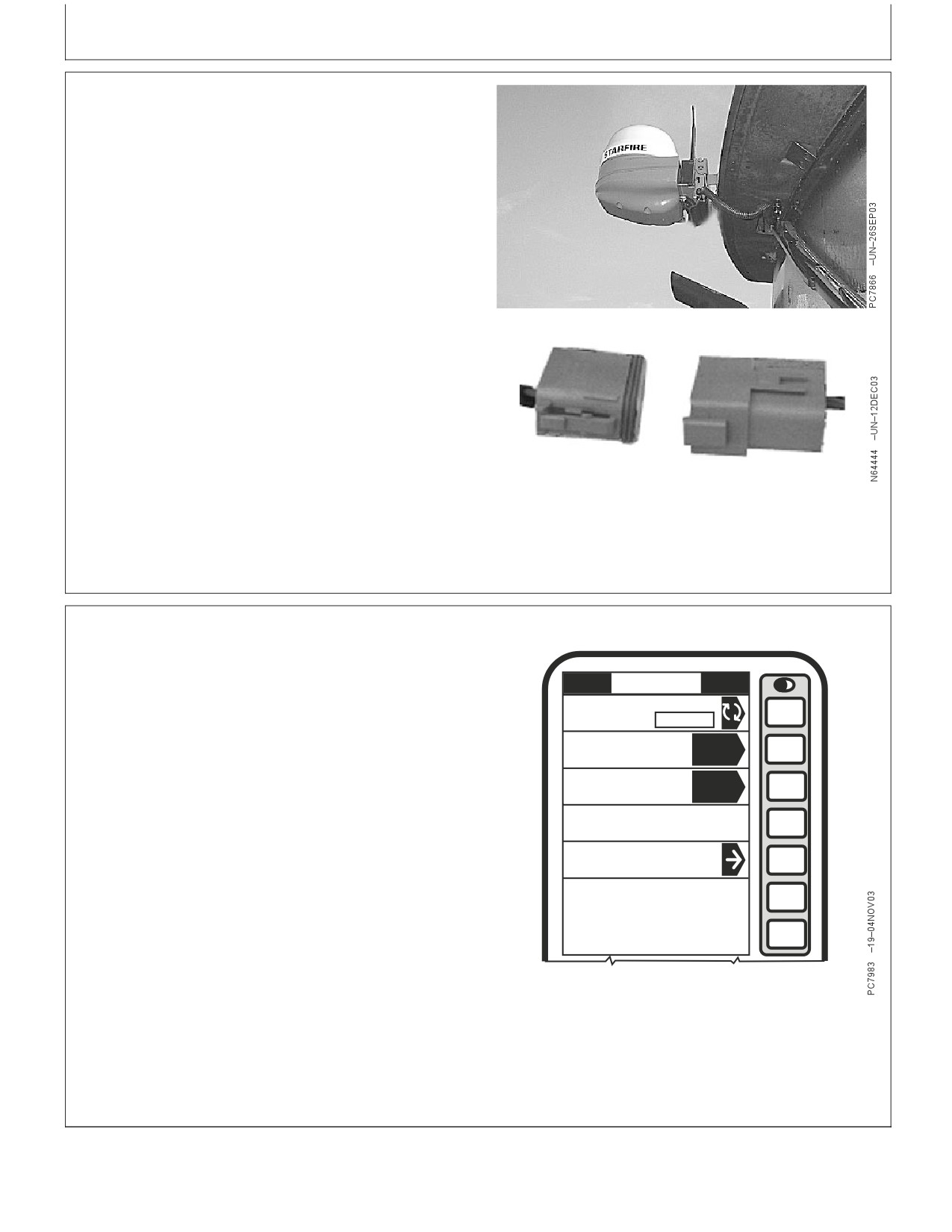

21. Attach extension (A) and antenna (B) to radio (C).
A—Extension
B—Antenna
C—Radio
With TCM
OUO6050,0000501
-19-16DEC03-11/11
PC20235 (18DEC03)
8
Installation Instructions
121803
PN=10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
Vehicle
1. Attach radio to receiver. (See RADIO INSTALLATION
section.)
2. Attach bracket on receiver to bracket on vehicle.
3. Connect STARFIRE harness to GREENSTAR
harness.
4. Calibrate TCM. See AutoTrac Operator’s manual.
GREENSTAR is a trademark of Deere & Company
OUO6050,00004F6
-19-03DEC03-1/2
5. Enter RTK activation. See RTK Operator’s manual.
JOHN DEERE
6. Go to SETUP/STARFIRE/PAGE3.
SETUP
GPS
PAGE 3
RTK Operating Mode
• Set RTK Operating Mode to VEHICLE.
A
VEHICLE
• Set RTK Network ID to match Base Station Network
ID.
RTK Radio
1
B
Channel (1-14)
• Set RTK Radio Channel to match Base Station
RTK Network ID
Radio Channel.
(1-4000)
1
C
D
Configure
E
Repeater Radio
F
G
OUO6050,00004F6
-19-03DEC03-2/2
PC20235 (18DEC03)
9
Installation Instructions
121803
PN=11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
Absolute (24 Hour Survey) Base Station
CAUTION: Mounting location should be fixed
firmly so movement of receiver is not possible.
If base station receiver is allowed to move it will
result in warnings and could result in vehicle
movement. Mounting receiver on tall towers or
grain legs, which can shift in wind, is not
recommended. Radio and antenna assembly
can be mounted in a higher location with
optional harness (PF80652) to improve radio
line of sight but receiver should be positioned
so that it will not move. Mount a receiver close
to a metal building can cause GPS interference.
If GPS can not be acquired after installation
change location or increase height of receiver.

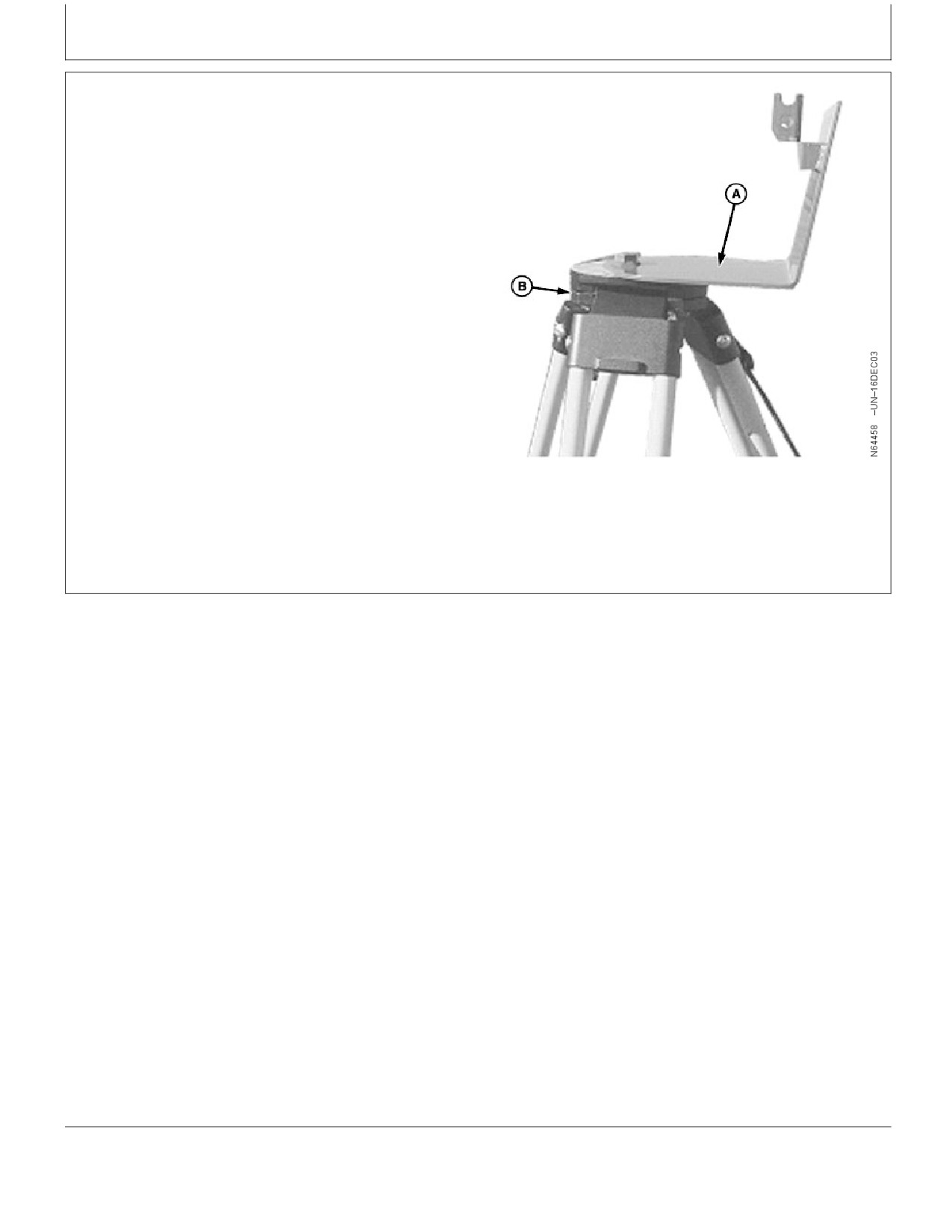

A—Universal Bracket
B—Receiver Quick Coupler
1. Attach radio to receiver. (See RADIO INSTALLATION
section.)
2. Attach universal bracket (A) to mounting location.
3. Attach receiver quick coupler (B) to universal mounting
bracket.
Continued on next page
OUO6050,00004FA
-19-10DEC03-1/3
PC20235 (18DEC03)
10
Installation Instructions
121803
PN=12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

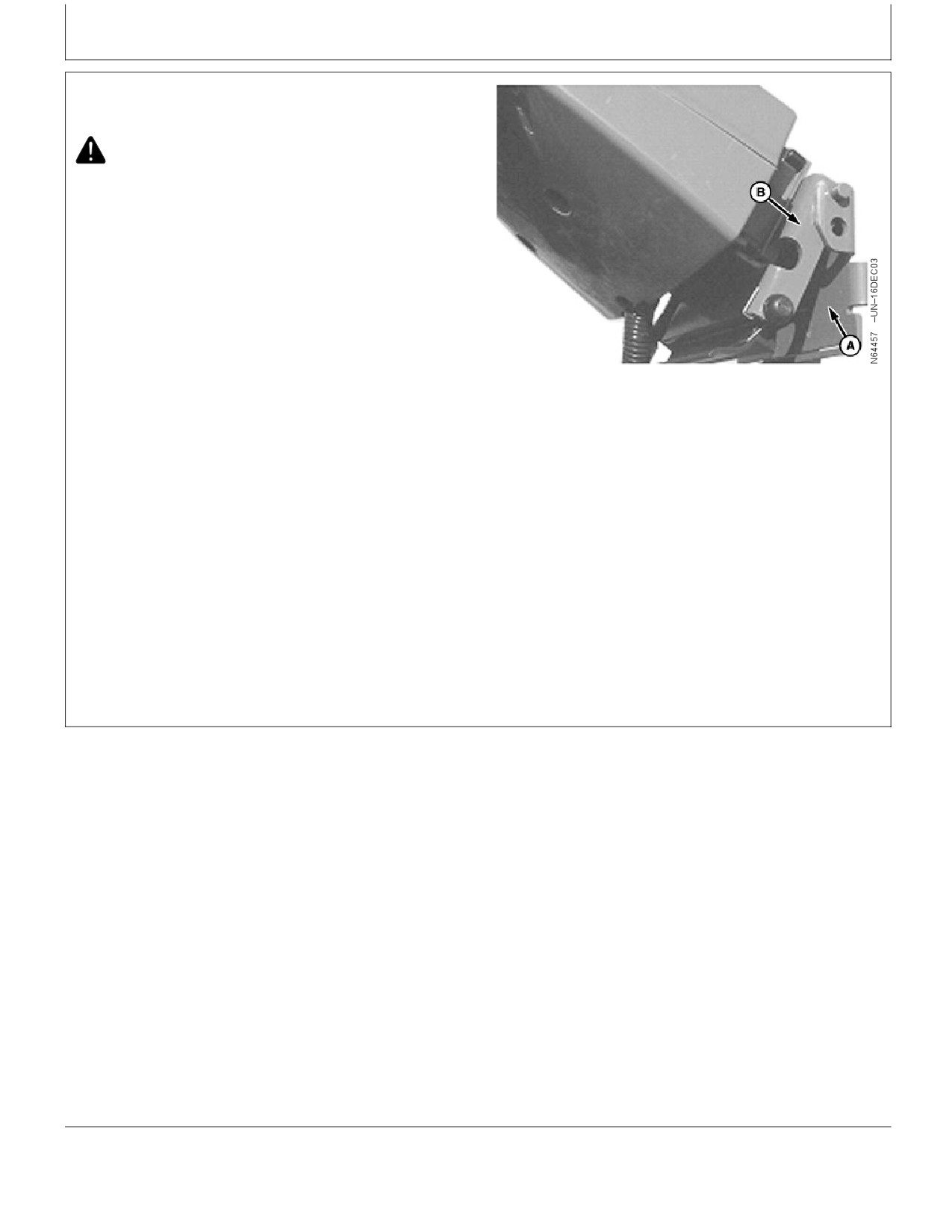

CAUTION: Always attach harness to power
source before connecting STARFIRE receiver
harness. Make sure power inverter has a
minimum capacity of 3 amps. A smaller inverter
could overheat or cause operational problems.
If a battery is used, it is recommended to
permanently attach eyelet terminals to 12V
battery. Use of alligator type clips is not
recommended as they can expose operators to
sparks.
4. Connect receiver harness to power harness.
5. Connect power harness to power inverter or battery.
6. Use enclosed VELCRO straps to secure harness.
7. Attach GREENSTAR display to harness.
8. Power system.
VELCRO is a trademark of Velcro Industries B.V.
OUO6050,00004FA
-19-10DEC03-2/3
9. Enter RTK activation. See RTK Operator’s manual.
JOHN DEERE
SETUP
GPS
PAGE 3
10. Go to SETUP/STARFIRE/PAGE3.
RTK Operating Mode
A
ABSOLUTE BASE
• Set RTK Operating Mode to ABSOLUTE BASE.
RTK Radio
• Set RTK Network ID to match Vehicle Network ID.
1
B
Channel (1-14)
• Set RTK Radio Channel to match Vehicle Radio
RTK Network ID
Channel.
1
C
(1-4000)
Configure
IMPORTANT: Base station coordinates are stored in
D
Repeater Radio
receiver. If receiver is changed these
Edit Stored RTK Base
values can be entered into display for
E
Locations (1-20)
new receiver if operator does not want
to perform another 24 hour survey.
F
11. Record base station location ID and coordinates.
G
OUO6050,00004FA
-19-10DEC03-3/3
PC20235 (18DEC03)
11
Installation Instructions
121803
PN=13

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions

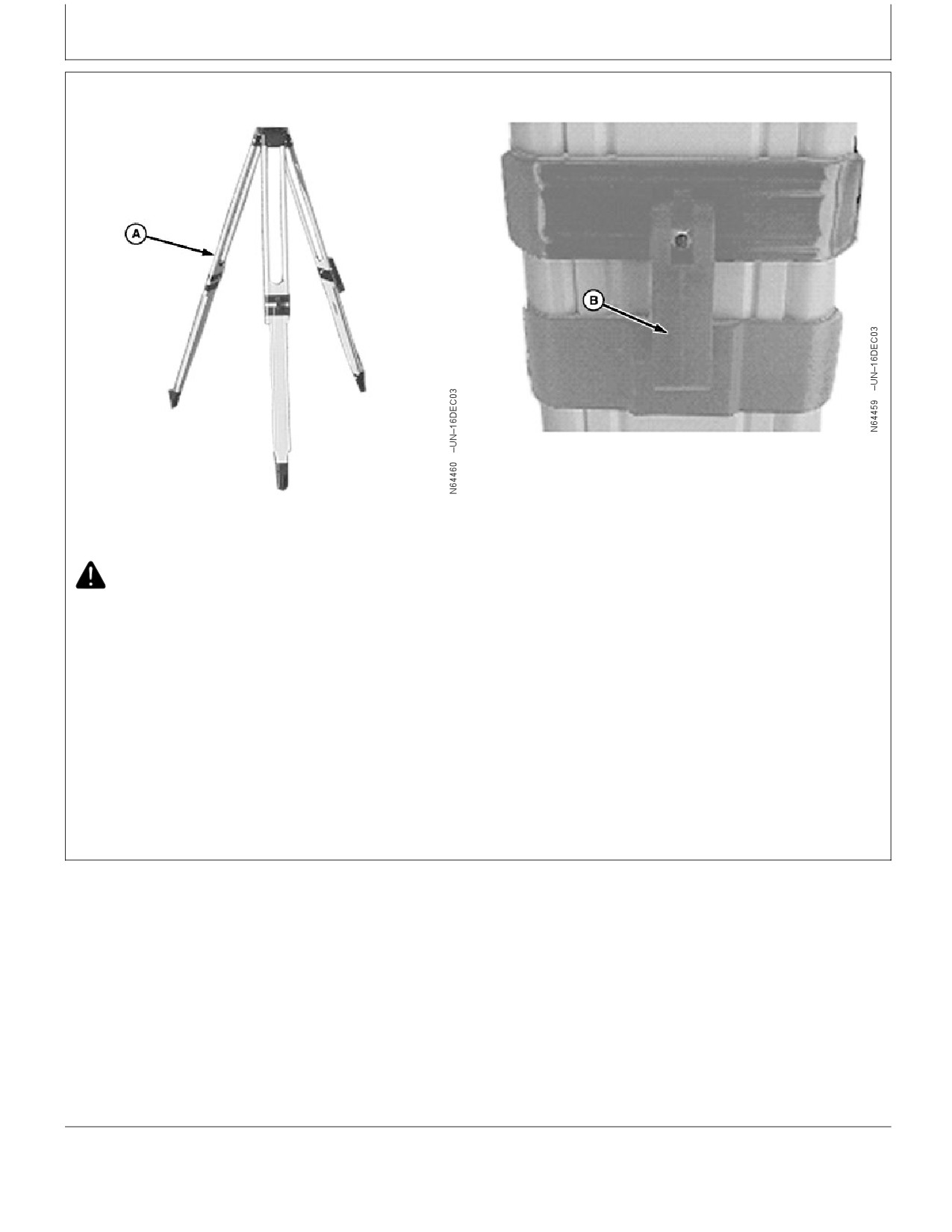

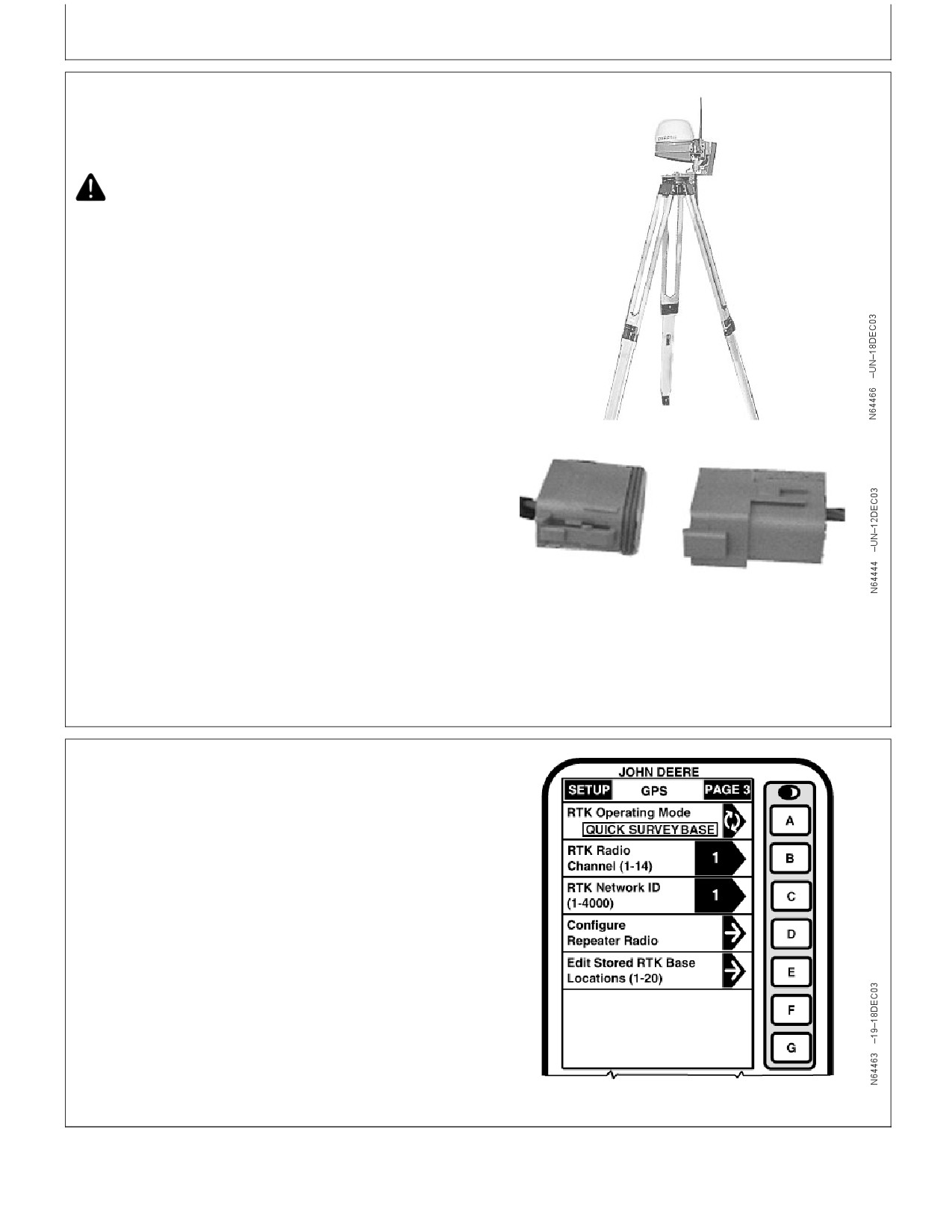

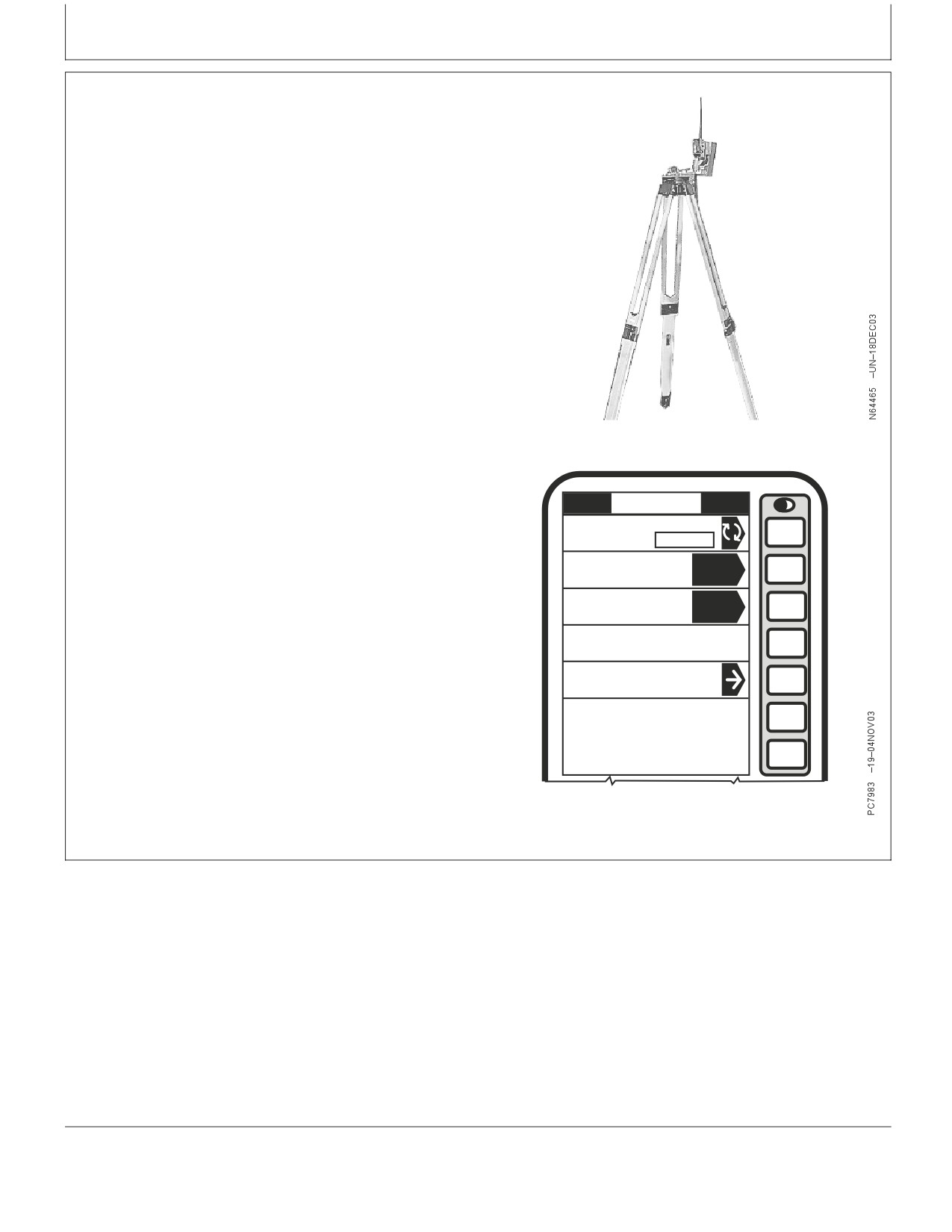

Quick Survey Base Station
A—Tripod
B—Latch
2. Position tripod (A) ensuring lever (B) is pushed
CAUTION: If tripod latches are loose, tighten
down to fully lock each leg.
hardware to ensure positive locking of tripod
legs. Movement of tripod can cause
unexpected vehicle motion.
1. Attach radio to receiver. (See RADIO
INSTALLATION section.)
Continued on next page
OUO6050,00004FB
-19-10DEC03-1/4
PC20235 (18DEC03)
12
Installation Instructions
121803
PN=14

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
3. Attach bracket (A) to tripod (B).
A—Bracket
B—Tripod
Continued on next page
OUO6050,00004FB
-19-10DEC03-2/4
PC20235 (18DEC03)
13
Installation Instructions
121803
PN=15

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
4. Attach receiver to bracket.
5. Connect STARFIRE harness to power harness.
CAUTION: Always attach harness to power
source before connecting STARFIRE receiver
harness. It is recommended to permanently
attach eyelet terminals to 12V battery. Use of
alligator type clips is not recommended as they
can expose operators to sparks.
6. Install battery harness to battery.
7. Attach GREENSTAR Display to harness.
8. Connect power harness to battery harness.
9. Use enclosed VELCRO straps to secure harness.
OUO6050,00004FB
-19-10DEC03-3/4
10. Go to SETUP/STARFIRE/PAGE3.
• Set RTK Operating Mode to QUICK SURVEY
BASE.
• Set RTK Network ID to match Vehicle Network ID.
NOTE: In QUICK SURVEY mode, base station
STARFIRE will automatically perform quick survey
and send differential corrections to RTK vehicle.
OUO6050,00004FB
-19-10DEC03-4/4
PC20235 (18DEC03)
14
Installation Instructions
121803
PN=16

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Installation Instructions
Repeater
1. Go to either RTK vehicle or base station.
2. Program Network ID and Radio channel as shown
above.
3. Disconnect radio on vehicle (or base station).
4. Connect repeater radio.
5. Go to SETUP/STARFIRE/PAGE 3.
6. Press button next to “Configure Repeater Radio”.
7. Wait for radio to configure.
8. Disconnect repeater radio.
9. Reconnect radio on vehicle (or base station).
JOHN DEERE
10. Attach repeater to mounting location.
SETUP
GPS
PAGE 3
11. Connect repeater harness to repeater radio.
RTK Operating Mode
A
VEHICLE
12. Connect to battery.
RTK Radio
1
B
Channel (1-14)
RTK Network ID
13. Use enclosed VELCRO straps to secure harness.
(1-4000)
1
C
D
Configure
E
Repeater Radio
F
G
OUO6050,00004FC
-19-10DEC03-1/1
PC20235 (18DEC03)
15
Installation Instructions
121803
PN=17



















///////////////////////////////////////
